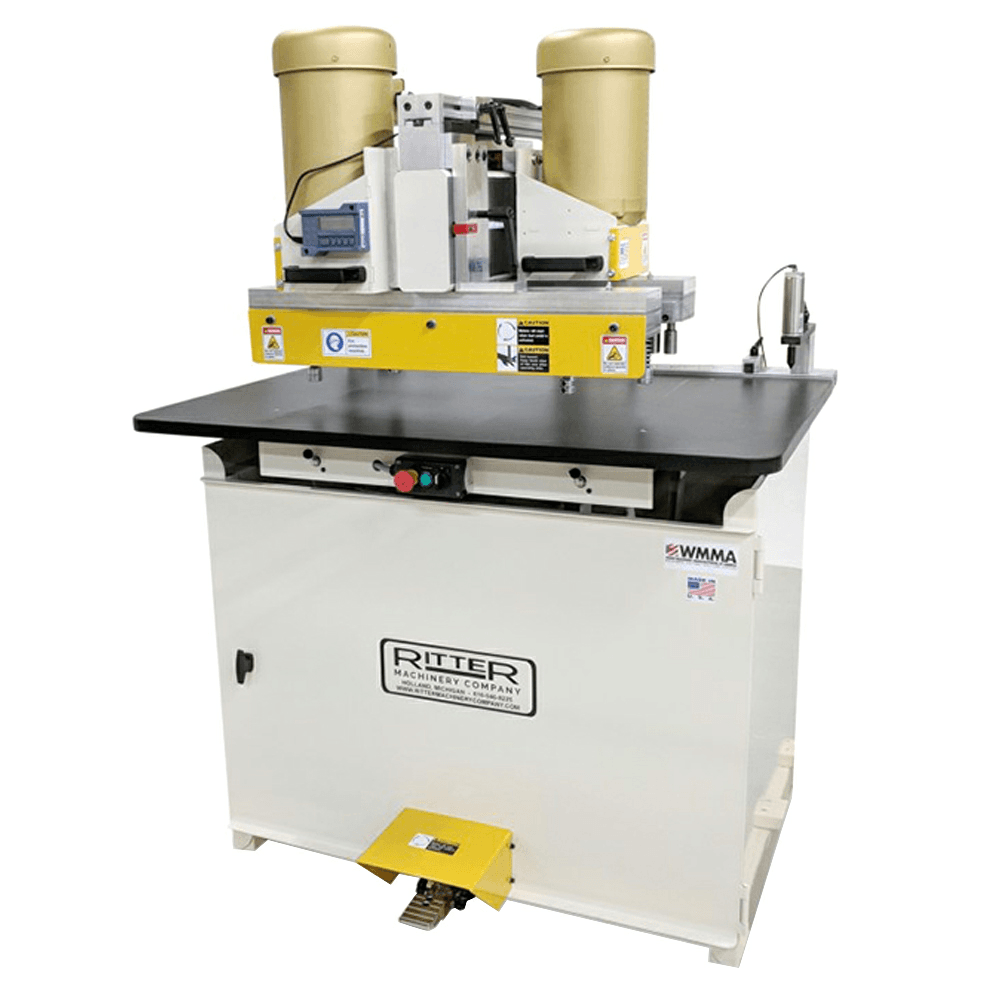

Ritter 46 Spindle Double Row System Drill - 4"- 24" Centers
Item # RITR46
•Mfr # R46
$22190.00
/Each
Freight: $1,400.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
Features:
• (2) 3 HP spindle drive motors, TEFC
• (2) 23-vertical gear driven spindle rows
• 32mm spindle centers
• 10mm bored collets
• (24) right hand, (22) left hand
• 4" - 24" centers between rows
• Digital readout front head position display
• Precision linear head ways
• (3) quick set drill head position stops
• Rear drill row nesting
• 48" back fence with (2) stops
• (2) air index pins
• (2) position drill depth stop turret
• 30" x 48" work table surface
• Wired 3-phase 240/480V, 60 Hz
• Foot actuated boring cycle
• Tooling not included
• Crated dimensions: 54" x 54" x 76" and 1341lb
Includes:
• H259 digital rear head location display
• H906 quick change drill chucks
• U4662 additional fence stops
• U4680 air/oil table feed
• (2) 3 HP spindle drive motors, TEFC
• (2) 23-vertical gear driven spindle rows
• 32mm spindle centers
• 10mm bored collets
• (24) right hand, (22) left hand
• 4" - 24" centers between rows
• Digital readout front head position display
• Precision linear head ways
• (3) quick set drill head position stops
• Rear drill row nesting
• 48" back fence with (2) stops
• (2) air index pins
• (2) position drill depth stop turret
• 30" x 48" work table surface
• Wired 3-phase 240/480V, 60 Hz
• Foot actuated boring cycle
• Tooling not included
• Crated dimensions: 54" x 54" x 76" and 1341lb
Includes:
• H259 digital rear head location display
• H906 quick change drill chucks
• U4662 additional fence stops
• U4680 air/oil table feed
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | Double Row System Drill |
| Power | 220V/440V |
| Frequency | 60Hz |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | |
| Height | |
| Drive Motor | |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | 3HP |
| Phase | 3 |
| Range of Speeds | |
| Length | |
| Voltage | |
| Backing Material | |
| Material | |
| Recovery Time |
