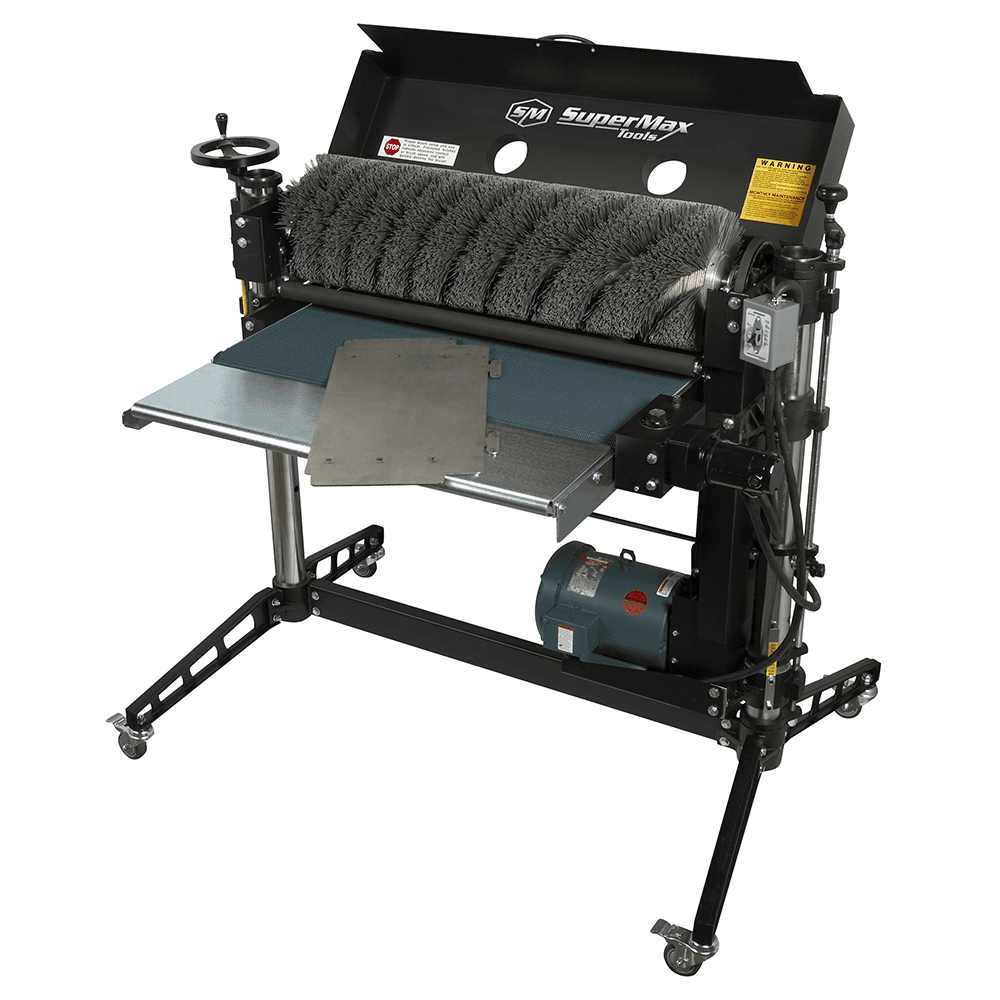

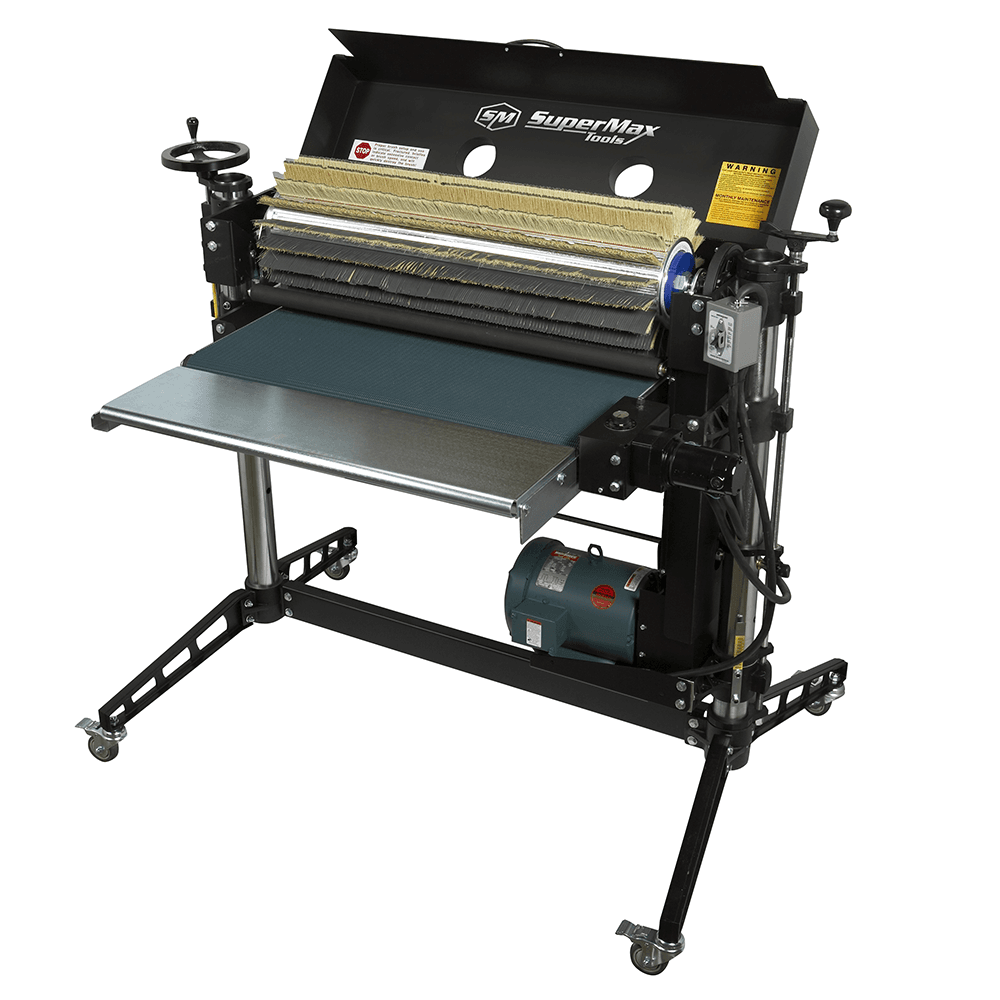

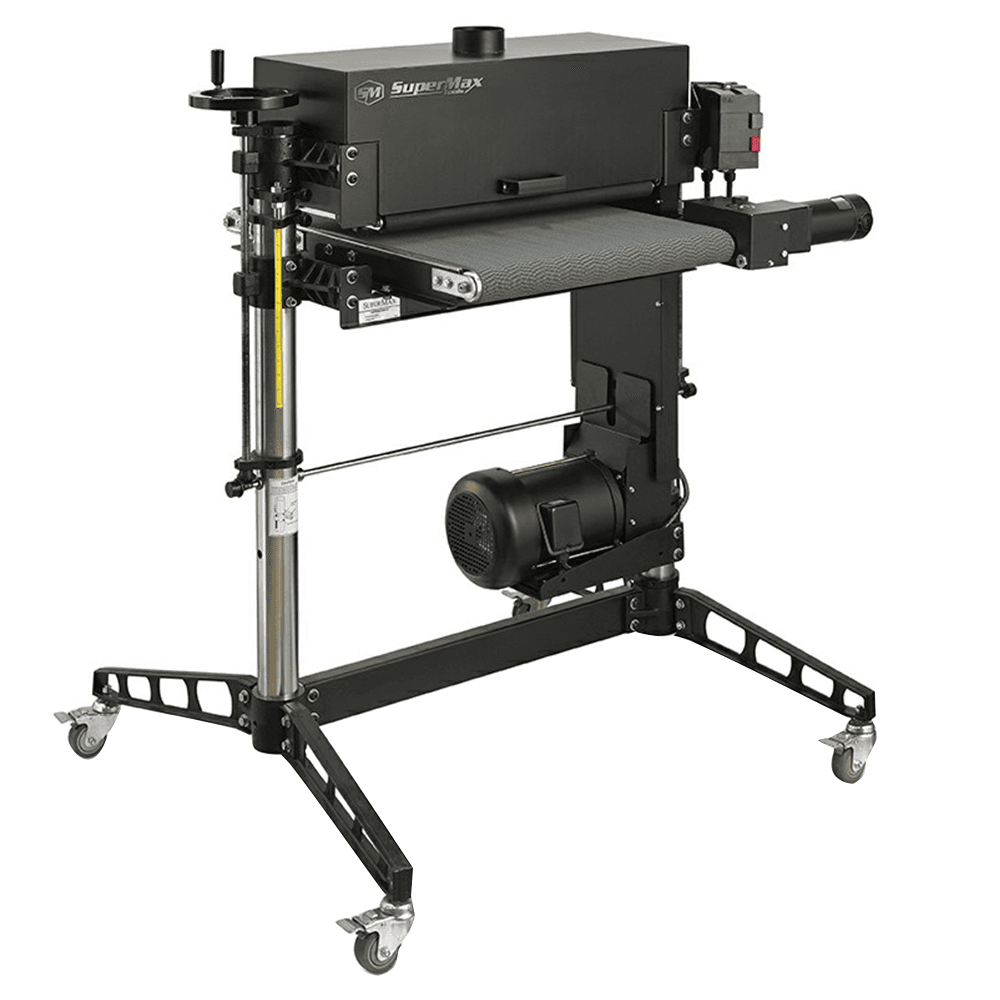

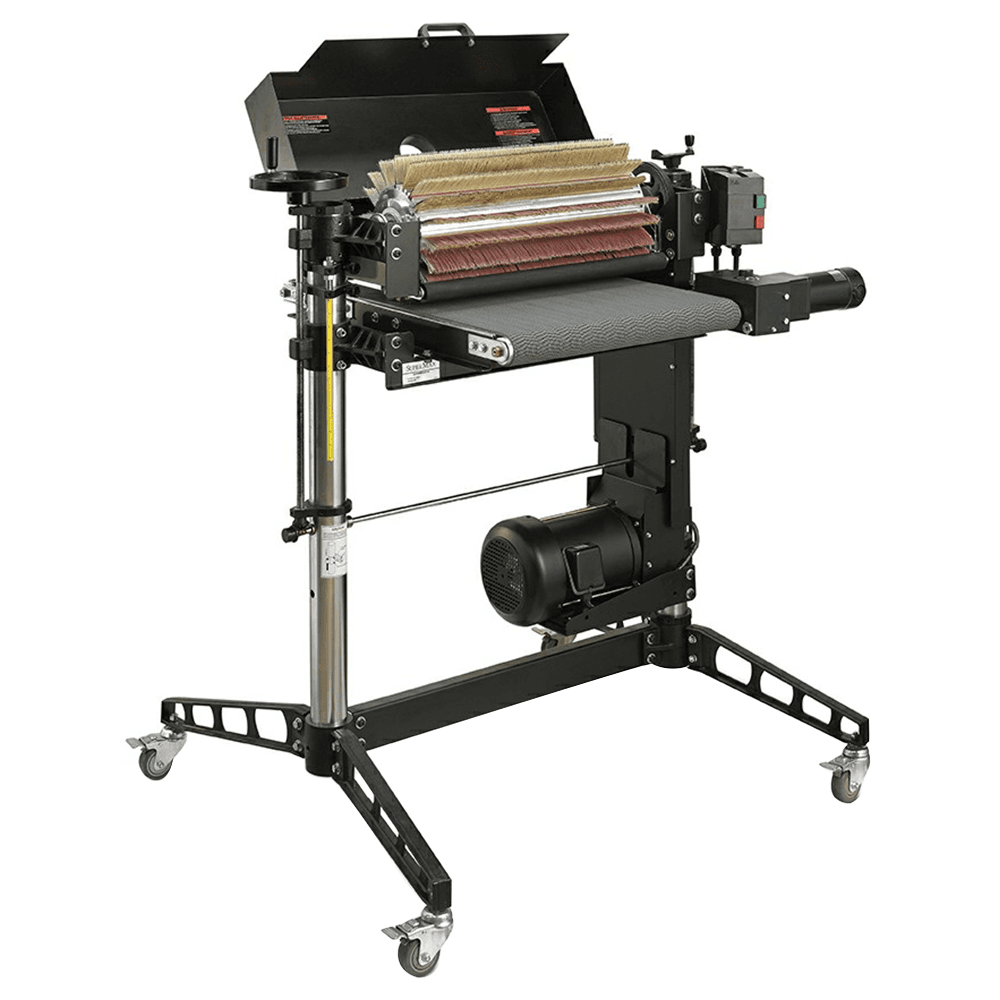

SUPERBRUSH 36 220V, 1PH 5HP
Item # SM91367
•Mfr # SUPMX-91367
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
SuperMax Tools offers a wide variety of SuperBrush sanders to meet the many needs of any fabrication shop. Our goal is to provide an excellent priced machine yielding an incredible return on investment by creating faster output, reduced rework, and greater product consistency.
Features:
• Infinitely variable brush speed and conveyor feed rate allows for a wide variety of finishes
• Quickly change brush heads or abrasive loadings
• Fully adjustable tension rollers prevent stock slippage
• Reinforced steel conveyor bed with a poly conveyor belt
• Precision height adjustment
• Bristle Contact Gauge included
Benefits:
The SuperBrush has these great benefits over hand finishing:
• Faster output
• Reduce rework
• Greater surface consistency
Applications:

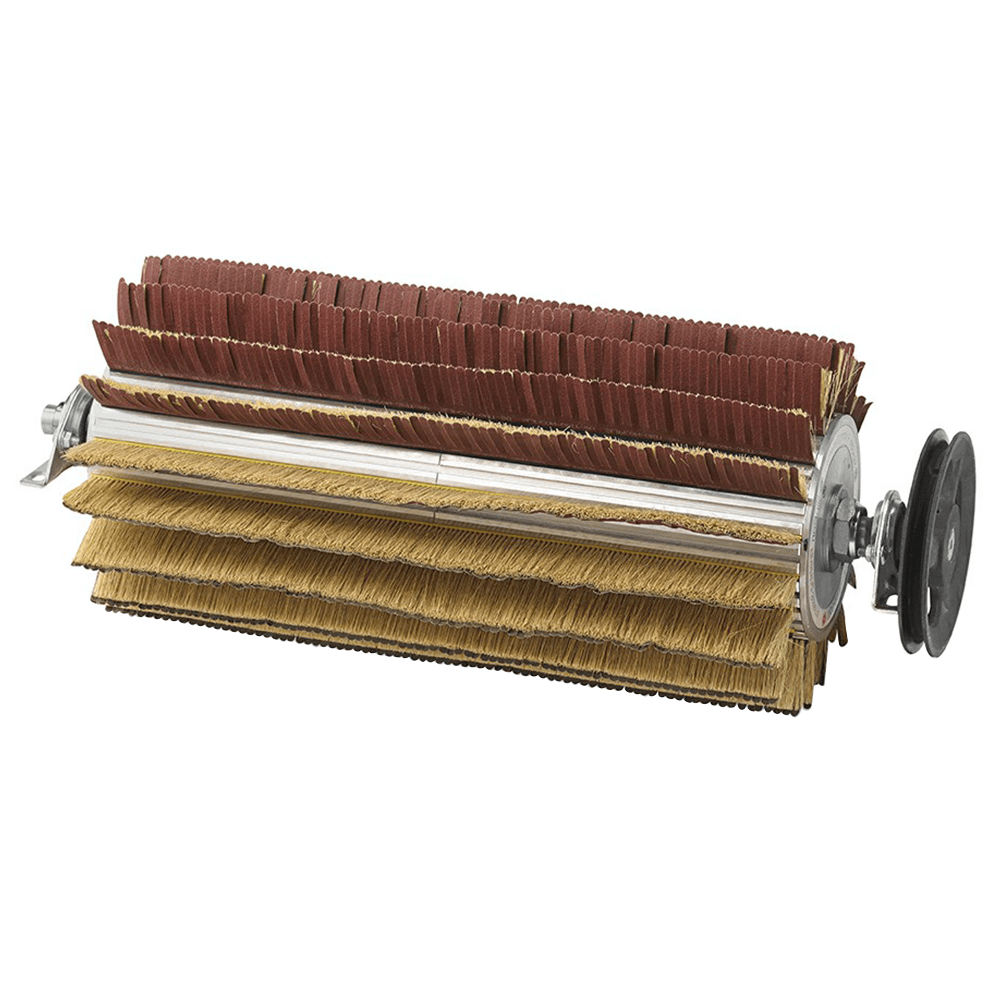

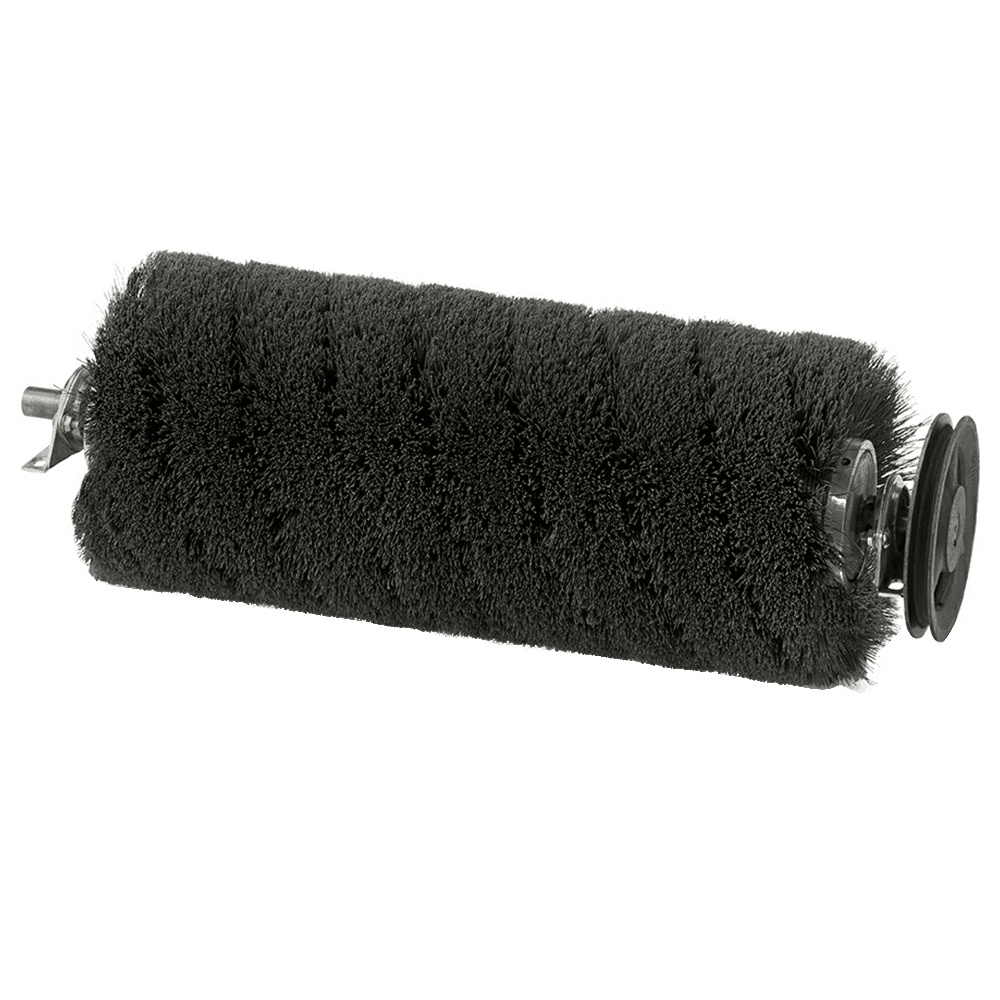

• Dozens of brush heads available to effectively sand a wide variety of applications
• Scuff sanding, primer sanding, base coat sanding
• Straight-lining, graining, decorative finishing
• Deburring
• Radius edges
• Polishing, buffing
• Cleaning, oxidation removal
Machine Specs:
Maximum Width: 36"
Minimum Length: 10"
Maximum Thickness: 11", varies with brush style
Minimum Thickness: 1/32", varies by application
Dimensions (HxWxD): 52" x 58" x 35"
Brush: 9" - 11" typical diameter
Typical Bristle Length: 1-1/2" - 3"
Drum Speed: 400-1200 RPM brush
Dust Hood: steel with hinged back, Three (3) 4" vacuum ports, 1800 CFM min.
Conveyor Motor: 100" -lb. torque
Drive Motor (TEFC): 5 HP
Power Requirements: 208-230V, 60HZ 1 PH
Features:
• Infinitely variable brush speed and conveyor feed rate allows for a wide variety of finishes
• Quickly change brush heads or abrasive loadings
• Fully adjustable tension rollers prevent stock slippage
• Reinforced steel conveyor bed with a poly conveyor belt
• Precision height adjustment
• Bristle Contact Gauge included
Benefits:
The SuperBrush has these great benefits over hand finishing:
• Faster output
• Reduce rework
• Greater surface consistency
Applications:
• Dozens of brush heads available to effectively sand a wide variety of applications
• Scuff sanding, primer sanding, base coat sanding
• Straight-lining, graining, decorative finishing
• Deburring
• Radius edges
• Polishing, buffing
• Cleaning, oxidation removal
Machine Specs:
Maximum Width: 36"
Minimum Length: 10"
Maximum Thickness: 11", varies with brush style
Minimum Thickness: 1/32", varies by application
Dimensions (HxWxD): 52" x 58" x 35"
Brush: 9" - 11" typical diameter
Typical Bristle Length: 1-1/2" - 3"
Drum Speed: 400-1200 RPM brush
Dust Hood: steel with hinged back, Three (3) 4" vacuum ports, 1800 CFM min.
Conveyor Motor: 100" -lb. torque
Drive Motor (TEFC): 5 HP
Power Requirements: 208-230V, 60HZ 1 PH
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Product Type | Brush Sander |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | 36" |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | 58" |
| Height | 52" |
| Drive Motor | 7-1/2HP |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | 7-1/2HP |
| Phase | 1 |
| Range of Speeds | |
| Length | 10" |
| Voltage | 208V-230V |
| Backing Material | |
| Material | |
| Recovery Time |
