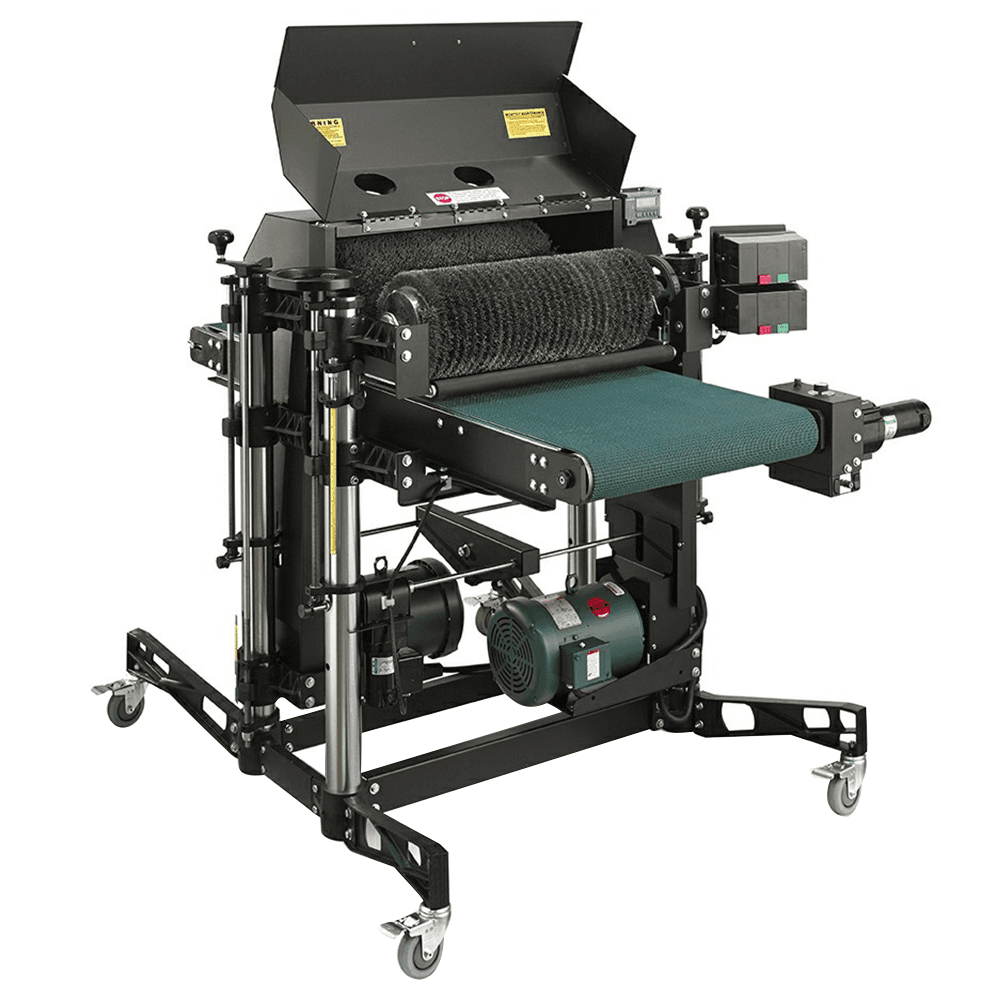

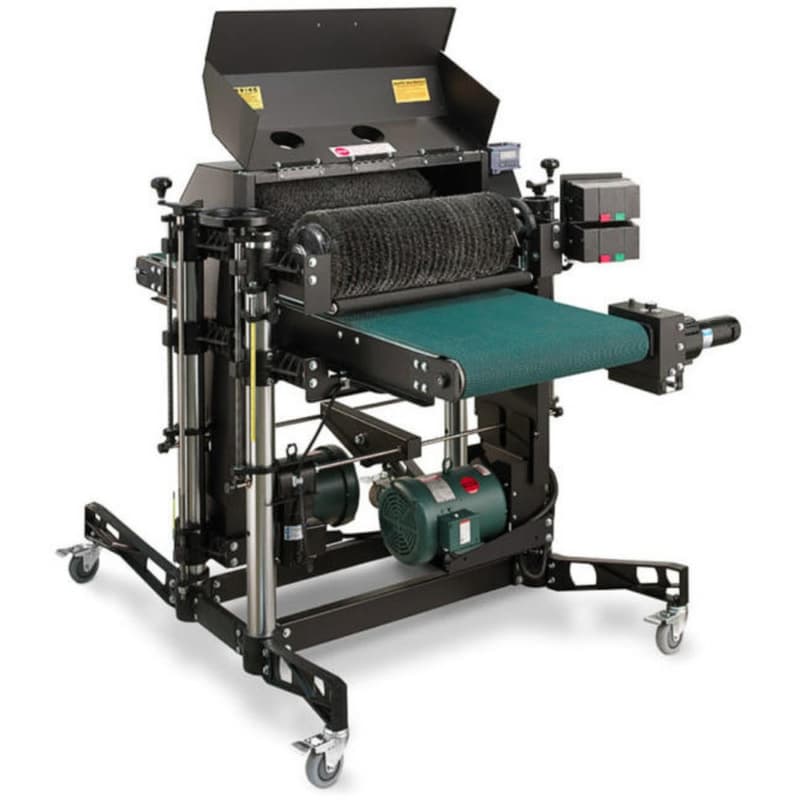

SUPERBRUSH 24X2
Item # SM932672
•Mfr # SUPMX-93267-2
$18,499.00
/Each
Freight: $199.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
SuperMax Tools offers a wide variety of SuperBrush sanders to meet the many needs of any fabrication shop. Our goal is to provide an excellent priced machine yielding an incredible return on investment by creating faster output, reduced rework, and greater product consistency.
Features:
• Brush rotation is reversible (first brush)
• RPM gauge displays brush speed, variable 400-1200 RPM
• Power and manual height adjustment, high speed and adjustable speed, controls 3/32 per turn
• Digital Read Out displays how much material is being removed per pass
• Digital Read Out displays zero when the desired thickness is reached
• Digital Read Out displays the actual thickness of the stock as it exits the sander
Applications:
• Scuff sanding, primer sanding, base coat sanding
• Straight-lining, graining, decorative finishing
• Deburring
• Radius edges
• Polishing, buffing
• Cleaning, oxidation removal
Machine Specs:
Maximum Width: 24"
Minimum Length: 11"
Maximum Thickness: 9", varies with brush style
Minimum Thickness: 1/32", varies by application
Dimensions (HxWxD): 67" x 46" x 54"

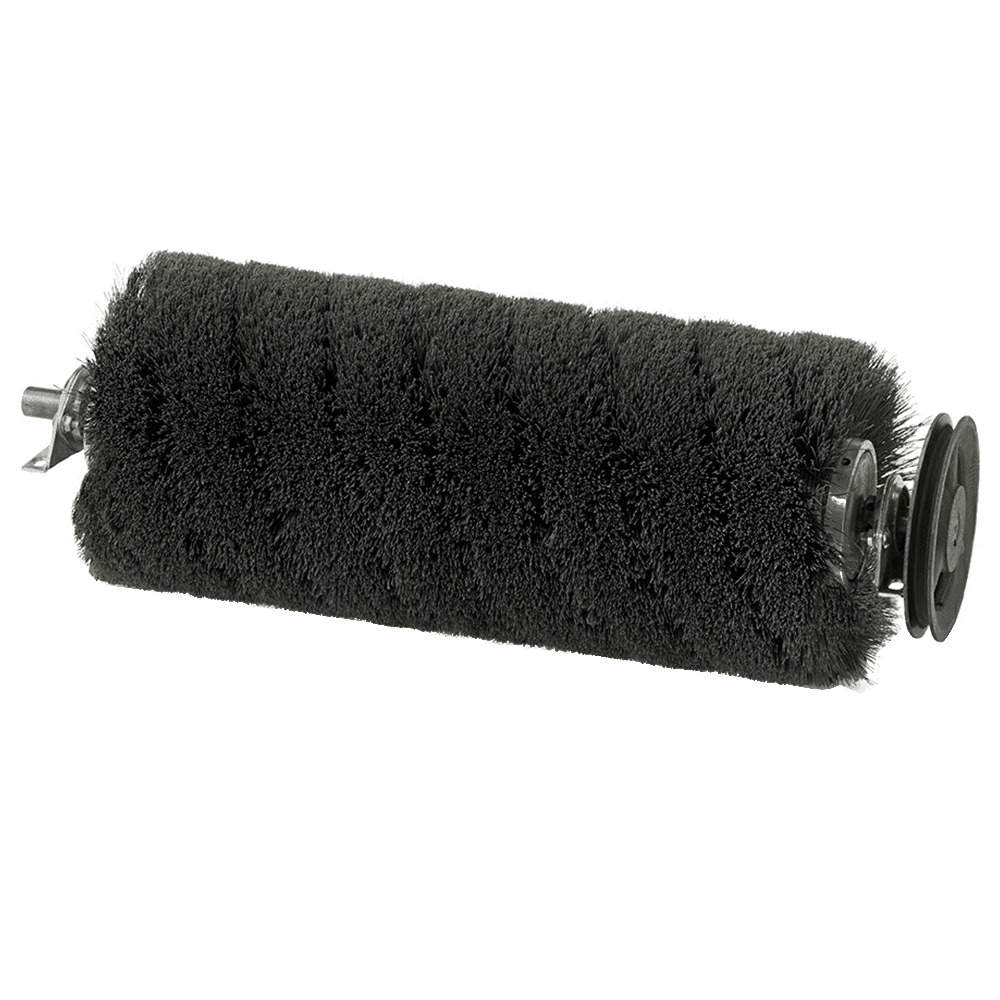

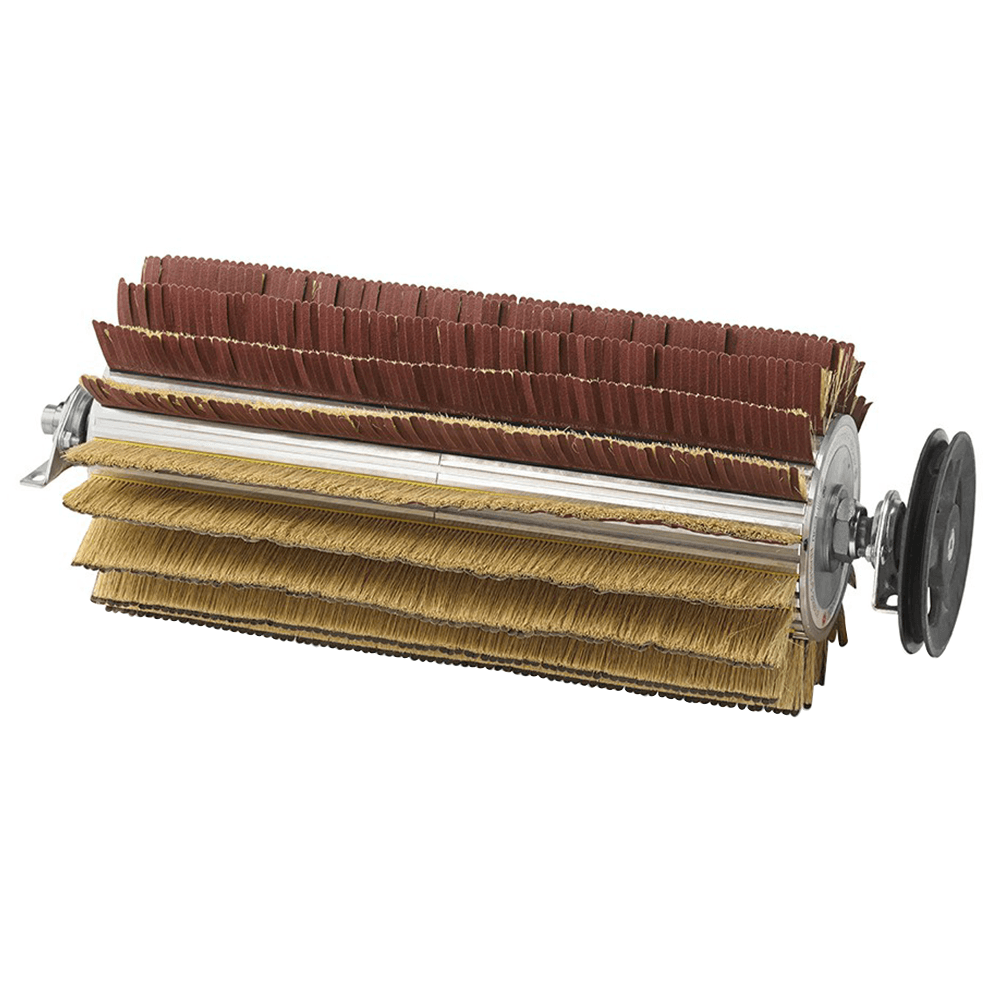

Brush: 9" - 12" typical diameter
Typical Bristle Length: 1-1/2" - 3"
Drum Speed: 400-1200 RPM brush
Dust Hood: steel with hinged back, Six (6) 4" vacuum ports, 1800 CFM min.
Conveyor Motor: 220" -lb. torque, direct drive D.C. motor, ranged variable 0-30 FPM
Drive Motor (TEFC): 7-1/2 HP
Power Requirements: 208-230V, 60HZ, 3 Ph, 20 amp service (2)
Features:
• Brush rotation is reversible (first brush)
• RPM gauge displays brush speed, variable 400-1200 RPM
• Power and manual height adjustment, high speed and adjustable speed, controls 3/32 per turn
• Digital Read Out displays how much material is being removed per pass
• Digital Read Out displays zero when the desired thickness is reached
• Digital Read Out displays the actual thickness of the stock as it exits the sander
Applications:
• Scuff sanding, primer sanding, base coat sanding
• Straight-lining, graining, decorative finishing
• Deburring
• Radius edges
• Polishing, buffing
• Cleaning, oxidation removal
Machine Specs:
Maximum Width: 24"
Minimum Length: 11"
Maximum Thickness: 9", varies with brush style
Minimum Thickness: 1/32", varies by application
Dimensions (HxWxD): 67" x 46" x 54"
Brush: 9" - 12" typical diameter
Typical Bristle Length: 1-1/2" - 3"
Drum Speed: 400-1200 RPM brush
Dust Hood: steel with hinged back, Six (6) 4" vacuum ports, 1800 CFM min.
Conveyor Motor: 220" -lb. torque, direct drive D.C. motor, ranged variable 0-30 FPM
Drive Motor (TEFC): 7-1/2 HP
Power Requirements: 208-230V, 60HZ, 3 Ph, 20 amp service (2)
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | Brush Sander |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | 24" |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | 46" |
| Height | 67" |
| Drive Motor | 5HP |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | 5HP |
| Phase | 3 |
| Range of Speeds | |
| Length | 11" |
| Voltage | 208V-230V |
| Backing Material | |
| Material | |
| Recovery Time |
