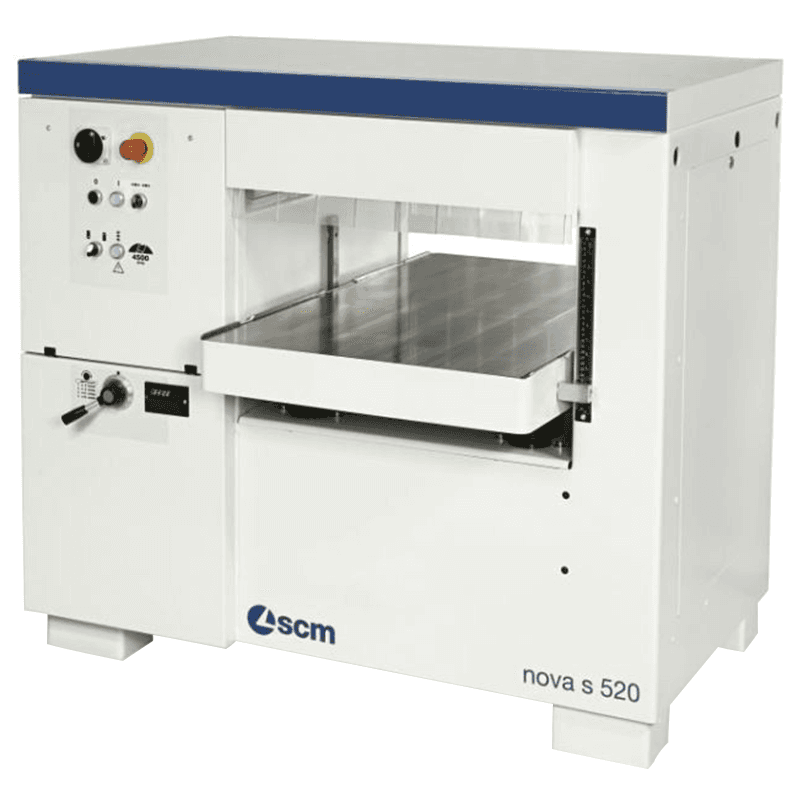

SCM 3-Phase 11Hp 20" Planer w/Xylent cutterblock Planer & 2 idle-bed rollers

Features:
• Guaranteed quality at your finger tips
• Easy and precise, practical design, a wider range of applications
• Discover the "Xylent" cutter head, available for this machine

Advantages:
• One machine for every requirement with the interchangeable rollers
• Quick and easy changeover of the rollers that allows the operator to configure the machine drive function in case of special requirements such as minimum removal of fine wood and/or batches where multiple pieces of different thicknesses are processed
• Perfect finish with the feeding rollers on connecting road
• The stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all three rollers that allows their vertical displacement by rotation and the best linear feeding
• Sturdy structure with precision when moving the work table
• The 4 screws with a large diameter combined with the 2 side linear guides ensure worktable stability eliminating the necessity of locking in position. The integrated protections guarantee high precision and reliability over time
• Exceptional finish with the "Xylent" spiral knife (3 spiral knives)
• Reduced noise during machining provides a more comfortable working environment
• It also improves the dust extraction due to the production of very small chips
• Each cutter has 4 tips which can be rotated into the cutting position when worn
• Therefore increasing the production life of the cutter block before knives require replacement

Machine Specs:
Cutter block Diameter/Standard Knives: 520mm
Cutter block Diameter: 120mm
n° of Standard Knives: 4
Dimension of Standard Knives: 35mm x 3mm x 520mm
Motor: 11HP
Maximum Stock Removal: 8mm
Thicknessing Table Dimensions: 530mm x 900mm
Feed Speed on Thicknesses: 5/8/12/18 m/min
