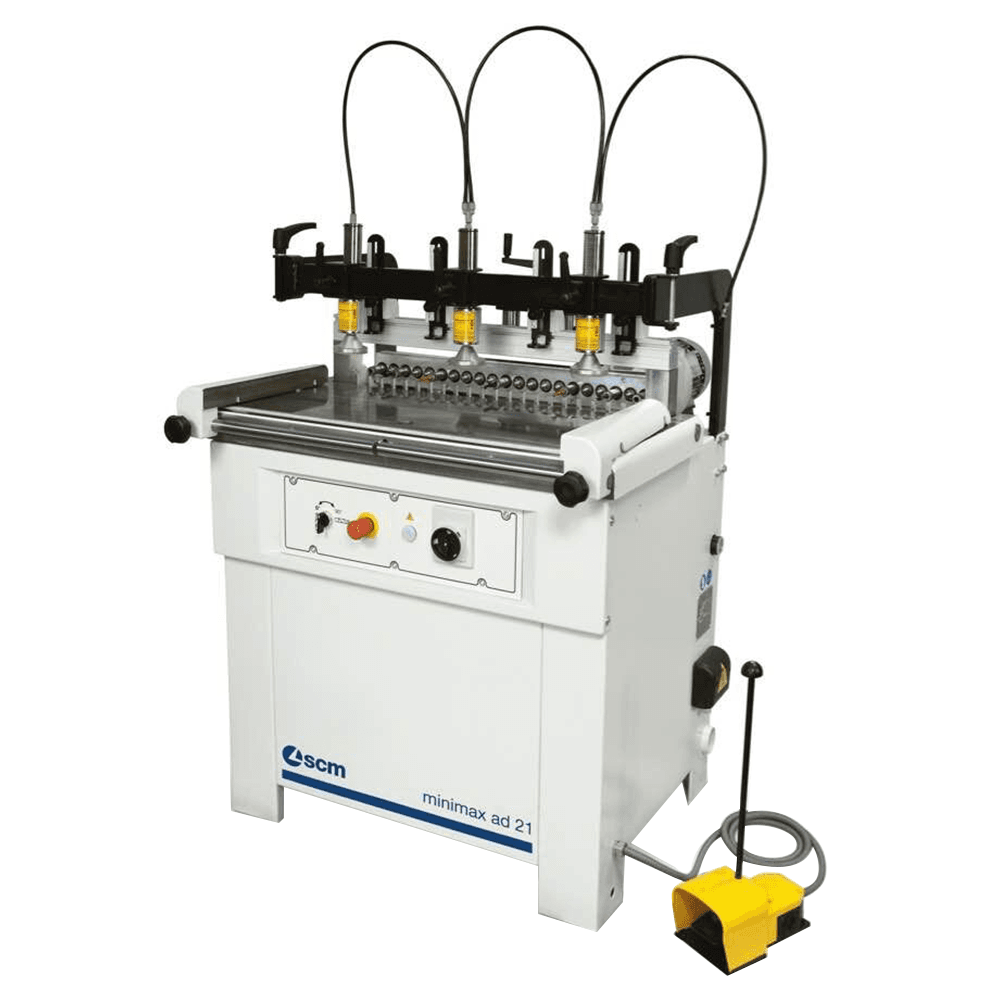

Minimax Single-Phase 21 hole construction/in-line Boring machine w/21 10mm dia. quick connect bushings

Features: • Single head multiple boring machine with 21 spindles ideal for craftsmen and professional workshop Advantages: • Drilling head made from single-piece aluminum casting, to guarantee absence of vibrations • Precise positioning mechanical gauge guarantees fast and precise positioning of the lateral fence • For increased versatility, the quick-change chucks can be fitted with various types of bits for different operations, like boring hinges location • All controls are ergonomically positioned on the front of the machine • Includes the switch which sets the boring head at a 45° angle, allowing for an immediate changeover between operation Machine Specs: Maximum panel width: 833mm Worktable dimension: 905mm x 372mm Worktable height: 900mm Maximum tool diameter: 40mm Panel height(min-max): 10mm - 85mm Spindle speed: 2800 RPM No of Spindles: 21 Spindle Spacing (center-to-center): 32mm. 230V 1PH
