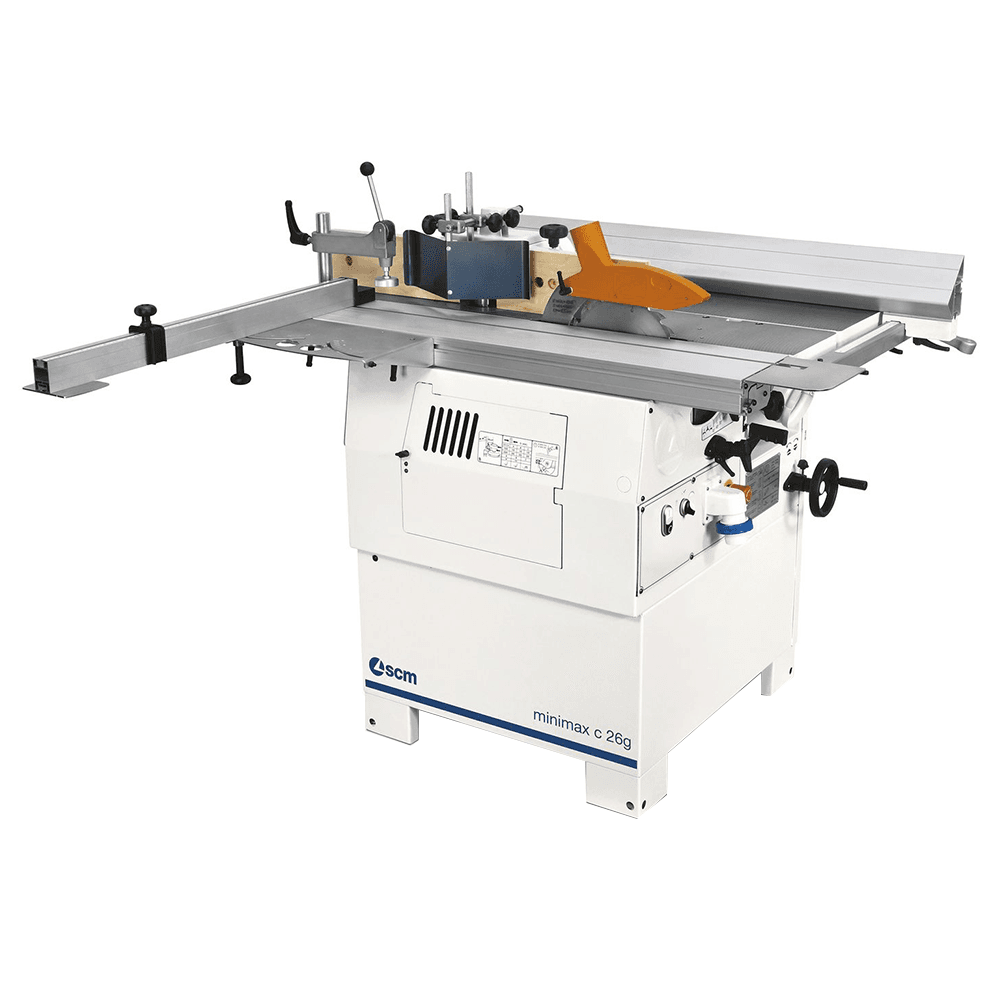

Minimax Single-phase 2.5Hp (x3) 3.5' Combination machine 10″ main blade w/10″ Tersa cutterblock, 1.25″ shaper spindle, outrigger, wheels for movement

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops The distinctive features of all our combined woodworking machines are:

Ease-Of-Use:
The system of surfacing worktable opening toward the inside of the machine guarantees an excellent ergonomics. All woodworking combined machines are equipped with anodized-extruded guides with support and rapid locking and an effective feeding system for the planer..These features make these machines easy-to-use for any type of machining.

Flexibility:
• Maximum flexibility when using the cutters, with the spindle molder unit equipped with various speeds

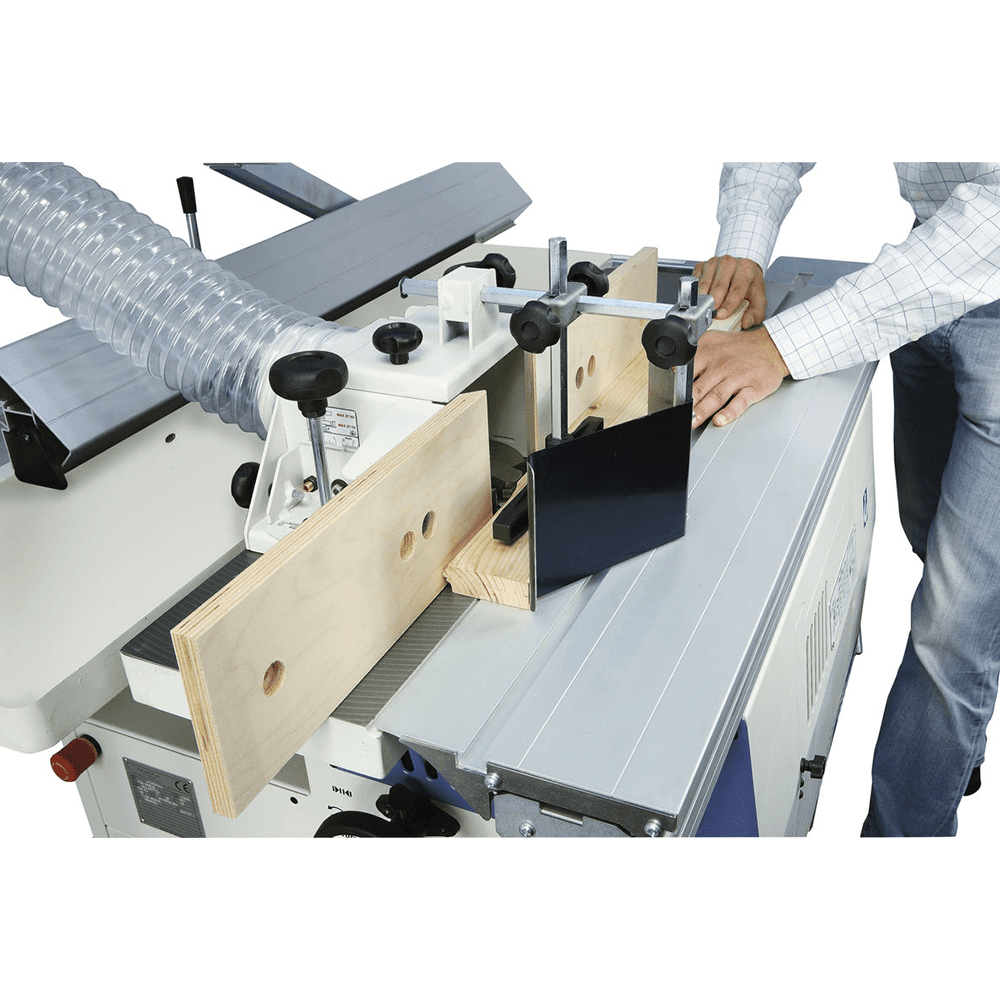

• The machines are equipped with spindle molder hood with micrometric adjustment, very useful for molding working
• The tenoning operations (option) are easy tank to the aluminum carriage and the dedicated speed.

Precision:

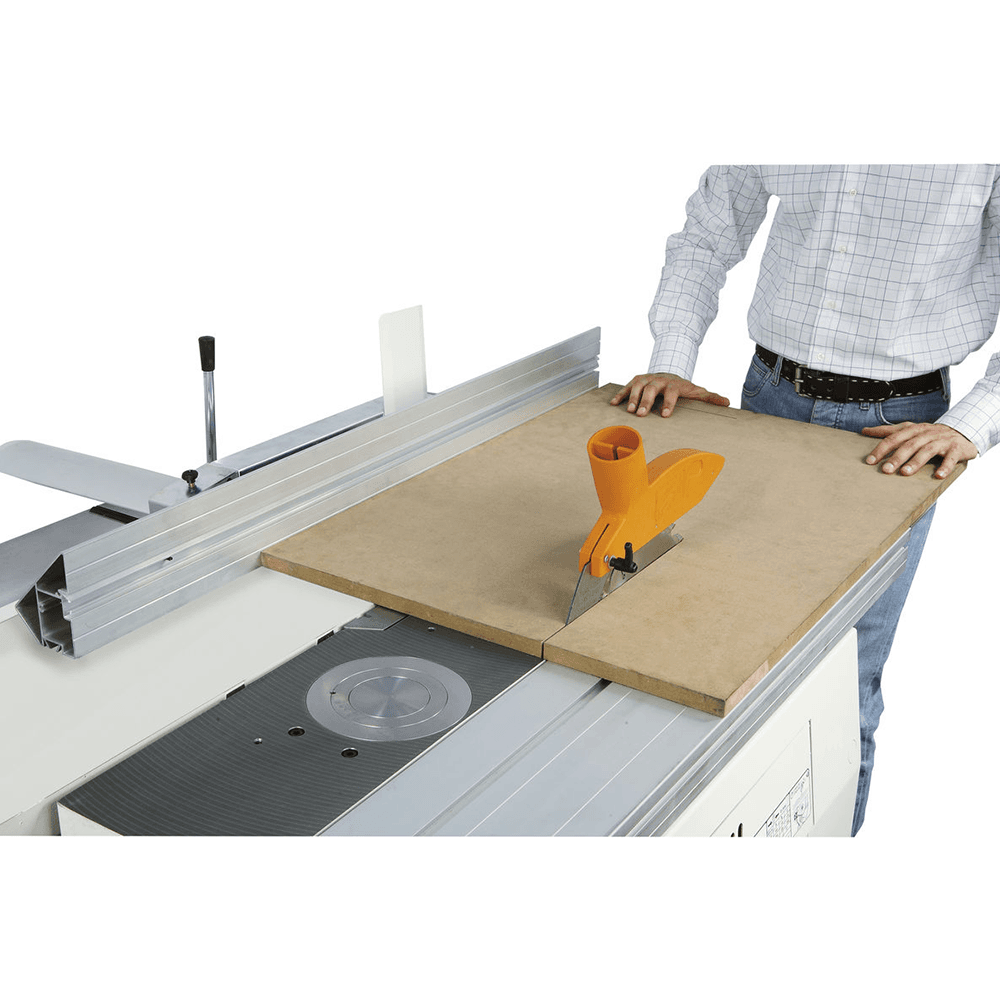

• A tilt able saw unit, with sliding of the anodized aluminum carriage next to the blade for a better cutting precision are only some of the standard equipment of the minimax woodworking combined machines
• The lifting and tilting of the unit with practical hand wheels guarantee an easy setting among different machining

Safety:
• Rich CE safety devices, like the shaft protection to carry out shaping operation and working on curved profiles
• The machining on the planer is very easy thanks to the large dimensioned surfacing tables Discover the ″Xylent″ cutter head, available for this machine.

Advantages:
• Cutting precision tilting saw unit with a 250mm blade and a maximum blade projection from table at 90° of 80mm
• Flexibility maximum flexibility in spindle molder tool use, with the unit with 2 speed (5000/7500 RPM)
• Practical and ergonomic to keep the machine compact and make machining easier, the surfacing table opens towards the inside of the machine
• CE safety genius machines have a rich equipment of CE safety, such as the spindle protection to carry out machining on curved and shaped profile.

Machine Specs:
Cutter head working width: 260mm
Jointer bed length: 1040mm
Maximum sawblade diameter:250mm
Sawblade arbor size: 16mm
Maximum sawblade projection from table at 90°/45°: 75mm/60mm
Cutting width on parallel fence (Rip capacity): 500mm
Maximum useful spindle length: 75mm
Maximum tool diameter when profiling: 160mm
Spindle molder speed: 4000/6500
RPM Motors(3x): 2.5HP
