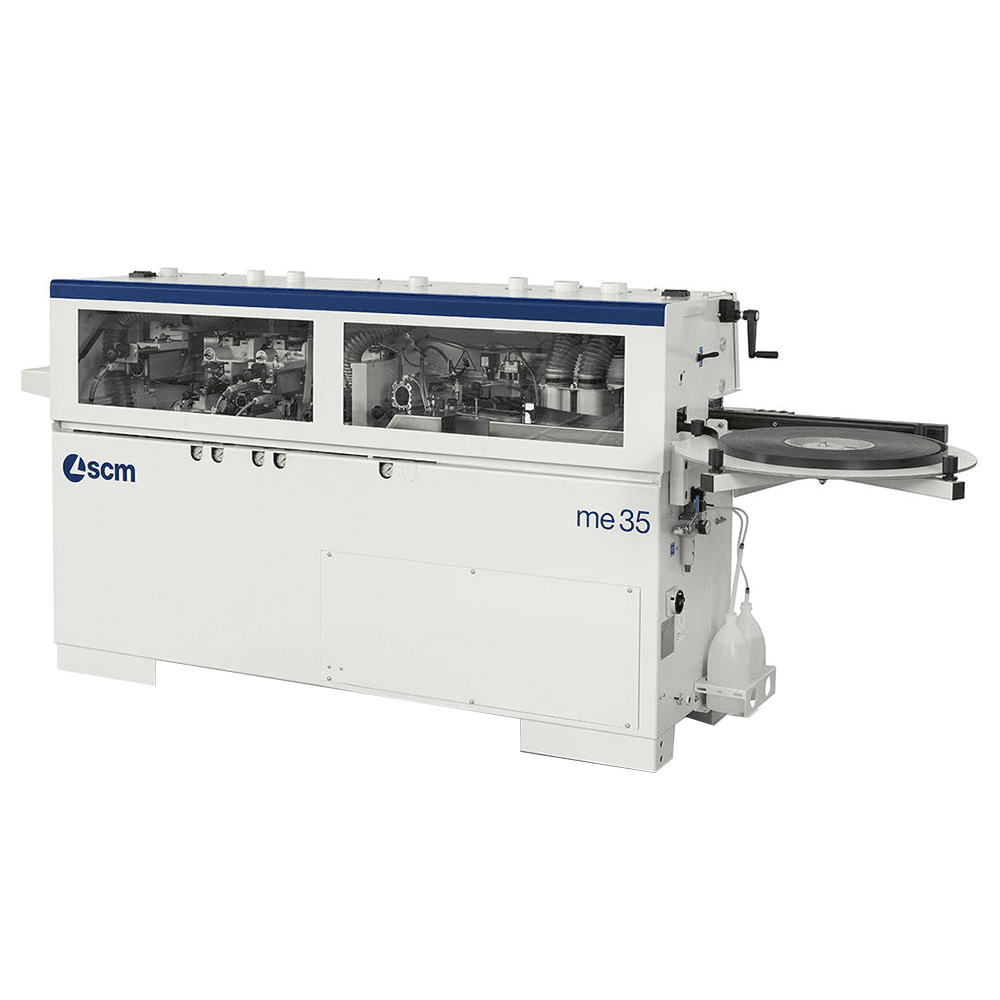

Minimax Single Sided Automatic Edgebander with Dual Diamond Pre-Mill and Radius Corner Rounding, 1 Phase

Ease-of-use with all inclusive equipment: me 35, with gluing of the panel edge, also with edging solid wood strips up to 5mm thickness, offers the "very best" performance in edge banders at this level. The features, coupled to its ease-of-use, makes it the perfect edge bander for small woodworking, furniture and panel processing companies. Further enhanced compared to its predecessor with the new end cutting-rounding unit. This new unit allows further processing, saving a substantial amount of time with an ease of processing. This technological solution is unique in its category, where such operations are normally a feature of more expensive and higher level machinery.

Features:
• Control panel and interface on machine infeed side
• Machine frame made of high rigidity ribbed steel to guarantee excellent support for the operating units
• Top thick steel pressure beam with rubber-coated wheels
• Track feed system
• Manual adjustment of top beam (panel height) with positioning of the operating units according to the selected panel thickness
• Numeric indicator of the selected panel thickness
• Specific glue smoke exhaust outlet
• Panel support roller which can be extended along the entire length of the machine
• Safety enclosure hood
• Electrical cabinet with new PLC and improved performance, 4-lines display, padlock capable main switch and overload protection push buttons

Advantages:
• Designed for a perfect finish
• End cutting-rounding unit with rigid structure for unique quality processing in its market segment
• Perfect edge cleaning
• Automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue
• Glue spreading roller with electrical resistance inside provides a uniform glue spread and always at the maximum working temperature even on panels at the maximum working height
• Optional unit allows to make a radius on the corners of the edged panel
• Types of profiles that is possible to process with this machine

Machine Specs:
Work table dimensions: 3000mm x 525mm
Thickness of rolled edges(min-max): 0.4mm - 3mm
Maximum thickness of edges in strips: 5mm
Panel height(min-max): 8mm x 50mm
Minimum panel length/width: 190mm L x 110mm W
Minimum panel length/width with end cutting/rounding unit: 120mm x 110mm
Feed speed: 7m/min
