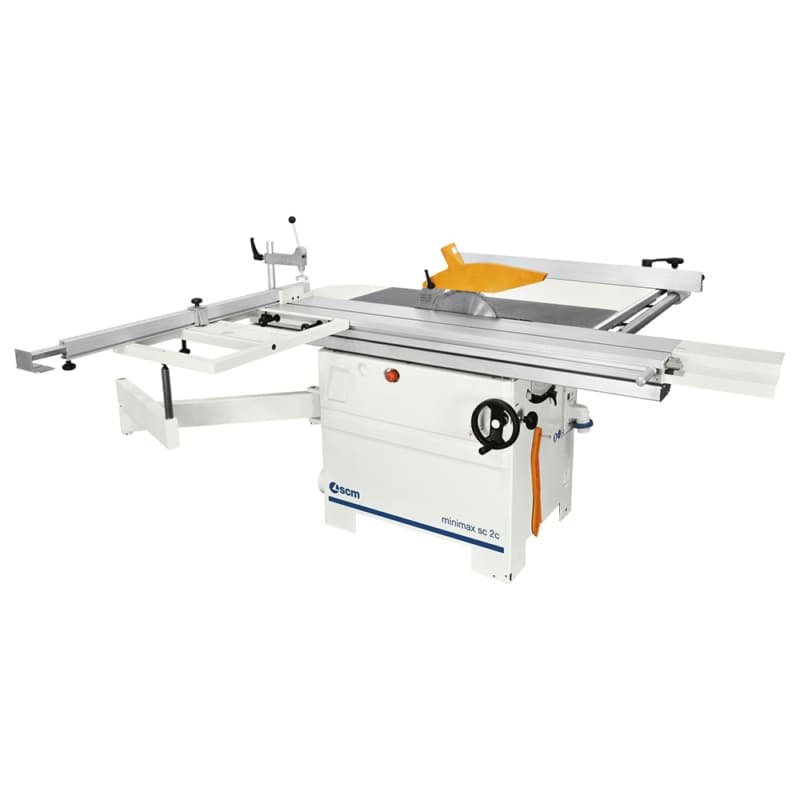

Minimax Single-Phase 3.4Hp 5.5' Manual Sliding Table Saw w/tilting 12″ main blade, belt driven scoring blade & 50″ rip capacity
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The precise, cost-effective and compact circular saw with tilting blade for the D.I.Y. woodworkers and the small joineries. A great step up from the standard American-style cabinet saw. Compact chassis, powerful 3.4hp motor, and 5.5' sliding table. Will crosscut a standard 4x8 sheet on the slider or rip it lengthwise, using the rip fence to the right of the blade. Customers have put mobility kits on these and used them as jobsite machines. A proven performer. Features: • Incredible cutting of both very thick solid wood and panels, even those veneered, to new saw unit with a blade that has a maximum diameter of 315mm with the scoring blade fitted • New scoring unit that can easily be adjusted from outside the machine, supplied on request • Easier, more precise cutting: Perfectly stable support is guaranteed, even for large workpieces, by the 270mm wide sliding table with sliding system through steel spheres on hardened and calibrated steel guideways • Perfect parallel cuts thanks to the anodized aluminum parallel fence with support, quick locking device and micrometric adjustment. Our NEW entry level sliding table saw, the minimax sc 2c is a proven design based on years of experience. It is perfect for customers upgrading to their first slider from an American table saw. The footprint is small, but the capacity is large. This slider, like all of our sliders, is standard with scoring, and can accommodate a 12″ blade. The 5.5' crosscut capacity is ideal for processing panels. Advantages: • Incredible cutting of both very thick solid wood and panels, even those veneered to new saw unit with a blade has a maximum diameter of 315mm that grants a 100mm cutting height with the scoring blade installed • New scoring unit can be supplied on request and can easily be adjusted from outside the machine • Easier and more precise cutting is possible due to a perfectly stabile support that is guaranteed, even for large work pieces, but the wide sliding table and the large squaring frame fence provided as standard • Table is made of extruded anodized aluminum with a closed honeycomb structure • The sliding table runs on an exclusive slide way system consisting of calibrated and hardened F550 SX steel guides Machine Specs: Maximum sawblade diameter: 315mm Main sawblade arbor size: 16mm Scoring blade diameter: 80mm Scoring blade arbor size: 20mm Maximum sawblade projection from table at 90°/45°: 100mm/78mm Cutting width on parallel fence (Rip capacity): 1270mm Maximum squaring stroke of sliding table saw: 1660mm Motor: 3.4HP
Specifications
| Product Type | Sliding Table Saw |
| Maximum Cutting Length | |
| Table Height | 34" |
| Height | |
| Width | |
| Number of Teeth | |
| Length | |
| Horsepower | 3.4 HP |
| Voltage | 230V |
| Blade Diameter | 12" |
| Arbor | 30mm |
| Phase | 1 |
| Maximum Tilt | |
| Table Size (In.) | |
| Table Height from Floor (In.) | |
| Style | |
| Distance Between Sliding Table and Blade (In.) | |
| Prewired Voltage (V.) | |
| Maximum Diameter of Dado (In.) | |
| Speed | |
| Maximum Rip Left of Blade (In.) | |
| Maximum Width of Dado (In.) | |
| Motor Power | |
| Saw Blade Diameter | |
| Table Type | |
| Maximum Rip Right of Blade (In.) | |
| Motor Voltage (V.) | |
| Dust Port Outside Diameter (In.) | |
| Miter Gauge Type | |
| Table Size with Full Extensions (In.) | |
| Table T-Slot (In.) | |
| Motor Phase | |
| Arbor Diameter (In.) | |
| Recommended Circuit Size (Amps.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Motor Current (Amps) | |
| Table Size with Extensions (In.) | |
| Maximum Depth of Cut at 90 Degrees (In.) | |
| Maximum Depth of Cut at 45 Degrees (In.) | |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | |
| Warranty | |
| Cutting Height | |
| Main Saw Blade Change | |
| Saw Blade Thickness | |
| Cutting Width | |
| Sliding Table Length | |
| Control | |
| Display Resolution | |
| Control Panel | |
| Cutting angle/height | |
| Cutting Width Control | |
| Extraction Connection | |
| Saw Blade Tilting Range |
