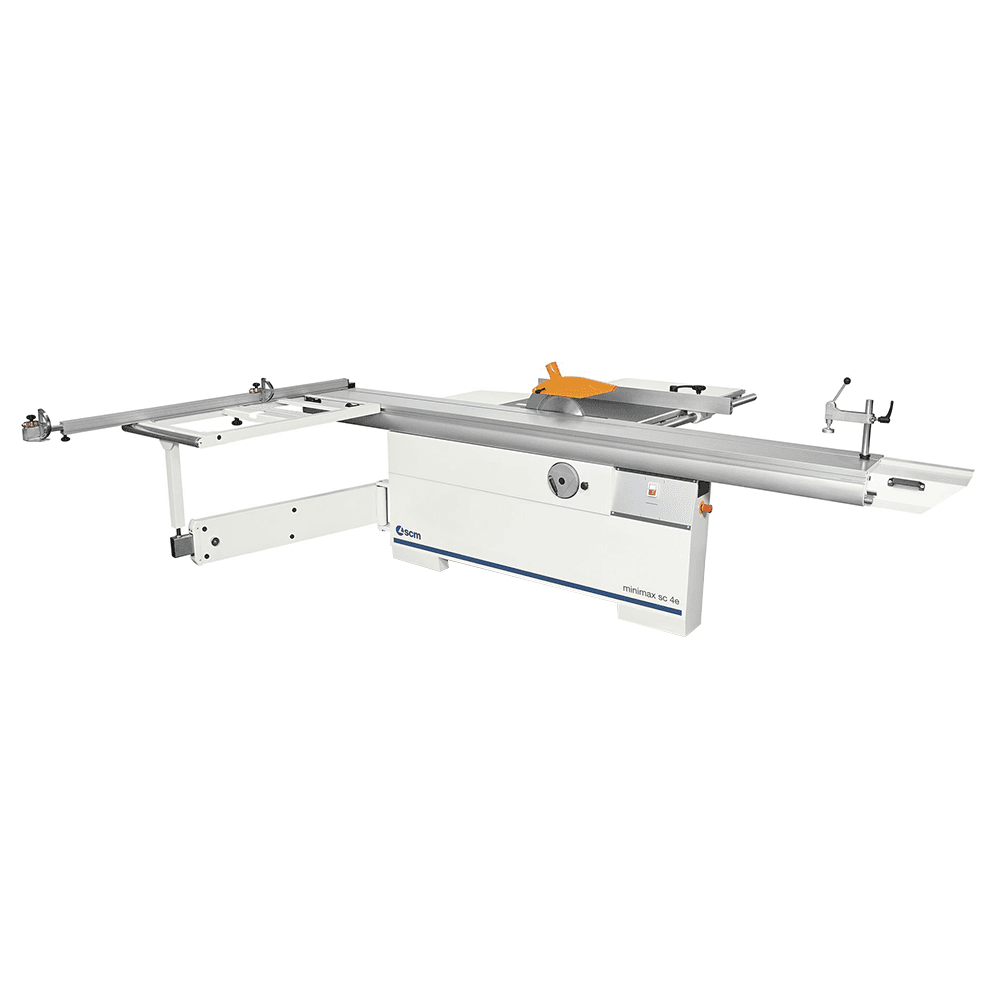

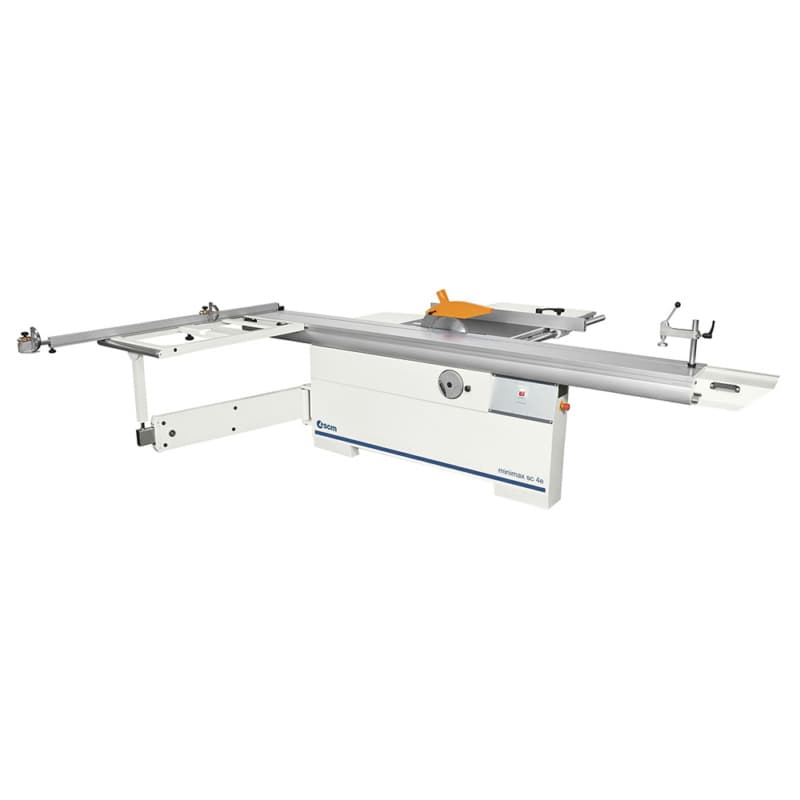

Minimax Single-Phase 4.8Hp 10.5' Manual Sliding Table Saw w/tilting 12″ main blade, DADO & 50″ rip capacity
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
Circular saw with tilting blade with professional performances for a quality without compromises. This machine boasts a full 10' stroke and features normally found on much more expensive machines, for a fraction of the cost. This machine incorporates a top quality 4.8hp motor for large businesses and smaller workshops with single-phase power. This machine incorporates a top quality 4.8hp motor for large businesses and smaller workshops with single-phase power. Top performances: Cast iron saw unit with 315mm saw blade and scoring unit with independent motor. Best support in all machining's, thanks to the 330mm width sliding table. Maximum precision and stability with the blades lifting by means of ″dove-tail″ guides system and the saw unit tilting by means of two, large, lateral trunnions. Advantages: • The cast iron saw unit with a rigid closed loop structure can accommodate a blade of 315mm and 350mm diameter with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material • Optimal support also to larger pieces, with the sliding table 360mm wide • Exceptional precision and smoothness: To secure the guides it is not used glue, since the thickness could affect sliding • Panel loading is easy on the large squaring frame with an idle roller at the end • The telescopic squaring fence with the inclined metric scale and two reversible stops can be used to square panels measuring 3200 x 3200mm and for miter cuts at up to 45° on both sides of the frame • Wide range of high-tech devices to make your Elite S even more powerful and personalized Machine Specs: Maximum sawblade diameter: 315mm Sawblade arbor size: 25mm Scoring blade diameter: 120mm Scoring blade arbor size: 20mm Maximum sawblade projection from table at 90°/45°: 101mm/71mm Cutting width on parallel fence (Rip capacity): 1270mm Maximum squaring stroke of sliding table saw: 3200mm motor: 4.8HP
Specifications
| Product Type | Sliding Table Saw |
| Maximum Cutting Length | |
| Table Height | 34" |
| Height | |
| Width | |
| Number of Teeth | |
| Length | |
| Horsepower | 4.8 HP |
| Voltage | 230V |
| Blade Diameter | 12" |
| Arbor | 30mm |
| Phase | 1 |
| Maximum Tilt | |
| Table Size (In.) | |
| Table Height from Floor (In.) | |
| Style | |
| Distance Between Sliding Table and Blade (In.) | |
| Prewired Voltage (V.) | |
| Maximum Diameter of Dado (In.) | |
| Speed | |
| Maximum Rip Left of Blade (In.) | |
| Maximum Width of Dado (In.) | |
| Motor Power | |
| Saw Blade Diameter | |
| Table Type | |
| Maximum Rip Right of Blade (In.) | |
| Motor Voltage (V.) | |
| Dust Port Outside Diameter (In.) | |
| Miter Gauge Type | |
| Table Size with Full Extensions (In.) | |
| Table T-Slot (In.) | |
| Motor Phase | |
| Arbor Diameter (In.) | |
| Recommended Circuit Size (Amps.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Motor Current (Amps) | |
| Table Size with Extensions (In.) | |
| Maximum Depth of Cut at 90 Degrees (In.) | |
| Maximum Depth of Cut at 45 Degrees (In.) | |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | |
| Warranty | |
| Cutting Height | |
| Main Saw Blade Change | |
| Saw Blade Thickness | |
| Cutting Width | |
| Sliding Table Length | |
| Control | |
| Display Resolution | |
| Control Panel | |
| Cutting angle/height | |
| Cutting Width Control | |
| Extraction Connection | |
| Saw Blade Tilting Range |
