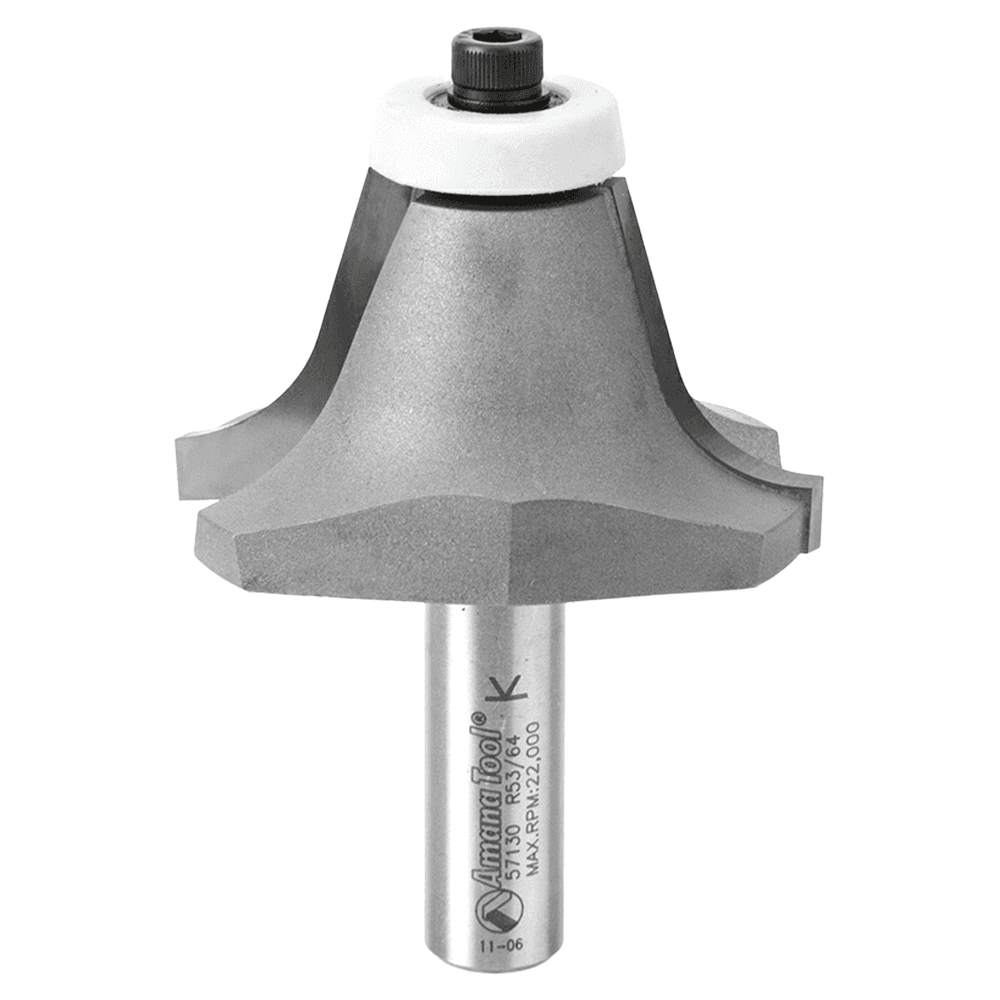

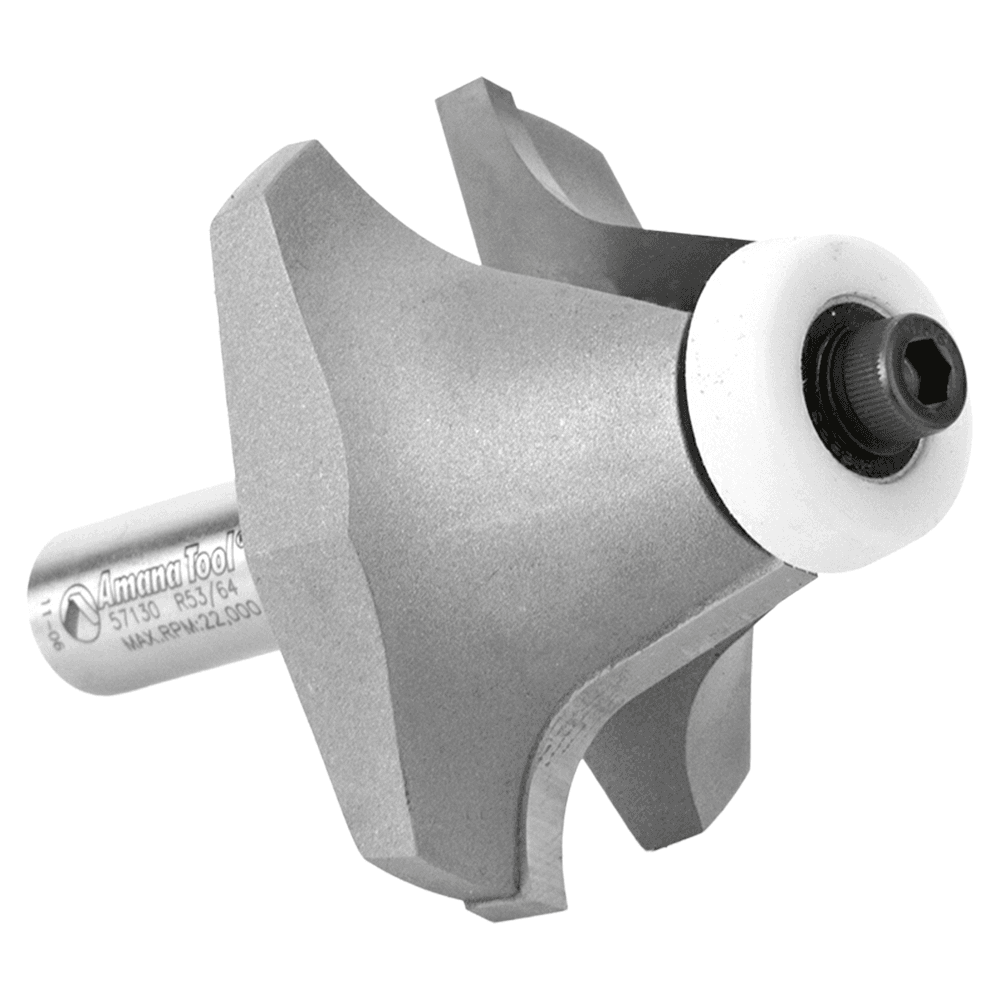

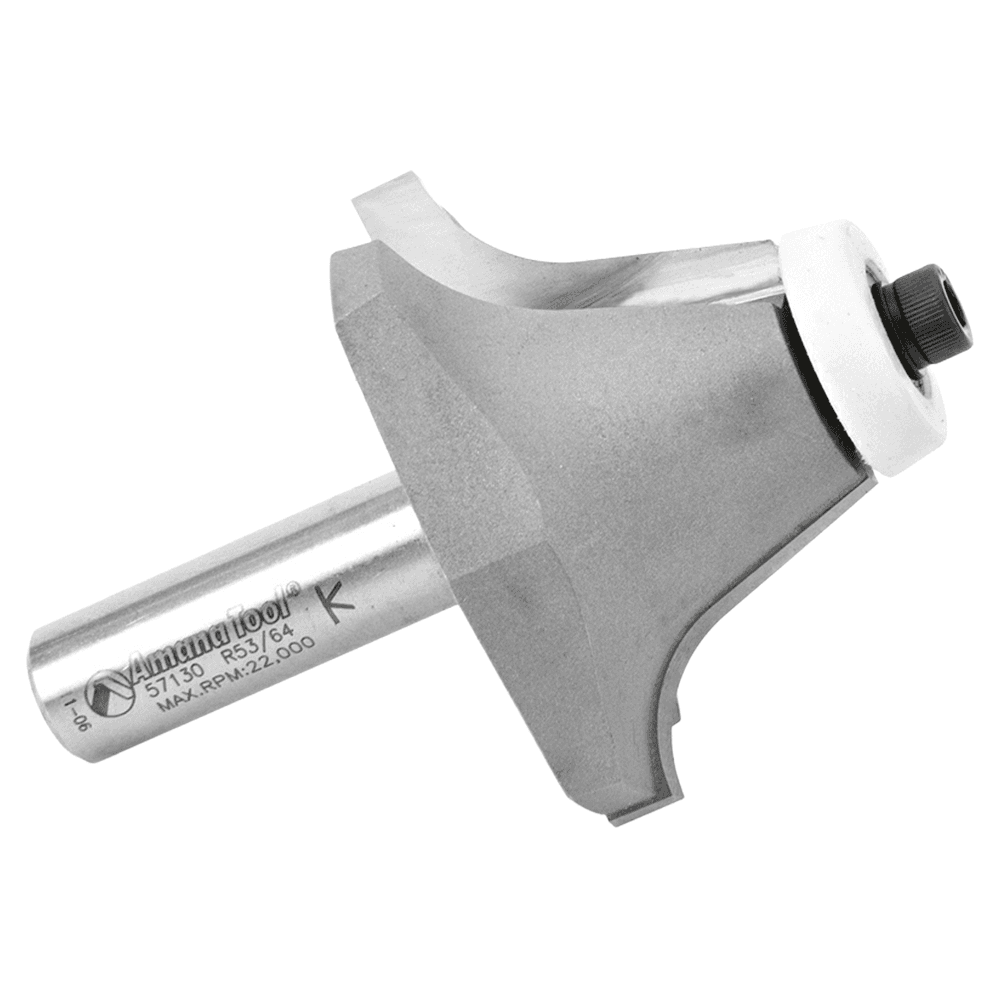

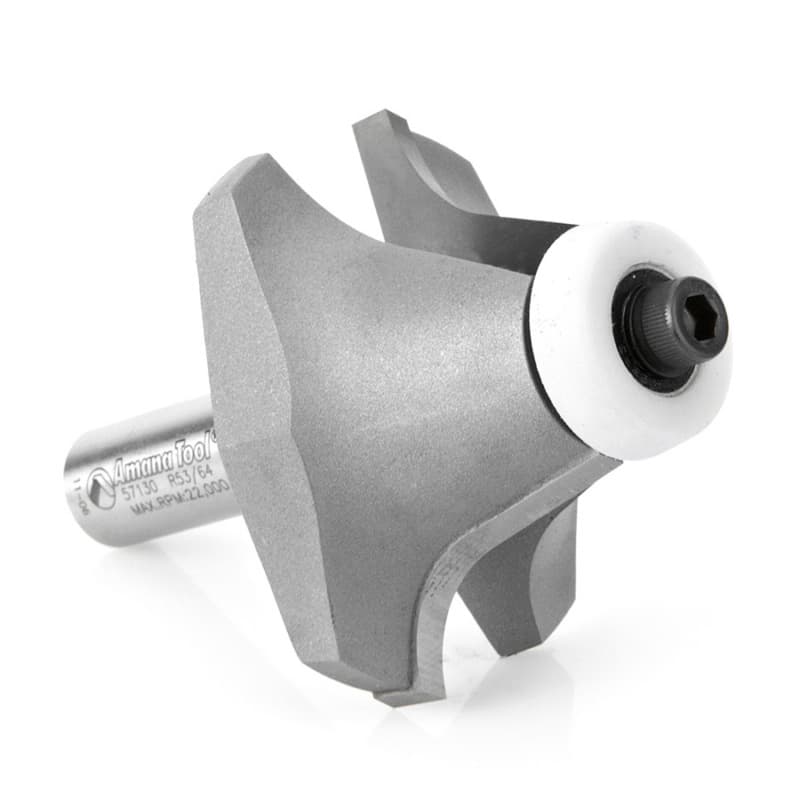

Name: 2-1/4" Dia x 1-1/4" Carbide Tipped Undermount Bowl Solid Surface Round Over Bit, 18°, 1/2" Shank
Brand: Amana Tool
Availability: BackOrder

These bits prepare and/or finish counter-top edges in conjunction with undermount bowl installations. The roundover and ogee bits trim and profile the counter-top edges after the bowl is mounted. The bevel bit trims the sink cut-out flush with an installed undermount bowl, but it also can be used with a template to prepare a sink cut-out for a bevel-mount bowl. All these tools can be used for undermount applications of Corian sink and bowl #'s 802S, 804S, 805S, 809S, and 871S.

Features:
• 2-1/4" Dia x 1-1/4" Carbide Tipped Undermount Bowl Solid Surface, 18 Deg, 1/2" Shank
• Replacement Bearing: 47726
• Flutes: 2

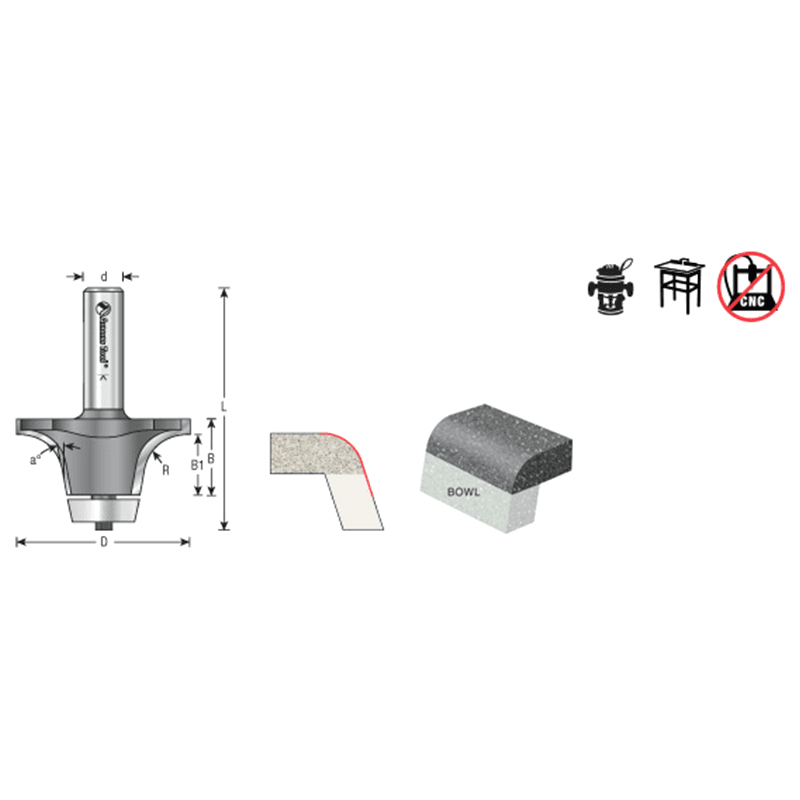

• A: 3/4"

Box Quantity	1
Diameter (in)	2-1/4 in
Shank Diameter (in)	1/2 in
Product Type	Solid Surface Bits
Number of Flutes	2
Radius (in)	9/16 in

Box Quantity	1
Diameter (in)	2-1/4 in
Shank Diameter (in)	1/2 in
Product Type	Solid Surface Bits
Number of Flutes	2
Radius (in)	9/16 in
Radius Cutting Height	1 in
Overall Length (in)	3-1/4 in
Material Thickness (in)	3/4 in
Maximum Speed (RPM)	22000 rpm
Bevel Angle	18 Degree
Minimum Cutting Height	1-1/4 in
