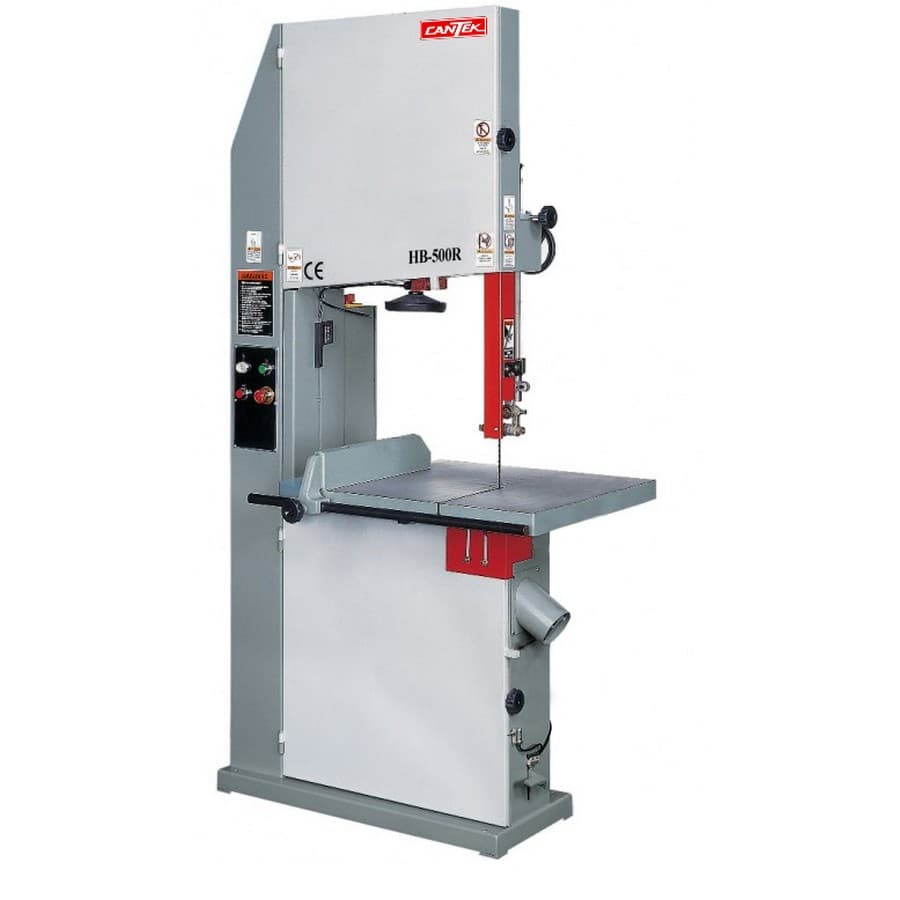

Cantek HB500R1 20" Band Saw 3HP Single-Phase
Item # CANHB500R1
•Mfr # CANHB500R-230-1
$4,500.00
/Each
Freight: $995.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
- · Heavy gauge steel frame ensures stable and vibration free cutting
- · Rack & pinion guide adjustment
- · Saw wheels are laminated with rubber for accurate blade tracking
- · Table is made of cast iron and surface is precision ground.

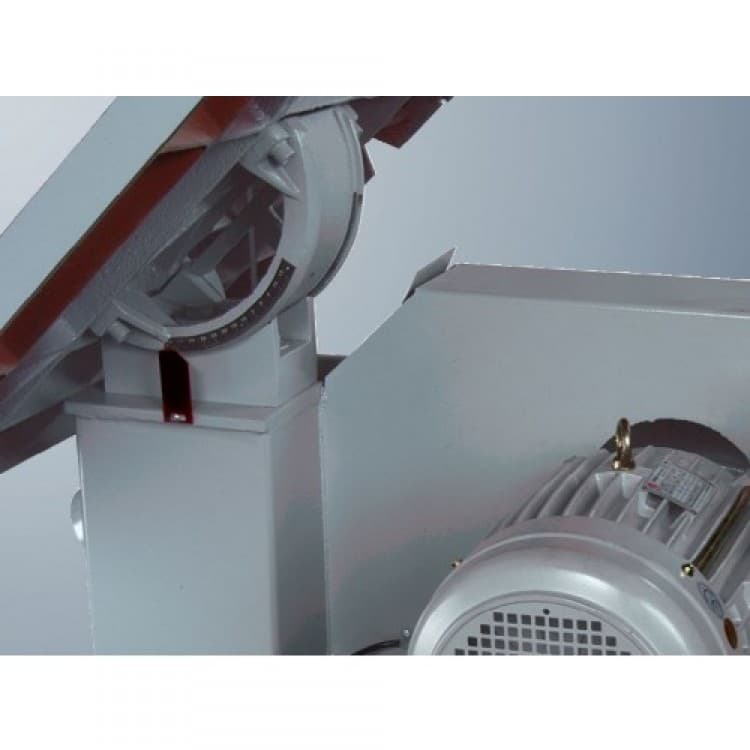

- · Table tilts to 45° for bevel cuts

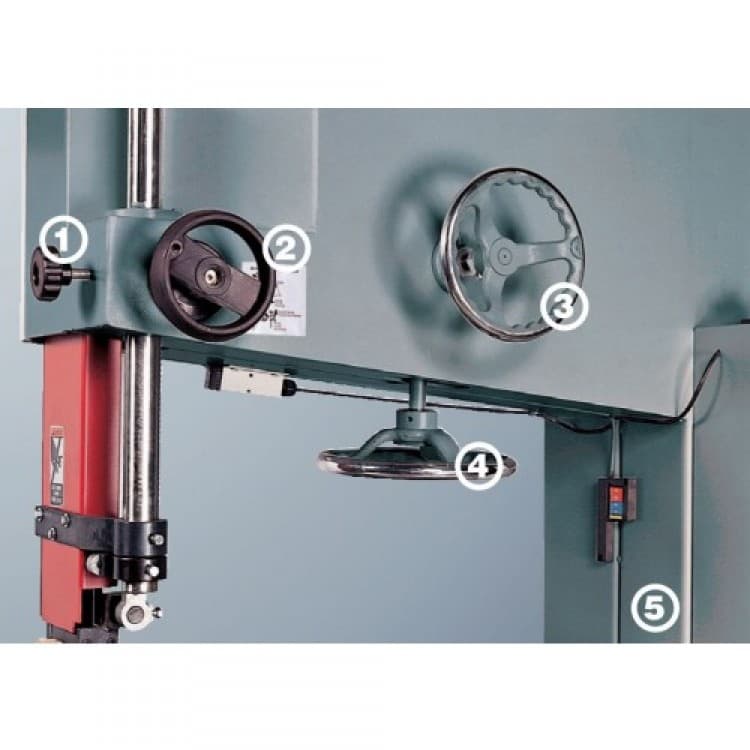

- · Convenient blade tension adjustment by a handwheel
- · Cast iron top & bottom wheels are precision machined and dynamically balanced
- · Foot brake

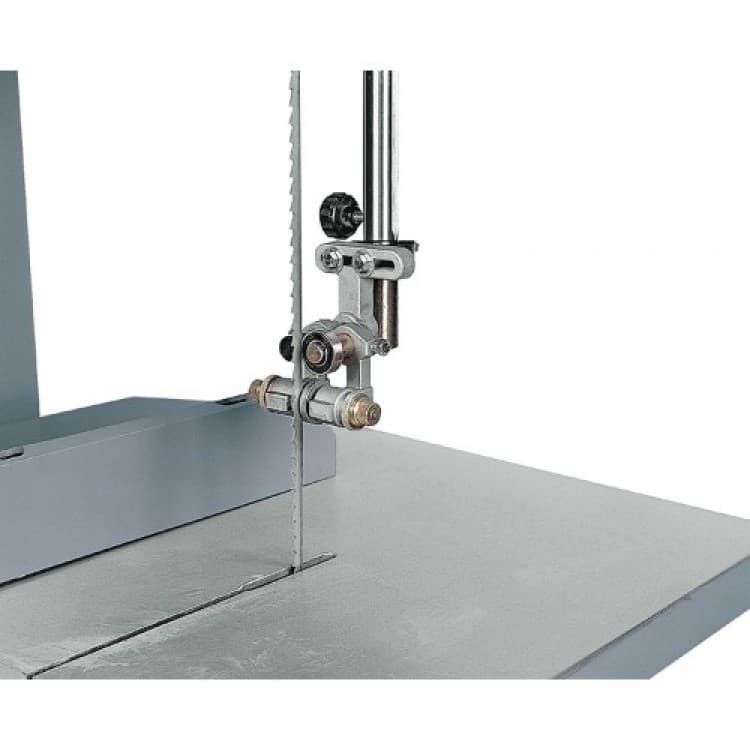

- · Ball bearing upper and lower guides

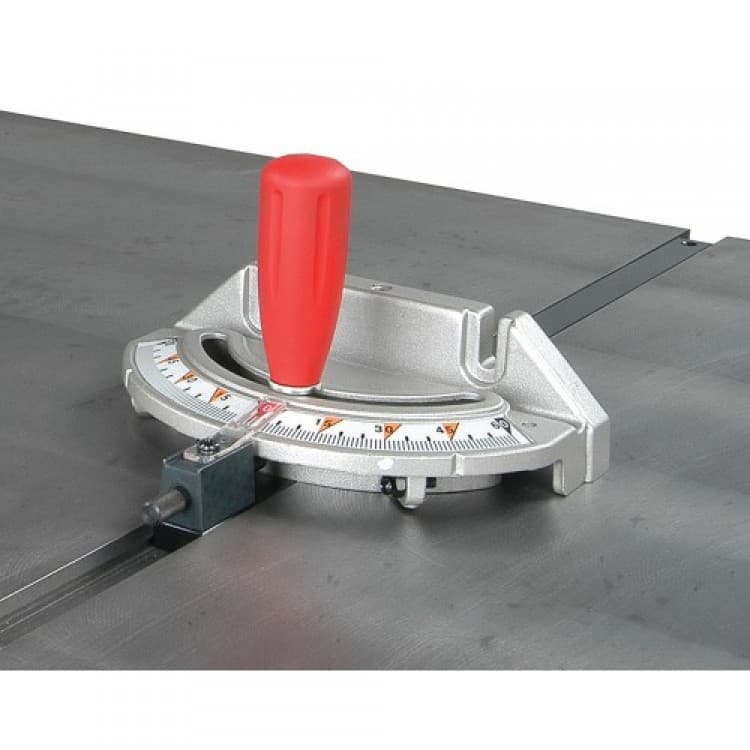

- · Standard equipment includes: Rip Fence, & Mitre Gauge
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Bandsaw |
| Width | 27-1/2" |
| Maximum Tilt | 45° |
| Length | 38-13/64" |
| Motor Power | 3 HP |
| Table Size | 26-3/4" x 20-1/2" |
| Height | 74" |
| Voltage | |
| Horsepower | 3HP |
| Blade Speed | 4450 FPM |
| Prewired Voltage (V.) | 230/1/60 |
| Motor Current (Amps) | 17 |
| Motor Power (HP) | 3HP |
| Blade Length (in) | 156-1/4" ~ 157-1/2" |
| Maximum Saw Blade Width (in) | |
| Table Height from Floor (In.) | |
| Stand Type | |
| Blade Width (in) | 1/4" ~ 1-1/4" |
| Dust Port Outside Diameter (in) | 4" |
| Table Tilt (Deg.) | 0 - 45 Degrees |
| Blade Speed (SFPM) | 4450 FPM |
| Band Saw Size & Wheel Diameter (in) | 20" |
| Minimum Saw Blade Width (in) | |
| Table Size (L x W) (In.) | 26-3/4" X 20-1/2" |
| Dust Collection Minimum CFM Required (CFM) | |
| Miter Gauge Positive Stops | |
| Motor Voltage (V.) | |
| Motor Phase | Single Phase |
| Cutting Capacity Height (In.) | 11-7/8" |
| Cutting Capacity Width (In.) | |
| Maximum Saw Blade Width (In.) | |
| Minimum Saw Blade Width (In.) | |
| Warranty |
