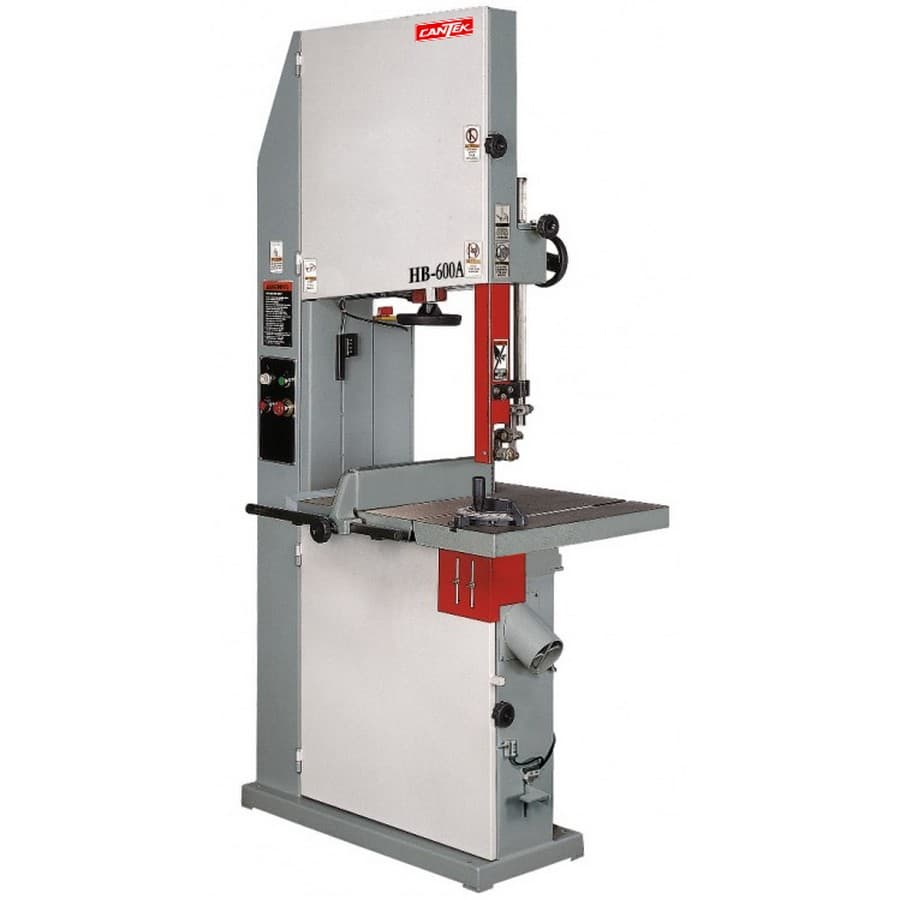

Cantek HB600A3 24" Band Saw (Band Resaw) 5HP Three-Phase
Item # CANHB600A3-5HP
•Mfr # CANHB600A-230-3
$5,900.00
/Each
Freight: $1,195.00
Min Order: 1
Quantity Multiple by: 1
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
- 2 in 1 machine for rip and curve band sawing

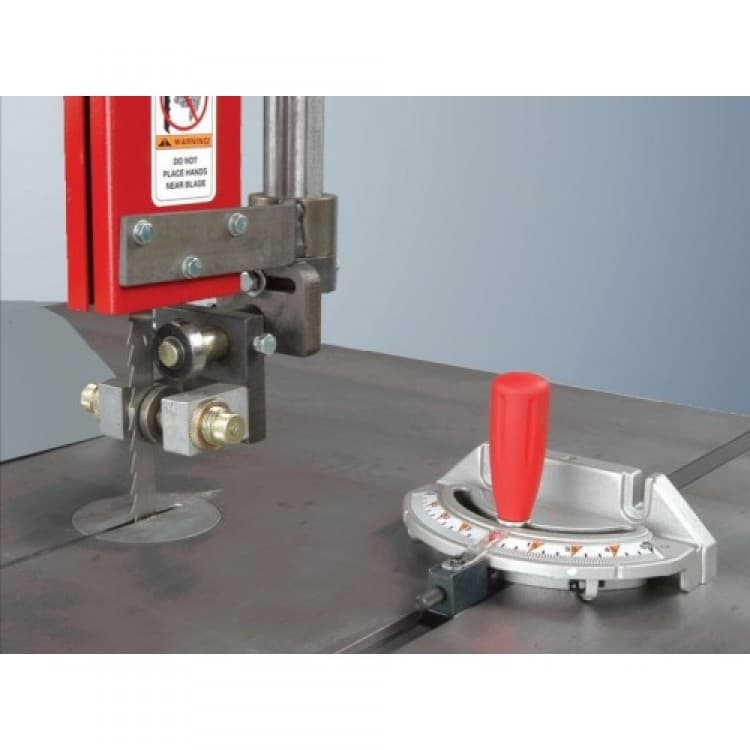

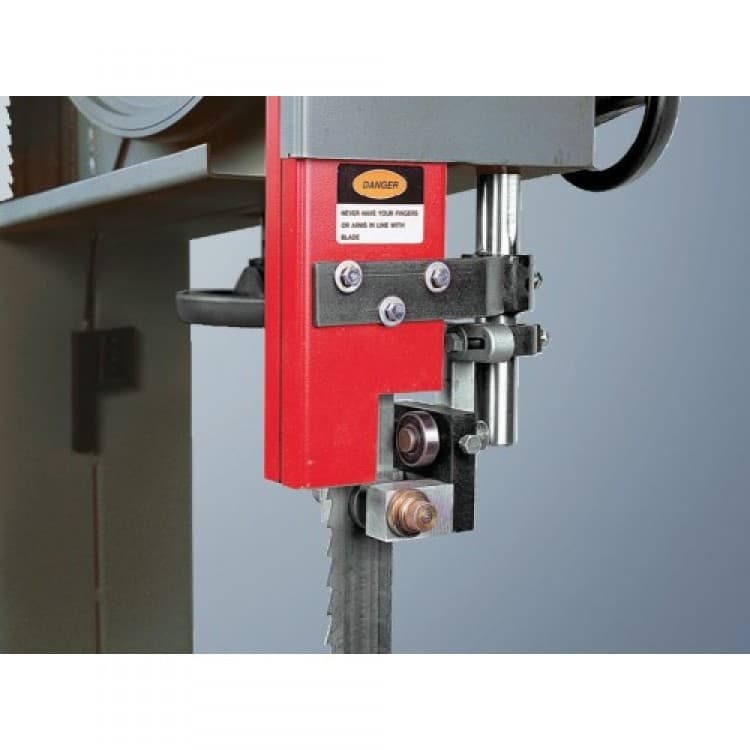

- Bearing blade guide mechanism with side and back bearing guide for rigid back-up support of the blade
- Micrometric adjustment to upper guide

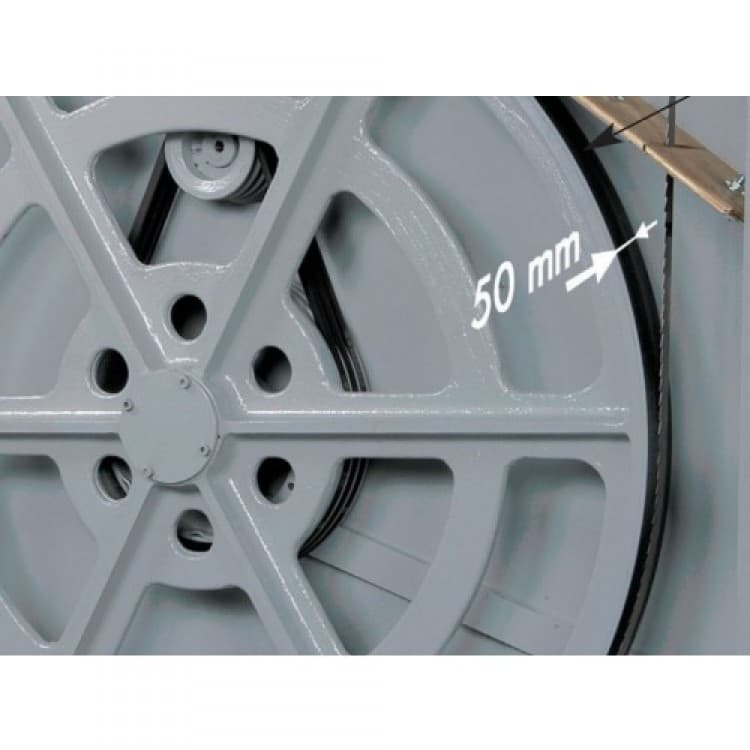

- Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention

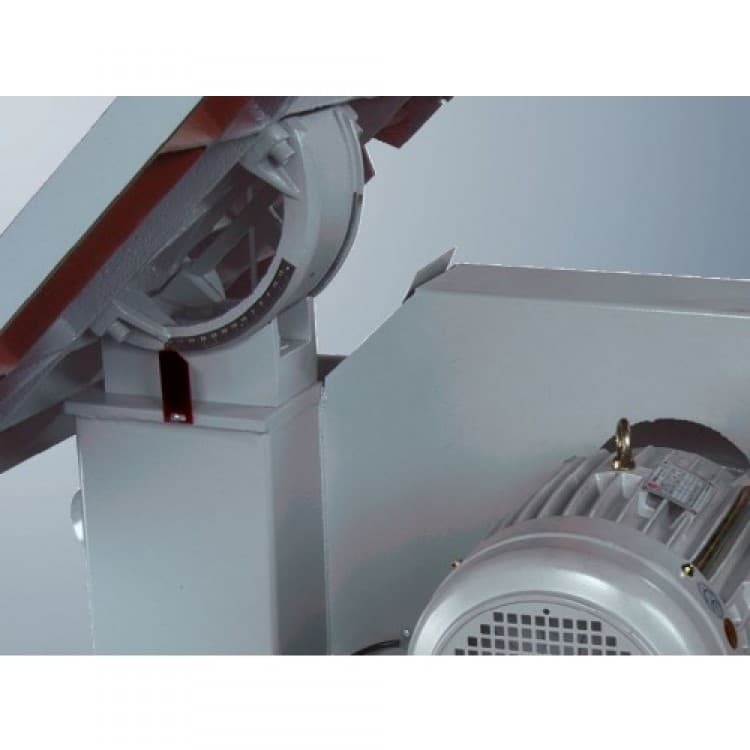

- Cast iron work table is precision ground and can tilt to 45o

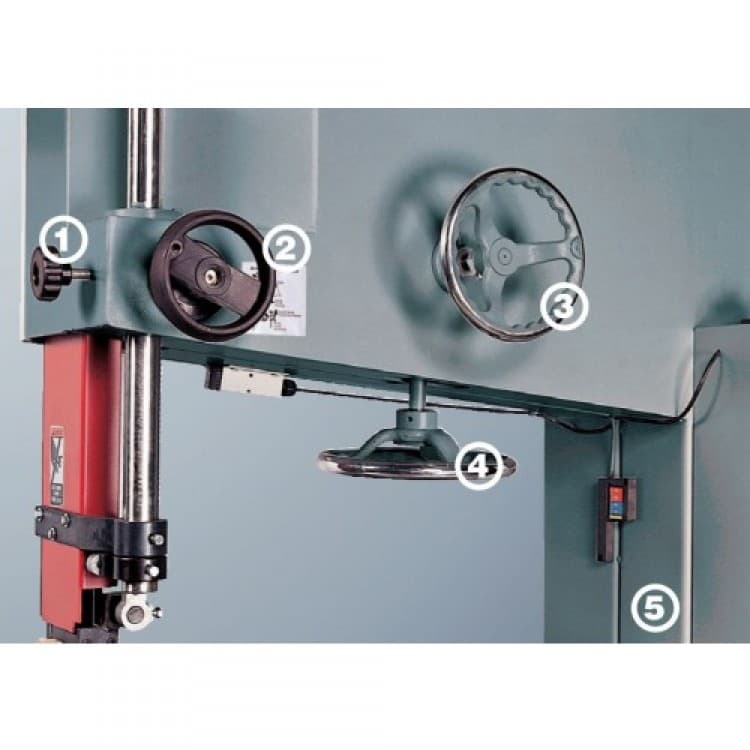

- Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
- Foot brake for quick shutdown of machine
- Heavy gauge steel frame ensures vibration free cutting
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Product Type | Band Resaw |
| Width | 31-1/2" |
| Maximum Tilt | 45° |
| Length | 41-47/64" |
| Motor Power | 5HP |
| Table Size | 31-1/2" x 23-3/4" |
| Height | 81-1/2" |
| Voltage | |
| Horsepower | 5HP |
| Blade Speed | 4458 FPM |
| Prewired Voltage (V.) | 230/3/60 |
| Motor Current (Amps) | 15.2 |
| Motor Power (HP) | 5HP |
| Blade Length (in) | 173-5/8" ~ 176-1/2" |
| Maximum Saw Blade Width (in) | |
| Table Height from Floor (In.) | |
| Stand Type | |
| Blade Width (in) | 1/4" ~ 2" |
| Dust Port Outside Diameter (in) | 4" x 2 |
| Table Tilt (Deg.) | 0 - 45 Degrees |
| Blade Speed (SFPM) | 4458 FPM |
| Band Saw Size & Wheel Diameter (in) | 23-1/2" |
| Minimum Saw Blade Width (in) | |
| Table Size (L x W) (In.) | 31-1/2" X 23-3/4" |
| Dust Collection Minimum CFM Required (CFM) | |
| Miter Gauge Positive Stops | |
| Motor Voltage (V.) | |
| Motor Phase | Three Phase |
| Cutting Capacity Height (In.) | 13-3/4" |
| Cutting Capacity Width (In.) | |
| Maximum Saw Blade Width (In.) | |
| Minimum Saw Blade Width (In.) | |
| Warranty |
