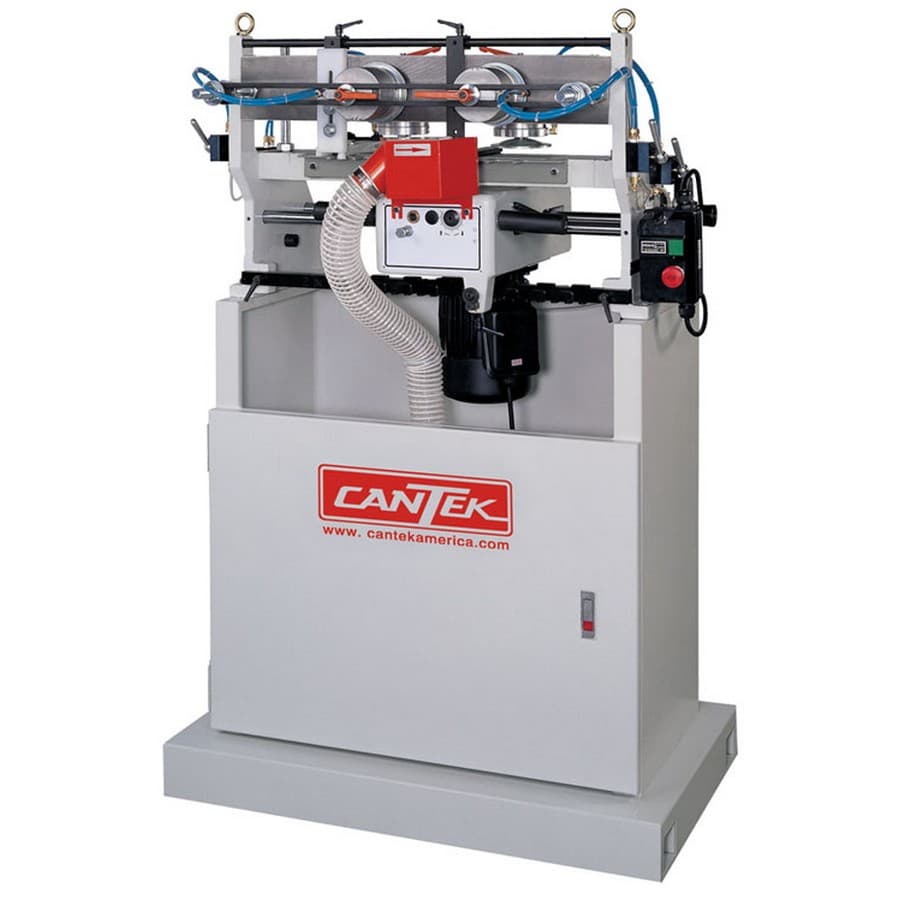

Cantek JDT65 Manual Dovetail Machine Single Phase
Item # CANJDT65
•Mfr # CANJDT65-230-1
$6,700.00
/Each
Freight: $595.00
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
- Ideal for drawer production and furniture parts which require high quality dovetail joints.
- Max. workpiece size 59" x 16 ½"

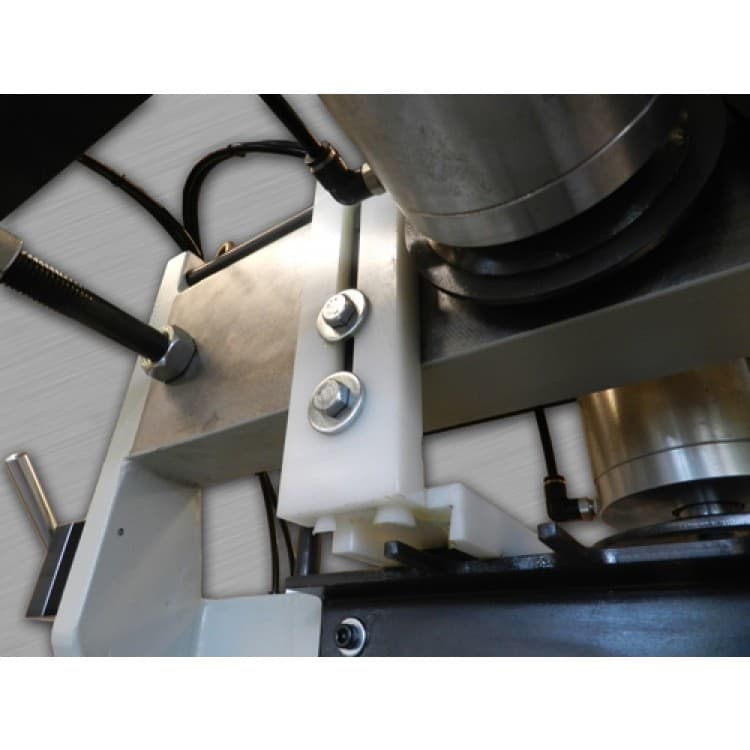

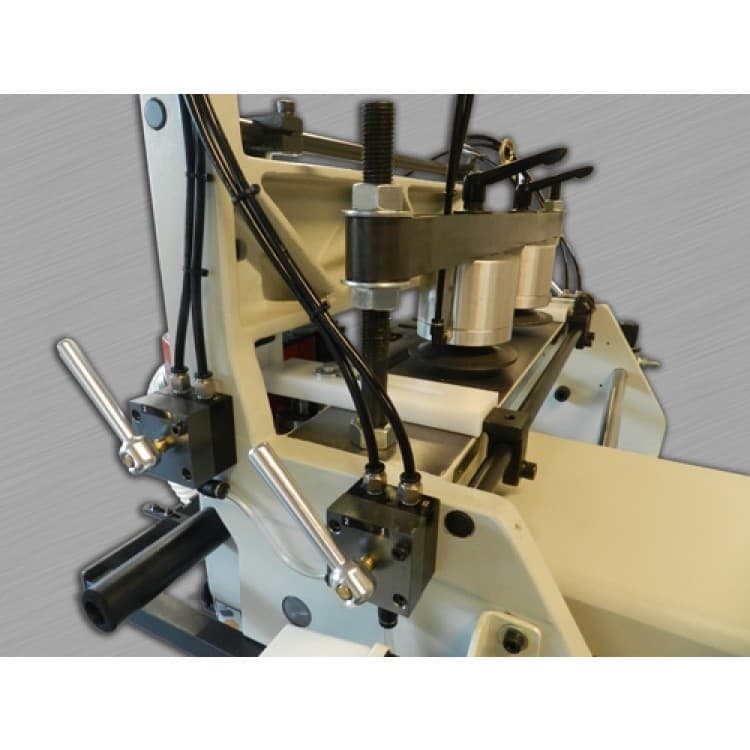

- Workpieces are clamped by air clamps.
- Enclosed-type stand.
- Equipped with an indication bar for indicating cutting position.
- Tenon width can be micro-metrically adjusted in 2 mm.

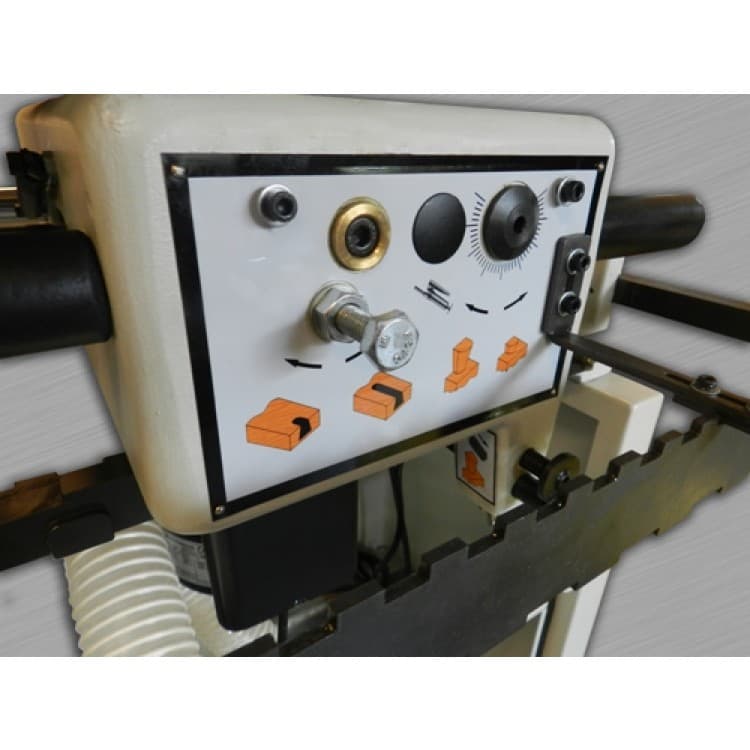

- Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece.

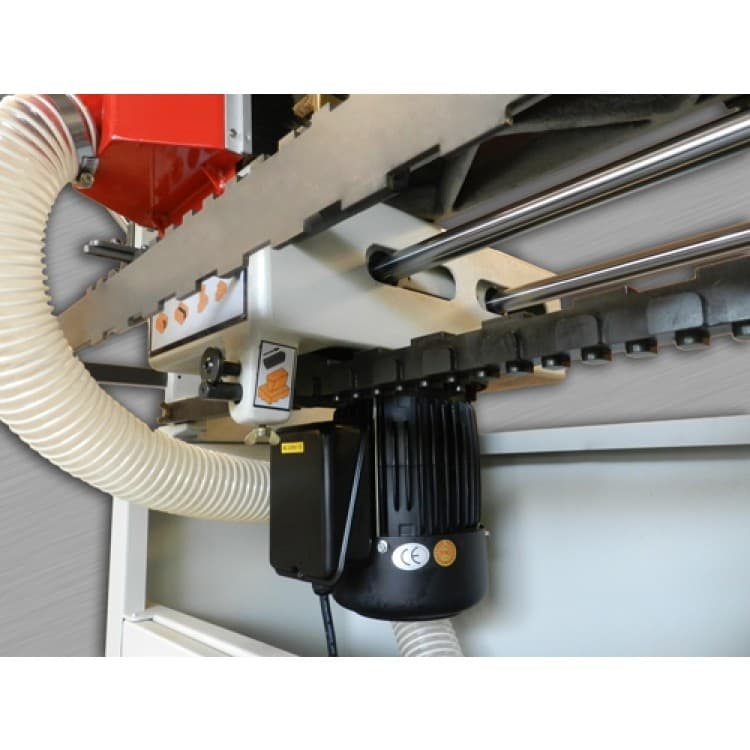

- Equipped with one four-sided template providing four types of pitches between dovetails.
- Standard pitch 1", 1 ½", 2" and 2 ½” (Other sizes available on request)

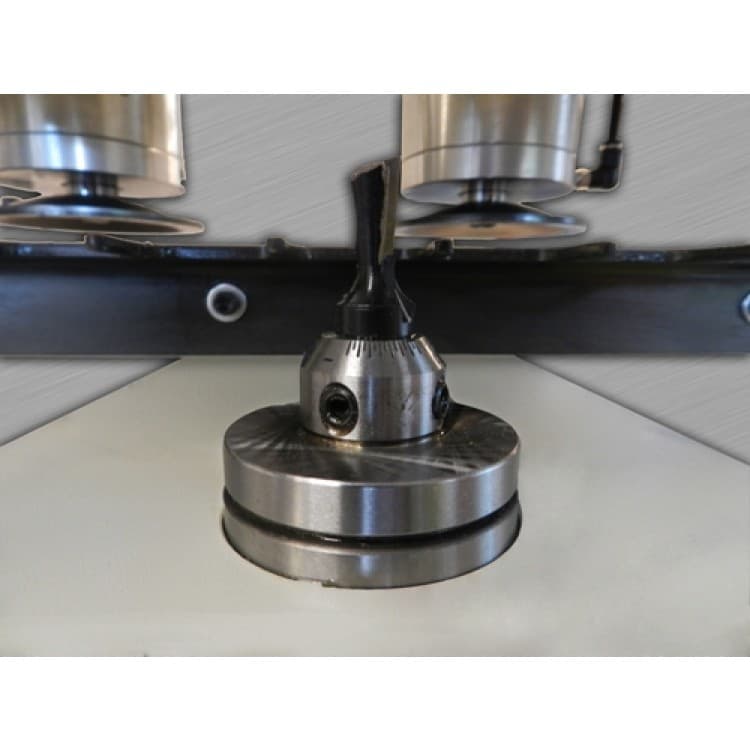

- The spindle accommodates 12 mm T.C.T. cutter bit.
- Solid Carbide Single Flute Dovetail Bit (CANJDT75-JTCTG1T001) included (1 Only).
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Number of Spindles | 1 |
| Wiring Remarks | |
| Maximum Work Piece Size (In.) | 59" X 16.5" |
| Minimum Dovetail Height (In.) | .71" |
| Maximum Side Thickness (In.) | .28" |
| Minimum Front Thickness (In.) | .28" |
| Center to Center Dovetail Spacing (In.) | 1", 1.5", 2", 2.5" standard |
| Motor Power (HP) | 1HP |
| Dust Collection Minimum CFM Required (CFM) | |
| Prewired Voltage (V.) | |
| Maximum Front Thickness (In.) | 2.36" |
| Motor Voltage (V.) | 230/1/60 |
| Maximum Dovetail Height (In.) | .71" |
| Number of Dovetail Center Lines | 4 |
| Recommended Circuit Size (Amps.) | |
| Minimum Work Piece Size (L x W)(In.) | 7.9" X 2.4" |
| Spindle Speed (RPM) | 18500 RPM |
| Motor Phase | Single Phase |
| Minimum Side Thickness (In.) | .28" |
| Dust Port Outside Diameter (In.) | Front 2.5", Rear 4" |
| Motor Current (Amps) | 8 |
| Style (Type) | |
| Table Height From Floor (In.) | 46.5" |
| Warranty | |
| Horsepower | 1 HP |
| Phase | 1 |
| Product Type | Manual Dovetail Machine |
