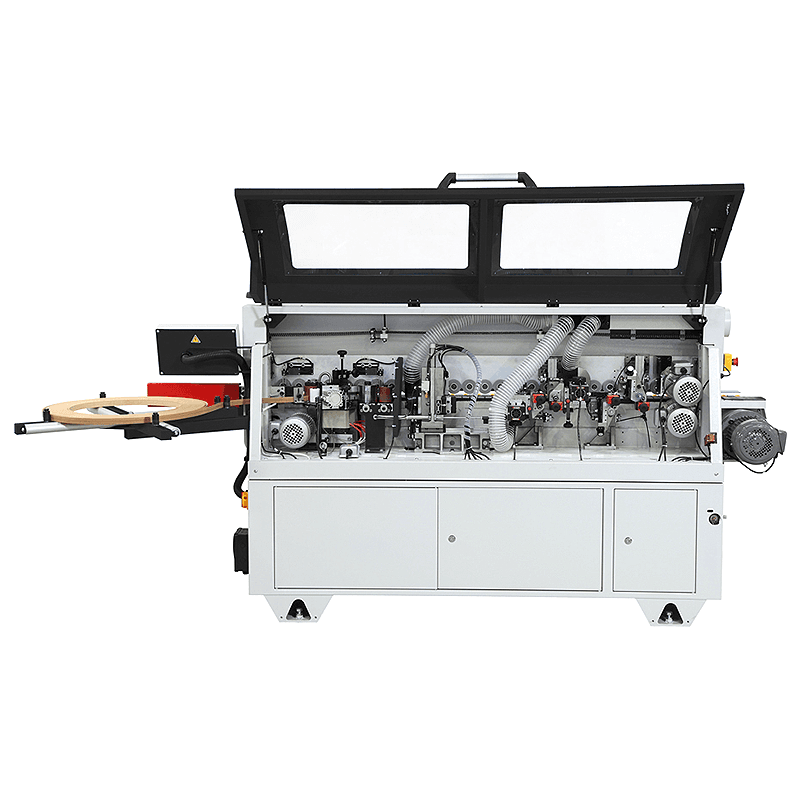

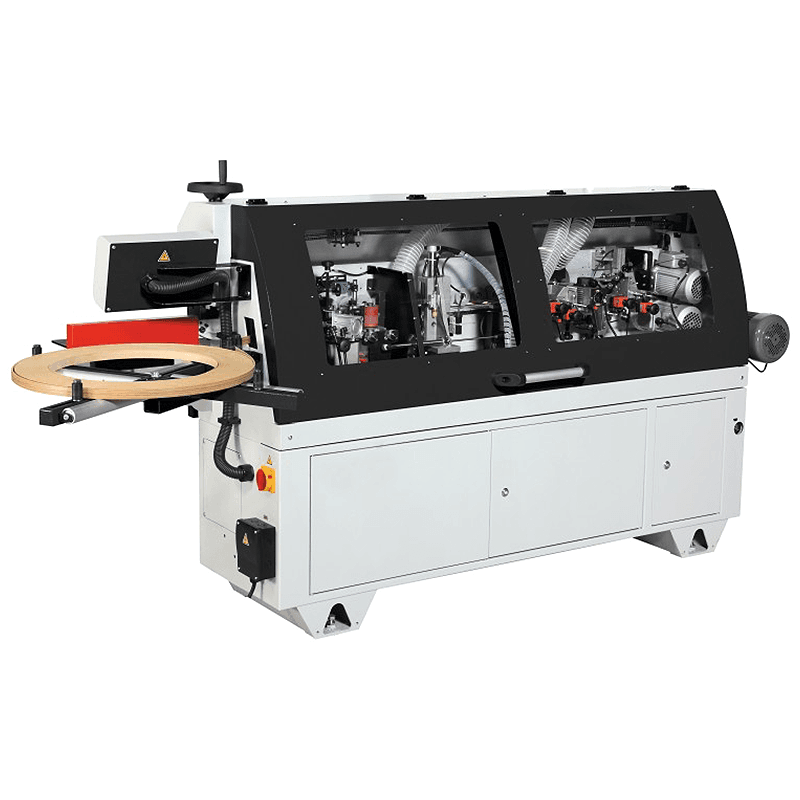

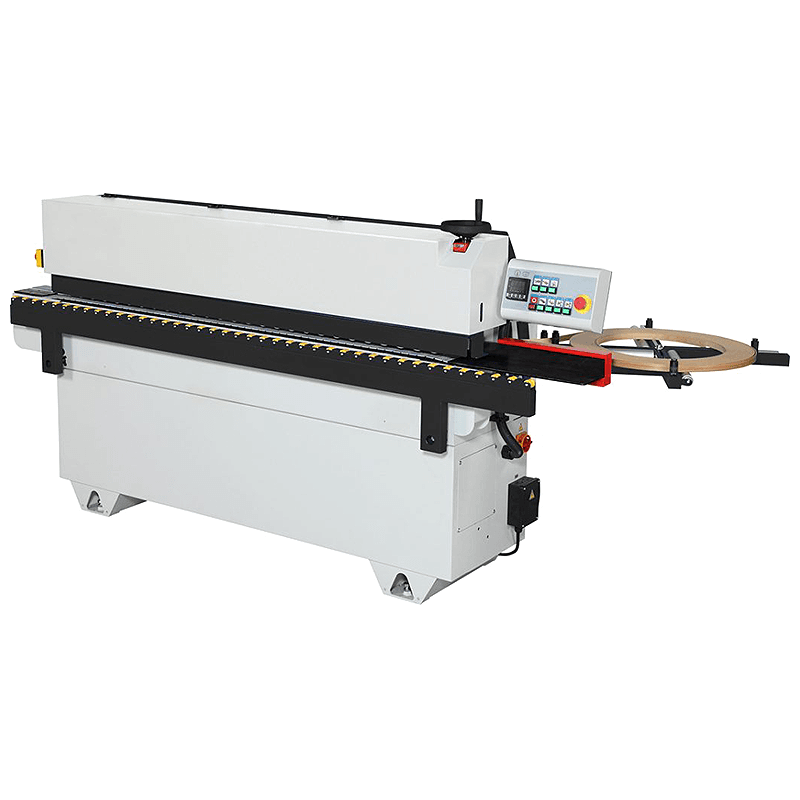

MX340 High Frequency Automatic Edgebander, 3 Phase
Item # CANMX3403
•Mfr # CANMX340-230-3
$21,700.00
/Each
Freight: $1,395.00
Min Order: 1
Quantity Multiple by: 1
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The MX340 from Cantek is designed to be a compact and durable edgebander offered at an affordable price. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
Features:

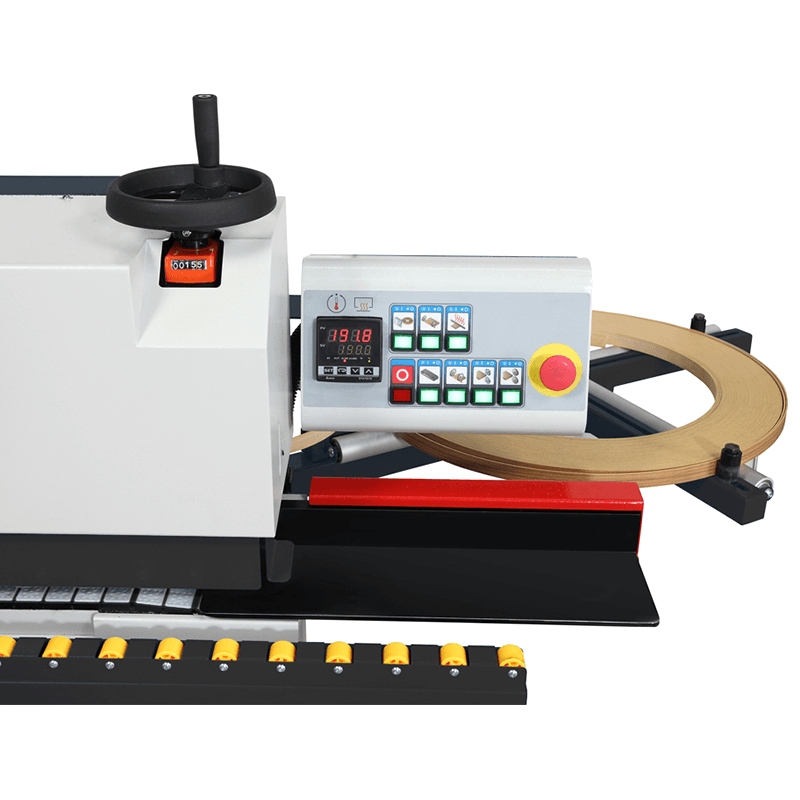

• PLC control system with LED display and keypad
• Work-piece is fed by chain
• Edge coil support plate: O 800mm for PVC/ABS
• Edge feeding is Automatic edge feeding with a thickness capacity of 0.4-3mm; strip material can be hand-fed
• Coiled edge bands up to 3mm in thickness in Hard-PVC/ABS are cut with guillotine shears
• Teflon-coated hot-melt glue pot
• Spring loaded pressure unit with (2) pressure rollers
• High frequency 12000 RPM end trimming unit with O100mm TC-Saw blades

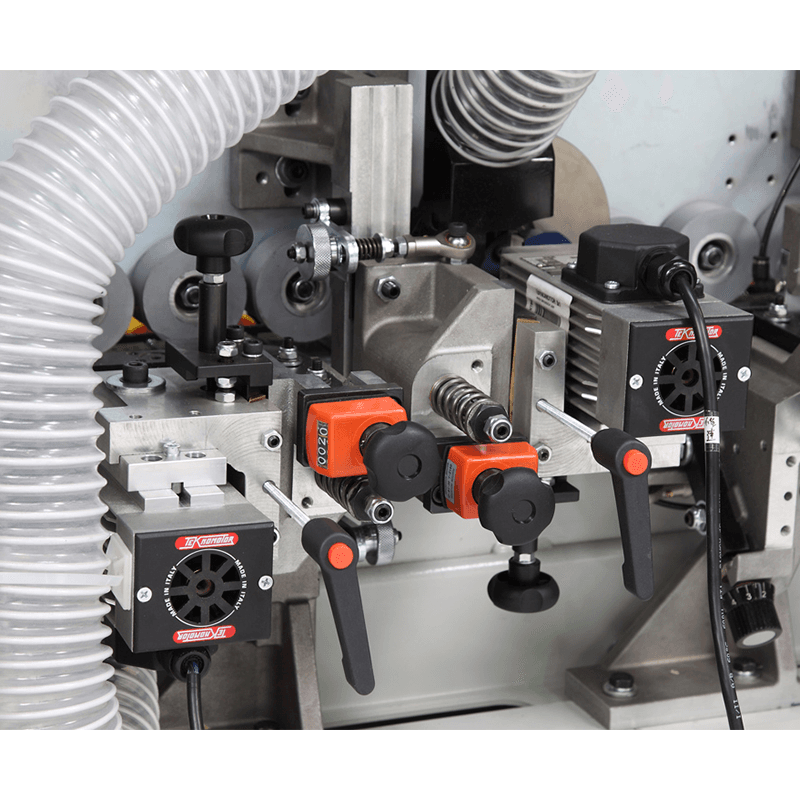

• High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
• Radius scraper with 2mm radius
• 3000 RPM top & bottom buffing units
• Heavy duty pressure beam with extendable work-piece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
Features:
• PLC control system with LED display and keypad
• Work-piece is fed by chain
• Edge coil support plate: O 800mm for PVC/ABS
• Edge feeding is Automatic edge feeding with a thickness capacity of 0.4-3mm; strip material can be hand-fed
• Coiled edge bands up to 3mm in thickness in Hard-PVC/ABS are cut with guillotine shears
• Teflon-coated hot-melt glue pot
• Spring loaded pressure unit with (2) pressure rollers
• High frequency 12000 RPM end trimming unit with O100mm TC-Saw blades
• High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
• Radius scraper with 2mm radius
• 3000 RPM top & bottom buffing units
• Heavy duty pressure beam with extendable work-piece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Product Type | Automatic Edgebander |
| Flow Rating | 29.5 FPM |
| Height | 53-15/16" |
| Handle Length | |
| Speed | 12000 RPM |
| Length | 116-9/64" |
| Width | 25-63/64" |
