MX350M Automatic Edgebander with Premilling, 3 Phase
Item # CANMX350M-3PH
•Mfr # CANMX350M-230-3
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

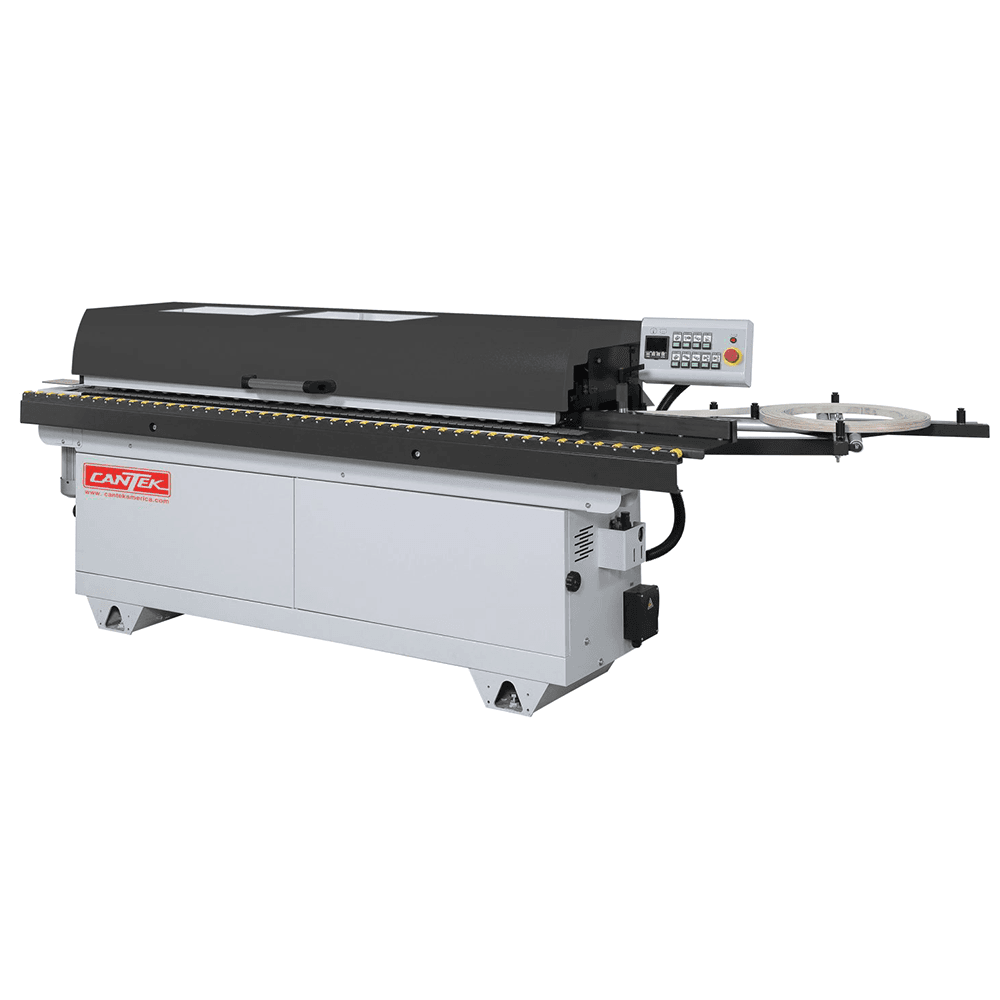

The MX350M from Cantek is designed to be a compact & durable entry level edgebander offered at an affordable price. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm & wood strips up to 4mm.
Features:

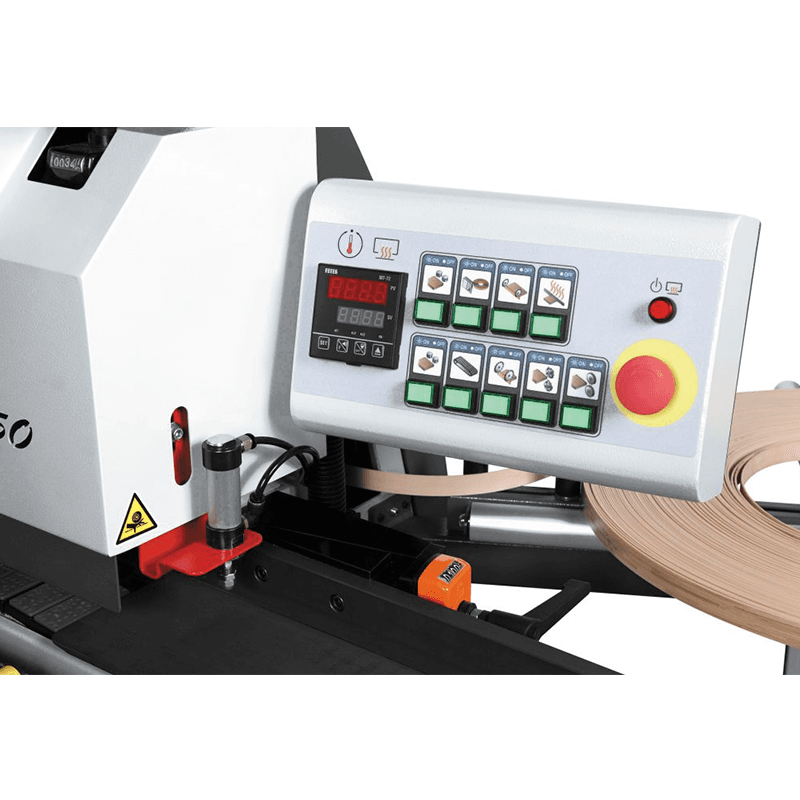

• PLC control system with LED display and keypad
• Work-piece is fed by chain
• Edge coil support plate: O 800mm (31.5") for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4-3mm
• Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears
• 1.2 kg (2.64lb) Teflon-coated hot-melt glue pot

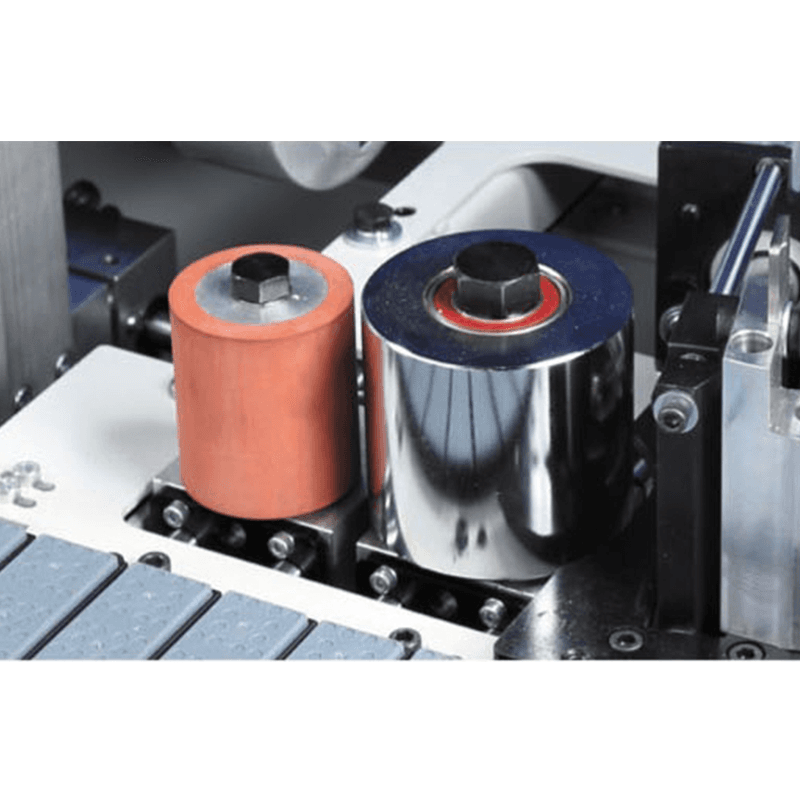

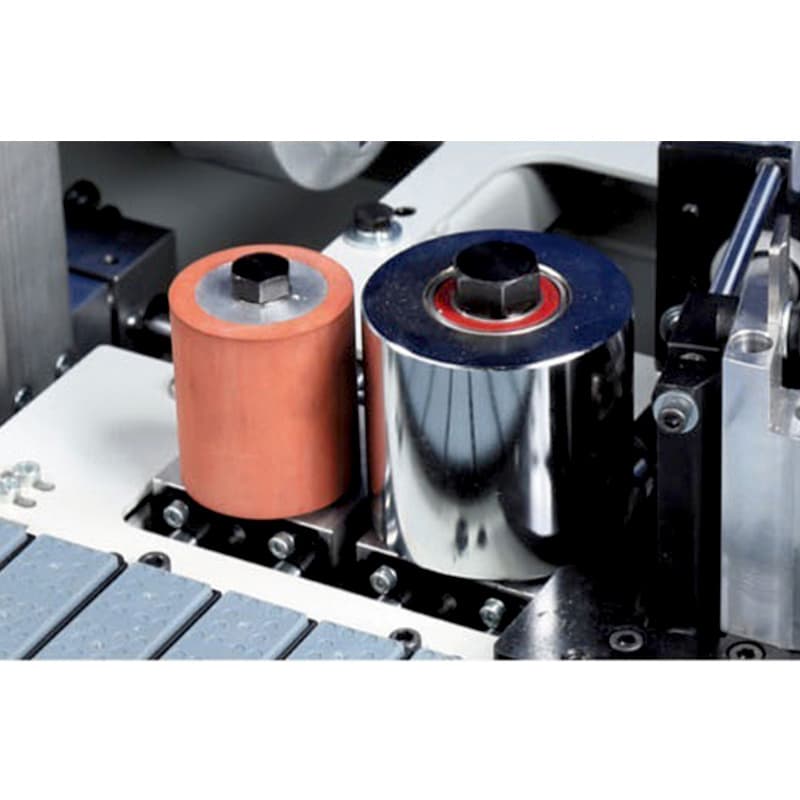

• Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
• 8800 RPM dual saw blade (80mm / 3.15") end trimming unit
• 10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
• Top & Bottom trimmers use copy tracing wheels for optimum finishing results without scratching the face of the workpiece
• Radius scraper with 2mm radius

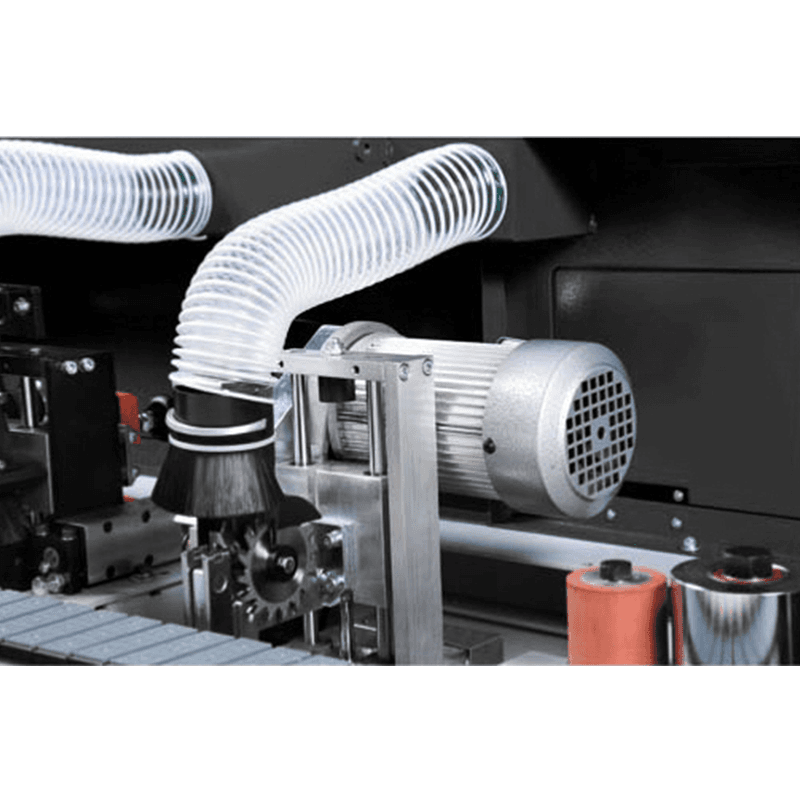

• 2800 RPM top & bottom buffing units

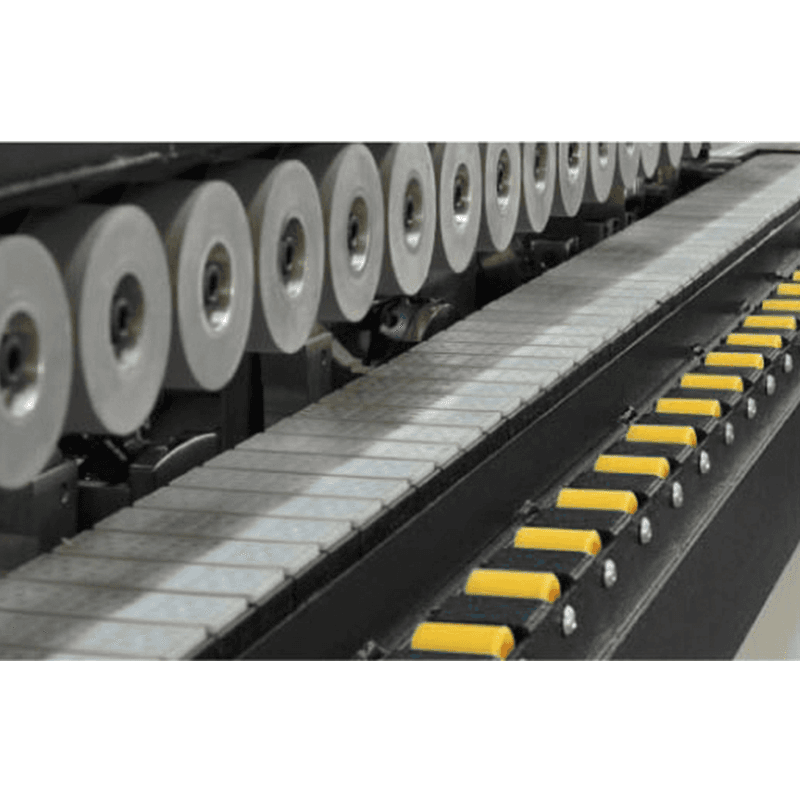

• Heavy duty pressure beam with extendable work-piece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
• Mechanical digital readouts for convenient and quick adjustment to the working units & thickness
Features:
• PLC control system with LED display and keypad
• Work-piece is fed by chain
• Edge coil support plate: O 800mm (31.5") for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4-3mm
• Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears
• 1.2 kg (2.64lb) Teflon-coated hot-melt glue pot
• Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
• 8800 RPM dual saw blade (80mm / 3.15") end trimming unit
• 10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
• Top & Bottom trimmers use copy tracing wheels for optimum finishing results without scratching the face of the workpiece
• Radius scraper with 2mm radius
• 2800 RPM top & bottom buffing units
• Heavy duty pressure beam with extendable work-piece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
• Mechanical digital readouts for convenient and quick adjustment to the working units & thickness
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Product Type | Automatic Edgebander |
| Flow Rating | 23 FPM |
| Height | 47-1/4" |
| Handle Length | |
| Speed | 10500 RPM |
| Length | 126" |
| Width | 47-1/4" |
