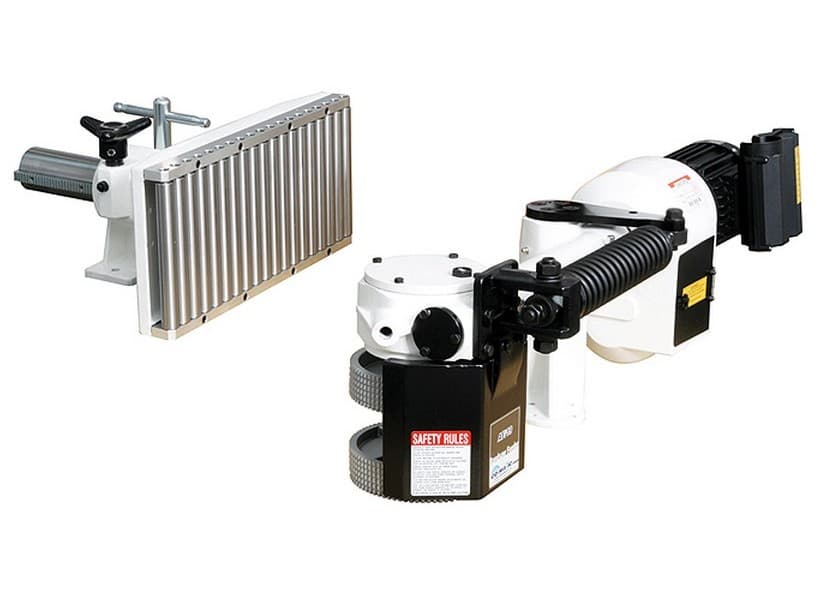

Cantek AF193 Bandsaw/Resaw Feeder Three Phase
Item # CANAF193
•Mfr # CANAF19-230-3
$3,100.00
/Each
Freight: $175.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
FEATURES
- Specifically designed for use on bandsaws bigger than 24"
- Consistent feeding for bandsaws and resaws
- Spring loaded pressure with roller infeed fence.
- Line bar roller fence is easily adjusted by rack and pinion handle
- Comes with steel serrated rollers
- Voltage: 230/3/60 or 230/1/60
SPECIFICATIONS
- Feed Speeds (10) 4,/8.5/8.5/14/17/25/28/30/50/60 FPM
- Roller size (6-7/8” x 1-9/16” x 2 pcs) / Cast Steel
- Motor 1/2 HP (0.375 KW), 3 phase; Forward
- Maximum roller stroke 8”
- Fence dimensions 16” x 7 7/8”
- Max. Roller-Blade Clearance 8 1/4”
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Bandsaw Power Feeder |
| Length | 43" |
| Power | 230V |
| Finish | |
| Material | |
| Width | 13" |
| Height | 12-1/4" |
| Horsepower | 1/2 HP |
| Phase | 3 |
| Rangeof Speeds | 4 RPM - 60 FPM |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Movement - Vertical (In.) | |
| Swing (Deg.) | |
| Motor Phase | |
| Wiring Remarks | |
| Motor Voltage (V.) | |
| Distance Between Rollers - Center to Center (In.) | |
| Recommended Circuit Size (Amps.) | |
| Movement - Horizontal (In.) | |
| Rotation | |
| Motor Power (HP) | |
| Number of Speeds | |
| Range of Speeds | 4 RPM - 60 FPM |
| Feed Rate (FPM) | |
| Number of Rollers | |
| Column Diameter (In.) | |
| Prewired Voltage (V.) | |
| Motor Current (Amps) | |
| Warranty | |
| Drive Motor | |
| Feed Rate |
