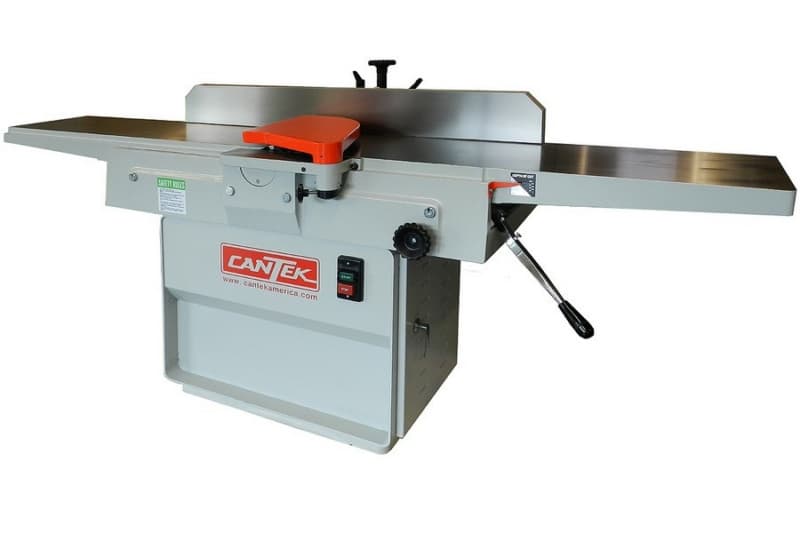

Cantek J127LH 12" Spiral Head Jointer Three Phase
Item # CANJ127LH3
•Mfr # CANJ127LH-230-3
$6,900.00
/Each
Freight: $750.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
- Accurate parallelogram design enables table to travel in the same arc as the cutting circle, maintaining close uniform clearance between the table lip & cutterhead for safest operation regardless of cutting depth
- Spiral insert knife cutterhead with 30x12x1.5mm two sided knives. Spiral insert knife head runs quieter than a conventional straight knife head & provides a longer life of the cutting tools
- Table raising & lowering by convenient lever with locking knob to prevent accidental table movement
- Noise reduction table lips on infeed & outfeed tables for quiet operation
- Large center mounted fence with quick setting stops at 45o, 90 o and 135 o
- Smooth fence adjustment by rack & pinion
- Large diameter cutterhead is ground & balanced
- Spring loaded adjusting safety guard moves only when workpiece is being fed
- CSA magnetic switch
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5000RPM |
| Phase | 3 |
| Length | 88-1/4" |
| Horsepower | 5HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | |
| Width | 36" |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
