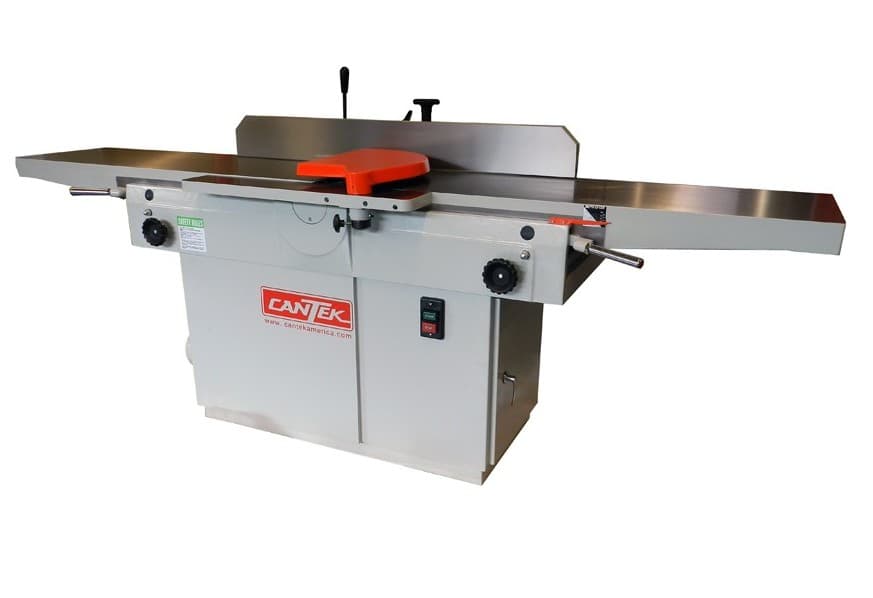

Cantek J168LH 16" Spiral Head Jointer Three Phase
Item # CANJ168LH
•Mfr # CANJ168LH-230-3
$10,400.00
/Each
Freight: $750.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
- Accurate parallelogram design enables table to travel in the same arc as the cutting circle, maintaining close uniform clearance between the table lip and cutterhead for safest operation regardless of cutting depth

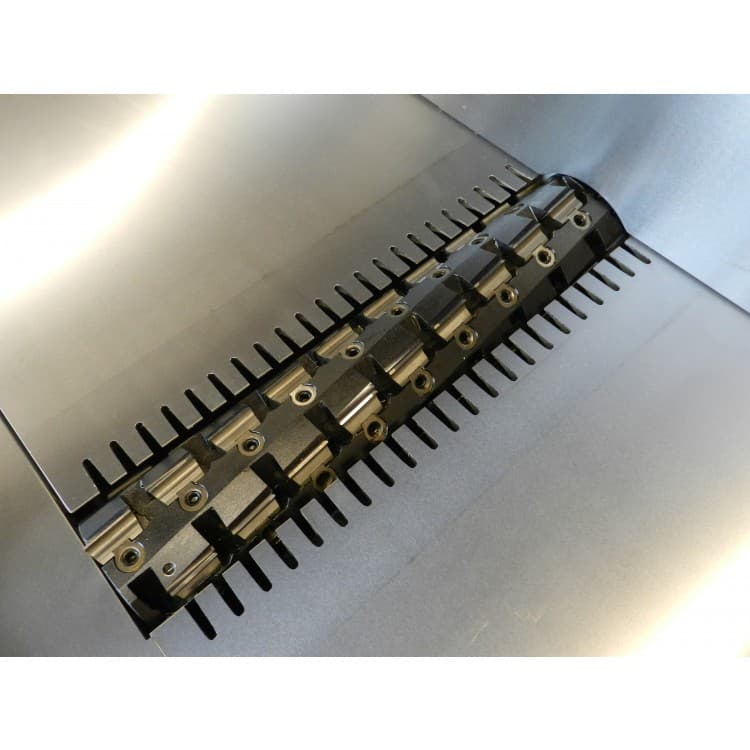

- Spiral insert knife cutterhead with 30x12x1.5mm two sided knives. Spiral insert knife head runs quieter than a conventional straight knife head & provides a longer life of the cutting tools

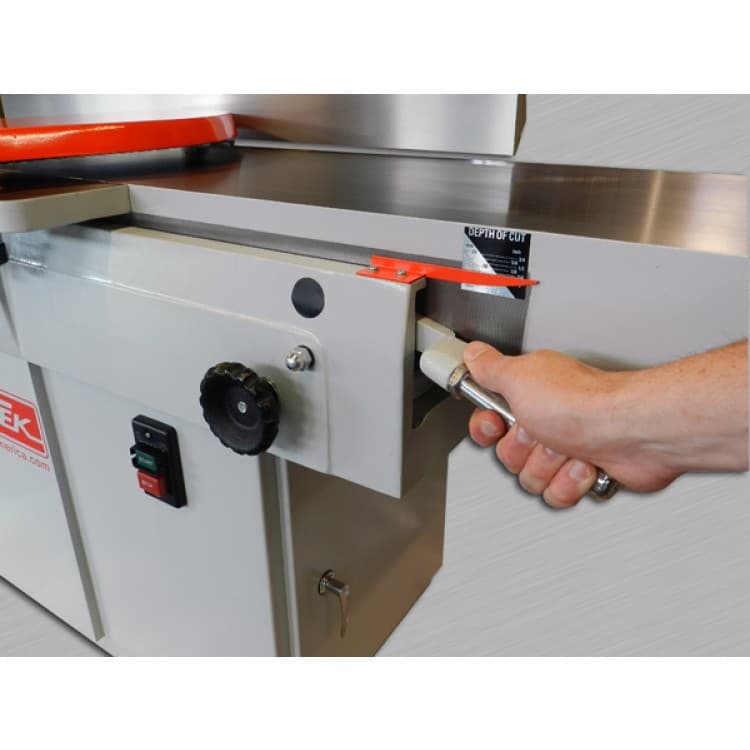

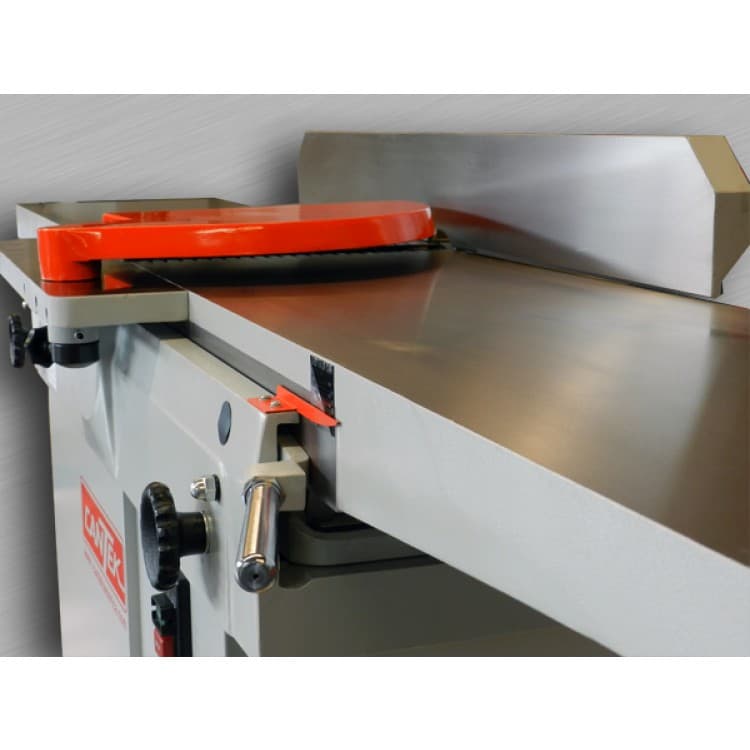

- Table raising and lowering by convenient lever with locking knob to prevent accidental table movement

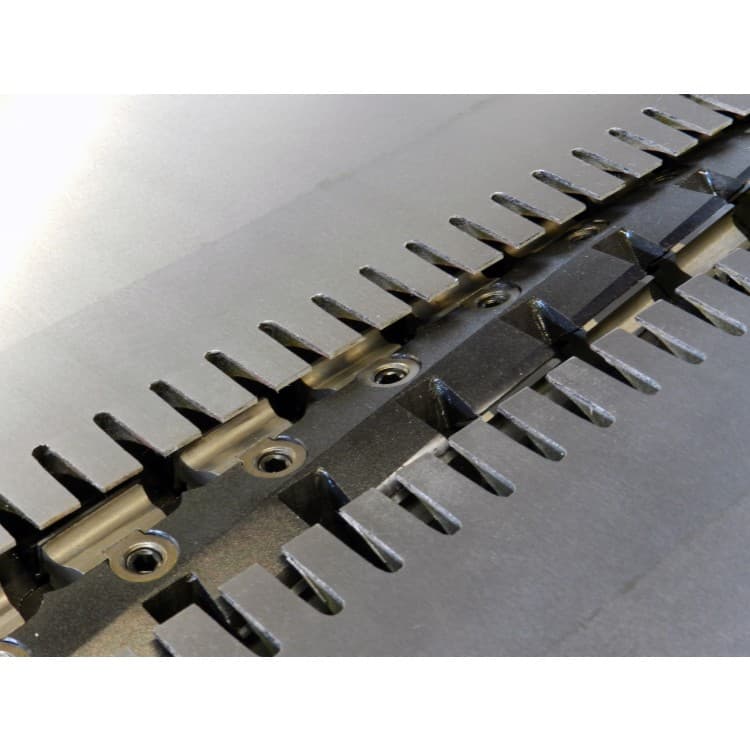

- Noise reduction table lips on infeed & outfeed tables for quiet operation

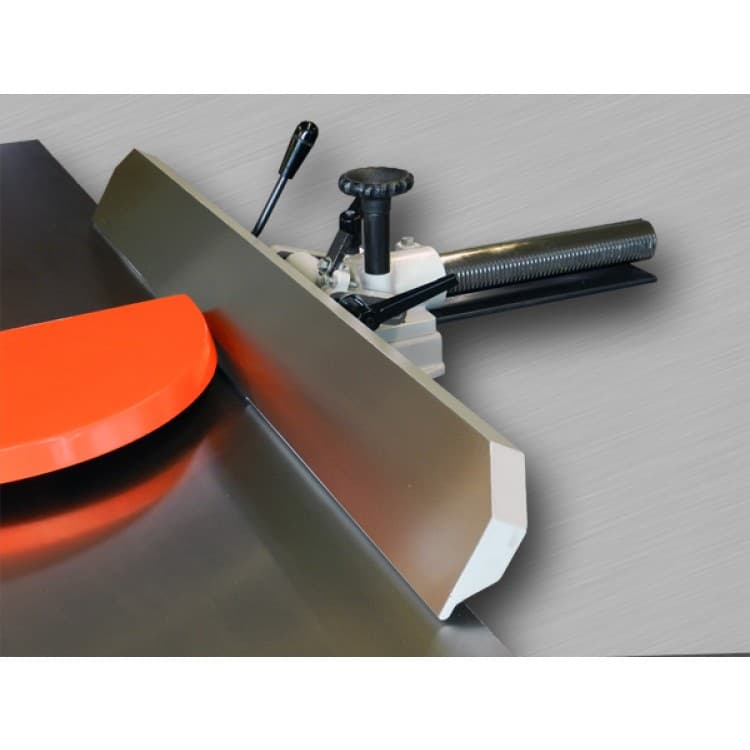

- Large center mounted fence with quick setting stops at 45o, 90 o and 135 o
- Smooth fence adjustment by rack & pinion
- Large diameter cutterhead is ground and balanced

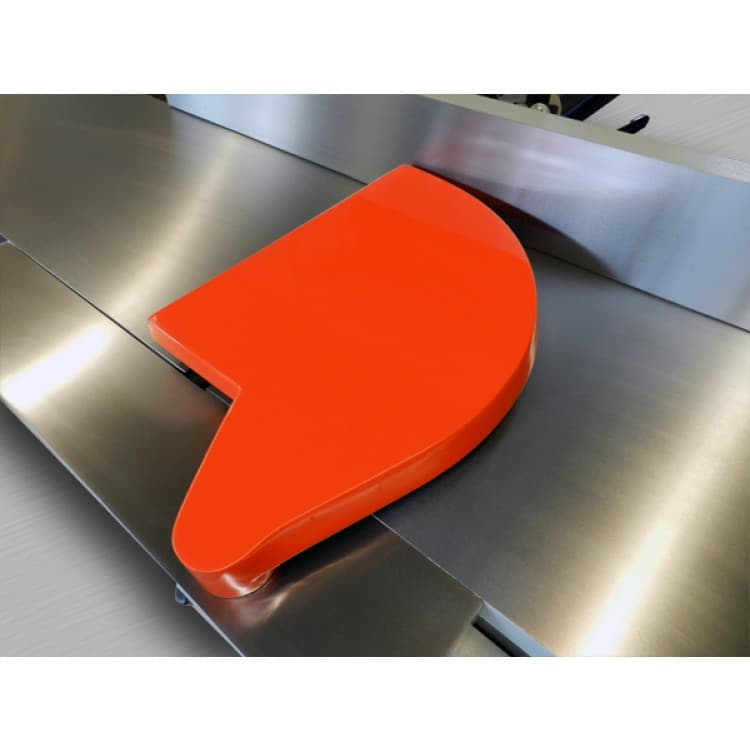

- Spring loaded adjusting safety guard moves only when workpiece is being fed
- CSA magnetic switch
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5000RPM |
| Phase | 3 |
| Length | 97" |
| Horsepower | 7-1/2HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | |
| Width | 40" |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
