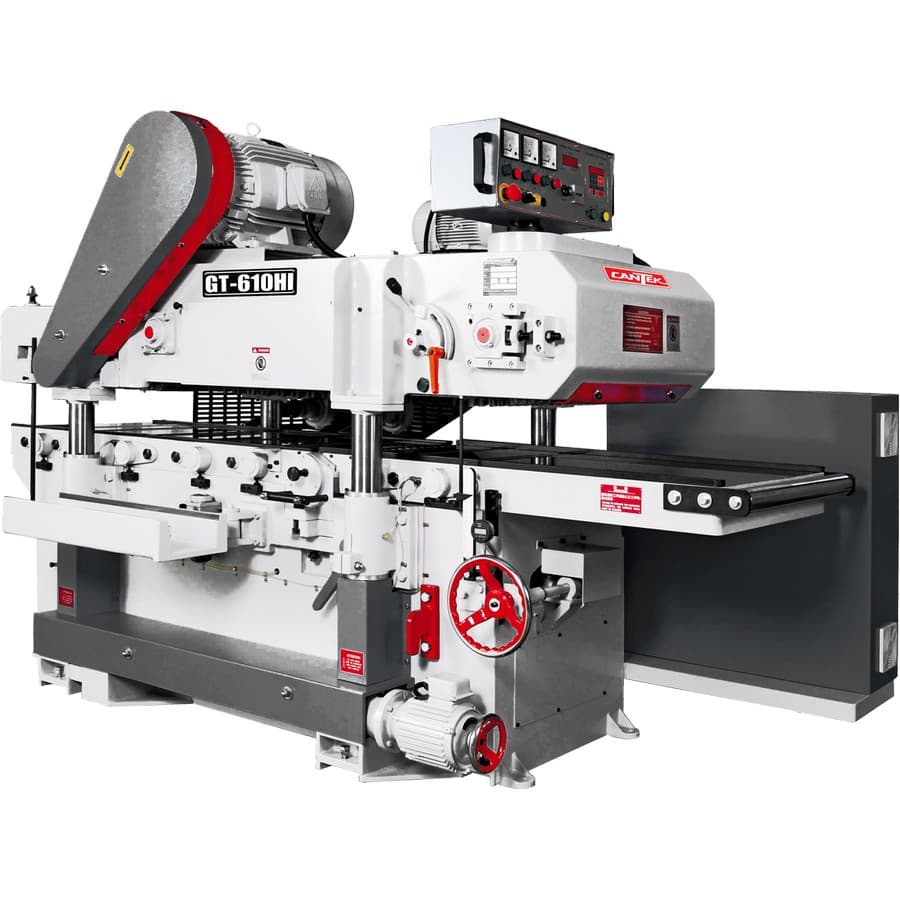

Cantek GT610HI 24" Heavy Duty Cardan Shaft Drive Double Surfacer
Item # CANGT610HI
•Mfr # CANGT610HI-460-3
This item may incur additional shipping costs and lead times.
Product Details
- Cast iron based machine
- Chrome-plated tables and top and bottom
- Belt driven cutterheads.
- Full Cardan shaft drive
- A special gauging device mounted at the side of the machine quickly detects board thickness and reduces set-up errors.
- Cutterheads are mounted in Precision ABEC 7 RHP Bearings
- Cutterheads are Carbide spiral insert type. Heads have six (6) rows of carbide inserts, positioned in a spiral pattern, staggered. Two sided knives are 30mm x 12mm x 2.5mm. These cutterheads produce an excellent finish, run much quieter than conventional straight knife heads, and require less HP to perform the planing task. The inserts are an industry standard item, and have two (2) cutting edges at 4600 RPM.
- 4 heavy jack posts lift the feed carpet and top head assembly by 1 HP motor.
- The Feed System uses a spring loaded pin arrangement to pass material over the bottom jointing head. A driven rubber top roll, after the top head, delivers the material out of the machine.
- VFD variable feed speed
- LED readout at the control panel indicates opening dimension
- Front table is wedge/gib mounted and can be adjusted by the front handwheel.
- Front mounted control panel provides electronic display of bed opening.
- Electrics to CSA/UL Standards and are 230/460 or 575 volts 3 phase 60 cycles
- Cutterhead starters are Y-Delta providing soft start to the heads
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Diameter | 5.3" |
| Motor Voltage | |
| Height | |
| Power | |
| Horsepower | 5HP |
| Phase | |
| Length | 108" |
| Drive Motor | |
| Voltage | |
| Width | 67" |
| Cutter Head Type | Belt Driven |
| Motor Phase | |
| Product Type | Double Surface Planer |
| Cutting Width | |
| Infeed Roller Diameter (In.) | |
| Cutter Block Diameter | |
| Speed | |
| Recommended Circuit Size (Amps.) | |
| Maximum Depth of Cut (In.) | |
| Number of Rollers | |
| Maximum Planing Width (In.) | |
| Motor Voltage (V.) | |
| Column Diameter (In.) | |
| Cuts Per Minute | |
| Reversible | |
| Maximum Full Width Depth of Cut (In.) | |
| Motor Current (Amps) | |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | |
| Feed Rate | |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | |
| Knife Size (L x W x T) | |
| Table Size with Extensions (L x W) (In.) | |
| Number of Knives | |
| Segmented Infeed Roller Diameter (In.) | |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | |
| Digital Readout | |
| Type of Cutterhead | |
| Style (Type) | |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | |
| Maximum Planing Thickness (In.) | |
| Table Support | |
| Motor Power | |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | |
| Cutter Block Speed | |
| Dust Port Outside Diameter (In.) | |
| Warranty | |
| Planing Height | |
| Planing Width | |
| Chip Removal | |
| Extraction Connection |
