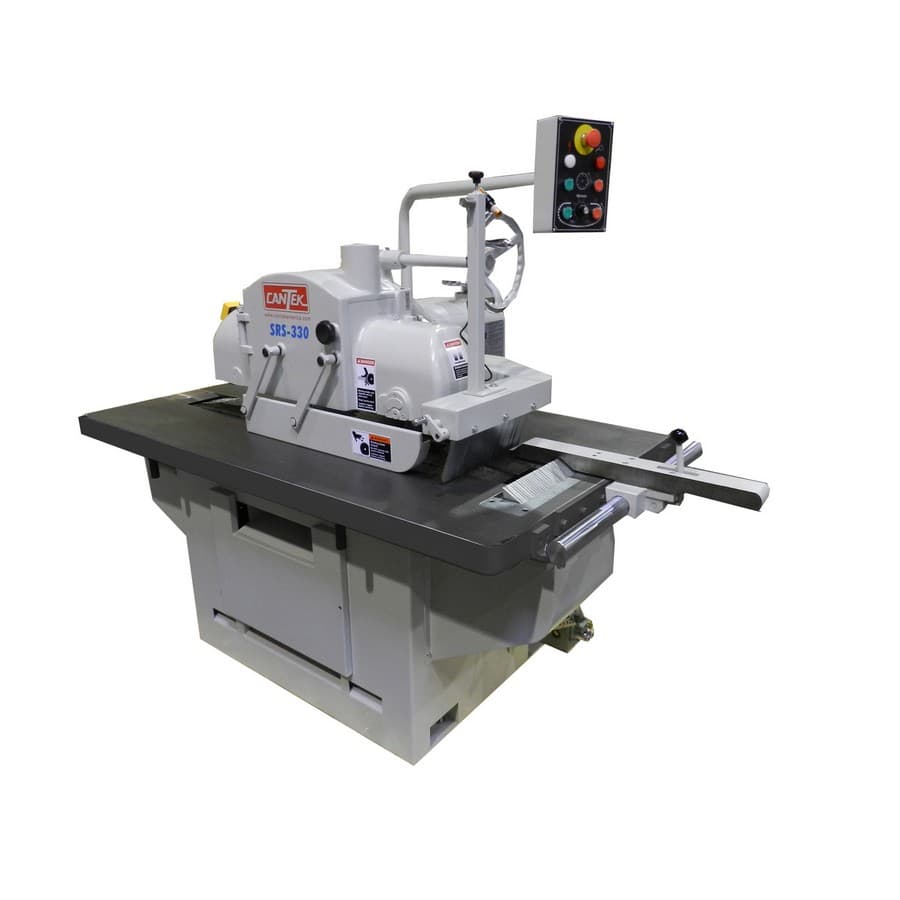

Cantek SRS330 13" Single Blade Glueline Ripsaw 20HP Three Phase

For glue joint straight line ripping.

• Very Rigid machine body with a welded steel frame with an integral cast & machine table, which is fitted with a sturdy cast column & saw unit

• Excellent precision work accuracy and durability

• Absolute straight line feeding to 13 ft.

• Precision caterpillar chain and double “VEE” extra long (47.2″) guide rails are made of special cast iron the chain connecting pins are made of high grade steel – heat treated & ground for high durability and low wear

• 8 hold-down rolls (6 rows)

• Swing Down Rear Table – to prevent damage to the table chain area

• Quick release cam & adjustment to the rip fence

• 3 sets of anti-kickback fingers. 2 top and 1 set in the table

• Precision Built Saw Arbor constructed of nickel chrome steel, large diameter, accurately ground, hardened and dynamically balanced

• Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out and axial thrust) – V Belt driven from bleow

• VFD – Infinitely variable feed system with feed speeds of 30~130 fpm (10-40 mpm)

• Easy access controls mounted on a pendant – with easy adjustment to the controls

• Automatic Centralized lubrication system ensures permanent oil film between the chain and guide rail. When oil runs out the machine track stops running to avoid damage to track

• Complete with safety devices

• Soft start – Star Delta starter

• Solid steel round fence bar

• Telemecanique U/L magnetic starters to UL/CSA standards

• Useable chain length 47″

• Glue line Guarantee: 13 ft.
