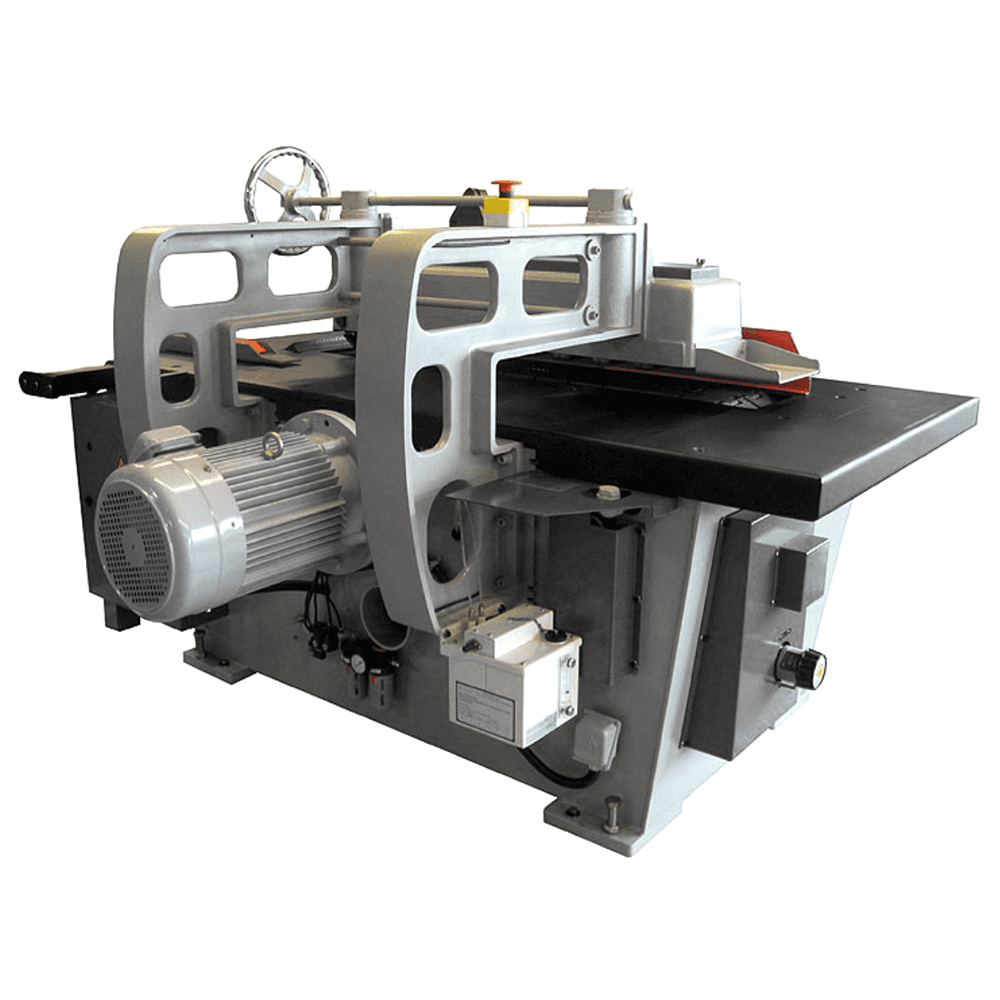

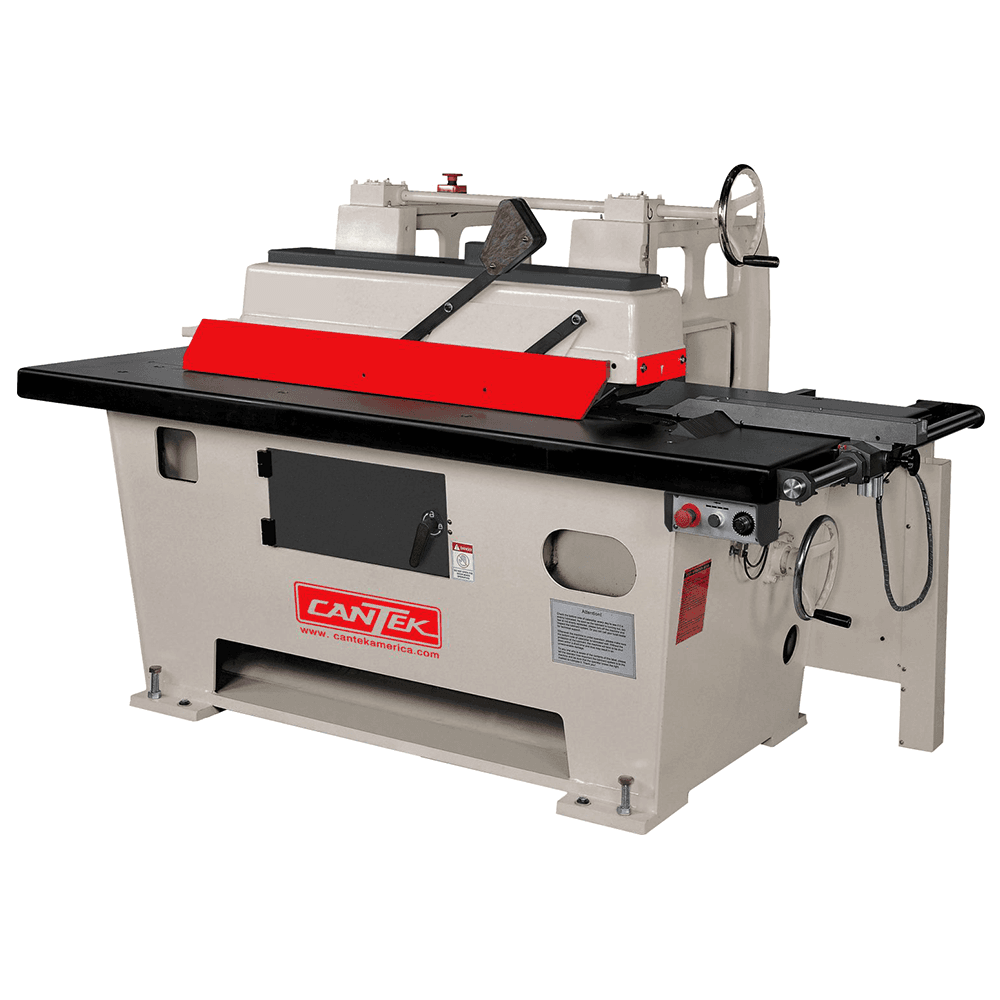

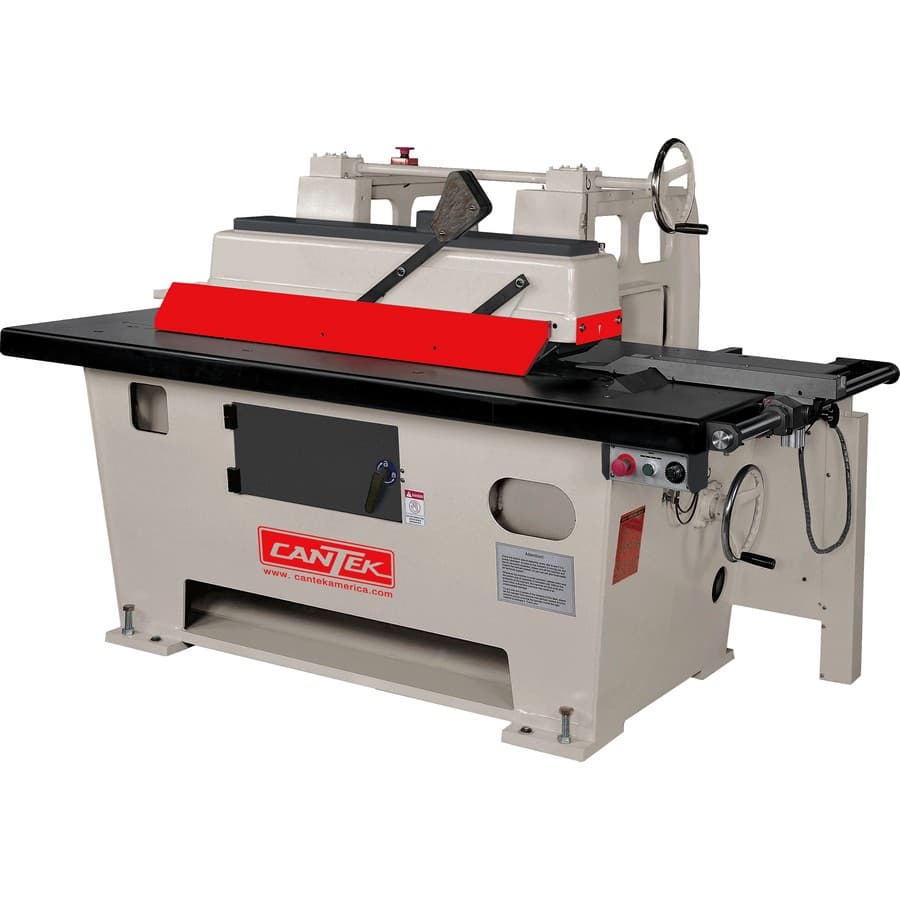

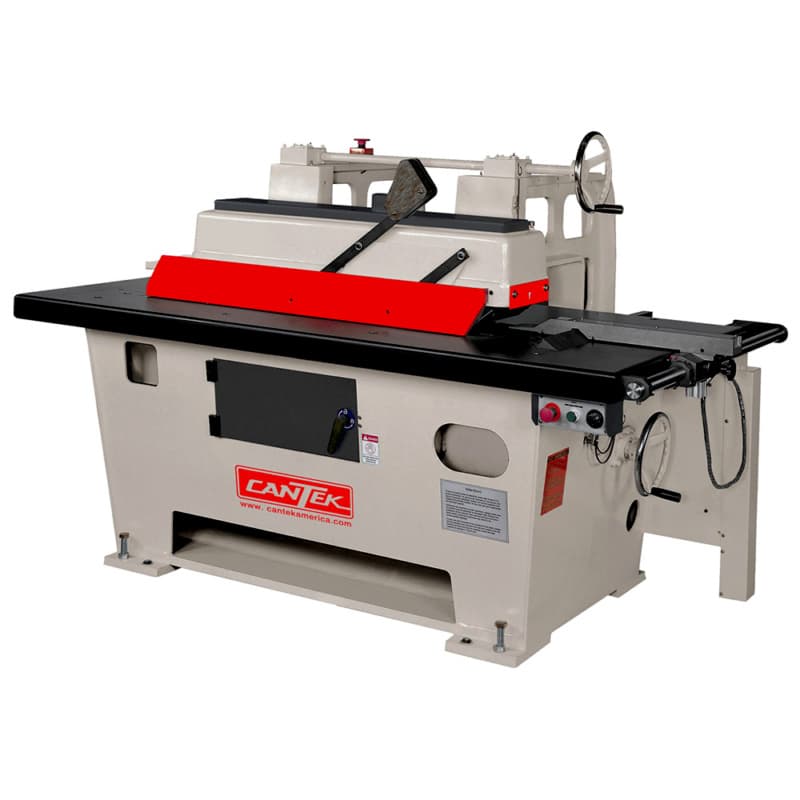

Cantek R18 18" Heavy Duty Bottom Cutting Straight Line Ripsaw Three Phase
Item # CANR18
•Mfr # CANR18-460-3
$28,300.00
/Each
Freight: $1,895.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
- Extra Heavy Main Frame Throughout with large support table
- 6” minimum length with this type of saw the blade is cutting downwards ie. forcing the Blade onto the chain – hence max. stability and safety are realized.
- Better chip clearance for shavings on deep cutting
- Glue Joint Range – 12” to 10 Ft.
- Depth of Cut 4.7”(120mm) max
- Split chain – double track with HRC60 Rockwell Hardened Guideways
- 26” (660mm) Saw to Column

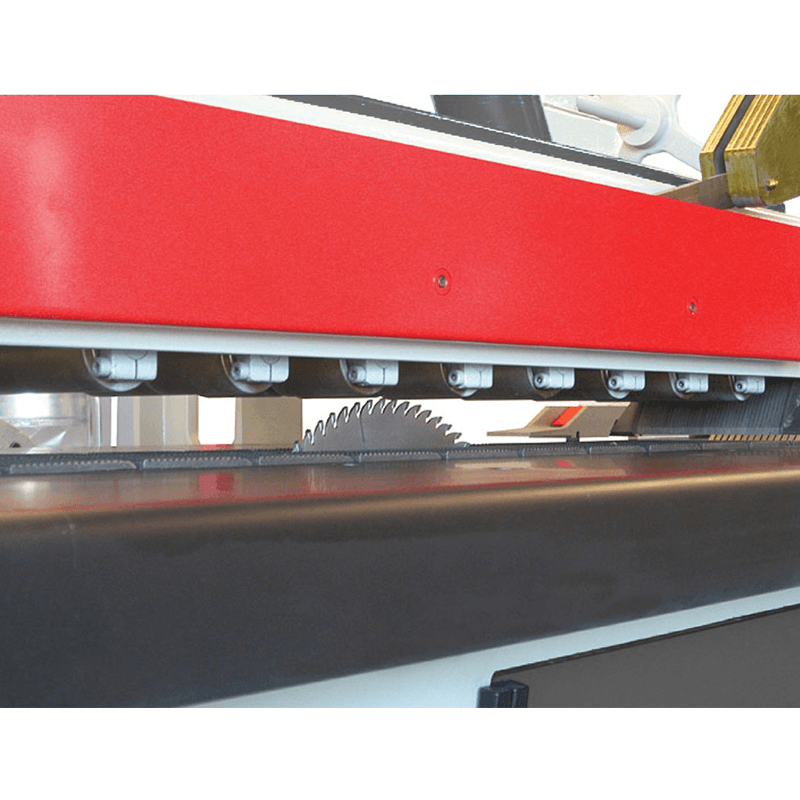

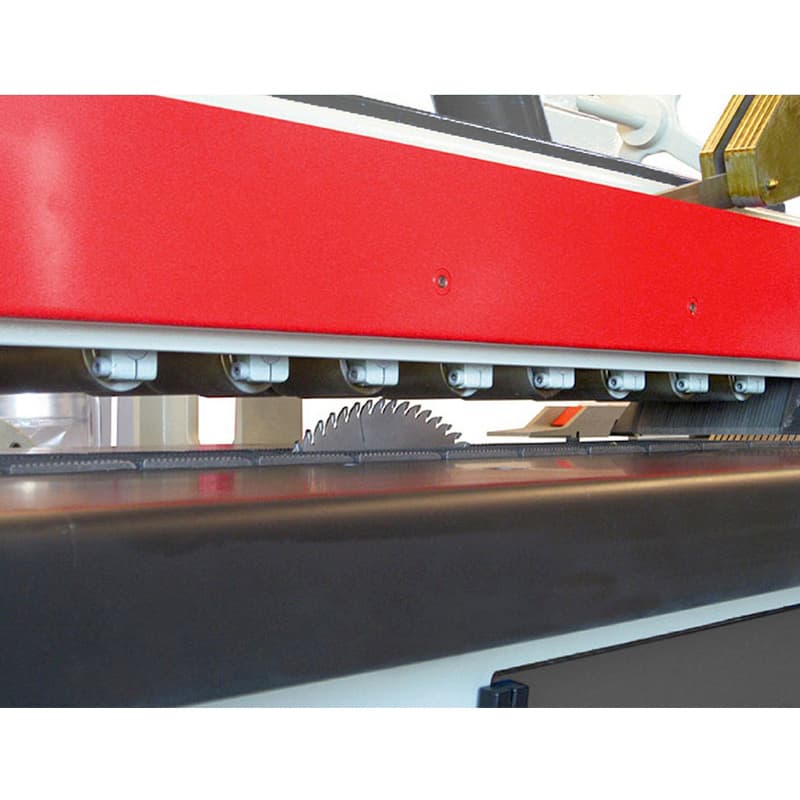

- 8 Press Rolls hold material firmly on the track
- 15 HP direct drive (20 Hp Main Motor – optional)
- 3 HP feed motor
- Feed Speed 33 to 180 FPM variable
- Automatic chain and track Oiler
- 41” length of chain above table
- Saw Arbor Height adjustable
- Max. 18” Blade Diameter x 2” Bore Dia. saw Arbor with 14mm pin at 65mm centers
- Saw Arbor Brake Included

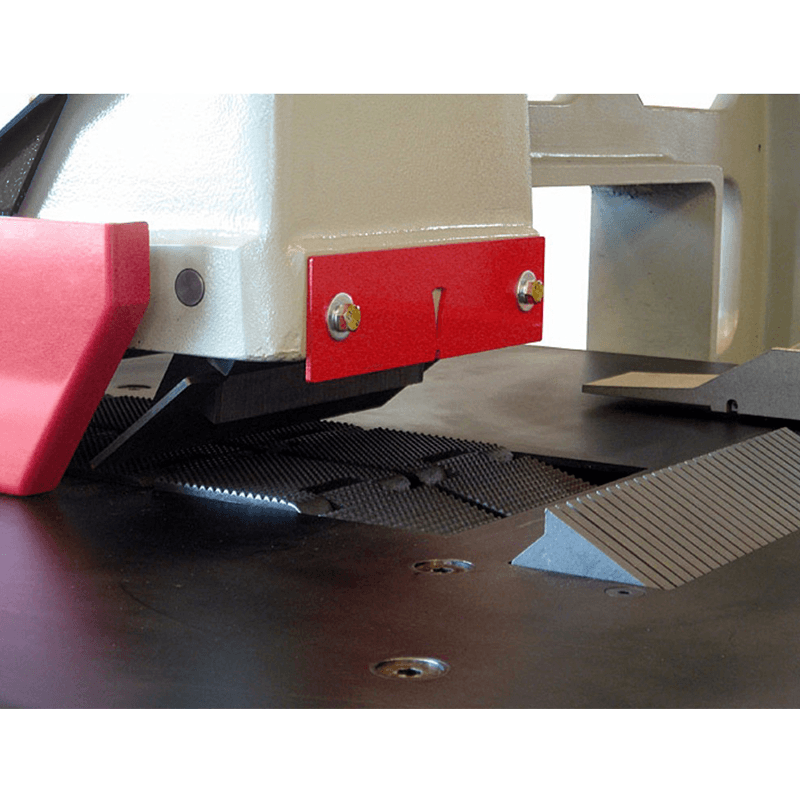

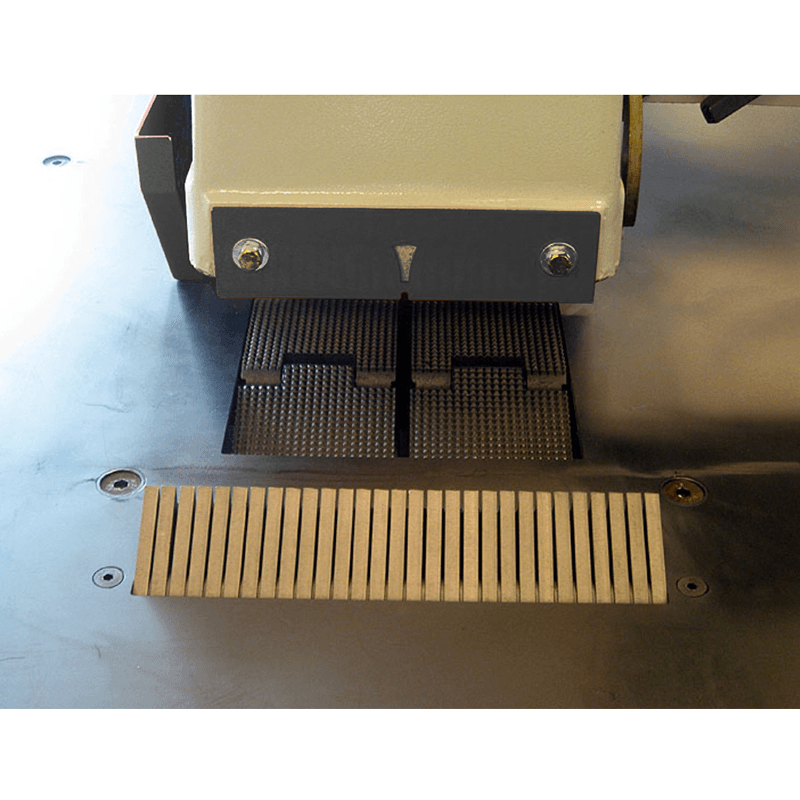

- Anti-kickback fingers top and bottom
- Dust collection outlets:
- Top 5.75” 700 CFM
- Bottom 5” 550 CFM
- Table Dimensions – 82” x 40” x 33.5” high (Can be added to optional)
- Net weight – 4400 lbs
- Electrics 230/460 or 575/3/60 to UL/CSA Standards
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | Straight Line Ripsaw |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | |
| Height | |
| Drive Motor | |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | 20 HP |
| Phase | |
| Range of Speeds | |
| Length | |
| Voltage | |
| Backing Material | |
| Material | |
| Recovery Time |
