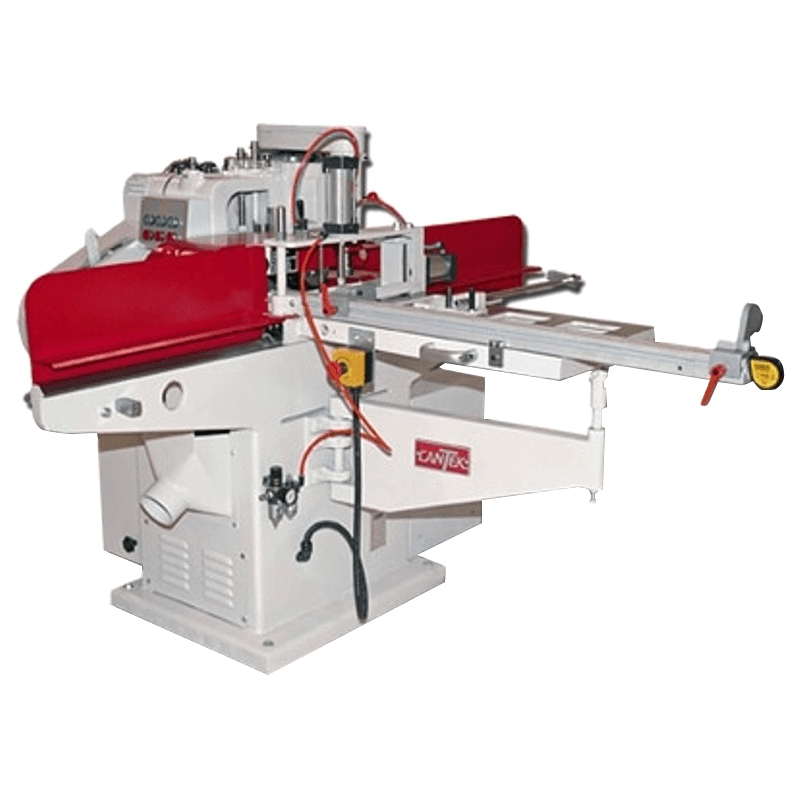

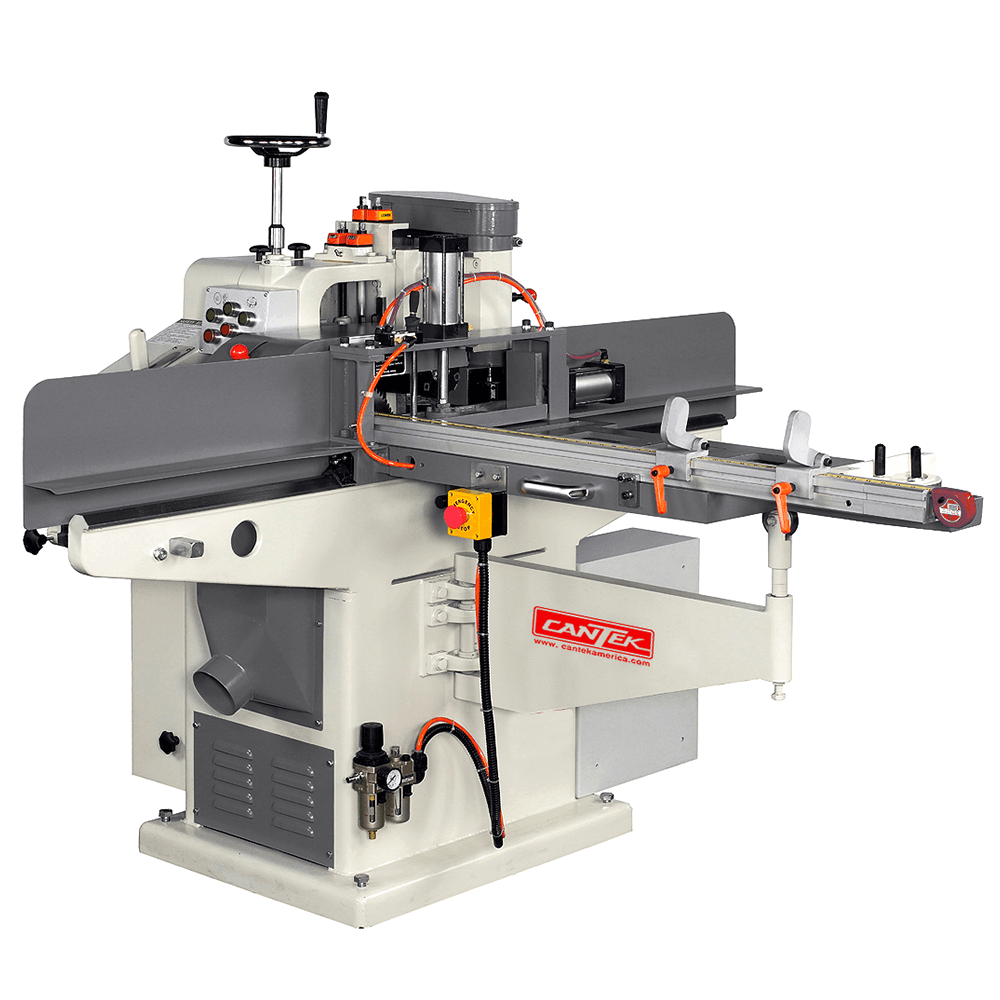

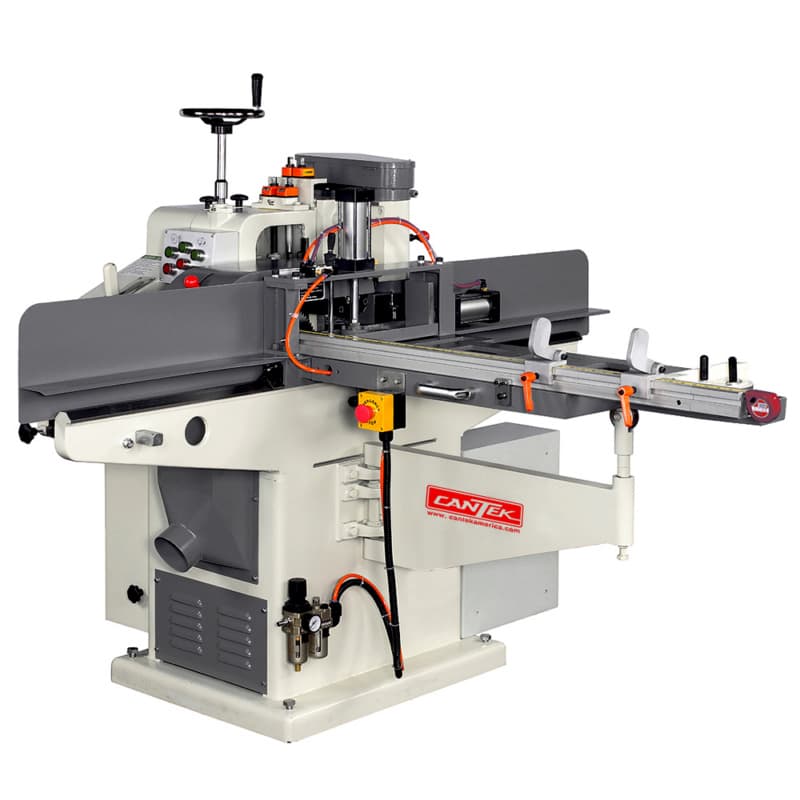

Cantek ST152C Single End Tenoner
Item # CANST152C
•Mfr # CANST152C-230-3
$16,700.00
/Each
Freight: $795.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
- 5 heads
- CSA Telemecanique switches
Top & Bottom Tenon Heads
- Carbide insert spiral tenon heads
- 1 ¼” dia. spindle
- 6″ long x 5″ thick tenons heads. Spiral with carbide insert tooling
- 2 x 5HP motors
- 3400 RPM
- 14 mm square carbide tips on end of cutterheads to produce clean cut shoulder
- 1″ lateral adjustment of tenon heads
2XCope Spindle Vertical Top&Bottom
- 1 ¼” dia. spindle, 6000 RPM
- 5HP motor to each cope head
- Max. dia. tooling 6-3/8″
- 2-3/4″ length of spindle
- Independent adjustment each head
- 2 x 4 knife wedge type cutterheads included
- Counterbore locknut allows both heads to move close together
Cut Off Saw
- 12″ dia. driven from tenon heads
- 1 ¼” shaft dia. x 6″ long
- 2800 RPM
- Saw position moved by changing spacers
Sliding Table Carriage
- Pneumatic holddown clamp for clamping work pieces onto traveling table
- Table size 50″ long x 17″ wide
Options Included
- Set of Heads
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | Single End Tenoner |
| Power | 230V |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | 72-7/16" |
| Height | 45-9/32" |
| Drive Motor | |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | 7.5 HP |
| Phase | 2 |
| Range of Speeds | 3400 RPM |
| Length | 66-9/64" |
| Voltage | |
| Backing Material | |
| Material | |
| Recovery Time |
