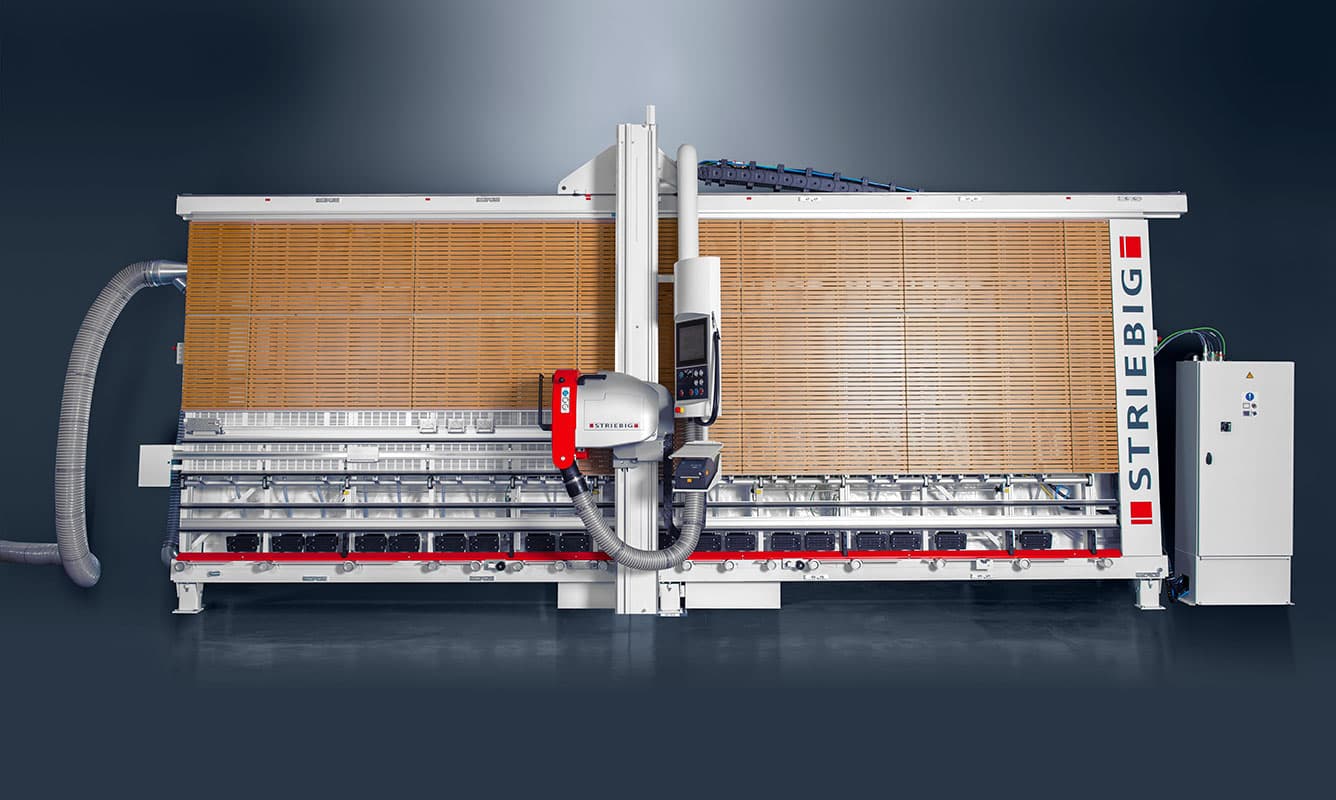

Striebig 6168 Control Automatic Vertical Panel Saw 3PH 208/240/480V
Item # SB6168
•Mfr # 6168
$87,000.00
/Each
Freight: $3,750.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
Swiss made quality for accuracy and durability!
- New 12” Touch-screen monitor for control of most saw functions, information, and diagnostics
- Automatic saw travel with variable feed rate 10-25 m/min. (33-82 ft./min.)
- Selectable sawing cycle (cut and return, or cut and stop)
- Panel end sensor and start position memory to save time (instead of having to travel to end of saw)
- EPS.Y programmable saw head positioning for horizontal cuts- great for repeat rip cuts-includes ABO - automatic, laser light top of panel recognition and positioning for a top trim cut
- Digital measuring X-axis stop (for vertical cuts) with fine adjustment, quick and easy referencing, push-button selection to reference from another cut station, and selectable display increments
- Second measuring channel with three auxiliary stops for repeat cuts, plus “Compact-style” stop
- Extremely stable, all welded steel frame suitable for free-standing or wall-mount installation
- Convenient, sturdy, two-section center shelf with moveable aluminum fingers allows for comfortable working of smaller parts and ability to stage material on one side of the saw
- Automatic recognition and locking of beam at vertical cut stations; unlock at the press of an icon
- Touch-screen control for rotating, plunging, and locking/unlocking of the saw head and beam
- Duplicate buttons conveniently located on front of the saw head for “start cycle”, plunge, and scoring
- Automatic locking of the heavy-duty panel support rollers when cut cycle is started
- Automatic, mechanically shifting, full wood support grid for full support of thin, flimsy materials
- Laser light to help guide set-up of horizontal cut position
- TRK dust system exceeds European standards; note: requires a collection source
- Vertical cut stations 40 inches on center (1 meter spacing optional for all-metric shops)
- USB port to enable uploading of Excel lists of part dimensions
- 7.5 hp, 220/440V, 3-phase motor with electric brake (machine is wired for 220V only!)
- 300 mm (11-7/8”) HFG (hollow-face) carbide saw blade; ideal for melamine and veneers
- Document holder (removable) to keep cut lists in optimum viewing position near control panel
Specifications
| Box Quantity | 1 |
