SCM Minimax FS 30C 12" Jointer/Planer with Xylent Helical Cutter Head 4.8HP
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The jointer/planer combination machine for the D.I.Y. woodworkers and craftsmen joineries.
This machine offers premium power and precision in a compact size for any shop. With long jointer tables and sturdy fence, this machine is a quality product, made in Italy, for a value price.
STANDARD FEATURES
- - 4.8 Horsepower single-phase motor
- - 12" Jointer/planer cutterblock
- - 60" Jointer table length
- - Precision-ground cast iron tables
- - American-style jointer guard
- - Quick-tilting jointer fence
- - Jointer tables open away from operator
- - Two independent dust collection ports
- - Tool set & owner’s manual

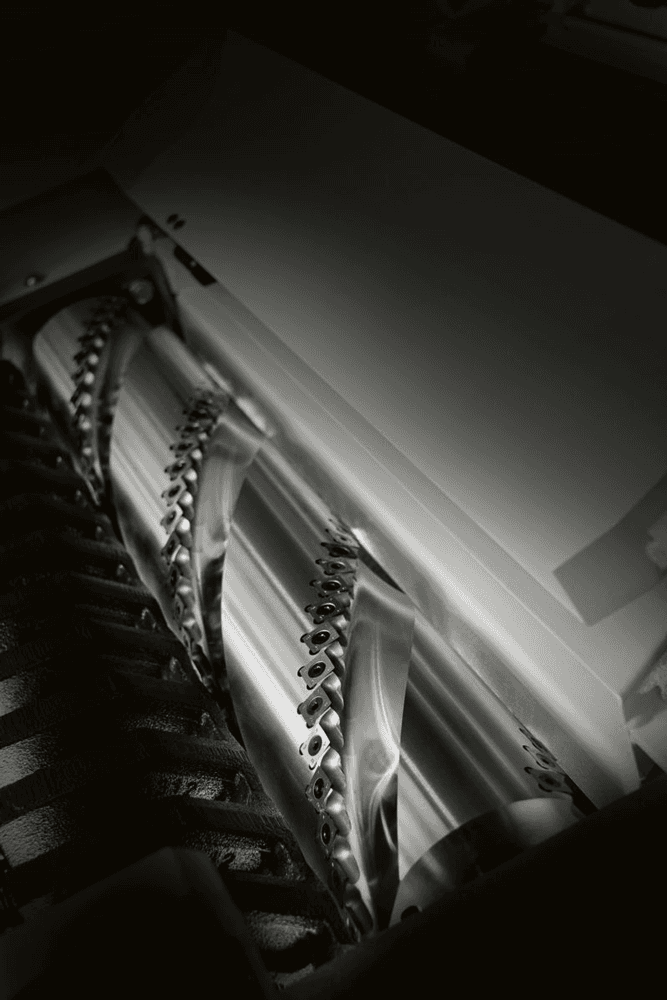

- - Xylent helical cutterhead
- The Minimax FS 30C comes with an American-style spring-loaded jointer guard.
TECHNICAL SPECIFICATIONS
|
JOINTER SPECS |
|
|
Overall Table Length |
59.75" (1510mm) |
|
Maximum Jointing Width |
12" (300mm) |
|
Cutterhead Speed |
5,200 rpm |
|
Maximum Stock Removal |
0.16” (4mm) |
|
Fence Tilt |
0° - 45° |
|
PLANER SPECS |
|
|
Table Size |
12" x 22” (300mm x 585mm) |
|
Min./Max. Working Thickness |
0.12" / 9.0” (3mm / 230mm) |
|
Maximum Stock Removal |
0.16” (4mm) |
|
Feed Speed |
23 fpm |
|
ELECTRICAL |
|
|
Single-Phase Motor, 230v |
4.8 Hp |
|
Weight |
595 lbs |
|
Dust Extraction Port Diameter |
4.75” (120mm) |
|
Minimum Recommended Dust Extraction Volume |
600 cfm |
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5200 RPM |
| Phase | 1 |
| Length | 59" |
| Horsepower | 4.8 HP |
| Drive Motor | |
| Product Type | Jointer/Planer |
| Voltage | 230V |
| Width | 28" |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
