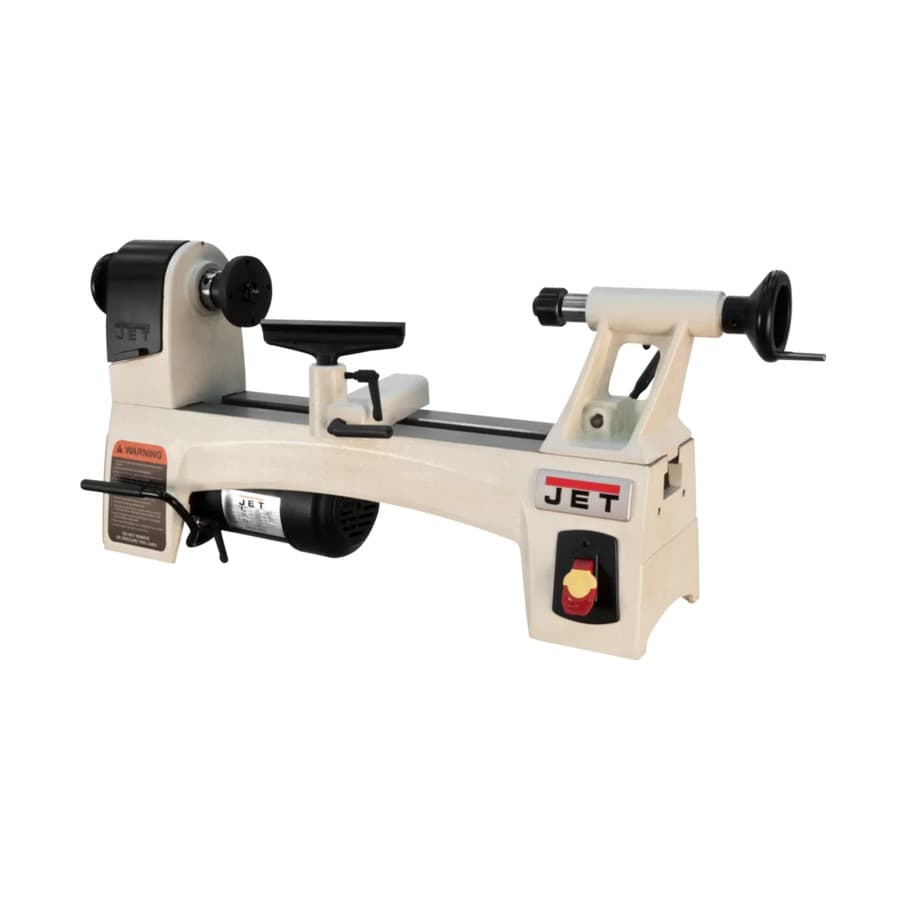

Jet Tools 719100 JWL-1015 10" X 15" Wood Lathe 115V
This item may incur additional shipping costs and lead times.
Product Details
The new JET 1015 is an ideal choice for the novice woodturner looking for an affordable, user-friendly first lathe, as well as the advanced enthusiast or professional who wants to add a full-featured mini-lathe to the shop. This sturdy, smooth-running 15” mini-lathe has the power, precision and versatility to turn out any number of projects. When you're ready to make your ideas a reality... Start Here.
Features
- Improved tensioning system with easier access to belts
- Integrated 24 position indexing
- Live center in the tailstock
- Six spindle speeds: 500, 840, 1240, 1800, 2630 and 3975
- Wider bed ways provide increased rigidity
Specifications
Swing Over Bed (In.) - 10
Quill Travel (In.) - 2
Spindle Bore (In.) - 3/8
Number of Indexing Positions - 24
Motor Power (HP) - 1/2
Bed Construction - Cast Iron
Motor Voltage (V.) - 115
Prewired Voltage (V.) - 115
Motor Amps - 5
Recommended Circuit Size (Amps.) - 10
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Width of Bed | |
| Range of Cross Feeds (IPR) | |
| Product Type | Drum Sander |
| Overall Height | |
| Overall Dimensions (L x W x H) | |
| Number of Spindle Speeds | |
| Number of Metric Threads | |
| Number of Longitudinal and Cross Feed Rates | |
| Number of Inch Threads | |
| Range of Inch Threads (TPI) | |
| Range of Longitudinal Feeds (IPR) | |
| Range of Metric Threads | |
| Taper in Tailstock Spindle | |
| Tailstock Spindle Travel | |
| Swing Through Gap | |
| Swing Over Cross Slide | |
| Steady Rest Capacity | |
| Spindle Taper with Sleeve | |
| Spindle Mount | |
| Range of Spindle Speeds (RPM) | |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | |
| Swing Over Bed | 10" |
| Size | |
| Motor Amps | 5 |
| Distance Between Centers | |
| Prewired Voltage | 115 |
| Spindle Thread (In./TPI) | |
| Carriage Travel | |
| Compound Slide Travel | |
| Length of Gap | |
| Input Power | |
| Follow Rest Capacity | |
| Drive | |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | |
| Coolant Pump Motor | |
| Configurator Option Type | |
| Configurable Base Item | |
| Motor Phase | |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 3/8" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | 24 |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 1/2HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | 2" |
| Bed Construction | Cast Iron |
| Recommended Circuit Size (Amps.) | 10 |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 115 |
| Horsepower | |
| Warranty | 5 Year |
| Height | |
| Phase | |
| Length | |
| Width |
