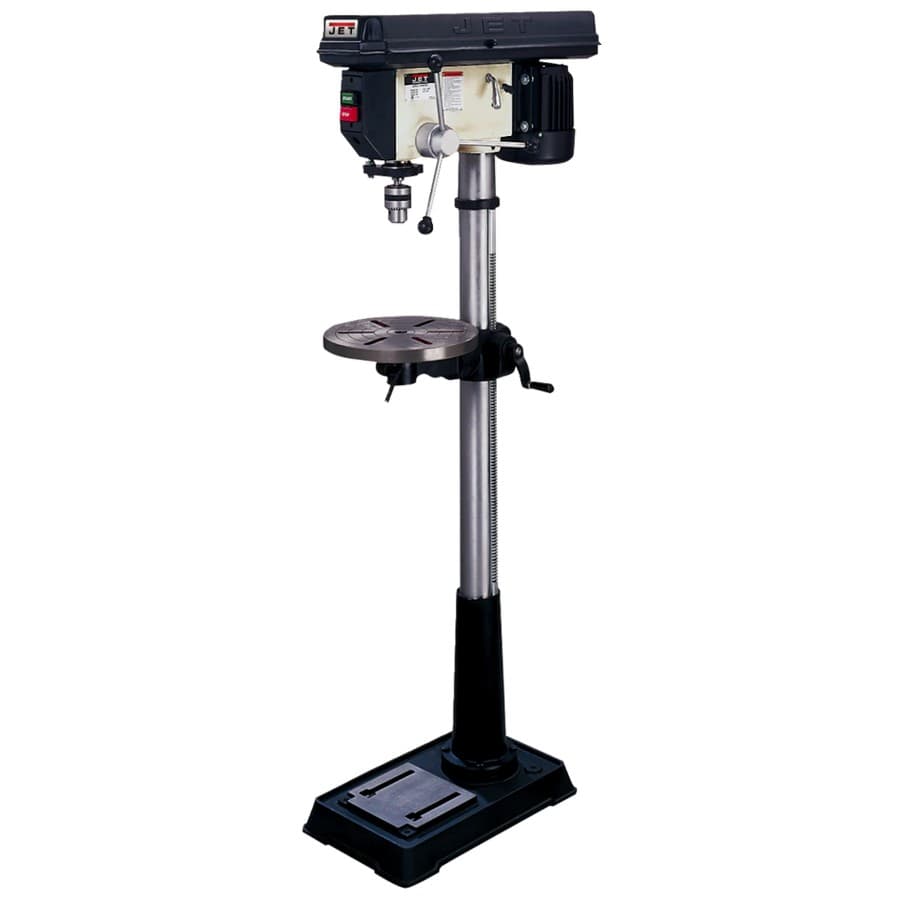

Jet Tools 354169 JDP-17MF 16-1/2" Floor Drill Press 3/4 HP Single Phase
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, work light, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.
Features
- "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position
- 16 Speeds lets you choose the best speed for the job
- Adjustable tension spindle return spring
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
- Built-in worklight (bulb not included) provides additional visibility of your work
- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Hinged metal belt and pulley cover
- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Spindle has high-quality ball bearing construction for long life
Specifications
Swing (In.) - 16-1/2
Spindle Travel (In.) - 4-3/8
Style (Type) - Floorstanding Model
Number of Spindle Speeds - 16
Table Size (L x W) (In.) - 13-3/4
Spindle Distance to Table (Max.) (In.) - 29-1/8
Chuck Size (In.) - 5/8
Motor Power (HP) - 3/4
Column Diameter (In.) - 3-1/8
Motor Amps - 9/4.5
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Floor drill press |
| Prewired Voltage | |
| Overall Dimensions (L x W x H) | |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | |
| T-Slot Centers | |
| Tapping Capacity Mild Steel | |
| Tapping Capacity Cast Iron | |
| Table Travel | |
| Spindle Travel, Manual | |
| Spindle Travel Auto | |
| Spindle Taper (In. x TPI) | |
| Drills to Center of Circle | |
| Drilling Capacity Mild Steel | |
| Drilling Capacity Cast Iron | |
| Motor Power (HP) | 3/4HP |
| Column Diameter | 3-1/8" |
| Spindle Travel | 39541 |
| Motor Phase | |
| Base Size | |
| Motor Voltage (V.) | |
| Spindle Taper | |
| Table Size (L x W) | |
| Spindle Distance to Base | |
| Spindle Distance to Table (Max.) | 29-1/8" |
| Number of Spindle Speeds | 16 |
| Distance Column to Spindle | |
| Configurator Option Type | |
| Configurable Base Item | |
| Base Work Table | |
| Base Slots Number & Size | |
| Base Dimensions | |
| Spindle Speed (RPM) | |
| Swing | 16-1/2" |
| Chuck Size | 5/8" |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | 9/4.5 |
| Table Size Fully Extended (L x W) | |
| Style (Type) | Floorstanding |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | 5 Year |
| Horsepower | 3/4 HP |
| Phase | 1 |
