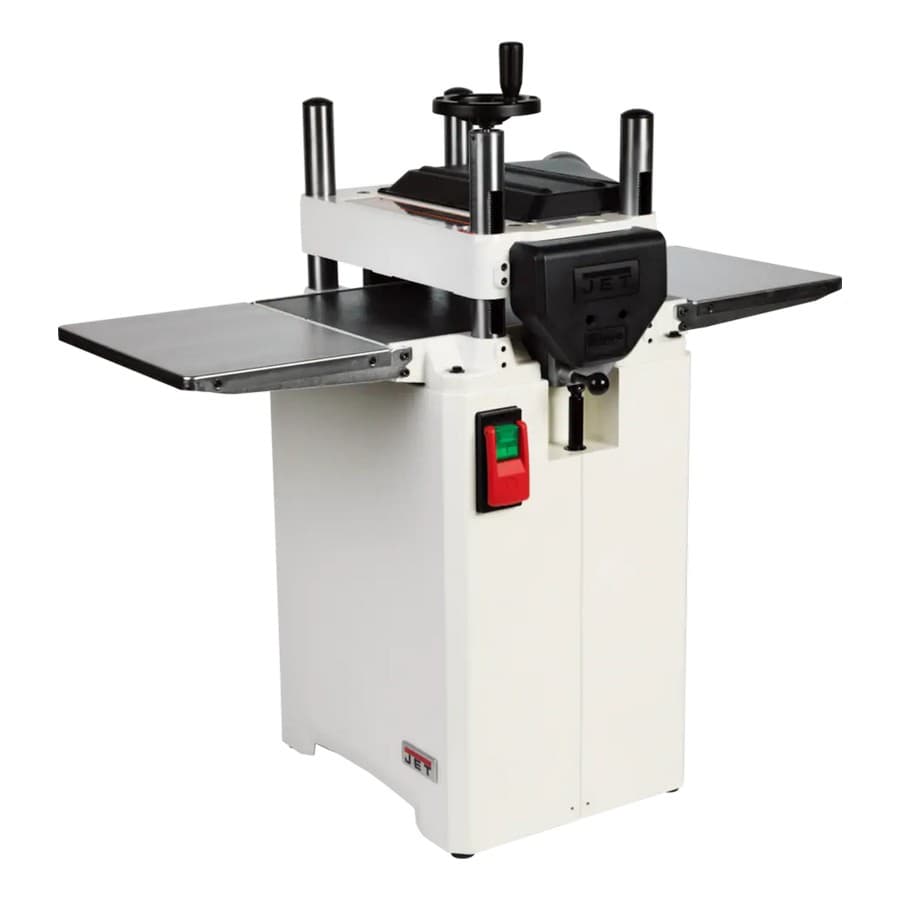

Jet Tools 722150 JWP-15B 15" JET Straight Knife Planer 3HP 230V
This item may incur additional shipping costs and lead times.
Product Details
For projects that require board thickness to be beyond exact, the New JET 15” Straight Knife planer gets the job done with ease. This sweet machine features a monster 3-horsepower motor with two speed gear box to adjust your feed rate for a better finished surface. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. Its rock-solid table is constructed of cast iron and features Steel infeed/outfeed table extensions that conveniently fold out of the way. And because even the coolest power planer is one of the messiest machines on the planet, JET’s angled 4" dust port keeps your dust hose out of the way for easy hookup on your shop’s dust collection system
Features
- 4" Dust Port hooks up to dust management system and helps keep shop clean
- Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
- Dust Port hooks up to dust management system and helps keep shop clean
- Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
- Innovative JET - Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
- Large hand wheel with positive gear drive easily moves the head to the desired board thickness
- Magnetic Switch with green safety light illuminates when powered
- Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
- Straight Cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
Specifications
Type of Cutterhead - Straight Knife
Style (Type) - Floorstanding Model
Number of Knives - 3
Table Size (L x W) (In.) - 15 x 21.45 in.
Cutterhead Speed (RPM) - 5200
Number of Speeds - 2
Motor Power (HP) - 3
Motor Voltage (V.) - 230
Motor Amps - 1
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Diameter | |
| Motor Voltage | |
| Height | |
| Power | |
| Horsepower | 3 HP |
| Phase | |
| Length | |
| Drive Motor | |
| Voltage | 230V |
| Width | |
| Cutter Head Type | Straight Knife |
| Motor Phase | |
| Product Type | Planer |
| Cutting Width | |
| Infeed Roller Diameter (In.) | |
| Cutter Block Diameter | |
| Speed | |
| Recommended Circuit Size (Amps.) | |
| Maximum Depth of Cut (In.) | |
| Number of Rollers | |
| Maximum Planing Width (In.) | |
| Motor Voltage (V.) | 230 |
| Column Diameter (In.) | |
| Cuts Per Minute | |
| Reversible | |
| Maximum Full Width Depth of Cut (In.) | |
| Motor Current (Amps) | 15 |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | 230 |
| Feed Rate | |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | 2 |
| Knife Size (L x W x T) | |
| Table Size with Extensions (L x W) (In.) | 15" X 21.45" |
| Number of Knives | 3 |
| Segmented Infeed Roller Diameter (In.) | |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | |
| Digital Readout | |
| Type of Cutterhead | Straight Knife |
| Style (Type) | Floorstanding Model |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | |
| Maximum Planing Thickness (In.) | |
| Table Support | |
| Motor Power | 3HP |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | |
| Cutter Block Speed | 5200 |
| Dust Port Outside Diameter (In.) | |
| Warranty | 5 Year |
| Planing Height | |
| Planing Width | |
| Chip Removal | |
| Extraction Connection |
