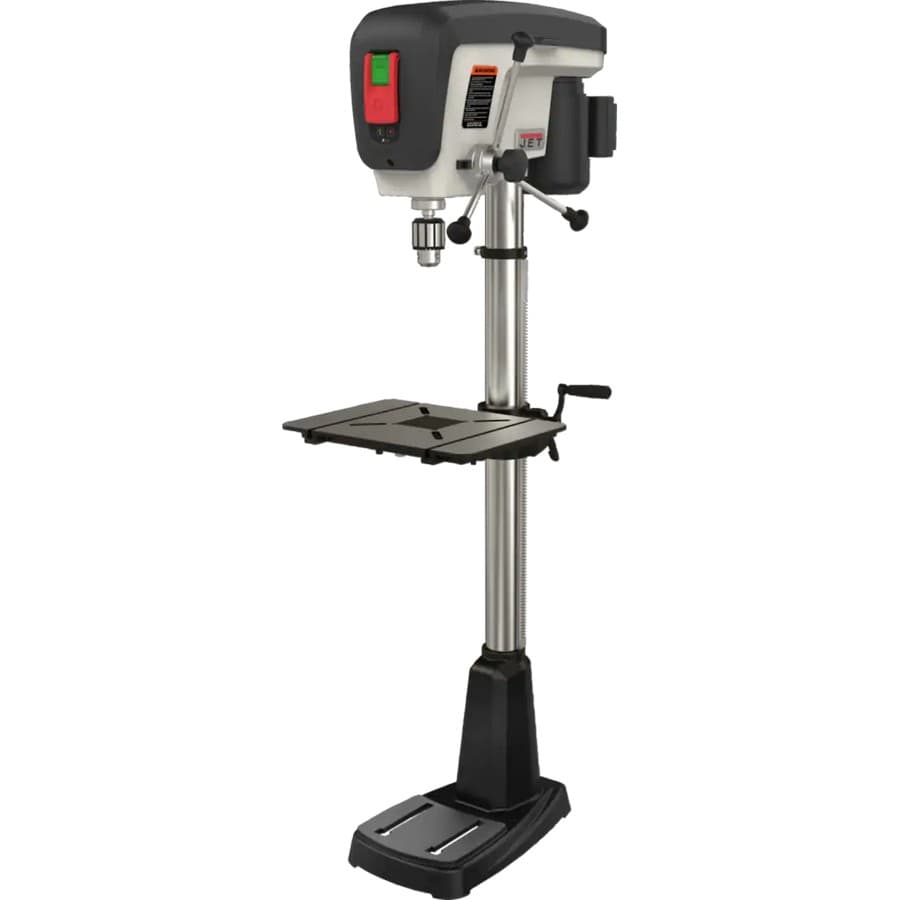

Jet Tools 716250 JDP-15F 15" Floorstanding Drill Press 3/4HP Single Phase 115V
This item may incur additional shipping costs and lead times.
Product Details
The new JET JDP-15F, 15” Floorstanding Drill Press. From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table.
Features
- CSA Certified
- Integrated depth stop makes repetitive drilling quick and easy
- Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
- Large cast iron base provides stability
- Long-lasting, built-in LED work light reduces shadows
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
- Replaceable MDF table insert
- Spindle travels a full 3-1/8” with one revolution of the handle
- Table edge lip designed to make clamping easy
- Xacta-X laser system easily identifies the drill center
Specifications
Swing (In.) - 15
Spindle Travel (In.) - 3-1/8
Style (Type) - Floorstanding Model
Number of Spindle Speeds - 16
Table Size (L x W) (In.) - 12-1/2 x 17
Weight (Lbs.) - 172
Spindle Distance to Base (In.) - 46-1/2
Spindle Distance to Table (Max.) (In.) - 30-1/2
Chuck Size (In.) - 5/8
Motor Power (HP) - 3/4
Column Diameter (In.) - 2-3/4
Assembled Machine Dimensions (L x W x H) (In.) - 27 x 17 x 63-1/4
Motor Voltage (V.) - 115
Prewired Voltage (V.) - 115
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
