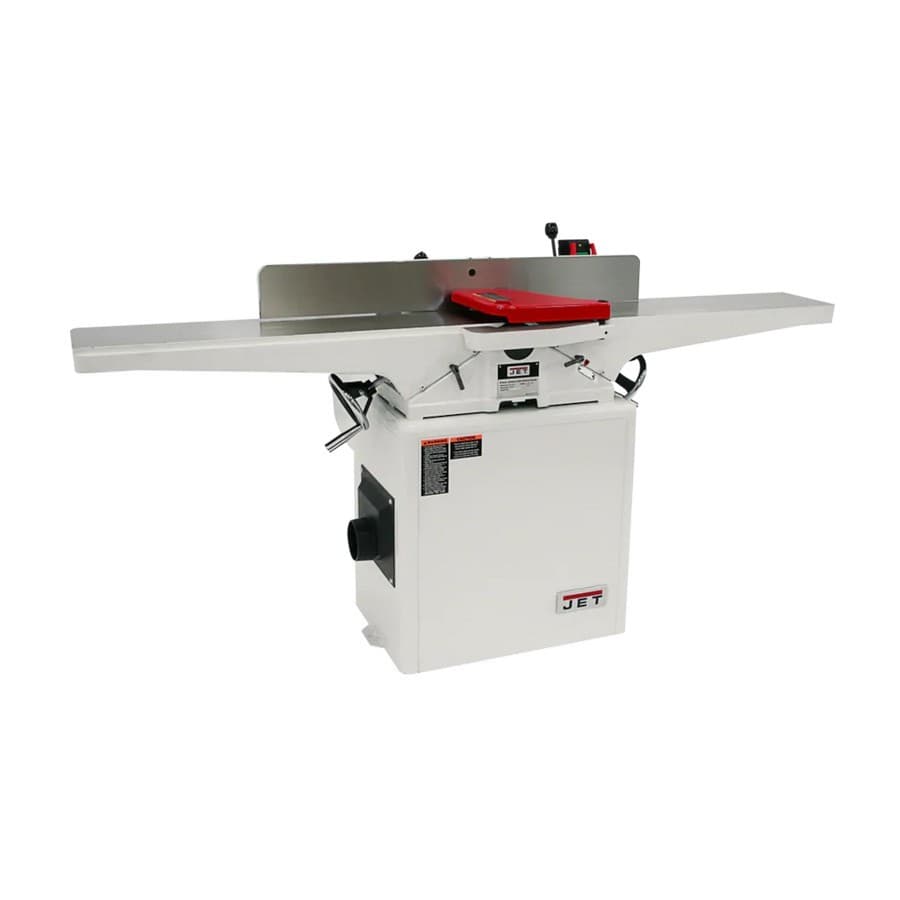

Jet Tools 718250K JWJ-8HH 8" Helical Head Jointer 2HP Single Phase 230V
This item may incur additional shipping costs and lead times.
Product Details
It’s time to skip the hand tools and graduate to the JET JWJ-8HH 8” long bed jointer. This beast boasts a helical insert cutterhead with staggered carbide inserts, yet its 2HP motor runs quietly and smoothly. Its front-mounted table adjustment handwheels make quick, easy and accurate corrections. The two-way tilting fence with positive stops at 45° and 90° makes bevel operations smooth. Extra-long heavy-duty cast iron infeed and outfeed tables with precision-machined finish allow jointing of longer boards without tipping. Best of all, it comes by JET's industry-leading 5 year warranty.
Features
- 4" dust chute
- Built-in 4" dust chute connects to your collection system for efficient dust/chip disposal
- Dual position magnetic controls provide long life and reliability, protecting the motor from potential electrical supply issues
- Fence adjustment levers are conveniently located in the center of the fence for quick access
- Heavy-duty cast iron infeed and outfeed tables with precision machined finish
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Large chrome handwheels and easy-to-reach locks make table adjustments less of a hassle
- Magnetic controls provide long life and reliability
- Magnetic controls provide long life and reliability, protecting the motor from potential electrical supply issues
- Powerful 2HP motor easily handles the toughest jointing tasks
- Tall, rigid fence provides added support
- Two-way tilting fence with positive stops at 45° and 90° to handle bevel operations
Specifications
Number of Knives - 36
Table Size (L x W) (In.) - 72 x 9
Cutterhead Speed (RPM) - 5500
Motor Power (HP) - 2
Table Height from Floor (In.) - 31-1/4
Dust Collection Minimum CFM Required (CFM) - 350
Dust Port Outside Diameter (In.) - 4
Motor Voltage (V.) - 230
Prewired Voltage (V.) - 230
Motor Amps - 12
Recommended Circuit Size (Amps.) - 20
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5500 RPM |
| Phase | |
| Length | |
| Horsepower | 2 HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | 230V |
| Width | |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
