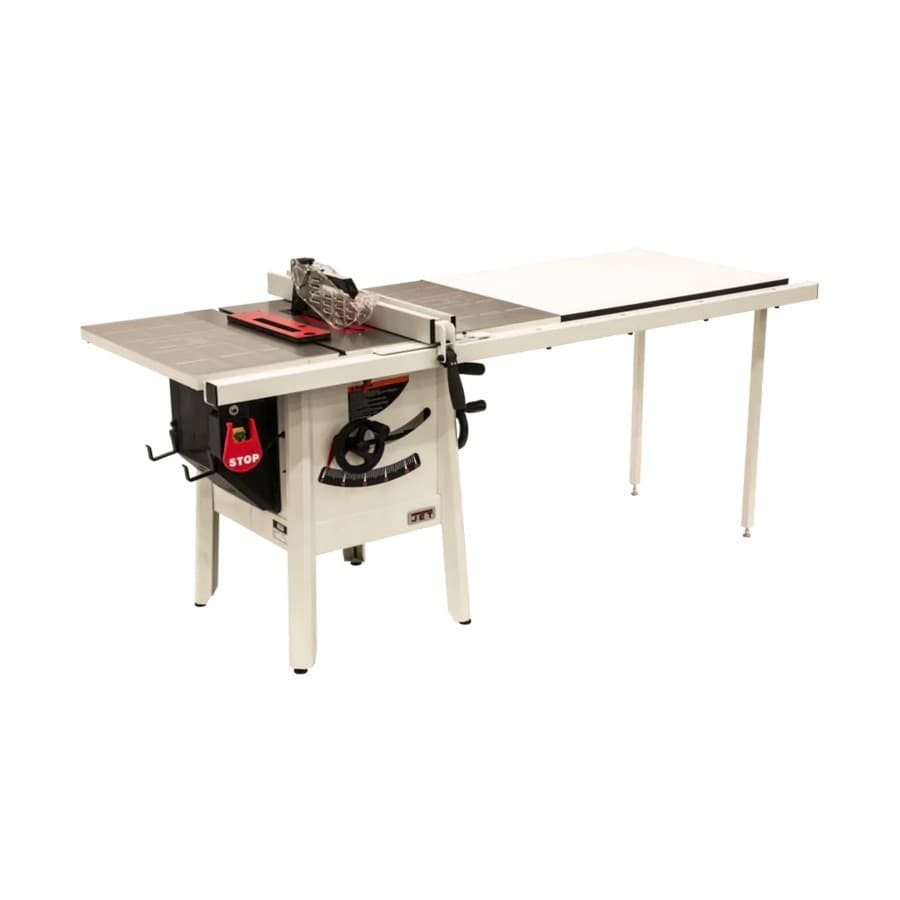

Jet Tools 725005K JPS-10 52" Proshop Tablesaw with Steel Wings 1-3/4HP Single Phase 115V

The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contractor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30” or 52” rip capacity.

FEATURES

• Convenient, magnetic paddle switch for the safest operation possible
• CSA Certified
• Improved dust shroud around blade for greater dust collection
• Innovative single belt design for easier belt tensioning and reduced vibration.
• Low profile riving knife included
• Motor reset switch conveniently relocated to the power switch, instead of the motor
• Newly designed arbor lock to change blades quickly and easily
• On board storage for all included accessories
• Quick release riving knife for hassle free riving knife changes
• Redesigned guard for better protection and ease of use

SPECIFICATIONS

Blade Diameter (In.) - 10

Style (Type) - Contractor

Arbor Speed (RPM) - 4000

Maximum Depth of Cut at 45 Degrees (In.) - 2-1/8

Maximum Depth of Cut (In.) - 3-1/8

Maximum Diameter of Dado (In.) - 8

Table in Front of Saw Blade at Maximum Depth of Cut (In.) - 8.81

Table Size (L x W) (In.) - 20 x 27

Maximum Rip Right of Blade (In.) - 52

Maximum Rip Left of Blade (In.) - 13-1/2

Maximum Width of Dado (In.) - 13/16

Table Type - Cast Iron

Motor Power (HP) - 1-3/4

Miter Gauge Type - T-Slot with Stops

Table Height from Floor (In.) - 34-3/4

Dust Collection Minimum CFM Required (CFM) - 350

Dust Port Outside Diameter (In.) - 4

Motor Voltage (V.) - 115

Prewired Voltage (V.) - 115

Motor Amps - 7.4

Recommended Circuit Size (Amps.) - 10
