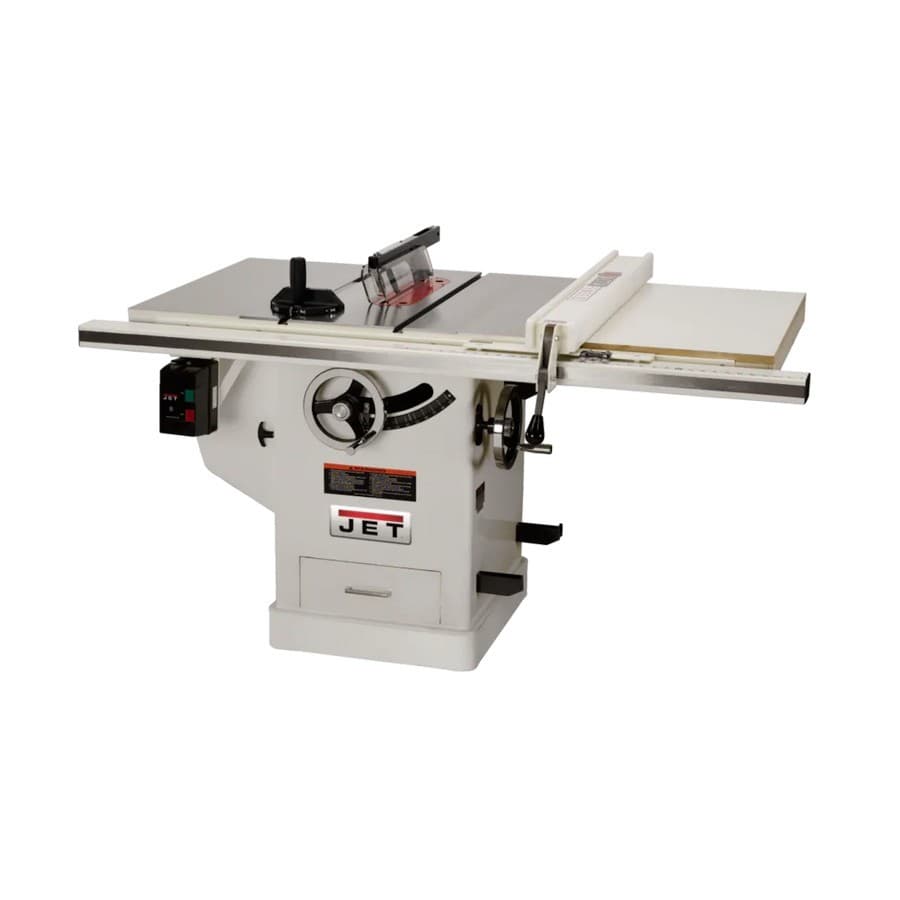

Jet Tools 708674PK Deluxe Xacta Saw 3HP Single Phase 230V 30" Rip

If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10" DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.

FEATURES

• 4" dust collection port
• Arbor lock for rapid blade change
• Built-in 4" dust collection port
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Enclosed cabinet with built-in sealed storage drawer
• EXCLUSIVE 30" commercial XACTA® Fence II with T-square design
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
• Hinged motor cover on cabinet gives quick access to the motor and belts
• Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
• Left and right cast iron extension wings
• Left tilt, wide stance heavy-duty trunnion for stability and smooth blade positioning
• Powder coated paint for a long-lasting, chip-resistant finish
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Push button arbor lock for rapid blade change
• Quick release riving knife greatly reduces binding/kickback risk
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Shrouded Blade increases dust collection efficiency
• Standard 11" left and right cast iron extension wings provides the largest table surface in its class
• Wide stance heavy-duty trunnion for stability and smooth blade positioning

SPECIFICATIONS

Blade Diameter (In.) - 10

Style (Type) - Cabinet

Maximum Depth of Cut at 45 Degrees (In.) - 2-1/8

Maximum Diameter of Dado (In.) - 8

Table in Front of Saw Blade at Maximum Depth of Cut (In.) - 10

Table Size (L x W) (In.) - 29 x 20

Maximum Rip Right of Blade (In.) - 30

Maximum Width of Dado (In.) - 13/16

Table Type - Cast Iron

Motor Power (HP) - 3

Miter Gauge Type - Deluxe

Dust Collection Minimum CFM Required (CFM) - 350

Dust Port Outside Diameter (In.) - 4

Motor Voltage (V.) - 230

Prewired Voltage (V.) - 230

Motor Amps - 14.5
