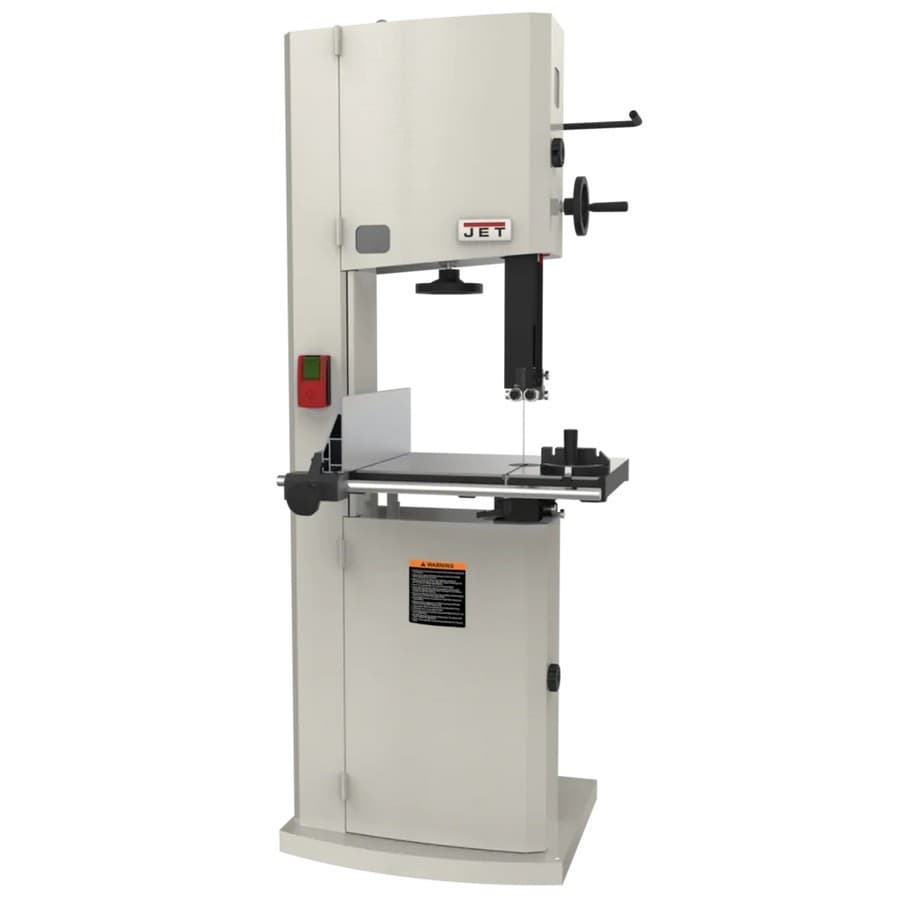

Jet Tools 714650 JWBS-15-3 15" Bandsaw 3HP 230V
This item may incur additional shipping costs and lead times.
Product Details
Designed to perform, the JET 15” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 15” steel frame bandsaw is engineered to build great projects through superior performance.
FEATURES
- 14" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 21-1/2" x 16" precision ground cast iron table for added stability and work support
- 4" dust collection port
- Blade tracking window provides clear view of blade during tracking
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
- Cast iron trunnion for maximum support and stability
- Conveniently located dual 4" dust collection ports catch dust and chips at the source
- Easy-to-read blade tension scale can be viewed through upper door window
- Fence system features a micro-adjustable, dual-position side plate
- Heavy duty tensioning with quick release
- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Round table insert features leveling screws for precise adjustment
- Single knob adjustment simplifies the blade tracking process
- Slotted table allows for front blade removal
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts
SPECIFICATIONS
Band Saw Size/Wheel Diameter (In.) - 14-3/4
Cutting Capacity Height (In.) - 14
Minimum Saw Blade Width (In.) - 1/8
Blade Speed (SFPM) - 3100
Table Size (L x W) (In.) - 21-1/5 x 16 x 2
Motor Power (HP) - 3
Table Height from Floor (In.) - 35
Dust Collection Minimum CFM Required (CFM) - 400
Motor Amps - 12
Recommended Circuit Size (Amps.) - 20
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Drum Sander |
| Width | |
| Maximum Tilt | |
| Length | |
| Motor Power | |
| Table Size | 21-1/5" x 16" x 2" |
| Height | |
| Voltage | 230V |
| Horsepower | 3 HP |
| Blade Speed | 3100 SFPM |
| Prewired Voltage (V.) | |
| Motor Current (Amps) | |
| Motor Power (HP) | |
| Blade Length (in) | |
| Maximum Saw Blade Width (in) | |
| Table Height from Floor (In.) | |
| Stand Type | |
| Blade Width (in) | |
| Dust Port Outside Diameter (in) | |
| Table Tilt (Deg.) | |
| Blade Speed (SFPM) | |
| Band Saw Size & Wheel Diameter (in) | |
| Minimum Saw Blade Width (in) | |
| Table Size (L x W) (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Miter Gauge Positive Stops | |
| Motor Voltage (V.) | |
| Motor Phase | |
| Cutting Capacity Height (In.) | |
| Cutting Capacity Width (In.) | |
| Maximum Saw Blade Width (In.) | |
| Minimum Saw Blade Width (In.) | |
| Warranty |
This item may incur additional shipping costs and lead times.
Product Details
Designed to perform, the JET 15” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 15” steel frame bandsaw is engineered to build great projects through superior performance.
FEATURES
- 14" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 21-1/2" x 16" precision ground cast iron table for added stability and work support
- 4" dust collection port
- Blade tracking window provides clear view of blade during tracking
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
- Cast iron trunnion for maximum support and stability
- Conveniently located dual 4" dust collection ports catch dust and chips at the source
- Easy-to-read blade tension scale can be viewed through upper door window
- Fence system features a micro-adjustable, dual-position side plate
- Heavy duty tensioning with quick release
- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Round table insert features leveling screws for precise adjustment
- Single knob adjustment simplifies the blade tracking process
- Slotted table allows for front blade removal
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts
SPECIFICATIONS
Band Saw Size/Wheel Diameter (In.) - 14-3/4
Cutting Capacity Height (In.) - 14
Minimum Saw Blade Width (In.) - 1/8
Blade Speed (SFPM) - 3100
Table Size (L x W) (In.) - 21-1/5 x 16 x 2
Motor Power (HP) - 3
Table Height from Floor (In.) - 35
Dust Collection Minimum CFM Required (CFM) - 400
Motor Amps - 12
Recommended Circuit Size (Amps.) - 20
