Jet Tools 708528 JWP-208-1 20" Planer 3HP Single Phase 230V
This item may incur additional shipping costs and lead times.
Product Details

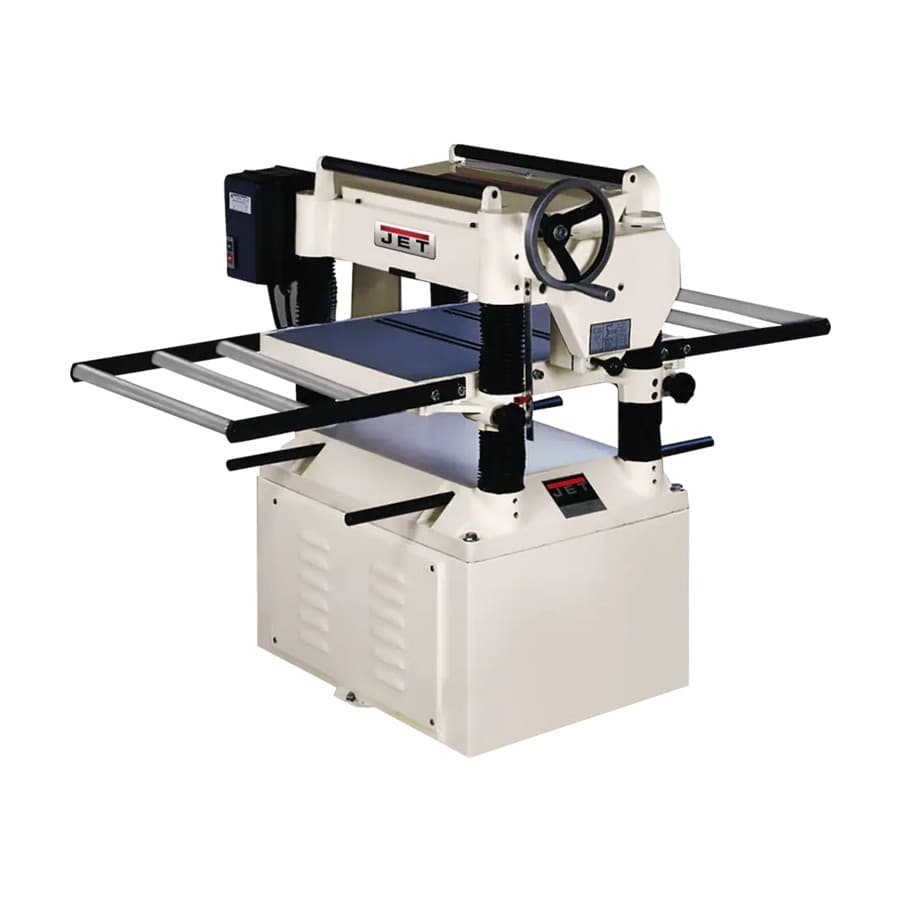

The JET JWP-208-1 planer quickly and quietly transforms rough lumber into smooth boards, with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 3 HP induction motor. You’ll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4" dust port to keep your hose out of the way.
FEATURES
- 1/16" Increment height scale lets you make the most precise adjustments for fine cuts
- 5" dust port provides efficient chip and dust collection
- Four high-speed steel cutter knives produce faster, smoother cutting
- Heavy-Duty cast iron and steel construction
- Heavy-duty cast iron and steel construction for added strength and durability
- Large handwheel with positive gear drive allows for quick and accurately table adjustments
- Large, cast iron, precision ground table for precise workpiece support
- Magnetic controls provide long life and reliability
- One-piece welded steel base offers solid support and stability
- Positive gear drive moves table quickly and accurately
- Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
- Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
- Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
- Work table is precision-ground and polished for consistently smooth operation
SPECIFICATIONS
Style (Type) - Floorstanding Model
Number of Knives - 4
Maximum Full Width Depth of Cut (In.) - 3/32
Maximum Planing Width (In.) - 20
Table Size (L x W) (In.) - 25-3/4 x 20
Maximum Planing Thickness (In.) - 8
Cutterhead Diameter (In.) - 3-3/16
Cutterhead Speed (RPM) - 5000
Minimum Planing Length (In.) - 6-3/4
Motor Power (HP)3
Dust Collection Minimum CFM Required (CFM) - 400
Motor Voltage (V.) - 230
Prewired Voltage (V.) - 230
Motor Amps - 14
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Diameter | |
| Motor Voltage | |
| Height | |
| Power | |
| Horsepower | 3 HP |
| Phase | |
| Length | |
| Drive Motor | 1 |
| Voltage | 230V |
| Width | |
| Cutter Head Type | |
| Motor Phase | |
| Product Type | Planer |
| Cutting Width | |
| Infeed Roller Diameter (In.) | |
| Cutter Block Diameter | |
| Speed | |
| Recommended Circuit Size (Amps.) | |
| Maximum Depth of Cut (In.) | |
| Number of Rollers | |
| Maximum Planing Width (In.) | |
| Motor Voltage (V.) | |
| Column Diameter (In.) | |
| Cuts Per Minute | |
| Reversible | |
| Maximum Full Width Depth of Cut (In.) | |
| Motor Current (Amps) | |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | |
| Feed Rate | |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | |
| Knife Size (L x W x T) | |
| Table Size with Extensions (L x W) (In.) | |
| Number of Knives | |
| Segmented Infeed Roller Diameter (In.) | |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | |
| Digital Readout | |
| Type of Cutterhead | |
| Style (Type) | |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | |
| Maximum Planing Thickness (In.) | |
| Table Support | |
| Motor Power | |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | |
| Cutter Block Speed | |
| Dust Port Outside Diameter (In.) | |
| Warranty | |
| Planing Height | |
| Planing Width | |
| Chip Removal | |
| Extraction Connection |
