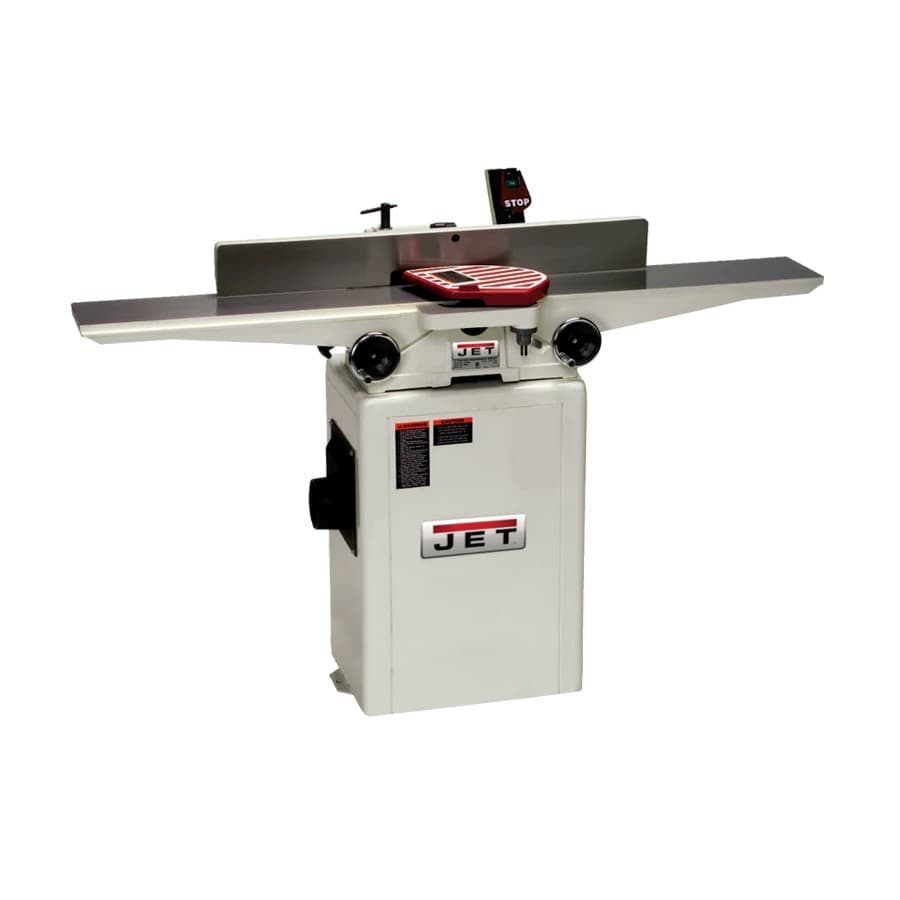

Jet Tools 708457DXK JJ-6CSDX 6" Deluxe Jointer with Quick Change Knives 1HP 115V
This item may incur additional shipping costs and lead times.
Product Details
If you are looking for a Jointer that squares your wood, every time; look no further. The JET 6" Long Bed Jointer offers one of the longest working surfaces in its' class. With the addition of an exclusive auto-set quick change knife system you can replace or change all three blades in a fraction of the time other machines take. Make the JET 6" Long Bed Jointer the next high performance machine for your shop.
FEATURES
- Built-in dust chute with 4" port connects to your collection system for efficient dust/chip disposal
- Built-in rabbeting ledge adds versatility
- Center fence controls are conveniently mounted to allow quick adjustments
- Exclusive front-mounted table adjustment handwheels make quick, easy and accurate corrections
- Extra-long heavy-duty cast iron infeed and outfeed tables with precision machined finish
- Heavy-duty cast iron infeed and outfeed tables with precision machined finish
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
- Industrial push-button controls are conveniently placed for easy access
- Powerful 1HP motor easily handles the toughest jointing tasks
- Three high-speed steel quick change knives provide rapid cutting, a superior finish and eliminates the need for a knife setting gauge
- Two-way tilting fence with positive stops at 45° and 90° to handle bevel operations
SPECIFICATIONS
Number of Knives - 3
Table Size (L x W) (In.) - 56 x 7-3/8
Cutterhead Speed (RPM) - 6000
Rabbeting Capacity (In.) - 1/2
Motor Power (HP) - 1
Table Height from Floor (In.) - 31-1/4
Dust Collection Minimum CFM Required (CFM) - 350
Dust Port Outside Diameter (In.) - 4
Prewired Voltage (V.) - 115
Motor Amps - 13/6.5
Downloads
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 6000 RPM |
| Phase | |
| Length | |
| Horsepower | 1 HP |
| Drive Motor | 1 |
| Product Type | Jointer |
| Voltage | 115/230V |
| Width | |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
