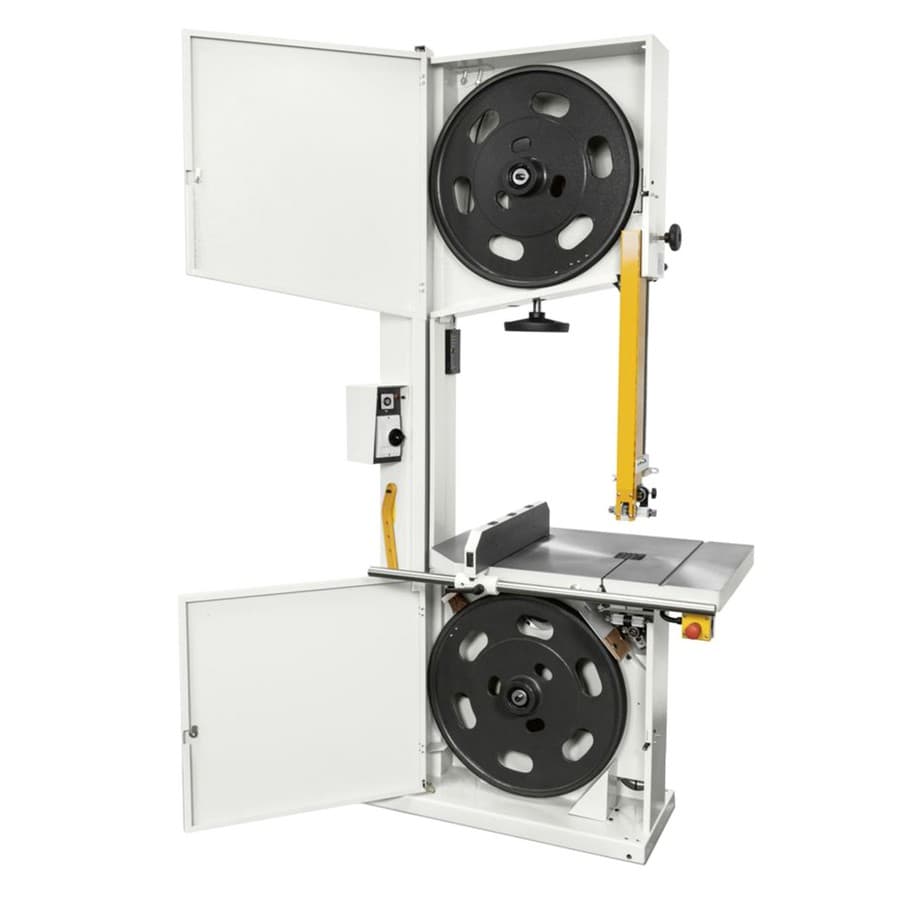

SCM Formula S 440P 17-1/2" Bandsaw 4.8HP Single Phase
This item may incur additional shipping costs and lead times.
Product Details
The engineering and design features found nowhere else, it is easy to see why this is the top selling machine in our formula lineup. Powerful single-phase motors (4.8hp), heavy-duty large cast-iron balanced wheels with a tongue and groove system for easy replacement of rubber tires, and robust cast iron and steel components with easy to use controls and unparalleled safety features make this the bandsaw of choice for thousands.
Features:
• Steel frame

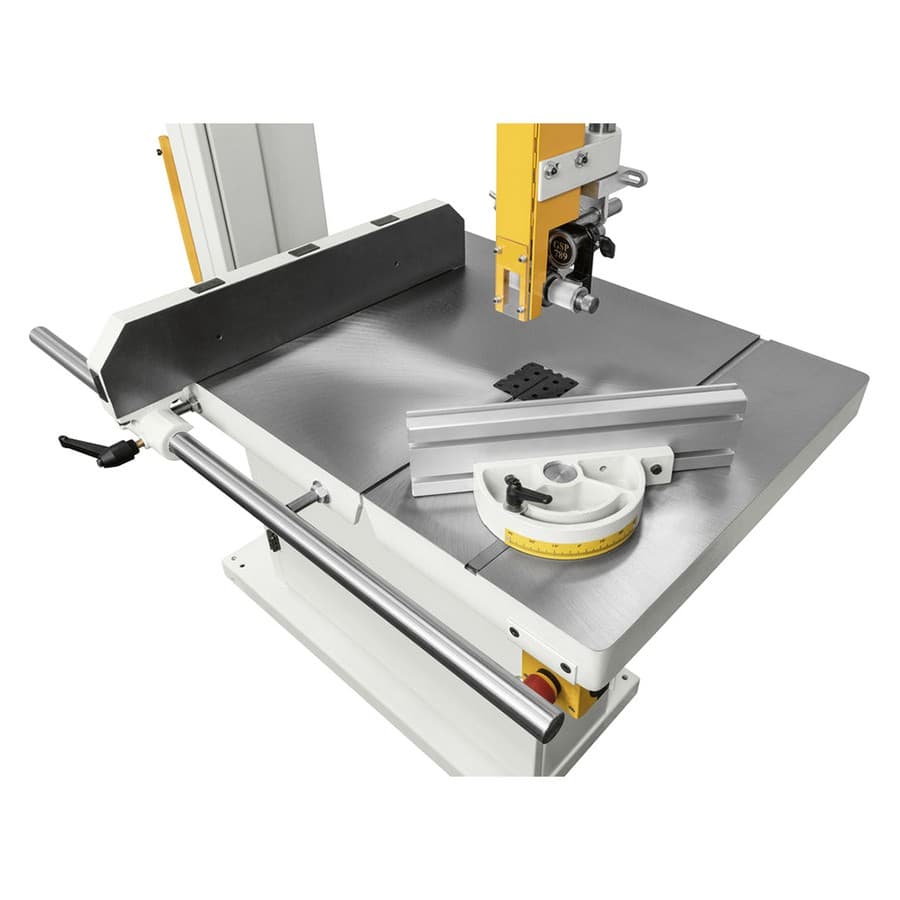

• Cast-iron worktable
• Cast-iron rip fence
• Saw-blade tensioning indicator
• Rack and pinion lifting system
• Quick-tilting table with single-handle adjust feature
• Disc-type cast-iron flywheels running on sealed ball bearings
• Thick, vulcanized tires
• American miter slot (3/8" deep x 3/4" wide)
• Band saw lower footbrake
• Overload motor protection
• Emergency push/stop button

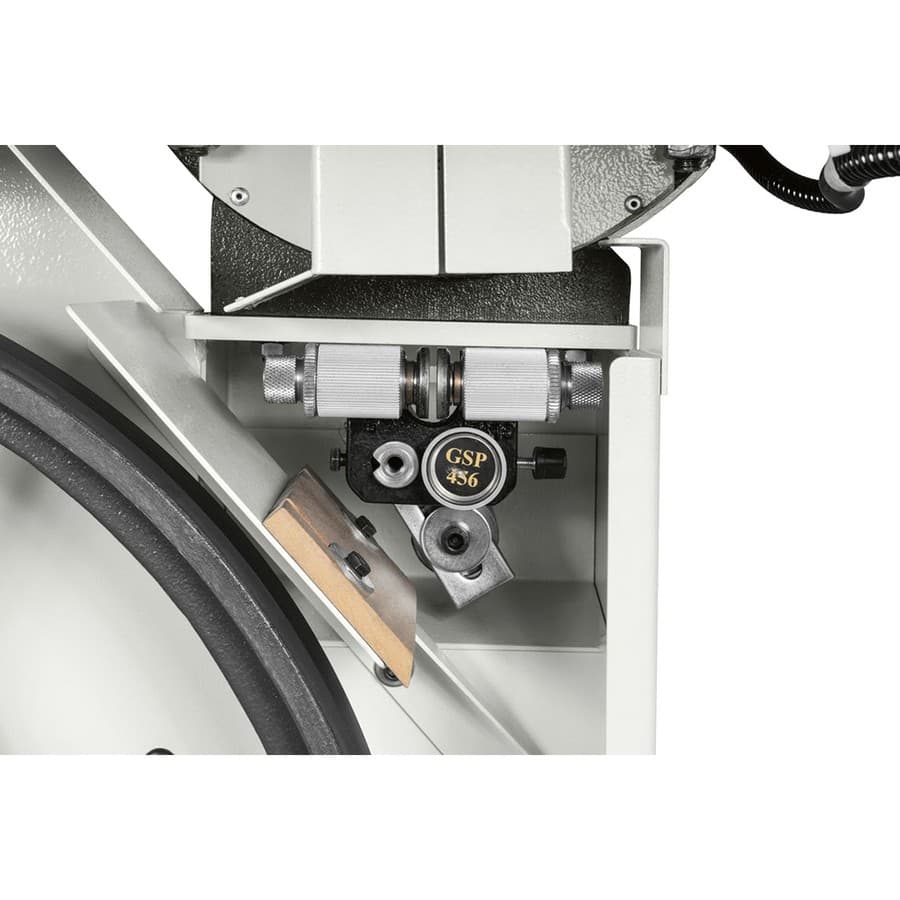

• Top/bottom European-style roller guides with ball bearings
• Cleaning brush on bottom wheel
• Safety micro switches
• Two lower exhaust port outlets for dust extraction
Advantages:
• Solidity and Sturdiness: Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.
• Safety first: Total safety machining with telescopic protections with rackwork to the blade.
• Perfect results: A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.
Machine Specs:
• Worktable Dimension: 420mm x 578mm
• Cast Iron Saw Wheels Diameter: 440mm
• Saw Wheel Width: 33mm
• Maximum Cutting Height: 440mm (18")
• Maximum Cutting Width: 425mm
• Worktable Tilting (CE): 0° - 45° (20°)
• Exhaust Outlet Diameter: N° 2mm x 120mm
• Voltage: 220V
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Bandsaw |
| Width | 670mm |
| Maximum Tilt | 45° |
| Length | 830mm |
| Motor Power | 4.8HP |
| Table Size | 420mm x 578mm |
| Height | 1980mm |
| Voltage | 220V |
| Horsepower | |
| Blade Speed | |
| Prewired Voltage (V.) | |
| Motor Current (Amps) | |
| Motor Power (HP) | |
| Blade Length (in) | |
| Maximum Saw Blade Width (in) | |
| Table Height from Floor (In.) | |
| Stand Type | |
| Blade Width (in) | |
| Dust Port Outside Diameter (in) | |
| Table Tilt (Deg.) | |
| Blade Speed (SFPM) | |
| Band Saw Size & Wheel Diameter (in) | |
| Minimum Saw Blade Width (in) | |
| Table Size (L x W) (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Miter Gauge Positive Stops | |
| Motor Voltage (V.) | |
| Motor Phase | |
| Cutting Capacity Height (In.) | |
| Cutting Capacity Width (In.) | |
| Maximum Saw Blade Width (In.) | |
| Minimum Saw Blade Width (In.) | |
| Warranty |
