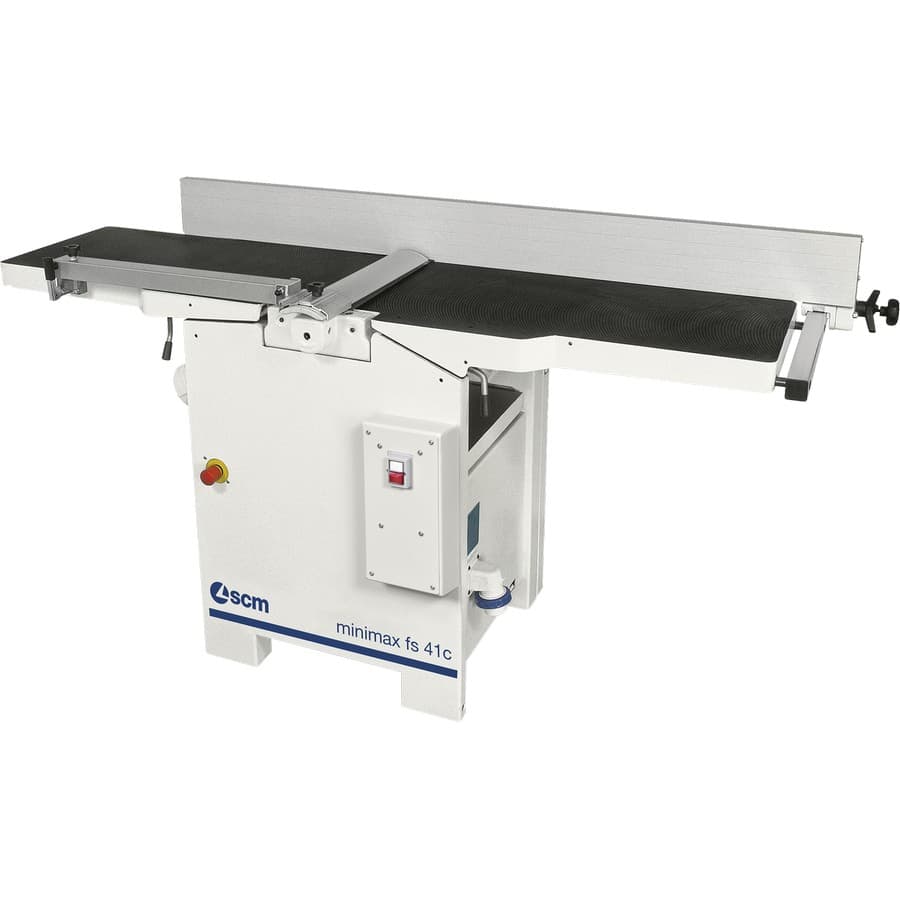

SCM Minimax FS 41C 16" Jointer/Planer with 3-Knife Tersa Quick Change Cutter Head 4.8HP Single Phase
This item may incur additional shipping costs and lead times.
Product Details
The surfacing-thicknessing machine for the D.I.Y. woodworkers and the craftsmen joineries. This 16" jointer/planer combo machine offers power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product.
Features:
• 4.8 Horsepower single-phase motor
• 16" Jointer/planer cutter block
• 70" Jointer table length
• Precision-ground cast iron tables
• American-style jointer guard
• Quick-tilting jointer fence
• Jointer tables open away from operator
• Two independent dust collection ports
• 3-knife "Tersa" quick-change cutterhead
Advantages:

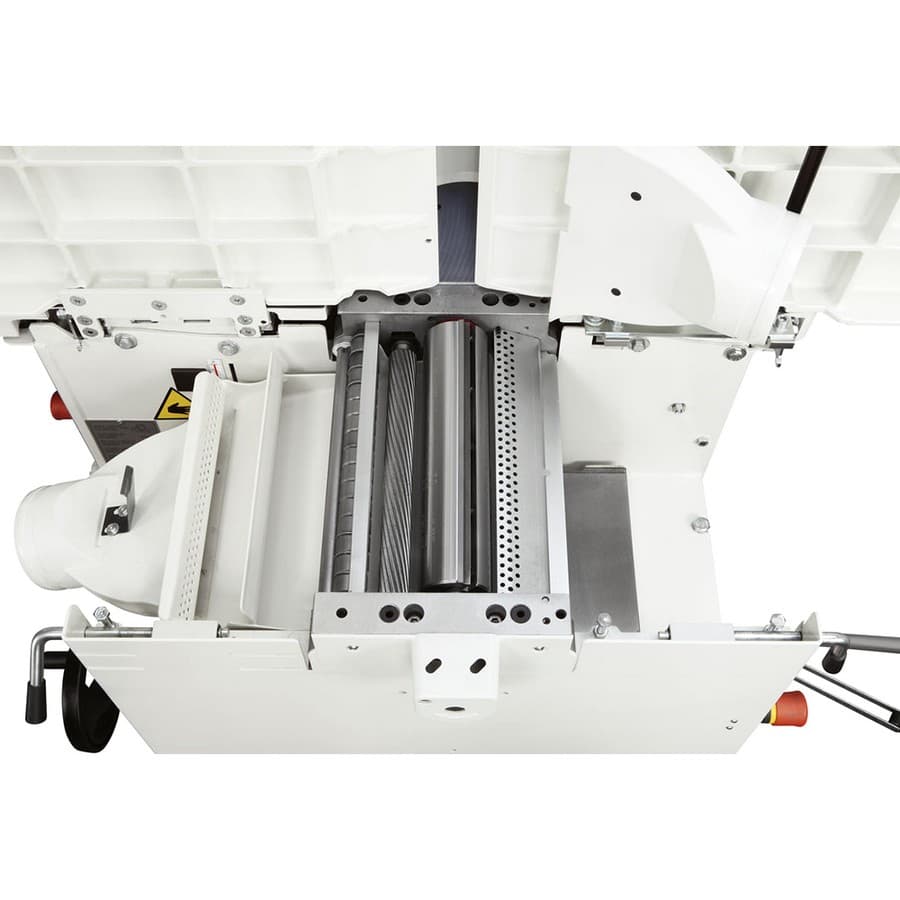

• Optimal Planing: The planer unit in the standard version has a 72mm diameter cutter block with 3 knives (the optional "Tersa" cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknessed feed rollers can be adjusted according to the type of wood machined. The thicknessed infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

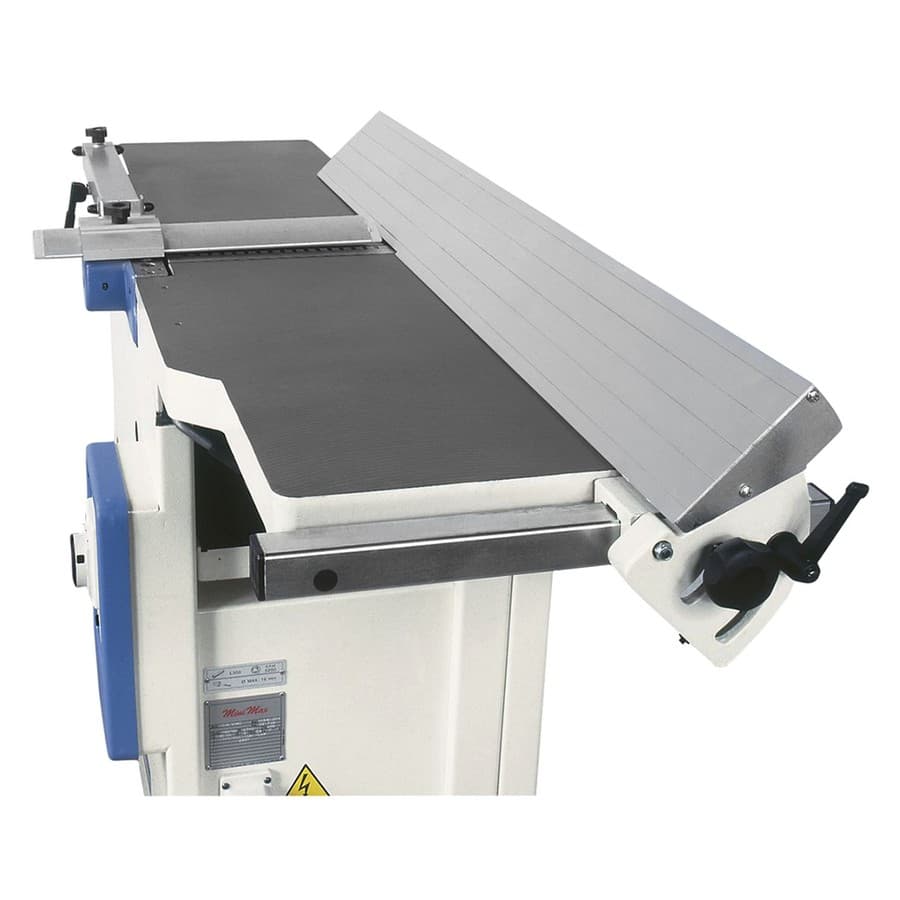

• Absolute rigidity: Very high rigidity of the surfacing fences made of extruded aluminum with 1670mm length.
Machine Specs:
• Cutterhead Working Width: 410mm (16")
• Cutter block Diameter/n° of Standard Knives: 87mm/3n°
• Dimension of Standard Knives: 410mm x 30mm x 3mm
• Maximum Stock Removal: 4mm
• Jointer Table Length: 1800mm/71mm
• Planer Table Dimensions: 410mm x 605mm (16" x 24")
• Planer Feed Speed: 7m/min
• Minimum - Maximum Planer Working Height: 3mm - 230mm (0.12"- 9")
• Fence Tilt: 0° - 45°
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5000 RPM |
| Phase | 1 |
| Length | |
| Horsepower | 4.8 HP |
| Drive Motor | |
| Product Type | Jointer/Planer |
| Voltage | 230V |
| Width | |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
