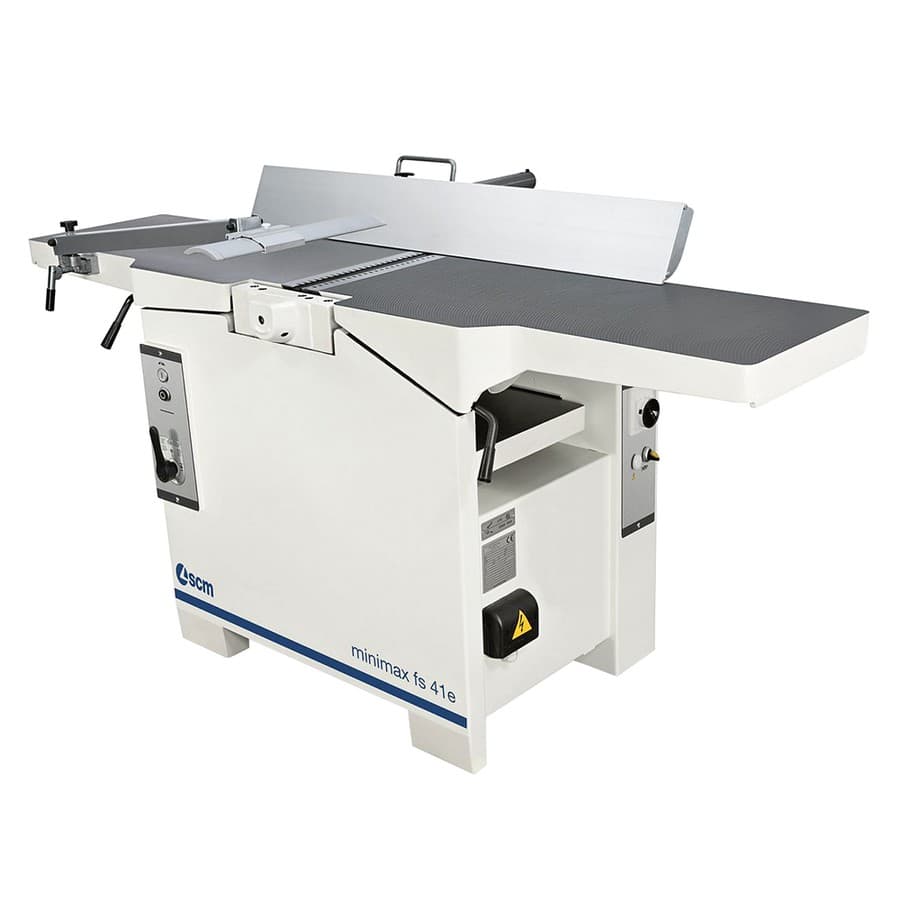

SCM Minimax FS 41E 16" Jointer/Planer with 3-Knife Tersa Quick Change Cutter Head
This item may incur additional shipping costs and lead times.
Product Details
A powerful and user-friendly surfacing-thicknessing machine for D.I.Y. woodworkers and craftsmen workshops. The Minimax FS 41E 16" jointer planer has a high-flexible production with an "elite" finishing, designed for the demanding craftsmen and carpentries.
Features:
• Precision-ground cast iron tables with spring assist
• Digital mechanical readout for planning thickness

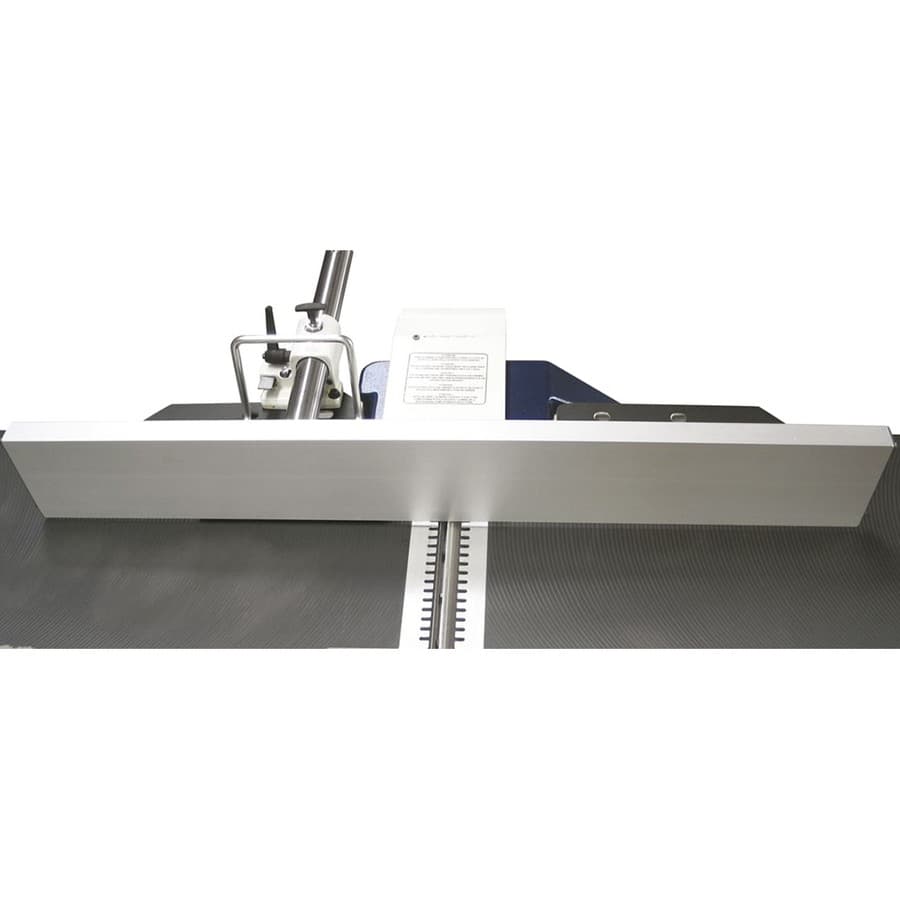

• Industrial jointer fence, supported directly over cutterhead
• Dual dust extraction ports, both exit toward planer outfeed side
• Dual-post planer table support
• American-style jointer guard

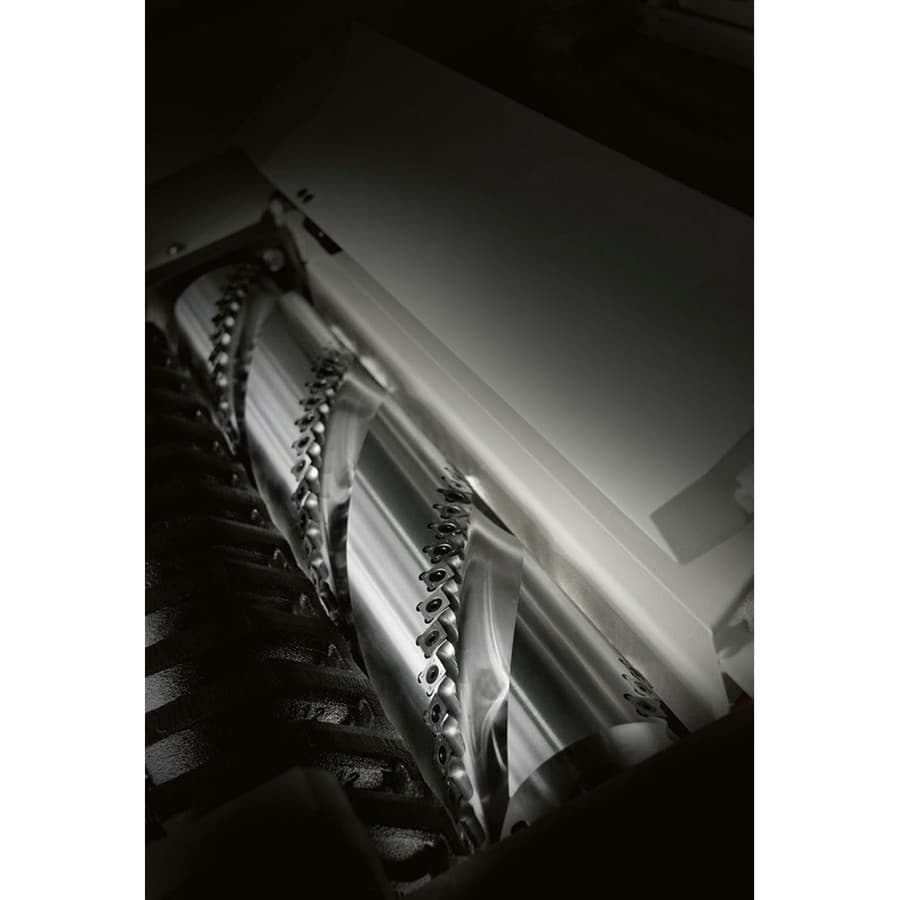

• Tersa 4 knife cutterhead with quick-change knives
Advantages:

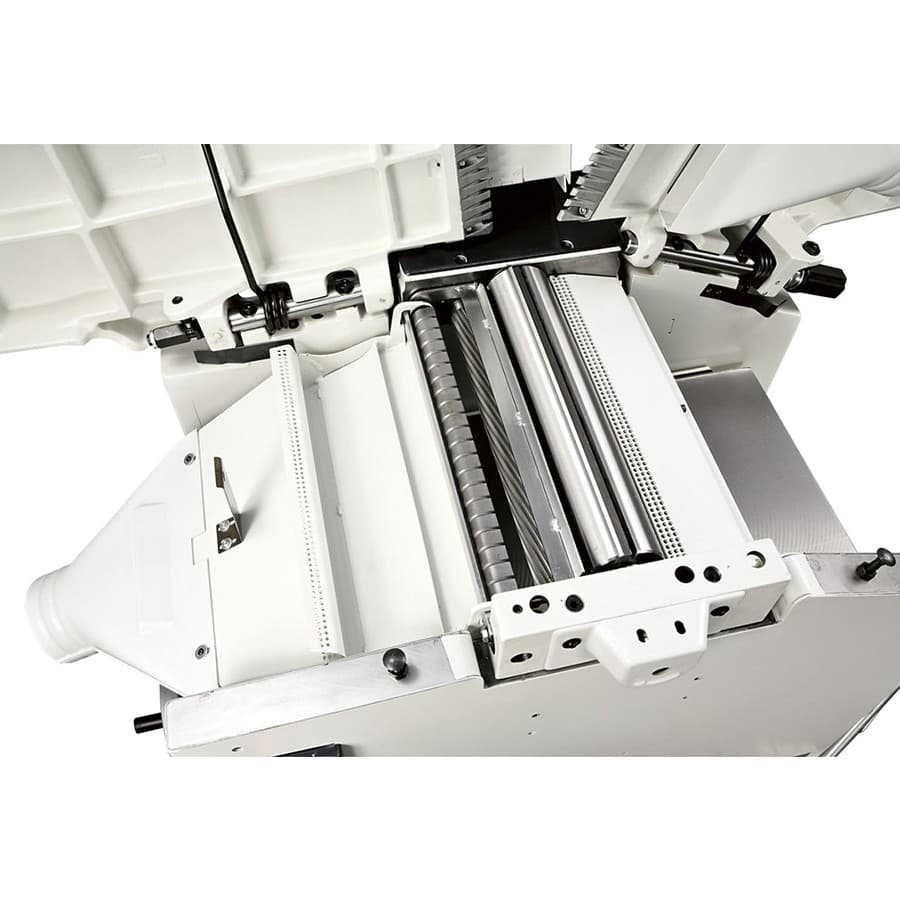

• Perfect finishing: The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional "Tersa" cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressure of the thicknessed feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing.
• Planing fence: The fs 41e uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.
Machine Specs:
• Cutterhead Working Width: 410mm (16")
• Cutter block Diameter/No° of Standard Knives: 87mm/3n°
• Dimension of Standard Knives: 410mm x 30mm x 3mm
• Maximum Stock Removal: 5mm
• Jointer Table Length: 2200mm/79mm
• Planer Table Dimensions: 423mm x 775mm (16.65" x 30.5")
• Planer Feed Speed: 6m/12min
• Minimum - Maximum Planer Working Height: 3mm - 230mm (0.12"- 9")
• Fence Tilt: 0° - 45°
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5300 RPM |
| Phase | 1 |
| Length | 79" |
| Horsepower | 4.8 HP |
| Drive Motor | |
| Product Type | Jointer/Planer |
| Voltage | 230V |
| Width | 28" |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
