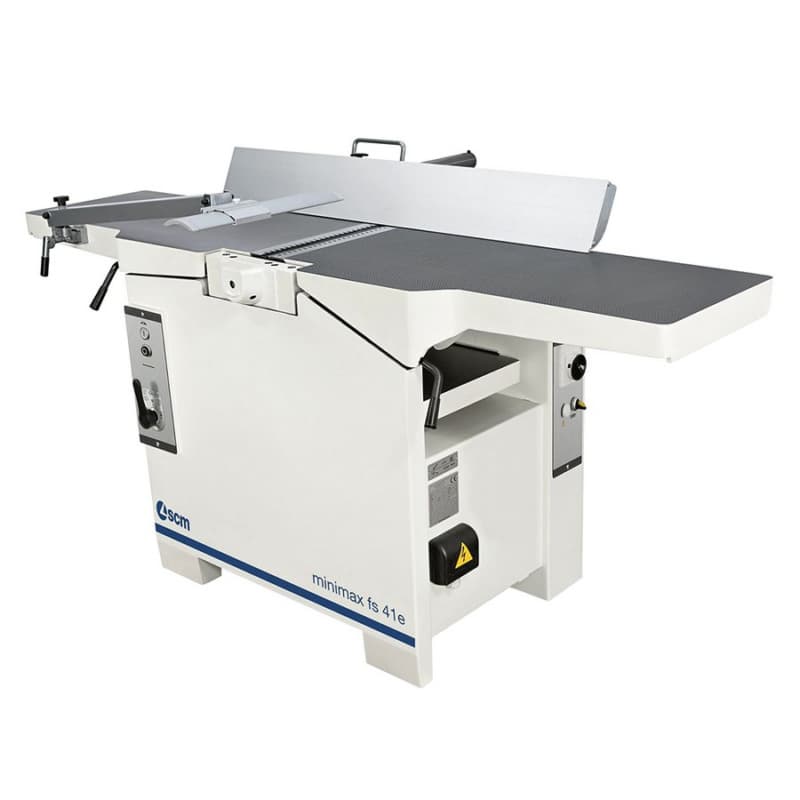

SCM Minimax FS 41E 16" Jointer/Planer with Xylent Helical Cutter Head

A powerful and user-friendly surfacing-thicknessing machine for D.I.Y. woodworkers and craftsmen workshops. The Minimax FS 41E 16" jointer planer has a high-flexible production with an "elite" finishing, designed for the demanding craftsmen and carpentries.

Features:

• Precision-ground cast iron tables with spring assist

• Digital mechanical readout for planning thickness

• Industrial jointer fence, supported directly over cutterhead

• Dual dust extraction ports, both exit toward planer outfeed side

• Dual-post planer table support

• American-style jointer guard

• Tersa 4 knife cutterhead with quick-change knives

Advantages:

• Perfect finishing: The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional "Tersa" cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressure of the thicknessed feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing.

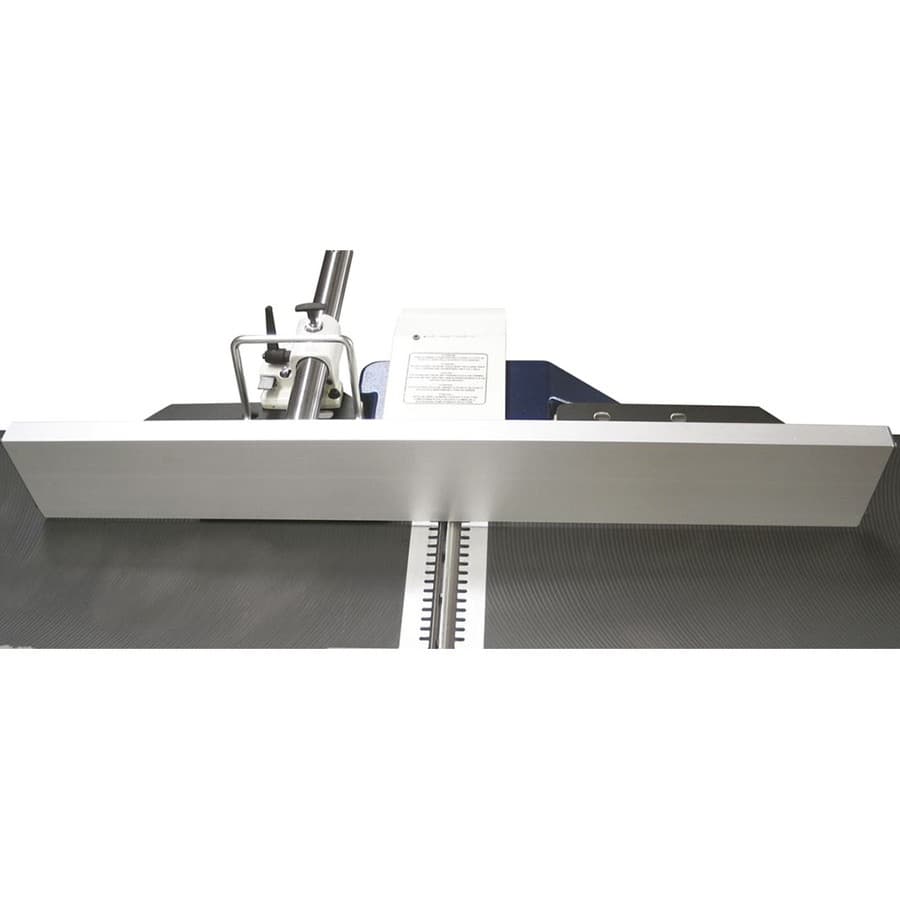

• Planing fence: The fs 41e uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.

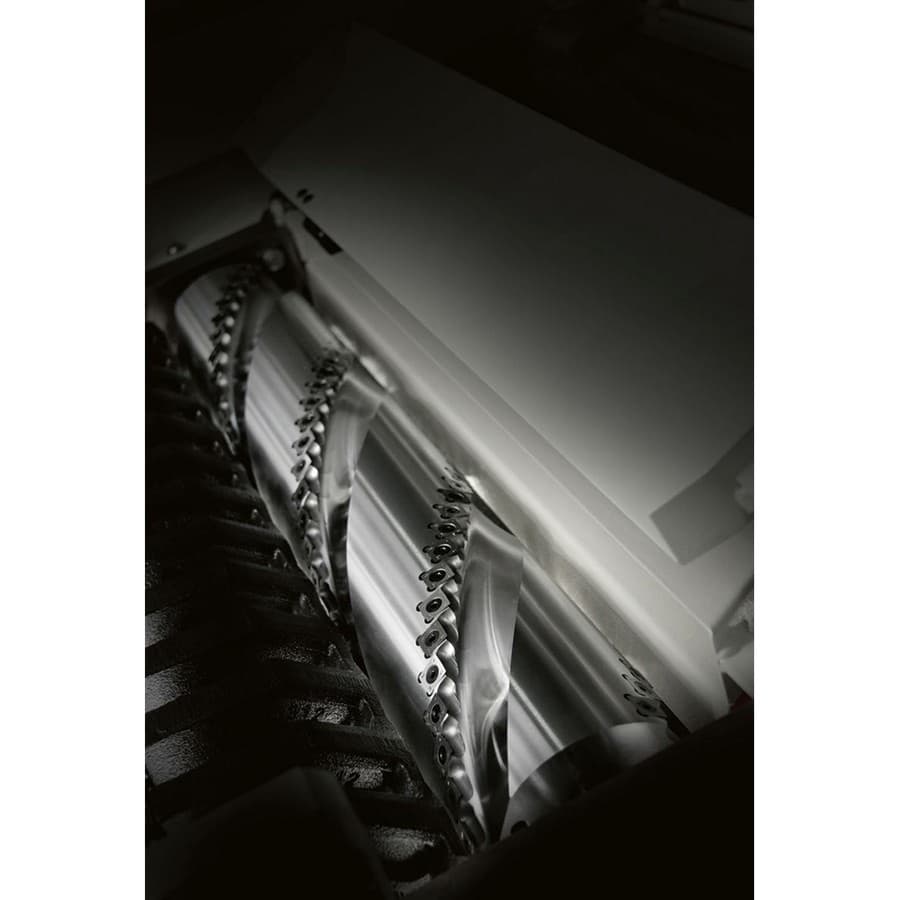

• "Xylent" spiral knife cutter block with 3 series of knives: The 3 spiral knives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Machine Specs:

• Cutterhead Working Width: 410mm (16")

• Cutter block Diameter/No° of Standard Knives: 87mm/3N°

• Dimension of Standard Knives: 410mm x 30mm x 3mm

• Maximum Stock Removal: 5mm

• Jointer Table Length: 2200mm/79mm

• Planer Table Dimensions: 423mm x 775mm (16.65" x 30.5")

• Planer Feed Speed: 6M/12min

• Minimum - Maximum Planer Working Height: 3mm - 230mm (0.12"- 9")

• Fence Tilt: 0° - 45°
