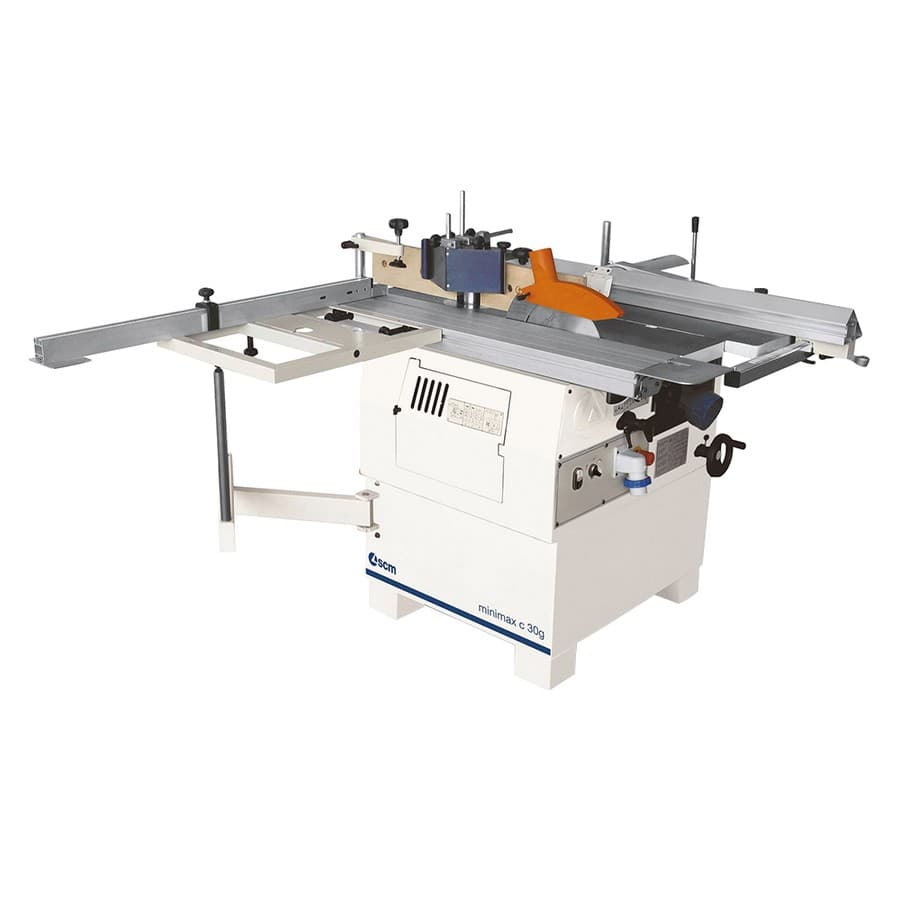

SCM Minimax C 30GT 10" Full Combination Machine with 3-Knife Tersa Cutter Head
This item may incur additional shipping costs and lead times.
Product Details
Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.
Features:

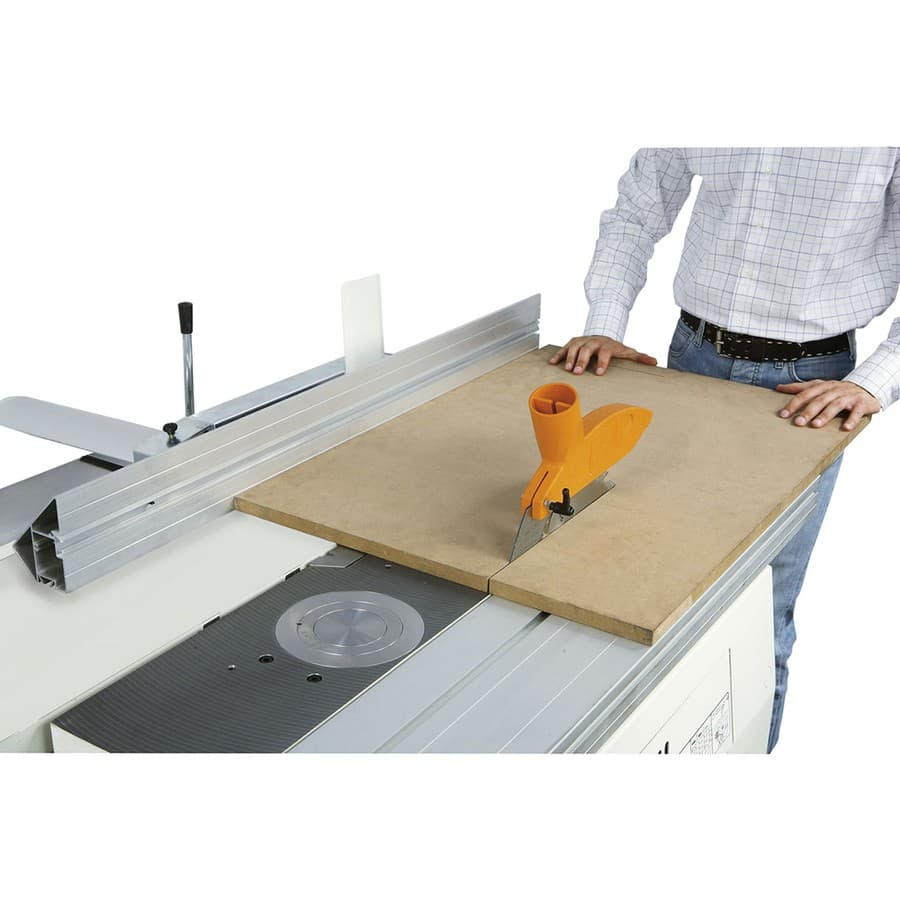

• 4' Sliding table saw with 10" main blade
• 2.5 Horsepower three-phase motors

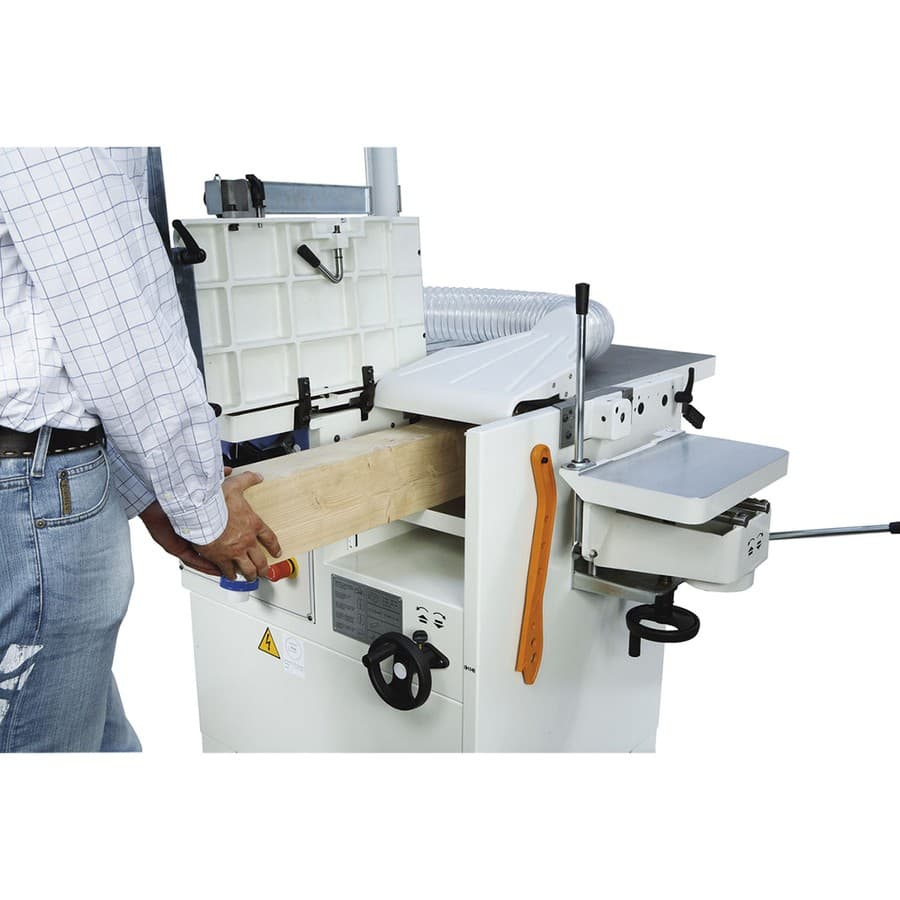

• 12" Jointer/Planer Cutterhead with Tersa knives
• Anodized aluminum sliding table with hardened steel ways
• Eccentric workpiece clamp
• Cutting precision
• Flexibility
• Practical and ergonomic
• CE safety
• Adjustable and removable riving knife
• Outrigger/Squaring frame included
Advantages:
• Ease-of-Use: The system of surfacing worktable opening toward the inside of the machine guarantees an excellent ergonomics. All woodworking combined machines are equipped with anodized-extruded guides with support and rapid locking and an effective feeding system for the planer. These features make these machines easy-to-use for any type of machining.

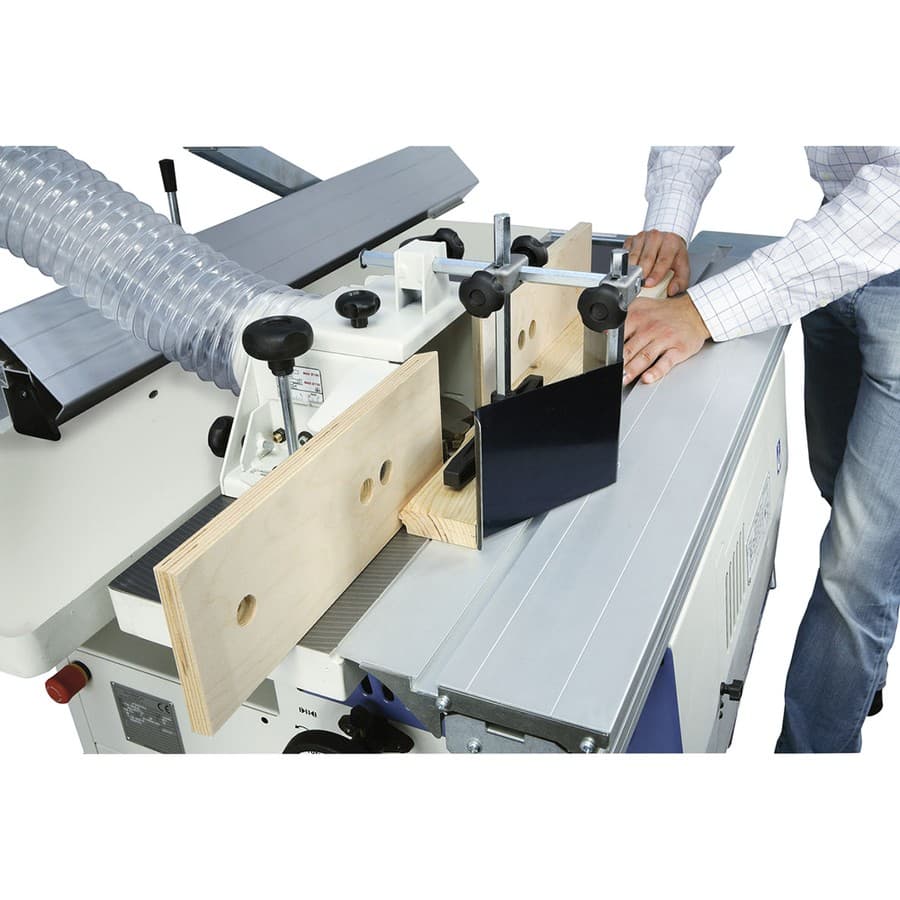

• Flexibility: Maximum flexibility when using the cutters, with the spindle molder unit equipped with various speeds. The machines are equipped with spindle molder hood with micrometric adjustment, very useful for molding working. The tenoning operations (option) are easy tank to the aluminum carriage and the dedicated speed.
• Precision: A tiltable saw unit, with sliding of the anodized aluminum carriage next to the blade for a better cutting precision are only some of the standard equipment of the minimax woodworking combined machines. The lifting and tilting of the unit with practical hand wheels guarantee an easy setting among different machining.
• Safety: Rich CE safety devices, like the shaft protection to carry out shaping operation and working on curved profiles. The machining on the planer is very easy thanks to the large dimensioned surfacing tables.
Machine Specs:
• Cutterhead Working Width: 300mm (13")
• Jointer Bed Length: 1200mm (47")
• Maximum Sawblade Diameter: 250mm (10")
• Sawblade Arbor Size: 16mm (5/8")
• Cutting Width on Parallel Fence (Rip Capacity): 540mm (21")
• Spindle Molder Speed: 4000 RPM/6500 RPM
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Combination Machine |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | |
| Height | |
| Drive Motor | |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | 2.5 HP |
| Phase | 3 |
| Range of Speeds | 4000/6500 RPM |
| Length | |
| Voltage | |
| Backing Material | |
| Material | |
| Recovery Time |
