SCM Minimax SC 3C 12" Main Blade 5.5' Sliding Table Saw Single Phase
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The compact and highly precise circular saw with a low investment for DIY woodworkers and craftsmen. The Minimax SC 3C is a single-phase 4.8Hp motor slider that comes standard with scoring and can accommodate a 12" blade. Featuring a 5.5' crosscut capacity that is ideal for processing panels, DADO capability, and 45° blade tilt.
Features:
• 5.5' Sliding table saw with 12" main blade
• 4.8 Horsepower single-phase motor
• Dado capability
• Anodized aluminum sliding table with hardened steel ways
• Micro-adjustable rip fence with cam-locking system
• Telescopic crosscut fence with two flip stops

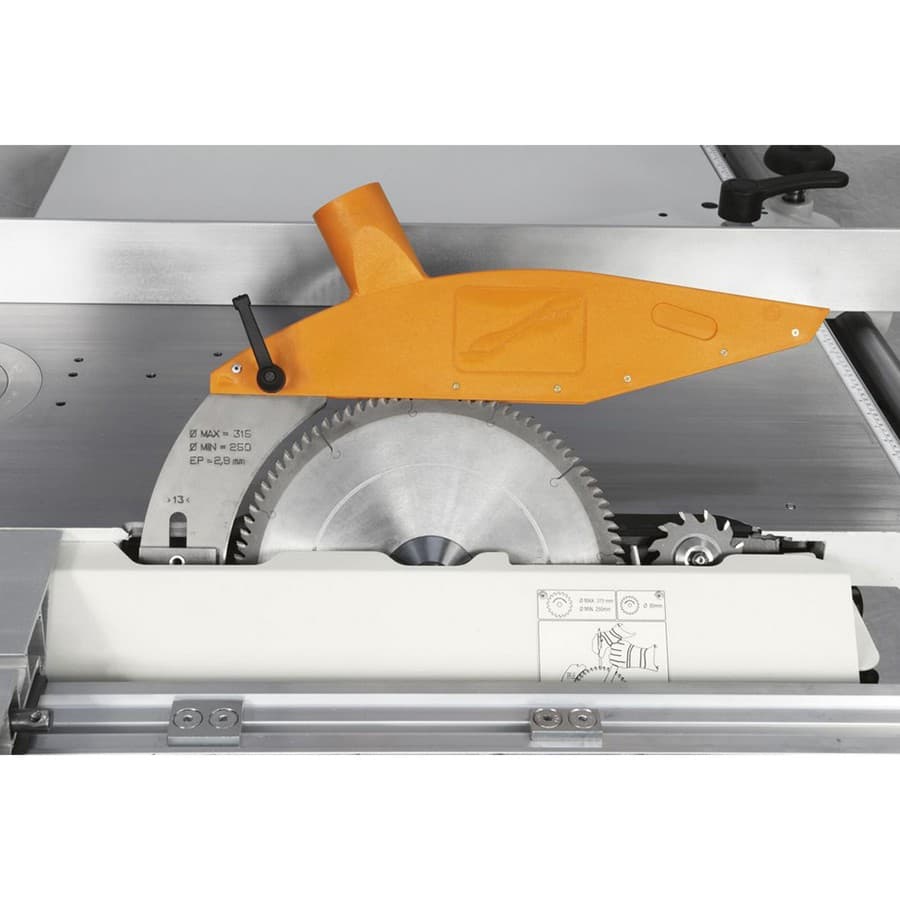

• Dedicated scoring assembly independently adjustable
• Eccentric workpiece clamp
• External scoring adjustments
• Adjustable and removable riving knife
• Outfeed table extension
• Outrigger support with swing-arm support
• Presets for rapid selection of angled cuts on outrigger table
• Additional table on the sliding table for support of panels with large dimensions
Advantages:
• Performance without limits: Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315mm that grants a 100mm cutting height with the scoring blade installed.
• The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.
• Exclusive: Easier and more precise cutting is possible due to a perfectly stabile support that is guaranteed, even for large work pieces, but the wide sliding table and the large squaring frame fence provided as st+W30andard. Top quality precision, smooth and silent action, self-cleaning dustproof system, long listing accuracy, no adjustment required.

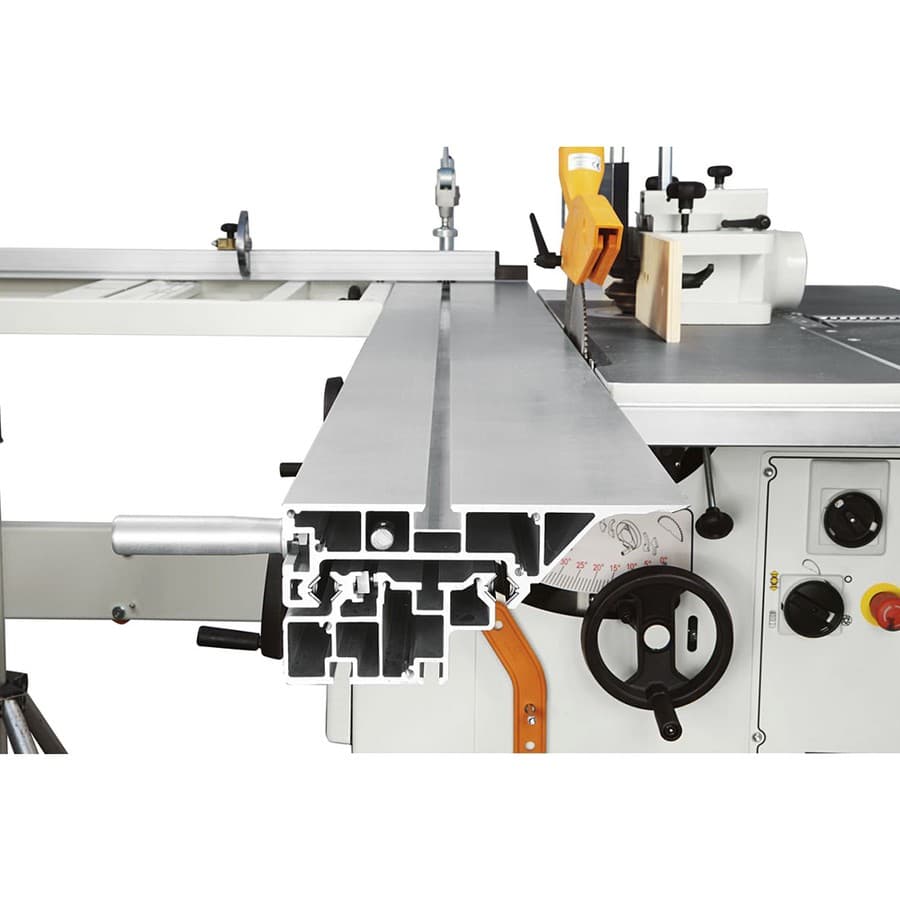

• The table is made of extruded anodized aluminum with a closed honeycomb structure. The sliding table runs on an exclusive slideway system consisting of calibrated and hardened F550 SX steel guides.
Machine Specs:
• Maximum Sawblade Diameter: 315mm (12")
• Sawblade Arbor Size: 30mm (1.18")
• Cutting Width on Parallel Fence (Rip Capacity): 1270mm (50')
• Max. Squaring Stroke of Sliding Table Saw: 1600mm (5.5')
• Fixed Table Size: 33" x 22" (840mm x 560mm)
• Tilting Arbor: 0° - 45°
• Main Blade Speed: 4,000 RPM
• Scoring Blade Speed: 8,000 RPM
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Sliding Table Saw |
| Maximum Cutting Length | |
| Table Height | |
| Height | |
| Width | |
| Number of Teeth | |
| Length | |
| Horsepower | 4.8 HP |
| Voltage | |
| Blade Diameter | 12" |
| Arbor | 1.18" |
| Phase | 1 |
| Maximum Tilt | |
| Table Size (In.) | |
| Table Height from Floor (In.) | |
| Style | |
| Distance Between Sliding Table and Blade (In.) | |
| Prewired Voltage (V.) | |
| Maximum Diameter of Dado (In.) | |
| Speed | |
| Maximum Rip Left of Blade (In.) | |
| Maximum Width of Dado (In.) | |
| Motor Power | |
| Saw Blade Diameter | |
| Table Type | |
| Maximum Rip Right of Blade (In.) | |
| Motor Voltage (V.) | |
| Dust Port Outside Diameter (In.) | |
| Miter Gauge Type | |
| Table Size with Full Extensions (In.) | |
| Table T-Slot (In.) | |
| Motor Phase | |
| Arbor Diameter (In.) | |
| Recommended Circuit Size (Amps.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Motor Current (Amps) | |
| Table Size with Extensions (In.) | |
| Maximum Depth of Cut at 90 Degrees (In.) | |
| Maximum Depth of Cut at 45 Degrees (In.) | |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | |
| Warranty | |
| Cutting Height | |
| Main Saw Blade Change | |
| Saw Blade Thickness | |
| Cutting Width | |
| Sliding Table Length | |
| Control | |
| Display Resolution | |
| Control Panel | |
| Cutting angle/height | |
| Cutting Width Control | |
| Extraction Connection | |
| Saw Blade Tilting Range |
