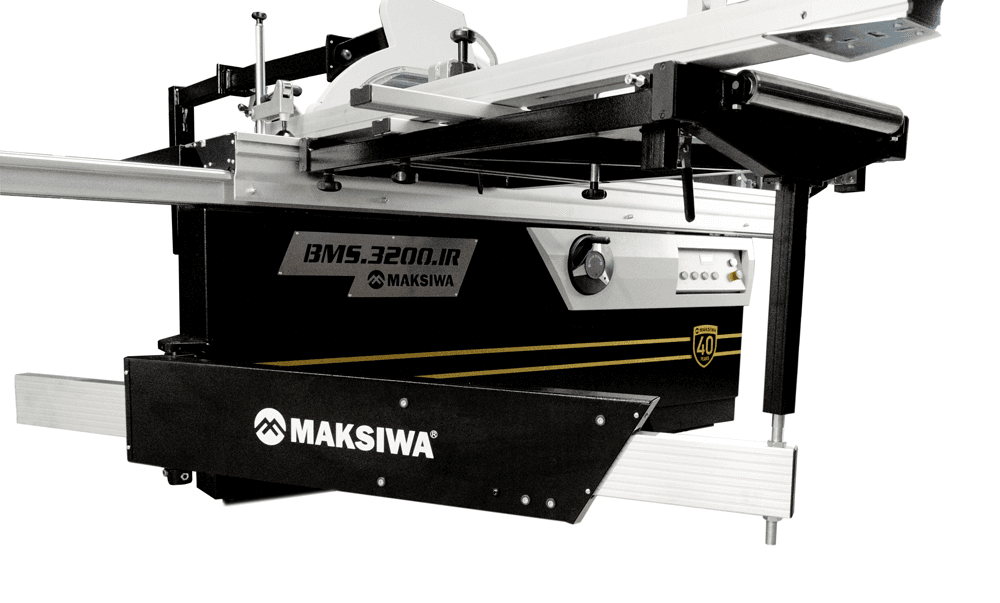

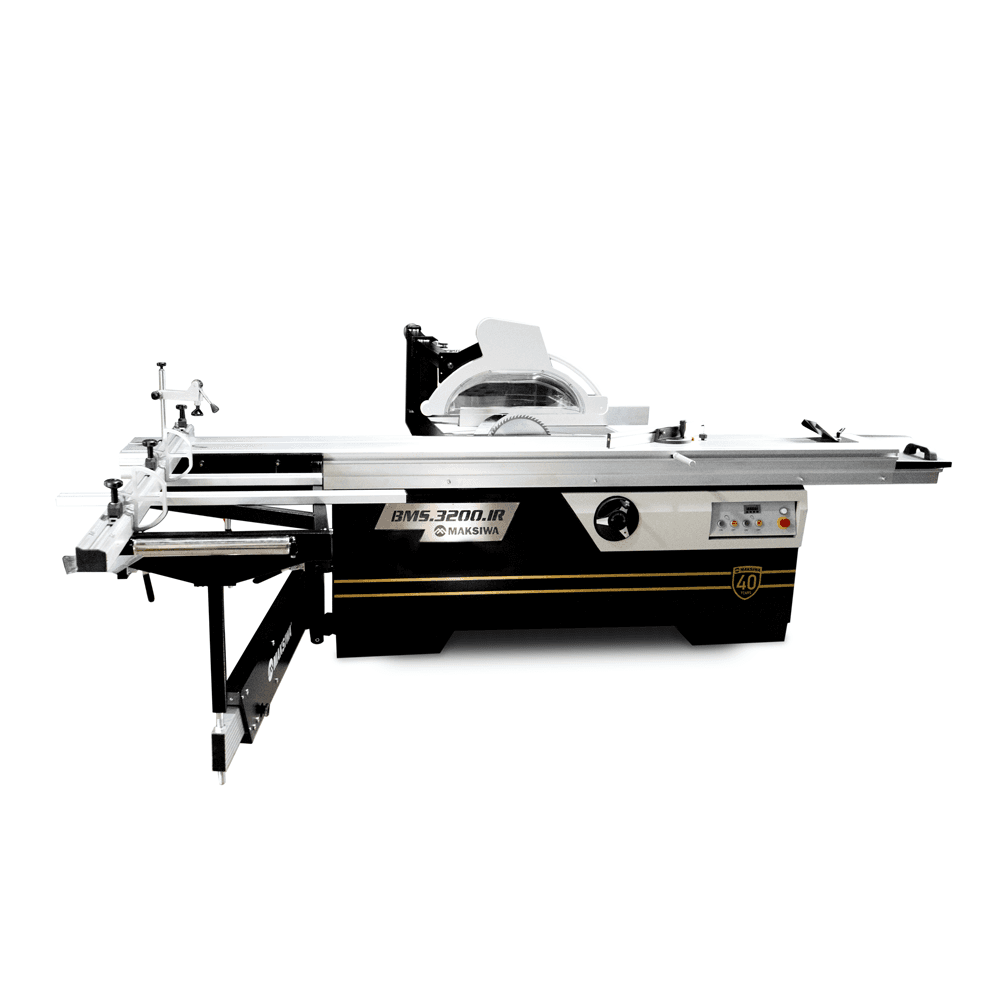

Maksiwa BMS.3200.IR.3 Sliding Panel Saw 5 HP Three Phase
This item may incur additional shipping costs and lead times.
Product Details

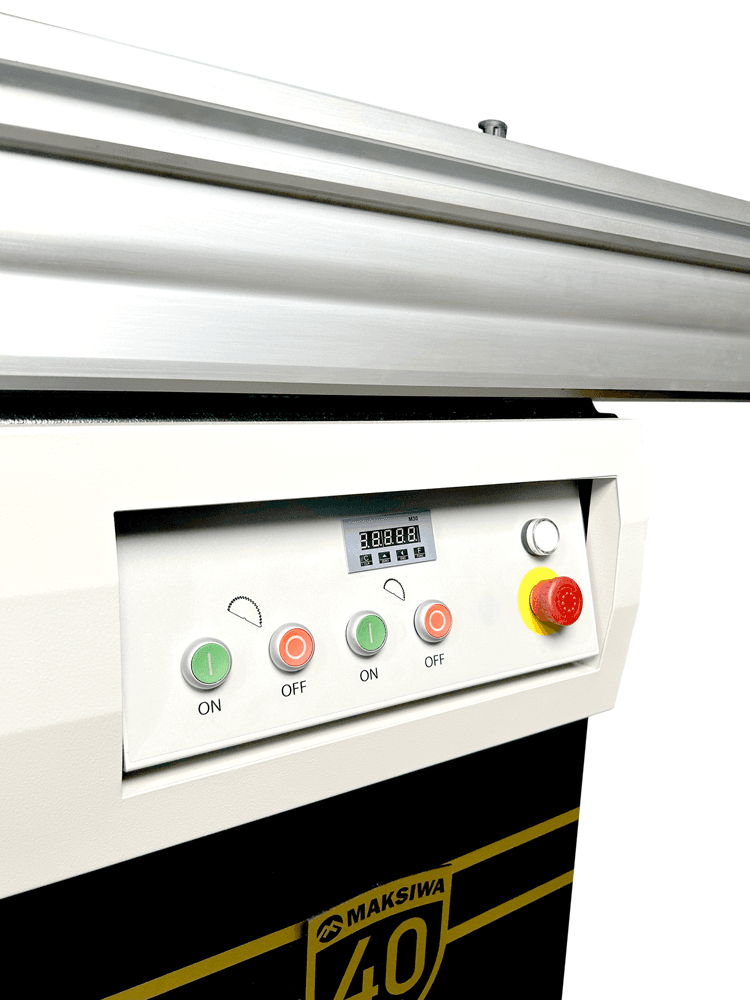

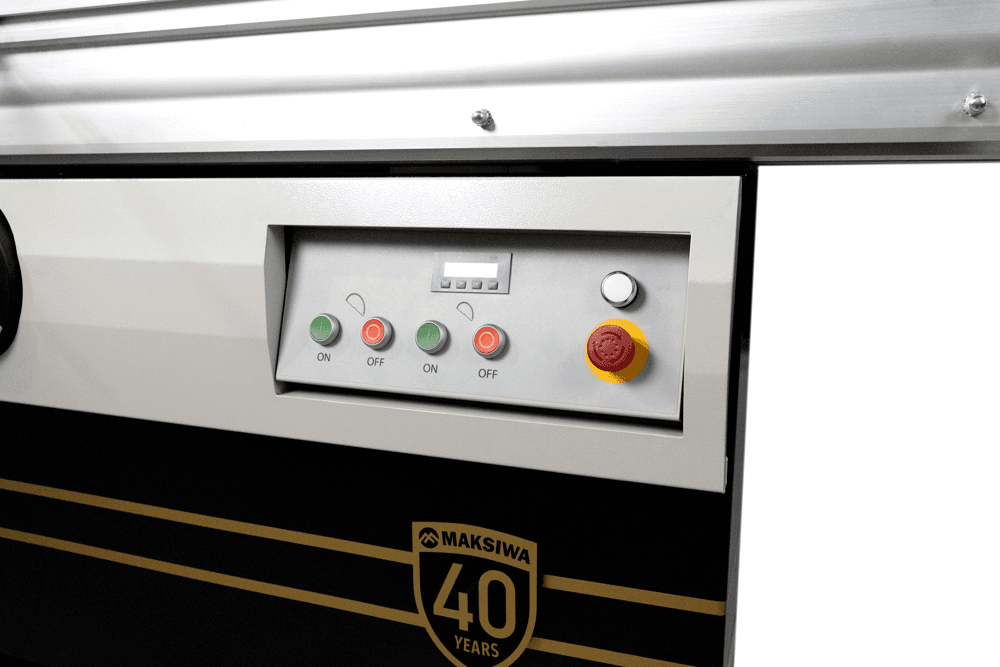

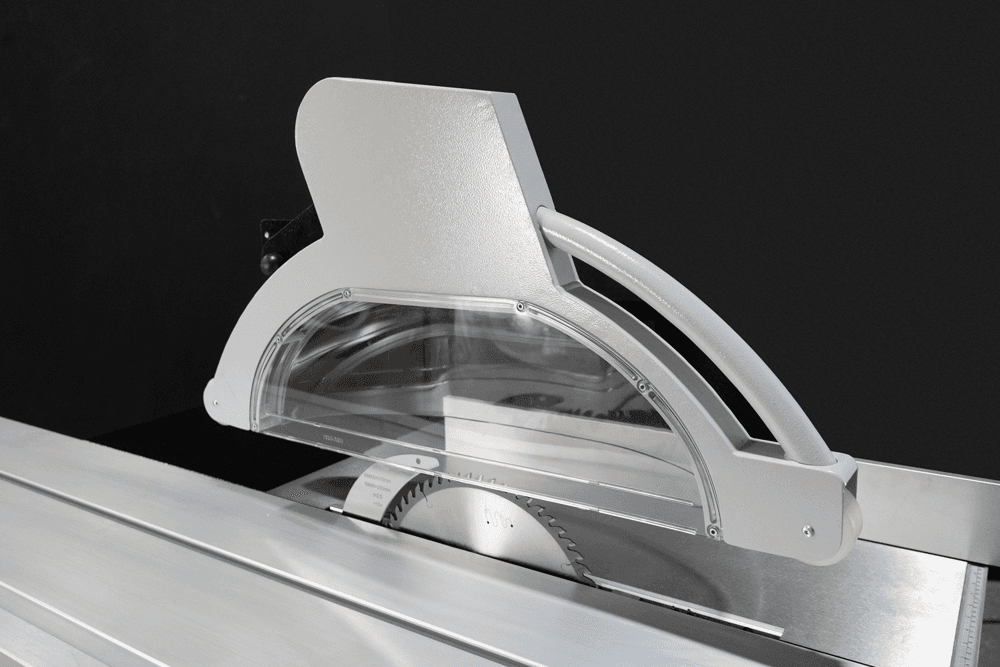

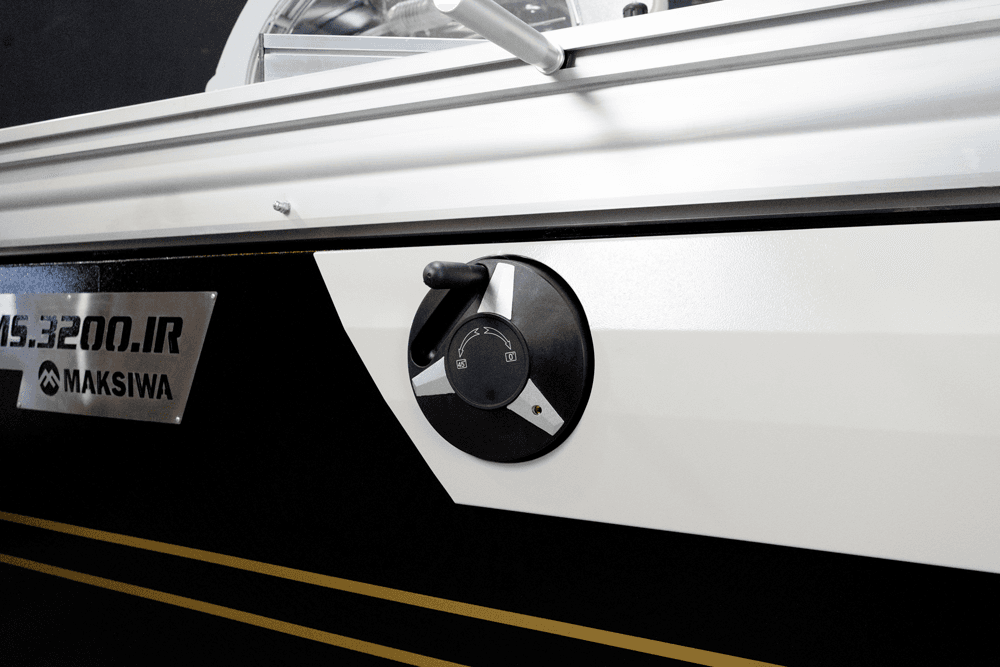

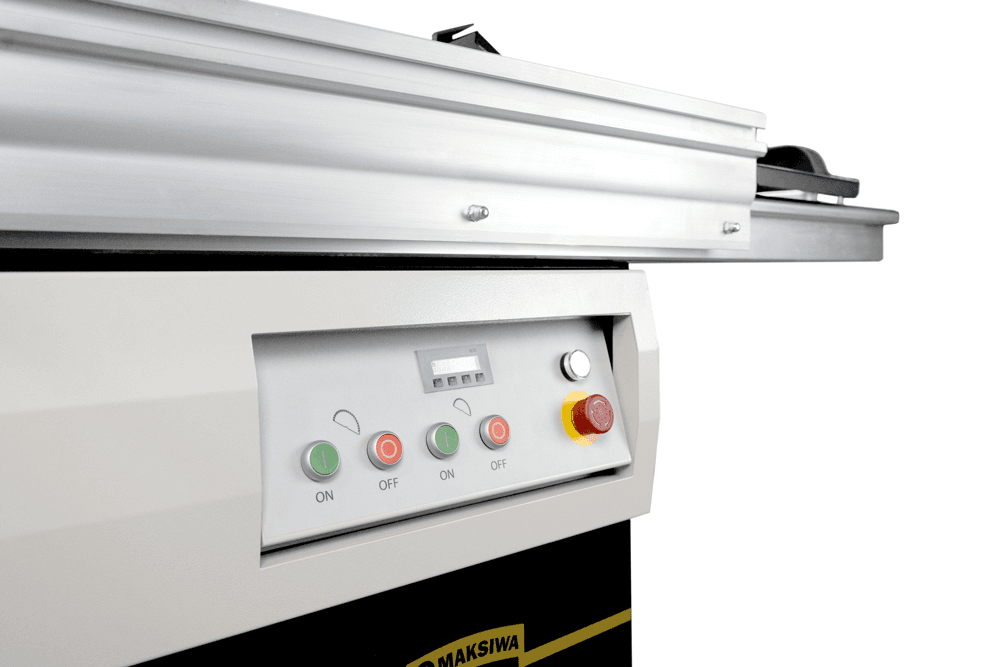

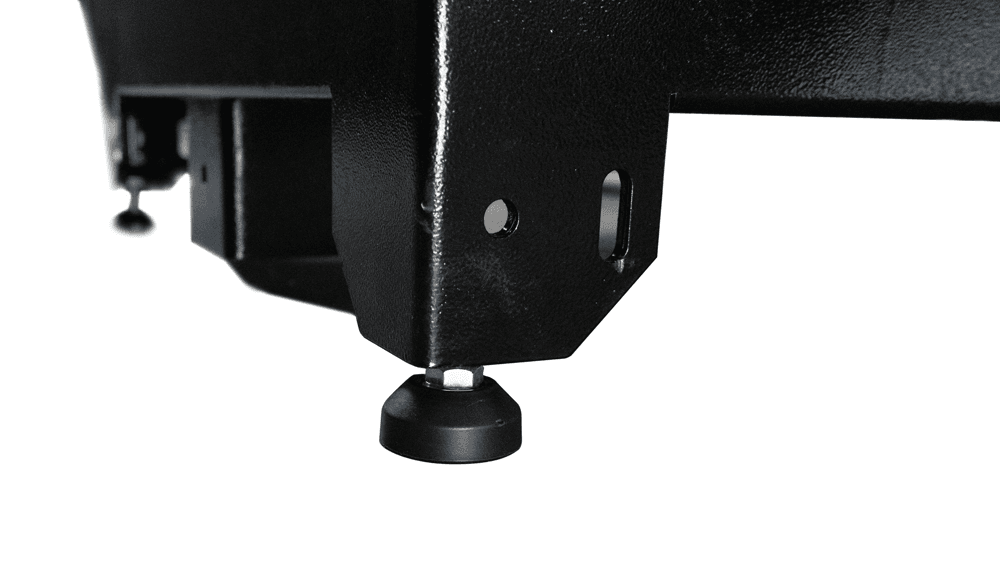

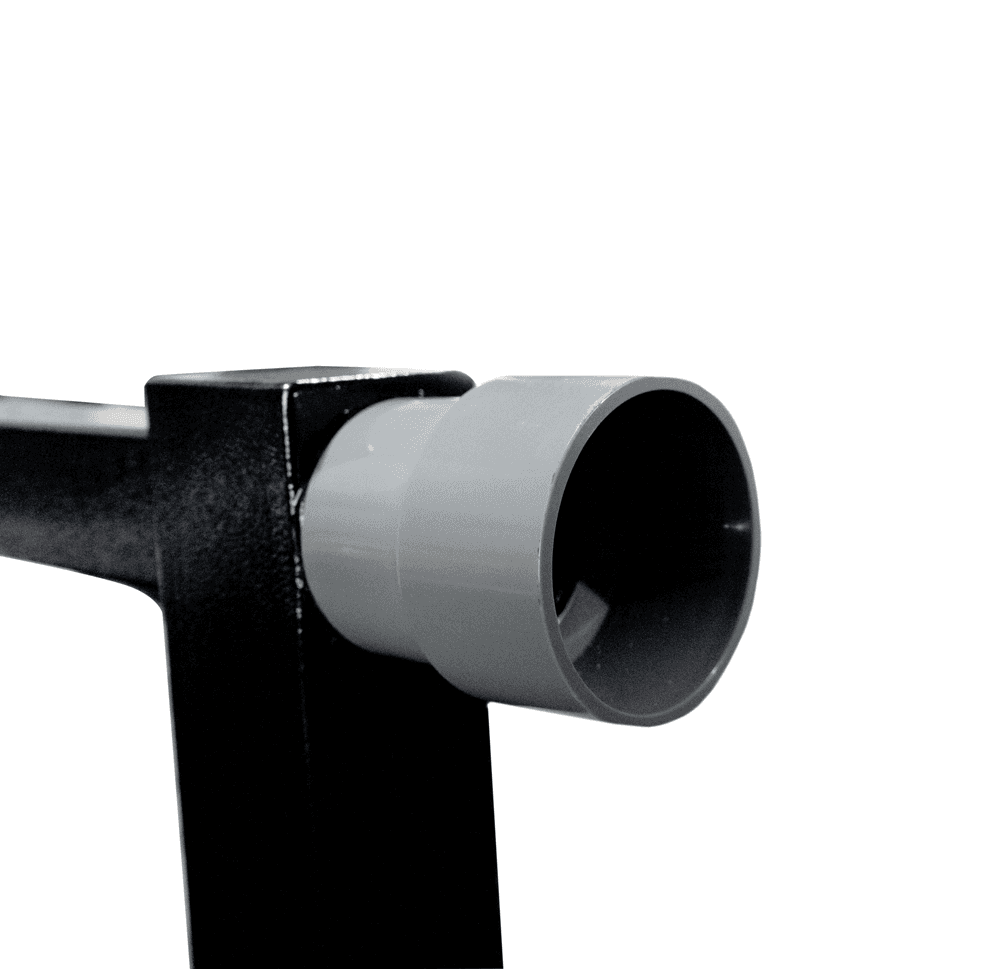

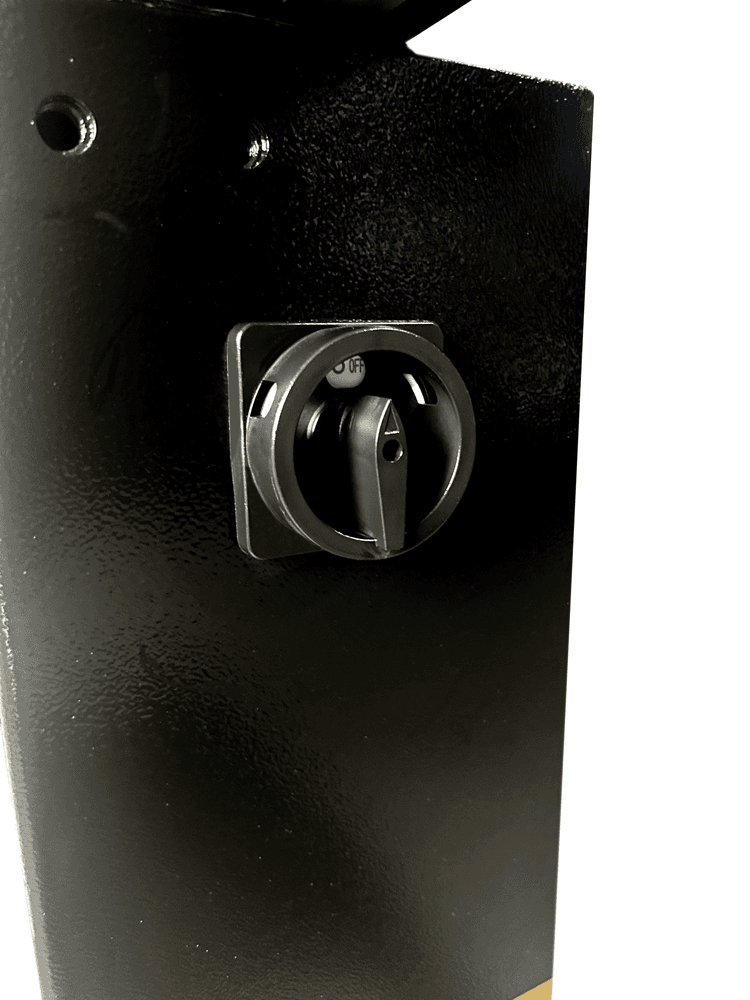

Introducing the New BMS.3200.IR 40-year Edition. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new design is more ergonomic and features a more powerful 1HP scoring motor, adjustable leveling feet, dual blade covers, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel. All these improvements come at the same unbeatable price as before!

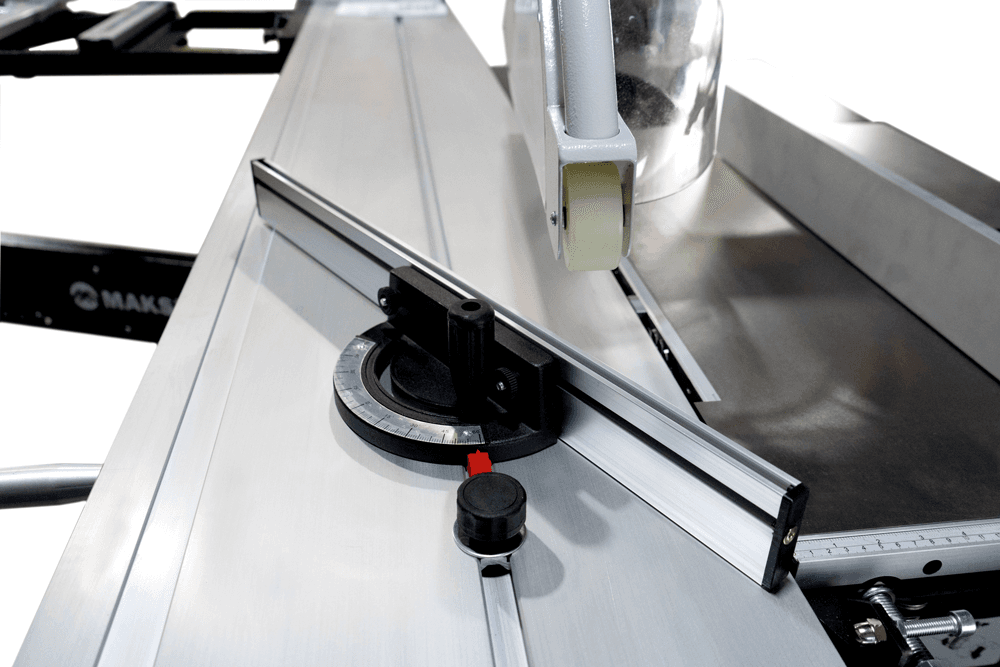

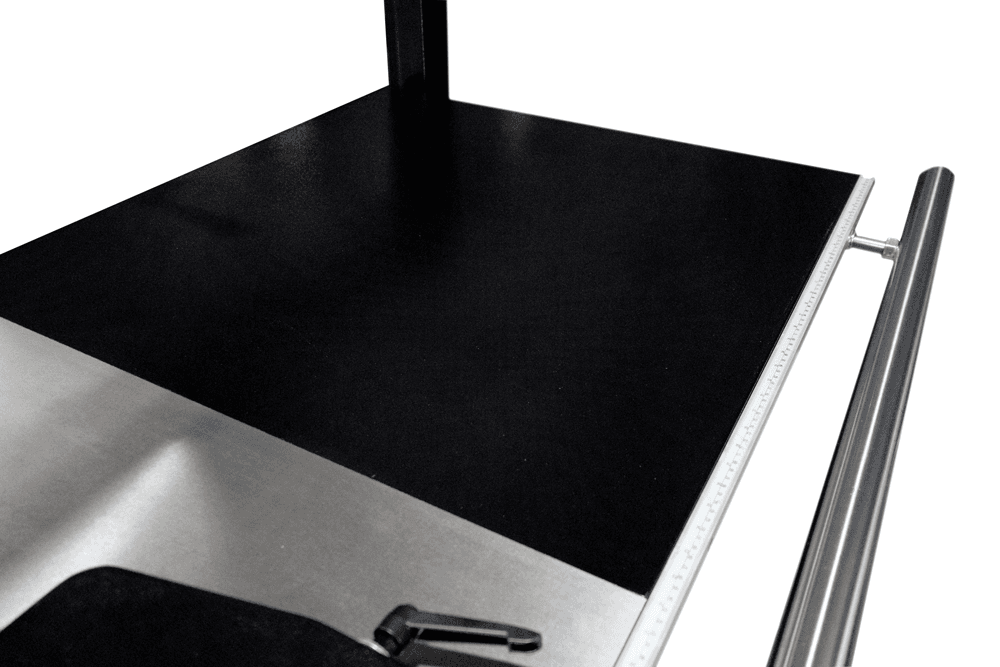

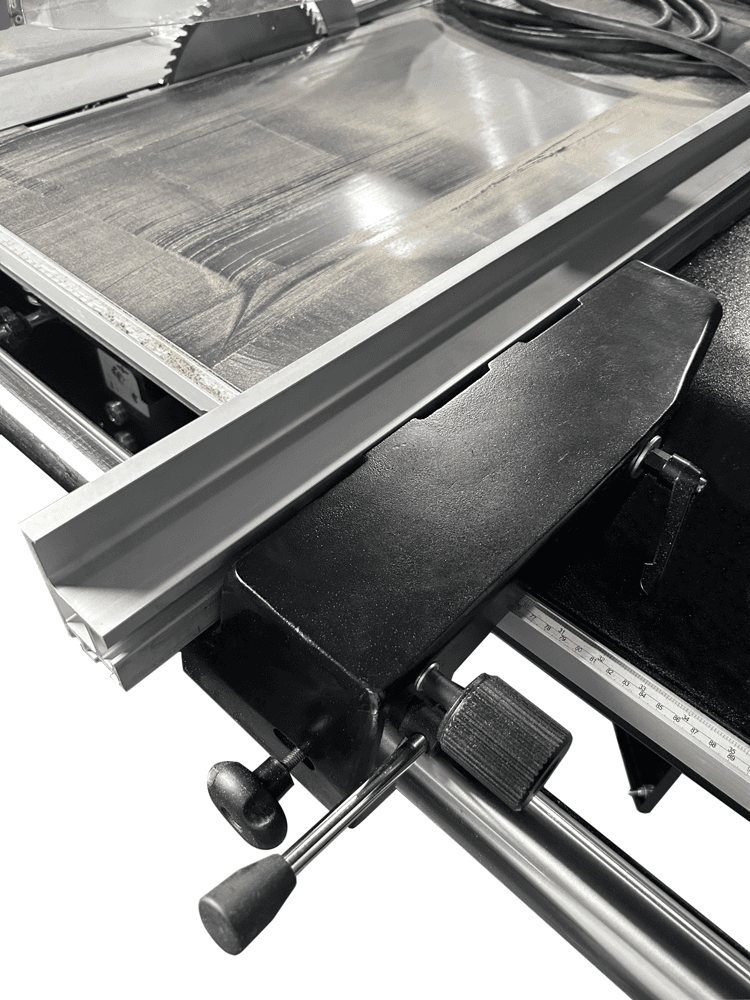

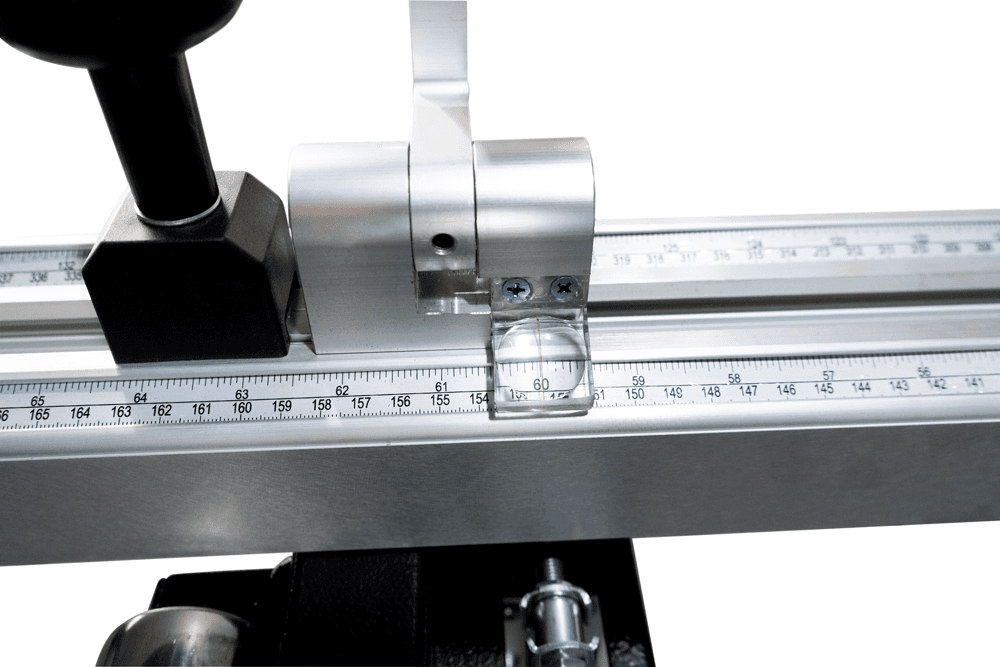

The new BMS.3200.IR boasts a robust 5HP main motor, available in both 1 Phase and 3 Phase 220V options, providing the versatility to suit various requirements. The anodized aluminum sliding table is designed to ensure durability and longevity, while the European-style 51″ rip fence, built with heavy-duty casting, glides smoothly on a micro-polished solid steel bar. Finding precise measurements is made easy with the included micro-adjustment feature, adding convenience and efficiency to your work. As a testament to our commitment to quality, we offer a comprehensive 2-year warranty on all parts and service, providing you with peace of mind.
Specifications:
- Main Motor 5 HP/ 4000 RPM 3.7 Kw

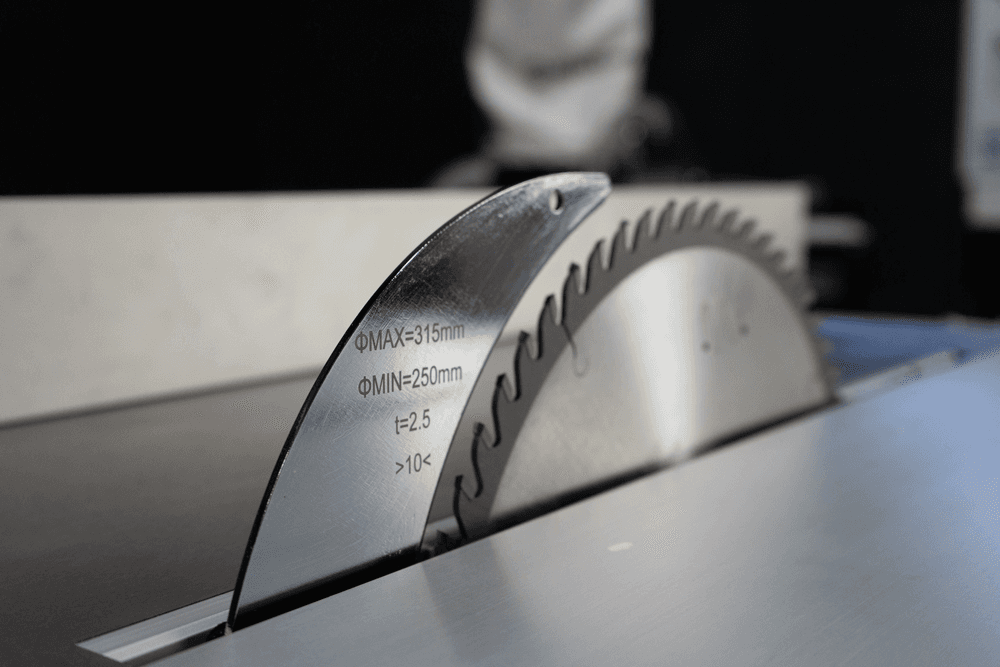

- Max Blade Diameter: 12" 305 MM
- Main Blade Arbor: 1 3/16" 30 MM
- Main Blade Max cutting Height at 90°: 3 1/2 "90 MM
- Main Blade Cutting Height at 45°: 2 1/8" 53 MM
- Scoring Motor: 1 HP / 8000 RPM .74Kw
- Scoring Motor Blade: 4 3/4" 120 MM
- Scoring Blade Arbor 3/4": 20 MM
- Scoring Blade Type: Conical
- Max Ripping Capacity: 51" 1295 MM
- Crosscut Capacity: 126" 3200 MM

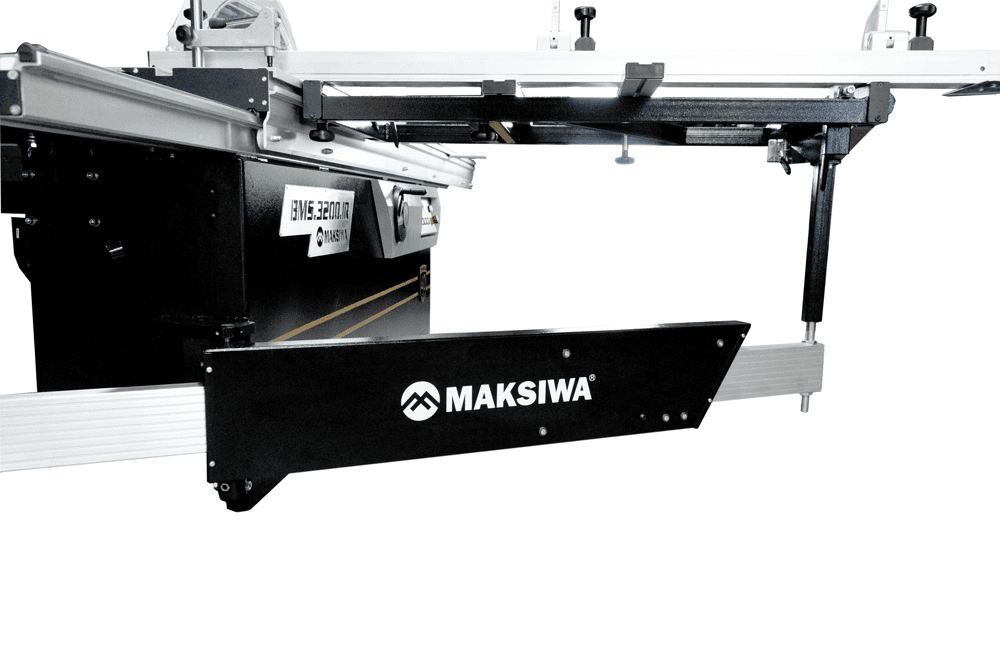

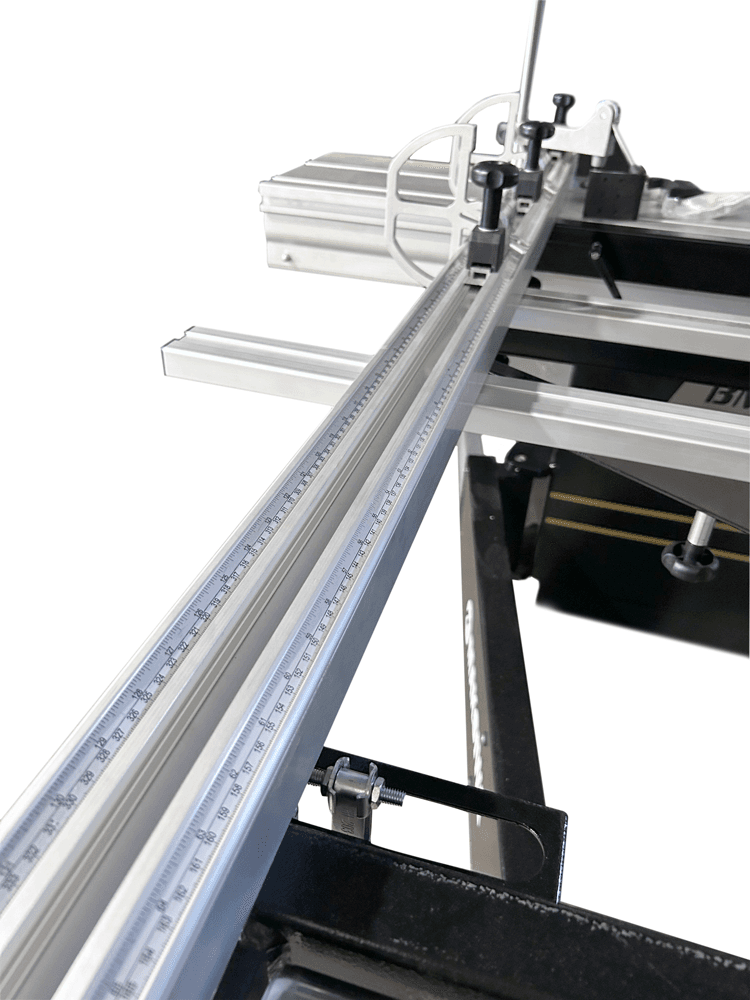

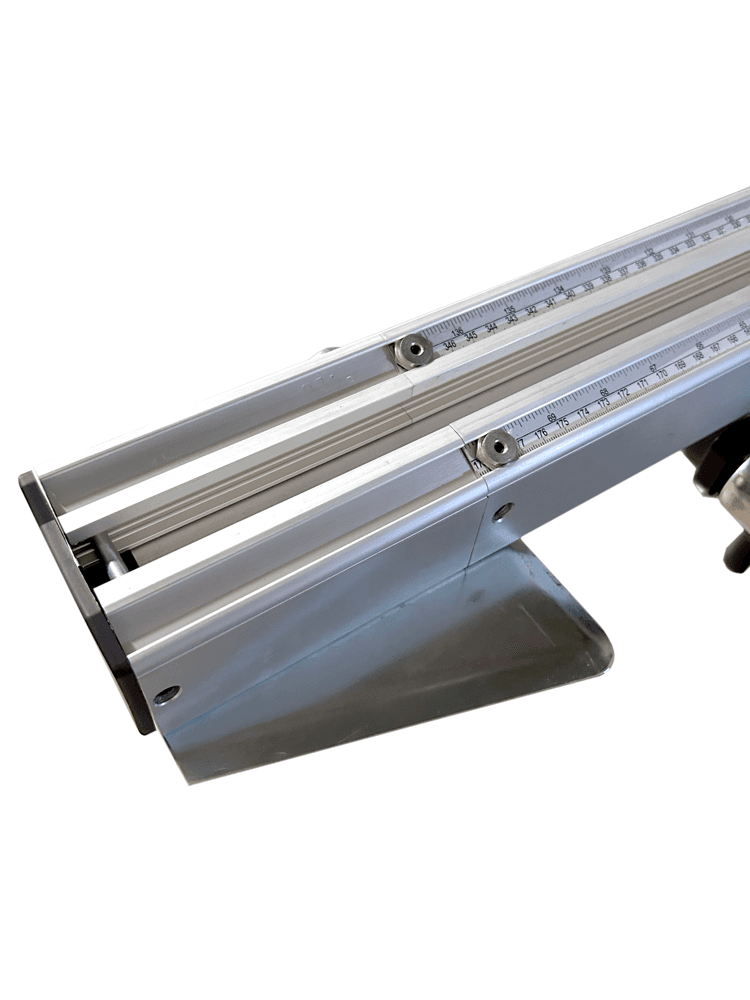

- Crosscut Fence Capacity Closed/Open: 74 3/4" / 108" 1899 MM / 2743 MM
- Machine Working Dimensions (LxWxH): 126" x 137" x 52" 3200 x 3480 x 1321 MM

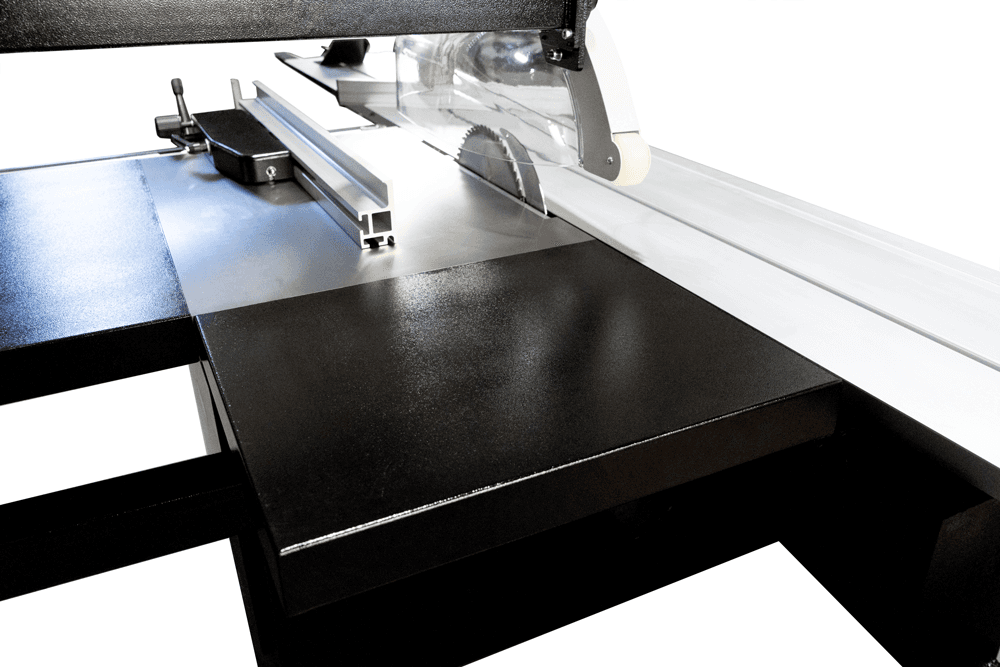

- Cast Iron Table Dimension (LxWxH): 31 1/2" x 21" x 34 3/4" 800 X 553 X 883 MM
- Sliding Table Dimension (LxW): 126" x 14 3/4" 3200 x 375 MM

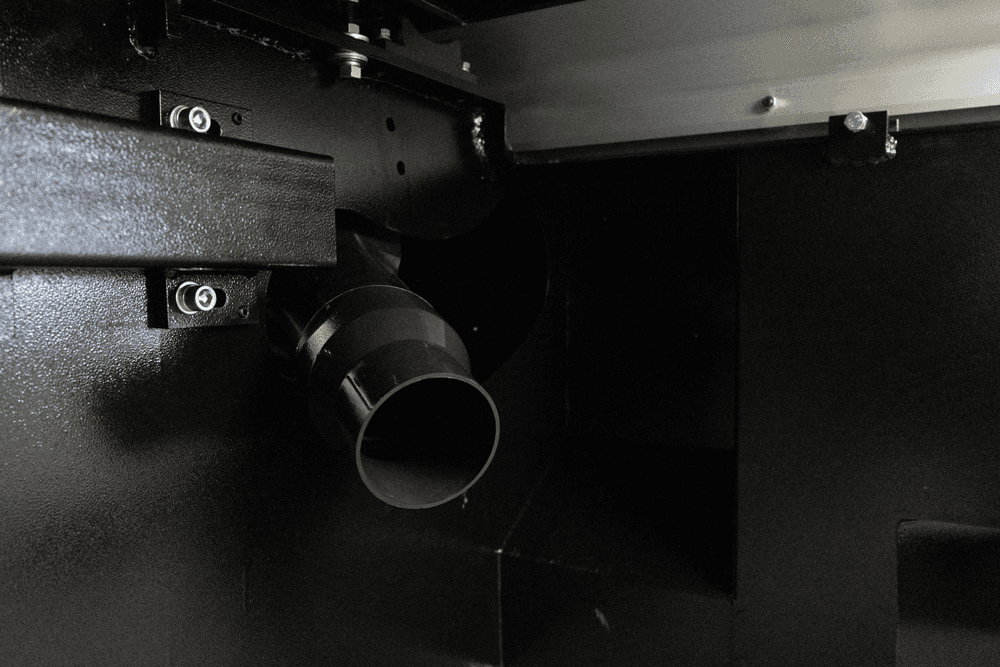

- Dust Collection Port (2): 4" 100 MM
- Minimum Dust Collection Requirements: 1000 CFM 28M/MIN
- Electrical Specs : 3 Phase 220V 11 Amps 60 Hz
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Height | |
| Material | |
| Length | |
| Width | |
| Maximum Cross Cut Length (In.) | |
| Right Side Extension Table (In.) | |
| Sliding Table Carriage Stroke | |
| Main Table Size Cast Iron Main Table Size (In.) | |
| Scoring Blade Arbor Size (In.) | |
| Motor Current (Amps) | |
| Wiring Remarks | |
| Maximum Width of Dado (In.) | |
| Dust Port Outside Diameter (In.) | |
| Prewired Voltage (V.) | |
| Style (Type) | |
| Maximum Depth of Cut (In.) | |
| Crosscut Fence Size with Extension (In.) | |
| Sliding Table Carriage Width (In.) | |
| Scoring Blade Size (In.) | |
| Scoring Motor Power | |
| Miter Fence (L x W x H) (In.) | |
| Motor Voltage (V.) | |
| Scoring Blade Speed (RPM) | |
| Maximum Cut Thickness (In.) | |
| Recommended Circuit Size (Amps.) | |
| Rear Extension Table Size (In.) | |
| Maximum Rip Length (In.) | 120" |
| Blade Speed (RPM) | |
| Blade Diameter (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Crosscut Table Size (In.) | |
| Motor Power (HP) | 5 |
| Main and Scoring Blade Tilt (Deg.) | |
| Motor Phase | Three Phase |
| Size (In.) | |
| Arbor Diameter (In.) | |
| Warranty |
