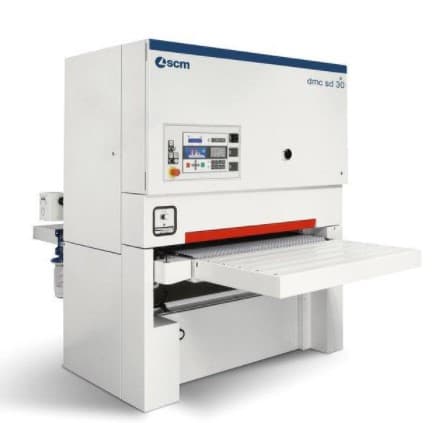

SCM DMC SD 30 CS 110 43" Automatic Wide Belt Sander with Combi Head

Machine Standard Features

• Rubber coated pressing rollers before and after working unit

• 1 HP two speed feed unit. Feed speeds set at 15 or 30 feet per minute

• Y-Delta two-stage reduced voltage starter on main motor

• 2 roller Infeed and outfeed table extensions

• Automatic Electronic Table Positioning Device

• Adjustable sanding drum and pad position for micro precision adjustment

• Electronic digital thickness readout of work table position

• Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability

• Electronic tracking of abrasive belt

• Automatic feed mat tracking

• Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt

• Front and rear emergency stop buttons

• Automatic emergency stop of machine for:

• sanding belt breaking, tensioning, over tracking

• opening of the access door to the operating groups

• absence of compressed air

• overload on main motors

• Amperage meter for main motors allows maximum utilization of available horsepower

• Main disconnect switch with the ability to be locked out by padlock

• In feed flexible steel hold down, and anti-kickback plate

• 50 shore, negative profile (waffle style) rubber feed mat

• LOGIC 50 K Electronic Programmer for timing/anti-dubbing of the pad

WORKING UNIT SPECIFICATIONS:

Working Type Unit: Combination Head

Motor HP: 24 HP

Motor Type: Single Speed

Abrasive Belt Speed: 16 mps

Drum Size: 120 mm

Drum Type: 85 Sh Rubber

Platen Size: 50 mm

Platens Included: Two

Abrasive Belt length: 75"

TECHNICAL SPECIFICATIONS:

Working Width: 1100 mm

Number of Heads Available: 1

Feed Motor: 1 HP

Feed Speed: 15 or 30 fpm

Maximum Work Piece Thickness: 170 mm

Minimum Work Piece Length: 12.5"

Abrasive Belt Size: 43" X 75"

Compressed Air Requirements: 6 Bar (88 PSI)

Dust Outlets: 1 outlest @ 140mm

Exhaust requirements: 900 CFM

Power requirements: 87 amps @ 230V Three Phase
