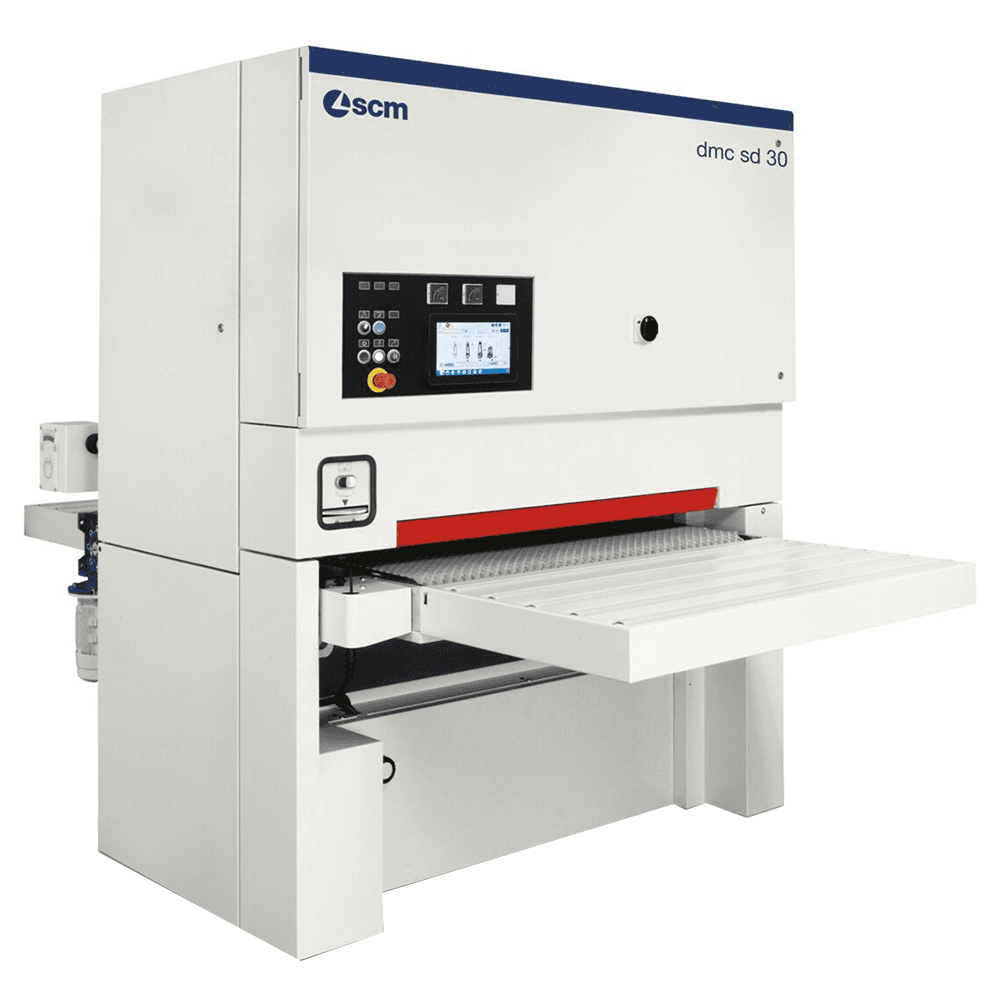

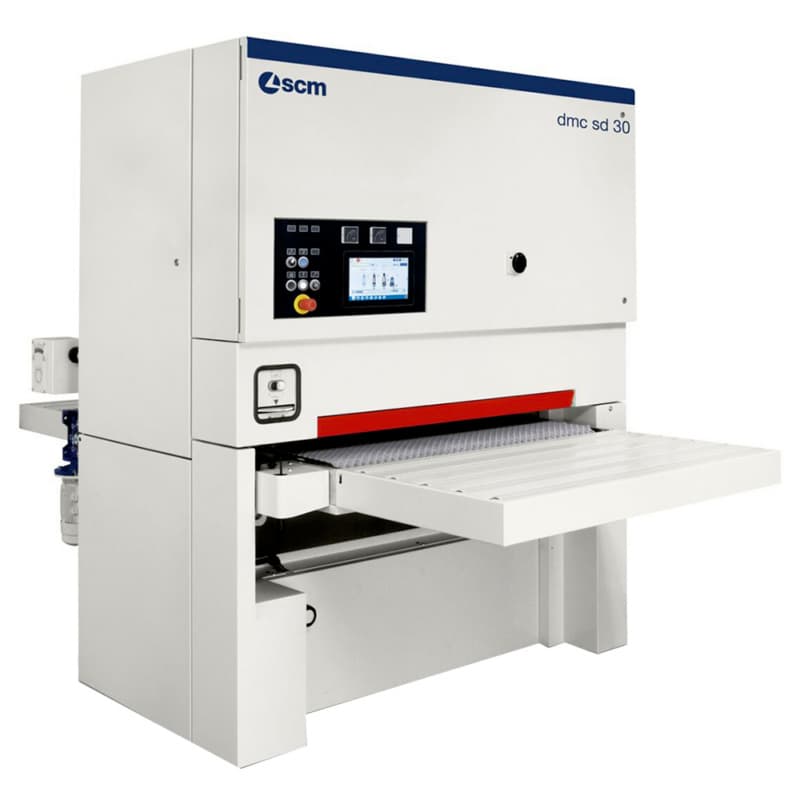

SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
General Features:
- Rubber coated pressing rollers before and after working unit
- 1 HP Inverter variable speed feed unit. Feed speeds set at 10 to 60 feet per minute
- Y-Delta two-stage reduced voltage starter on main motor

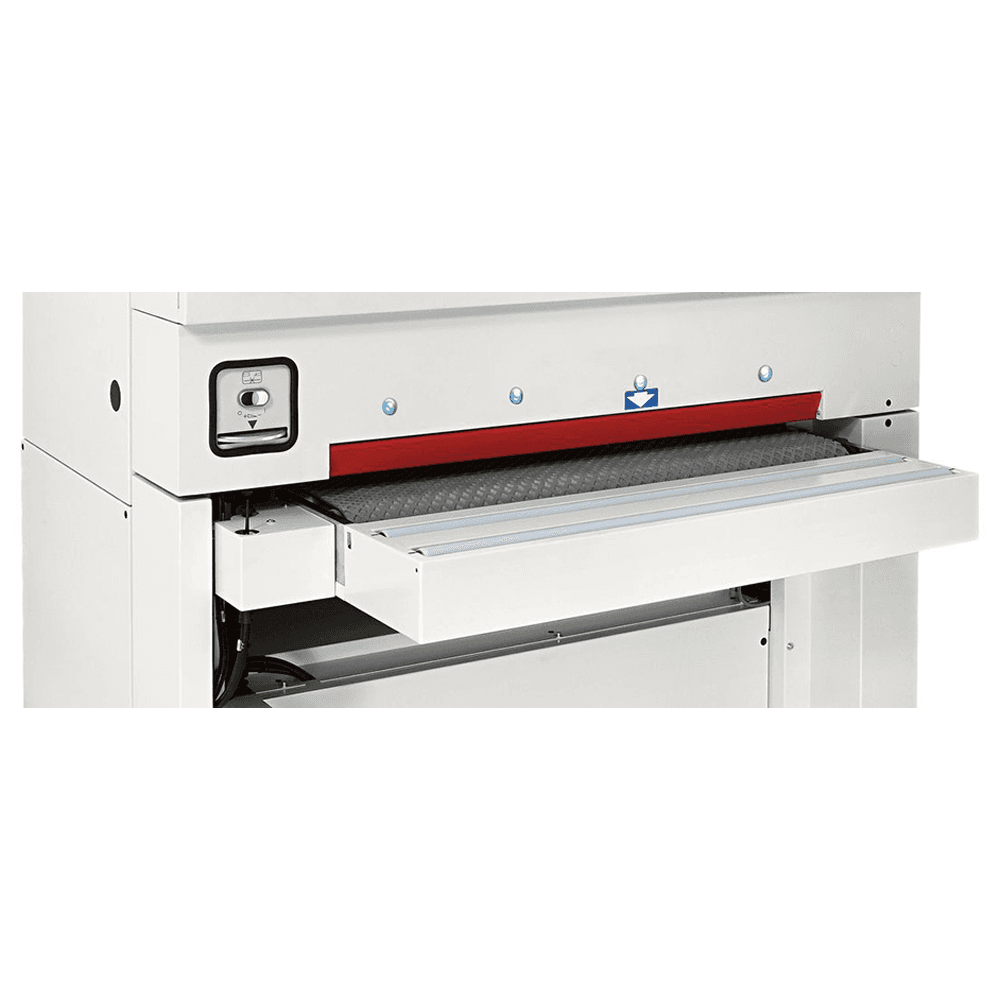

- 2 roller Infeed and outfeed table extensions
- Automatic Electronic Table Positioning Device
- Adjustable sanding drum and pad position for micro precision adjustment
- Electronic digital thickness readout of work table position
- Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
- Electronic tracking of abrasive belt
- Automatic feed mat tracking
- Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
- Front and rear emergency stop buttons
- Automatic emergency stop of machine for:
- sanding belt breaking, tensioning, over tracking
- opening of the access door to the operating groups
- absence of compressed air
- overload on main motors
- Amperage meter for main motors allows maximum utilization of available horsepower
- Main disconnect switch with the ability to be locked out by padlock
- In feed flexible steel hold down, and anti-kickback plate
- 50 shore, negative profile (waffle style) rubber feed mat

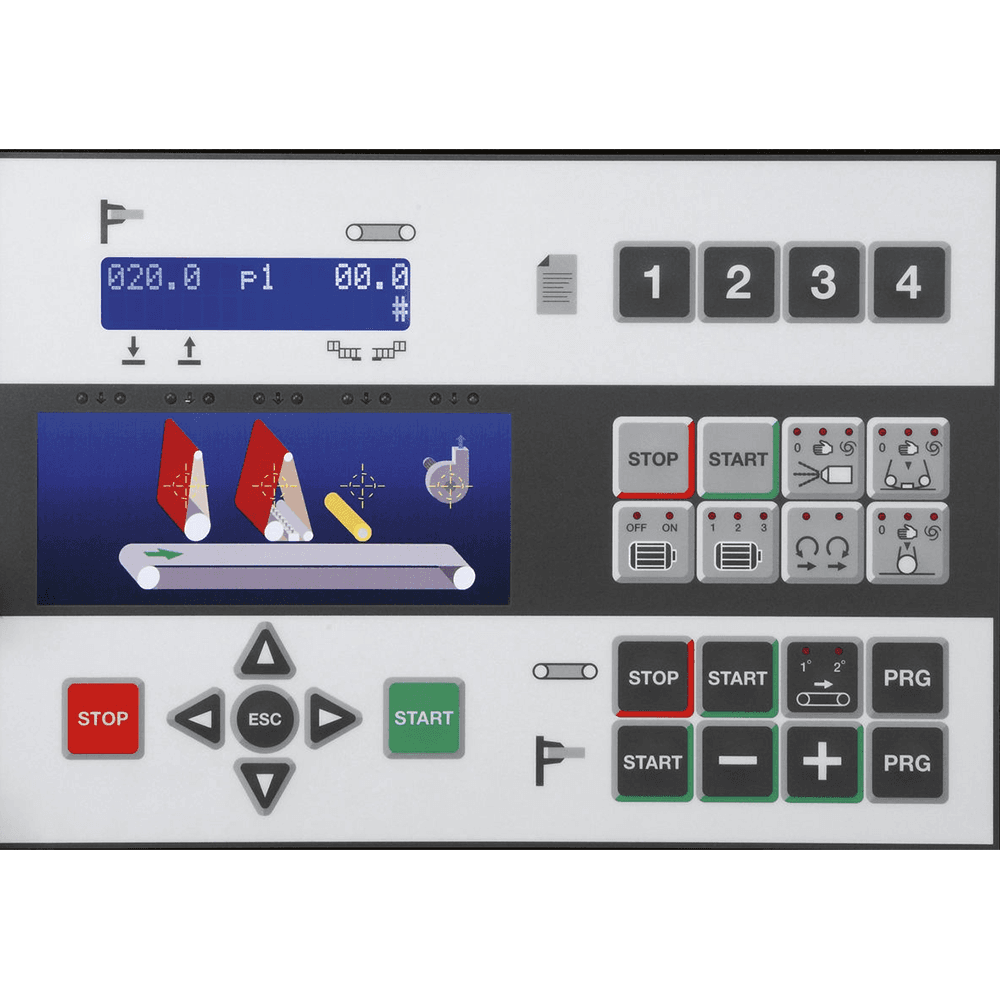

- LOGIC 50 K Electronic Programmer for timing/anti-dubbing of the pad
WORKING UNIT SPECIFICATIONS
Working Unit Type | Roller |
Motor HP | 30 HP |
Motor Type | Single Speed |
Abrasive Belt Speed | 18 mps |
Drum Size | 120 mm |
Drum Type | Steel |
Abrasive Belt Length | 75" |
Working Unit Type | Combination Head |
Motor HP | 30 HP |
Motor Type | Single Speed |
Abrasive Belt Speed | 18 mps |
Drum Size | 120 mm |
Drum Type | 45 Sh Rubber |
Platen Size | 50 mm |
Platens Included | Two |
Abrasive Belt Length | 75" |
TECHNICAL SPECIFICATIONS
Working Width | 950 mm |
Number of Heads Available | 2 |
Feed Motor | 1 HP Inverter |
Feed Speed | 15 or 30 fpm |
Maximum Work Piece Thickness | 170 mm |
Minimum Work Piece Length | 12.5" |
Abrasive Belt Size | 37" X 75" |
Compressed Air Requirements | 6 Bar (88 PSI) |
Dust Outlets | 2 outlets @ 140 mm |
Exhaust Requirements | 1800 CFM |
Power Requirements | 80 amps @ 230V Three Phase |
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
Product Type | Wide Belt Sander |
Voltage | 230V |
Belt Size | 37" x 75" |
Phase | 3 |
Drive Motor | 1 HP |
Horsepower | |
Feed Motor Power (HP) | |
Sanding Belt Speed (FPM) | |
Drum Diameter (In.) | |
Minimum Board Thickness (In.) | |
Style (Type) | |
Motor Power (HP) | |
Motor Phase | |
Table Lift Motor Power | |
Table Size (L x W) (In.) | |
Sanding Belt Size (In.) | |
Electrical Controls | |
Table Height from Floor (In.) | |
Maximum Board Thickness (In.) | |
Maximum Board Width (In.) | |
Prewired Voltage (V.) | |
Dust Collection Minimum CFM Required (CFM) | |
Recommended Circuit Size (Amps.) | |
Wiring Remarks | |
Motor Current (Amps) | |
Dust Port Outside Diameter (In.) | |
Air Required | |
Table Tilt (Deg.) | |
Motor Voltage (V.) | |
Minimum Board Length (In.) | |
Feed Rate (FPM) | |
Platen Size (In.) | |
Warranty |
