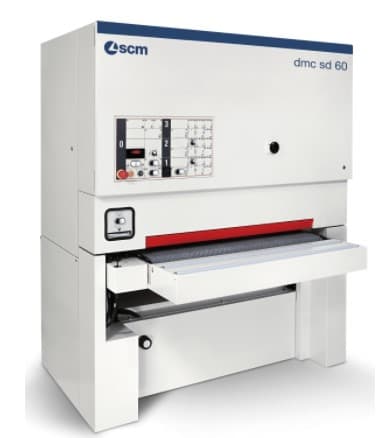

SCM DMC SD 60 RCS 135V 53" Two Head Wide Belt Sander 230V Three Phase
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
Machine Standard Features
- Two Grooved rubber coated pressing rollers before and after working unit
- 2HP variable speed feed motor 3.5-18 m/min (12-60 FPM)
- Y-Delta two-stage reduced voltage starter on main motor
- Automatic Electronic Table Positioning Device
- In-feed / Out-feed extended tables for easier part feeding
- Pneumatic On/Off selector of both rollers and pad
- Adjustable sanding drum and pad position for micro precision adjustment
- Electronic digital thickness readout of work table position
- Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
- Electronic tracking of abrasive belt
- Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
- Front and rear emergency stop button
- Amperage meter for main motors allows maximum utilization of available horsepower
- Main disconnect switch with the ability to be locked out by padlock
- In feed flexible steel hold down, and anti-kickback plate
- 50 shore, negative profile (waffle style) rubber feed mat
- LOGIC TS Electronic Touch Screen Programmer for timing/anti-dubbing of the pad
WORKING UNIT SPECIFICATIONS
1st Working Unit
Working Unit Type: Roller
Motor HP: 30 HP
Motor Type: Single Speed
Abrasive Belt Speed: 18 mps
Drum Size: 140 mm
Drum Type: Steel
Abrasive Belt Length: 85"
2nd Working Unit
Working Unit Type: Combination head
Motor HP: 24 HP
Motor Type: Two Speed
Abrasive Belt Speed: 8 or 16 mps
Drum Size: 160 mm
Drum Type: 45 Sh Rubber
Platen Size: 60m
Platens Included: Two
Abrasive Belt length: 85"
ELECTRONIC SECTIONAL PAD:
Machine is equipped with a TSE24 Electronic Sectional Pad.
Complete with 24 section reader bar and 24 individual sections at 55mm distance. Each section is activated by reader bar to move in or out of position during the sanding of veneer panels. From the controller you can activate certain sections on the side edges of the panel to move in or out of position to prevent roller over on edges or to increase sanding capabilities of solid wood banded edges. Also Anit-Dubbing is standard with this style of pad.
TECHNICAL SPECIFICATIONS
Working Width: 1350 mm
Numbner of Heads Available: 2
Feed Motor: 2 HP with Inverter
Feed Speed: 12 60 fpm
Maximum Work Piece Thickness: 170 mm
Minimum Work Piece Length: 12.5"
Abrasive Belt Size: 53" X 85"
Compressed Air Requirements: 6 Bar (88 PSI)
Dust Outlets: 2 Outlets @ 195 mm
Exhaust Requirements: 3544 CFM
Power Requirements: 130 amps @ 230V Three Phase
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
