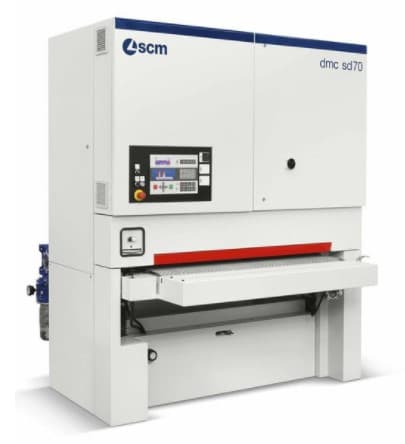

SCM DMC SD 70 RCS 53" Automatic Wide Belt Sander w/ Steel Drum, Combi Head and Elastic Pad
This item may incur additional shipping costs and lead times.
Product Details
Machine Standard Features
- Two Grooved rubber coated pressing rollers before and after working unit
- 3HP variable speed feed motor 3.5-18 m/min (12-60 FPM)
- Y-Delta two-stage reduced voltage starter on main motor
- Automatic Electronic Table Positioning Device
- In-feed / Out-feed extended tables for easier part feeding
- Pneumatic On/Off selector of both rollers and pad
- Adjustable sanding drum and pad position for micro precision adjustment
- Electronic digital thickness readout of work table position
- Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
- Electronic tracking of abrasive belt
- Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
- Front and rear emergency stop button
- Amperage meter for main motors allows maximum utilization of available horsepower
- Main disconnect switch with the ability to be locked out by padlock
- In feed flexible steel hold down, and anti-kickback plate
- 50 shore, negative profile (waffle style) rubber feed mat
- LOGIC TS Electronic Touch Screen Programmer for timing/anti-dubbing of the pad
WORKING UNIT SPECIFICATIONS
1st Working Unit
Working Unit Type: Roller
Motor HP: 30 HP
Motor Type: Single Speed
Abrasive Belt Speed: 18 mps
Drum Size: 140 mm
Drum Type: Steel
Abrasive Belt Length: 103"
2nd Working Unit
Working Unit Type: Combination Head
Motor HP: 24 HP
Motor Type: Single Speed
Abrasive Belt Speed: 18 mps
Drum Size: 160 mm
Drum Type: 45 Sh Rubber
Platen Size: 60m
Platens Included: Two
Abrasive Belt length: 103"
TECHNICAL SPECIFICATIONS
Working Width: 1350 mm
Number of Heads Available: 2
Feed Motor: 3 HP with Inverter
Feed Speed: 12 to 6 fpm
Maximun Work Piece Thickness: 170 mm
Minimum Work Piece Length: 12.5"
Abrasive Belt Size: 53" X 103"
Compressed Air Requirements: 6 Bar (88 PSI)
Dust Outlets: 2 Outlets @ 195 mm
Exhaust Requirements: 3544 CFM
Power Requirements: 130 amps @ 230V Three Phase
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
