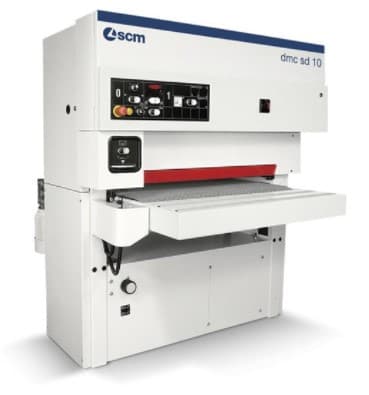

SCM DMC SD 10 CS 95 37" Automatic Wide Belt Sander with Combi Head

Machine Standard Features:

• Rubber coated pressing rollers before and after sanding unit
• Additional flexible hold-down plate before sanding unit.
• .7 HP 2 speed feed unit. Feed speeds set at 15 and 30 feet per minute
• Electronic digital thickness readout of work table position
• Electronic positioning of the work table
• Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
• Accurate and reliable electronic tracking of abrasive belt
• Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
• Front and rear emergency stop buttons
• Automatic emergency stop of machine for:
• sanding belt breaking, tensioning, over tracking
• opening of the access door to the operating groups
• absence of compressed air
• overload on main motors
• Amperage meter for main motors allows maximum utilization of available horsepower
• Main disconnect switch with the ability to be locked out by padlock
•  50 shore, negative profile (waffle style) rubber feed mat
• Infeed and Outfeed tables with 2 rollers each
• Automatic table thickness device

Working Unit Specifications

Working Unit Type	Combination Head
Motor HP	18 HP
Motor Type	Single Speed
Abrasive Belt Speed	18 mps
Drum Size	120 mm
Drum Type	85 Sh Rubber
Platen Size	50 mm
Platens Included	Two
Abrasive Belt Length	60"
1st Working Unit

Technical Specifications

Working Width	950 mm
Number of Heads Available	1
Feed Motor	.7 HP
Feed Speed	15 or 30 fpm
Maximum Work Piece Thickness	160 mm
Minimum Work Piece Length	12.5"
Abrasive Belt Size	37" X 60"
Compressed Air Requirements	6 Bar (88 PSI)
Dust Outlets	1 outlet @ 140 mm
Exhaust Requirements	900 CFM
Power Requirements	54 amps @ 230V Three Phase
