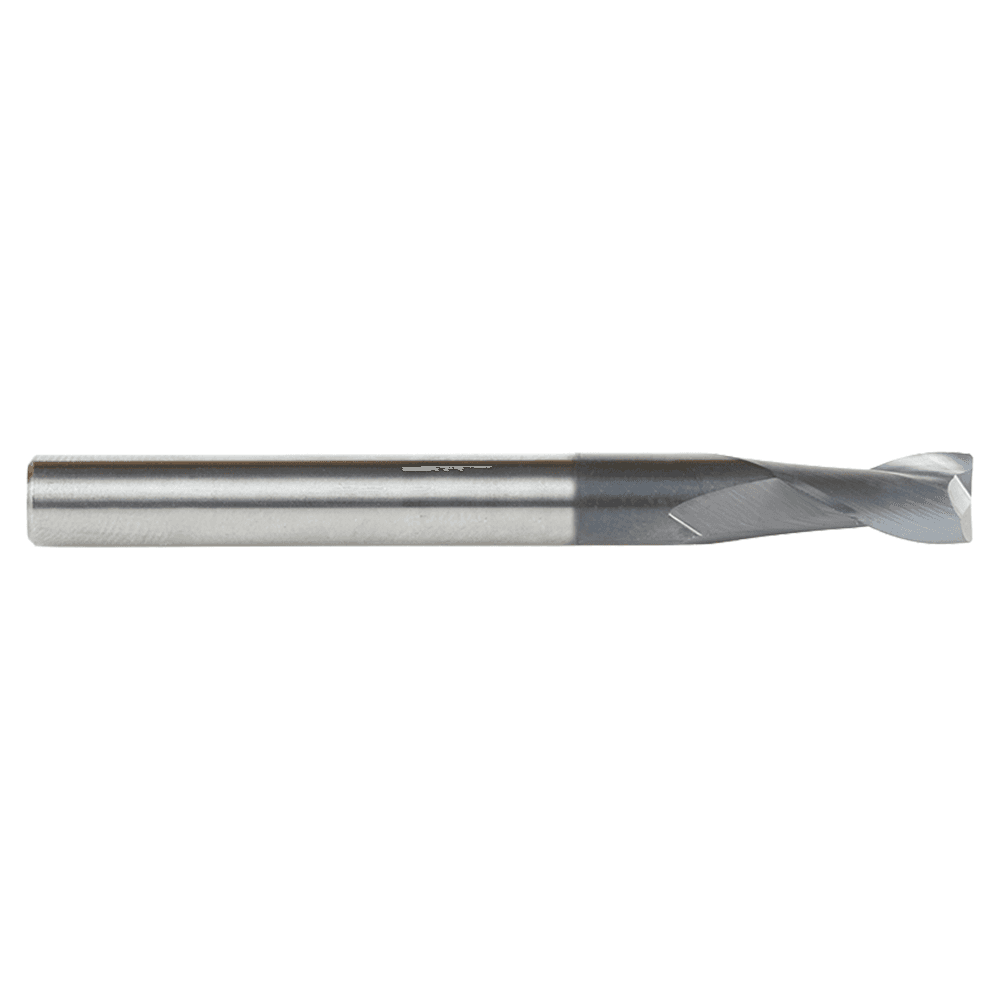

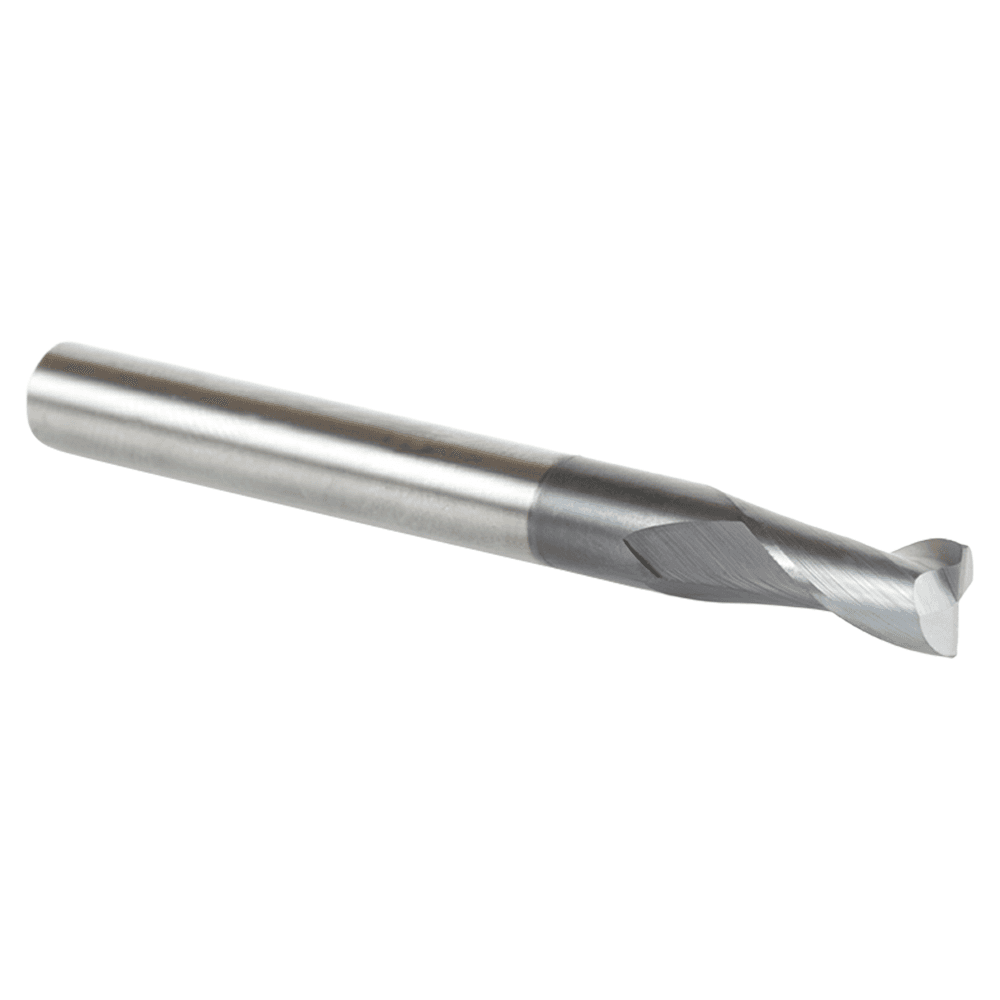

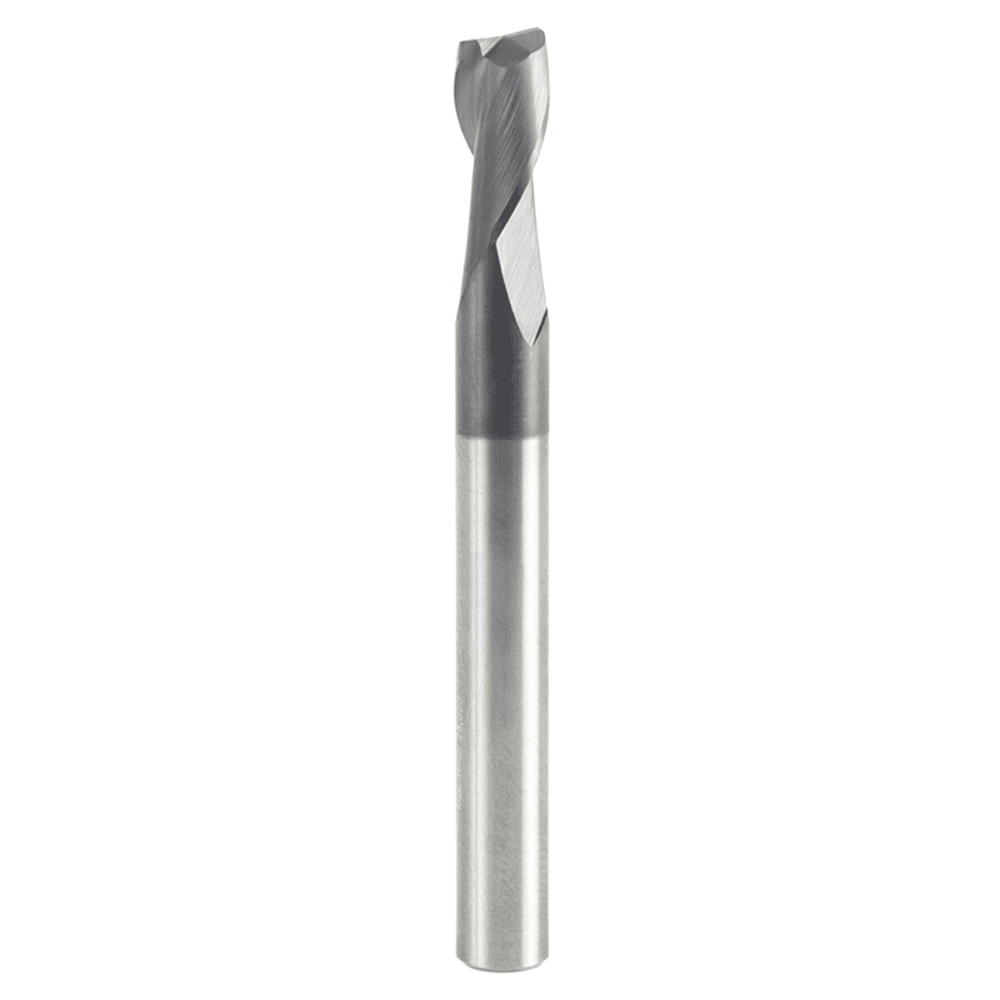

1/4" Dia x 1/2" CNC Solid Carbide Spiral Router Bit for Steel/Stainless Steel with AlTiN Coating 2-Flute, 1/4" Shank, 2-1/2" Long Up-Cut Router Bit, 45º Corner Chamfer End Mill

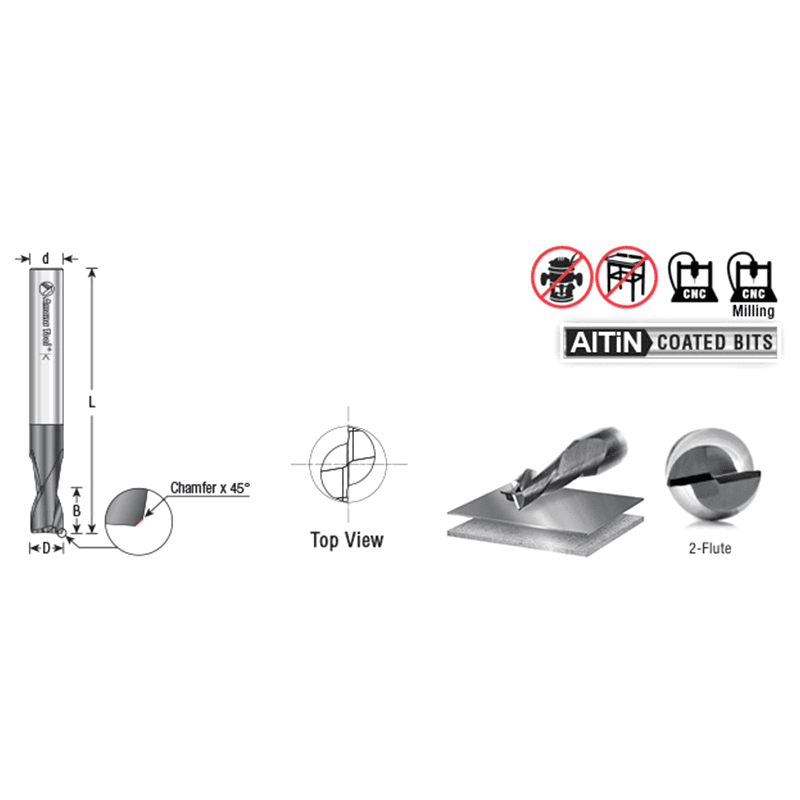

These router bits are manufactured from our exclusive ultra-fine micrograin carbide and feature a 30 degree Center Cutting Mill End with a 45 degree corner chamfer (for extra strength) up cut design and very importantly Aluminum Titanium Nitride (AlTiN) coating for superior cut quality.


Increase the ruggedness of your solid carbide end mill's number one major wear point by the addition of corner chamfers that enhance the edge strength.


Features:

• 1/4" dia x 1/2" cnc solid carbide spiral for steel/stainless steel with altin coating 2-flute, 1/4" shank, 2-1/2" long up-cut router bit/45° corner chamfer end mill

• These bits are perfect for the signmaking industry. Our special carbide grade combined with the AlTiN coating gives amazing performance. The unique corner chamfer gives the bits great strength

• Note: For optimal results and extended tool life use mist lubricant system or air cooling

• Router collet reducer RB-102 (1/4 to 1/8) available for 1/8 shank bits

• Warning: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage

• Flutes: 2


Excellent for Cutting:

• Stainless Steel

• Steel

• Cast Iron

• Composites

• Low Carbon Steel

• Magnesium

• Metal Composite Material (MCM)

• Plastics

• Super Alloys

• Titanium (up to 40HRc Hardness)


AlTiN coating has many benefits:

• Extra wear resistance

• Allows for faster feed and speed rates

• Cutting edge protected from wear

• Better chip evacuation

• Less heat build up

• Superior cutting quality and extended tool life
