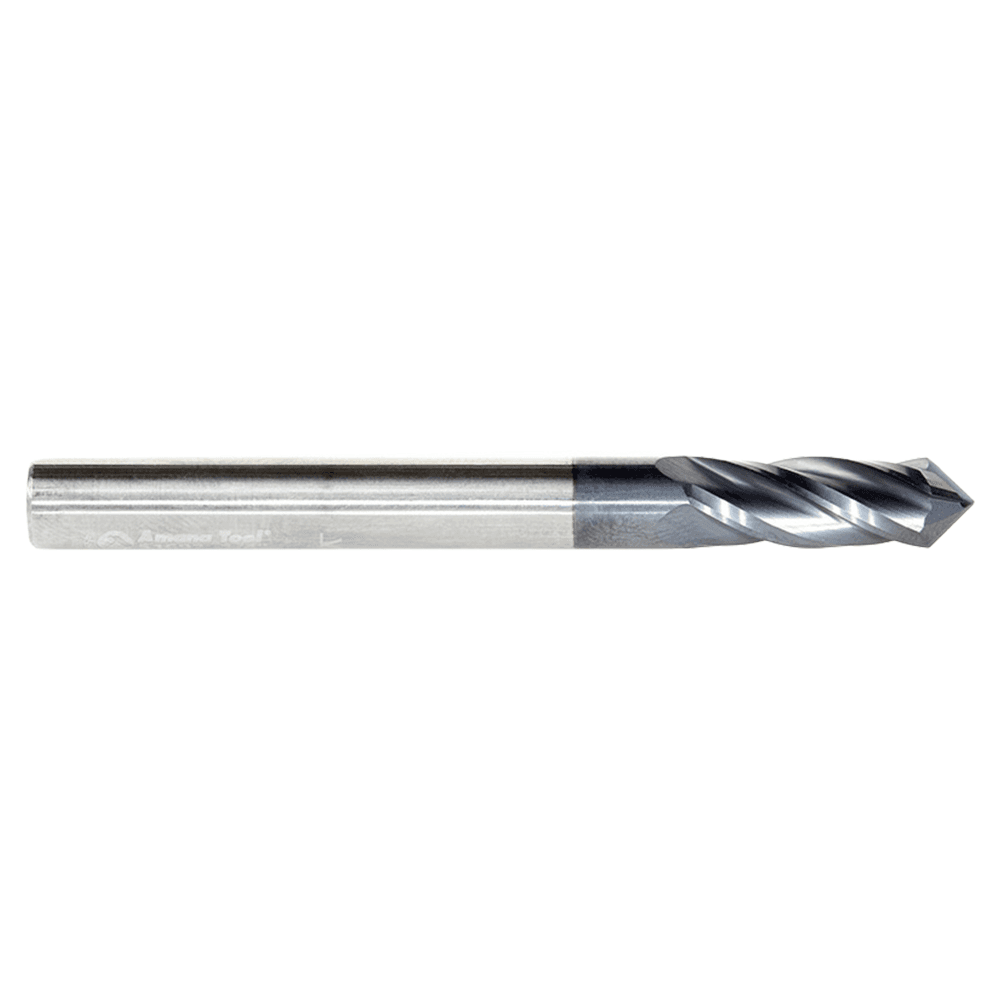

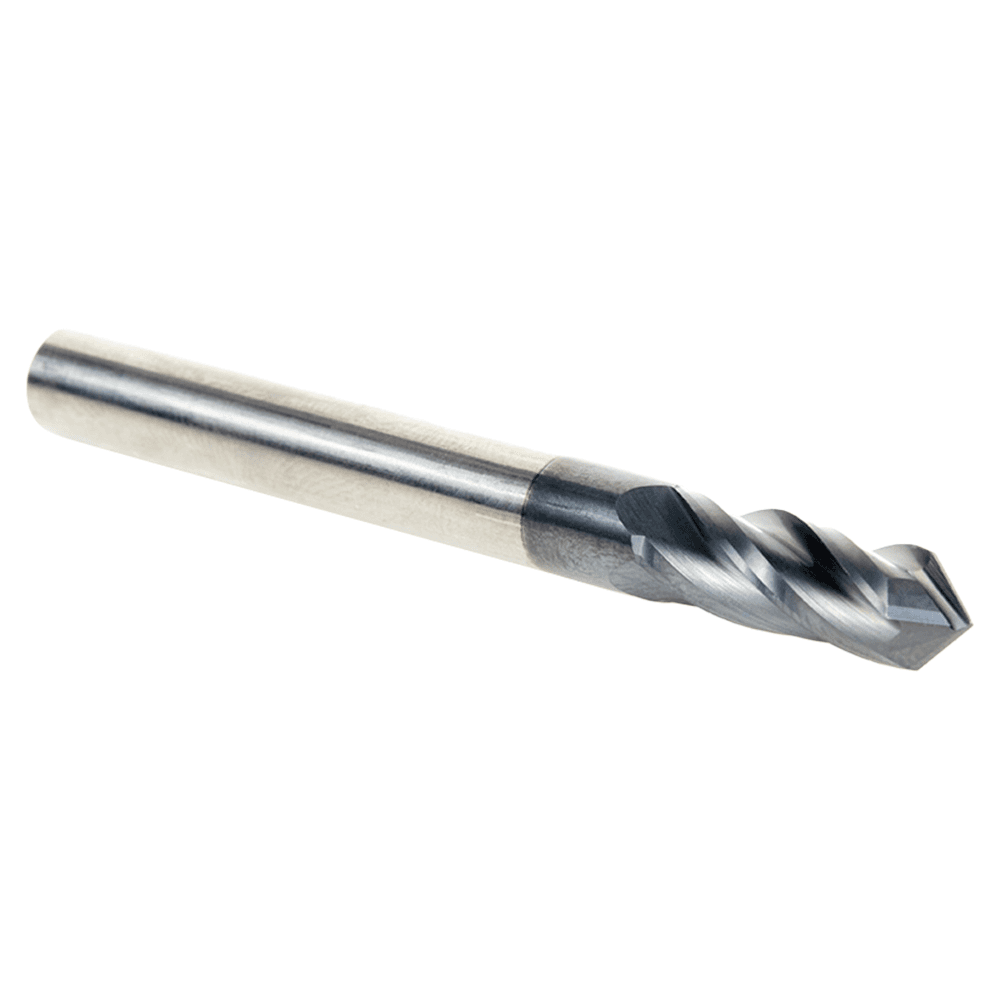

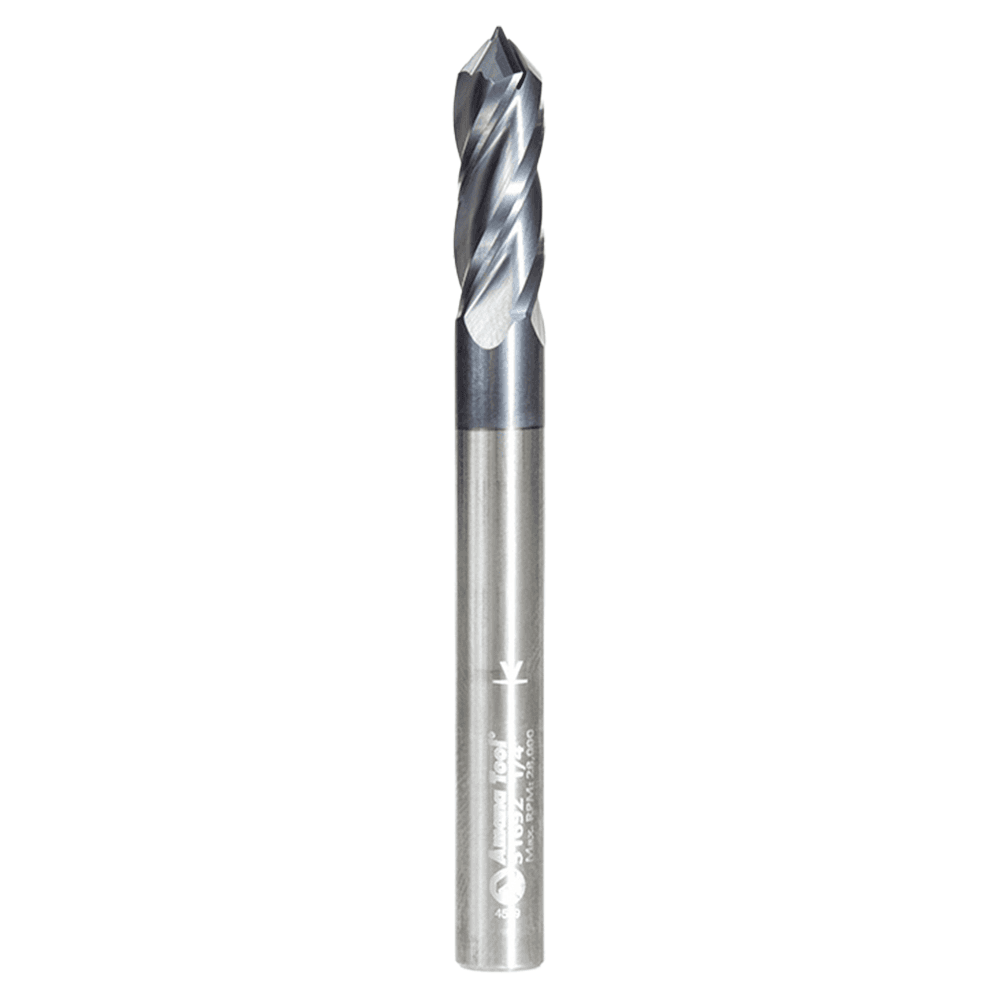

1/4" Dia x 1/8 High Performance CNC Solid Carbide 'V' Spiral Drills with AlTiN Coating 4-Flute, 1/4" Shank, 2-1/2" Long Up-Cut Router Bit, /End Mill
Product Details

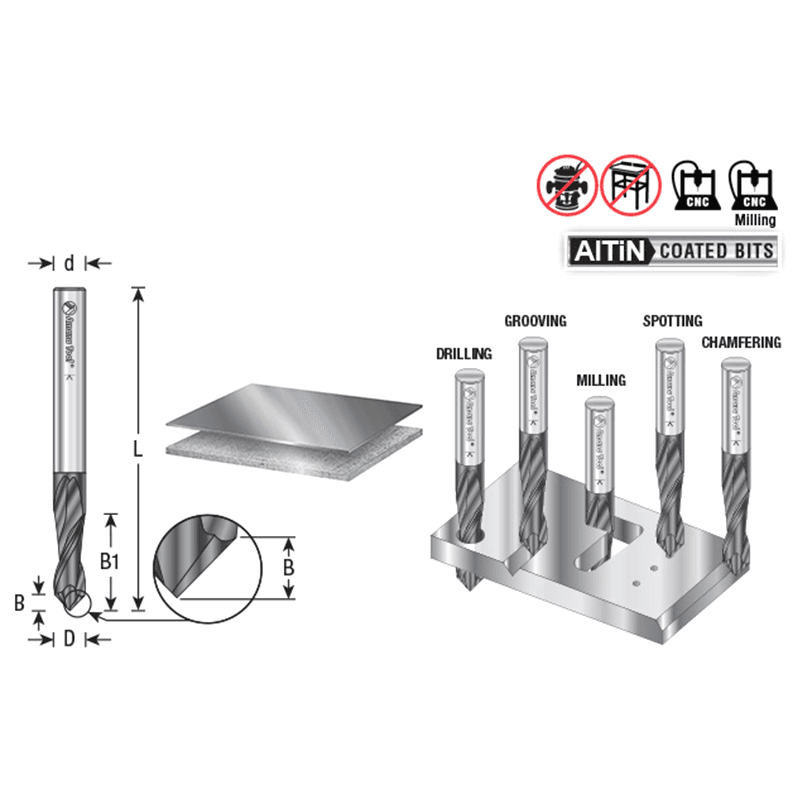

A true multi-function tool, combination drill/mills allow plunging, slotting and/or top chamfering all in one tool saving you the cost of extra tools plus indexing time. Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity, either in terms of speed or longevity, with or without coolant. Features: • 1/4" dia x 1/8 high performance cnc solid carbide ′v′ spiral drills with altin coating 4-flute, 1/4" shank, 2-1/2" long up-cut router bit/end mill • Cermets are composites in which ceramic materials and metals join together • Note: For optimal results and extended tool life use mist lubricant system or air cooling • Warning: These router bits/end mills are not designed for drilling steel, stainless steel, titanium and cermets. Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage Applications: • Drilling • Grooving • Milling • Chamfering • Shallow Spotting Excellent for Cutting: • Stainless Steel • Steel • Cast Iron • Titanium • Soft Plastics • Composites • Cermet • Metal Composite Material (MCM) AlTiN coating has many benefits: • Extra wear resistance • Allows for faster feed and speed rates • Cutting edge protected from wear • Better chip evacuation • Less heat build up • Superior cutting quality and extended tool life
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1/8" - 3/4" |
| Width | |
| Cutting Diameter | 1/4" |
| Application | |
| Material | |
| Product Type | Router Bit |
| Length | 2-1/2" |
| Degree of Cut | 90° |
| Shank Diameter | 1/4" |
