51719 0.010" AlTiN Coated CNC Steel Square Mini End Mill Bit, 4-Flute

Item # AN51719
Mfr # 51719
51719 0.010" AlTiN Coated CNC Steel Square Mini End Mill Bit, 4-Flute Main - Image

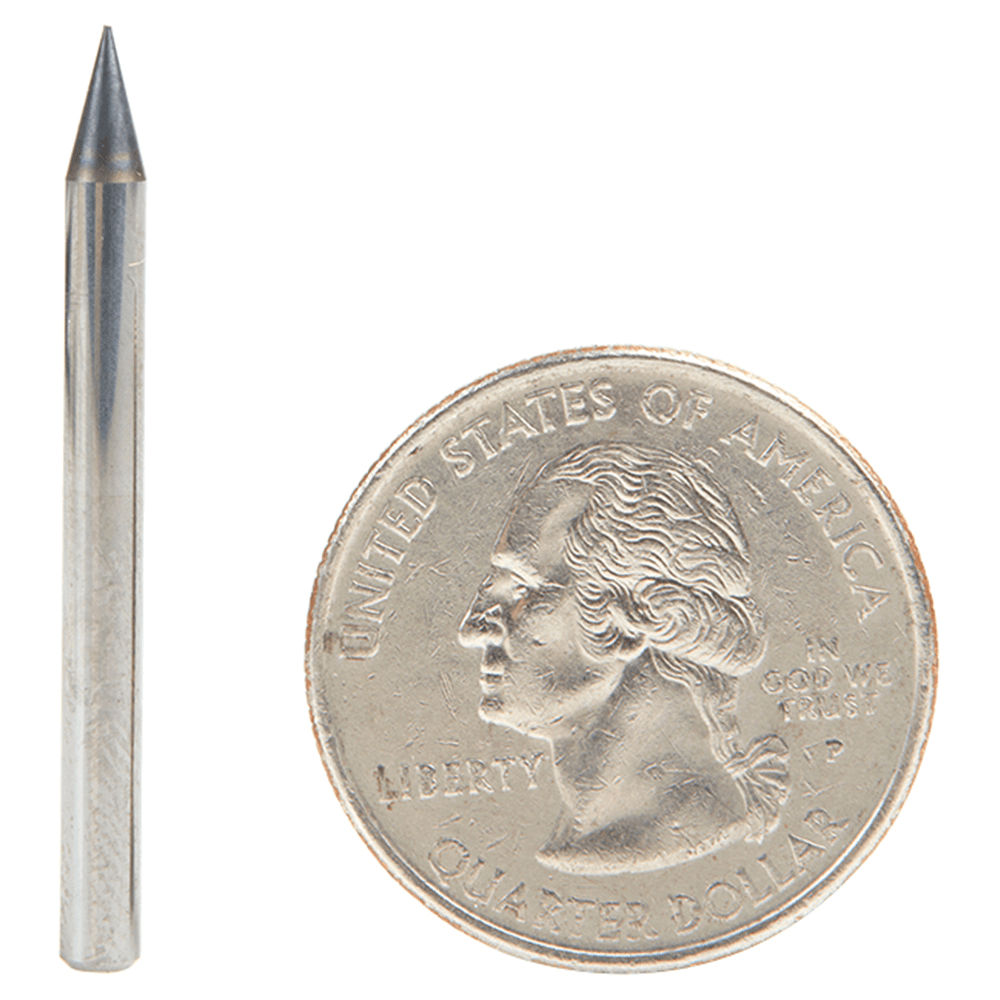

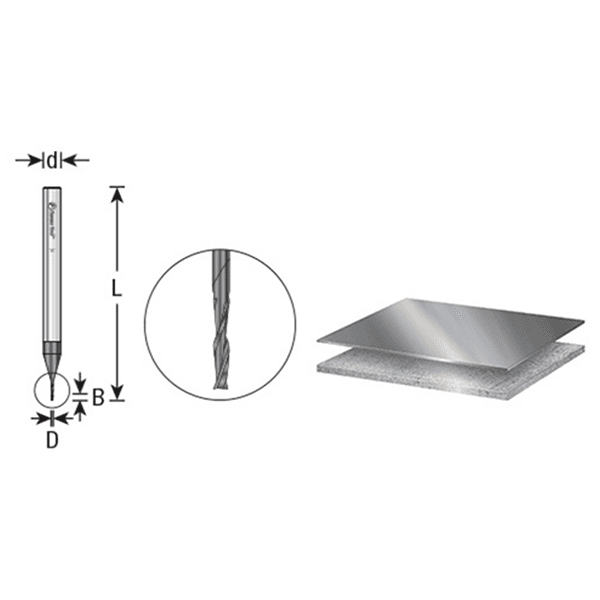

51719 0.010" AlTiN Coated CNC Steel Square Mini End Mill Bit, 4-Flute Alt 1 - Image

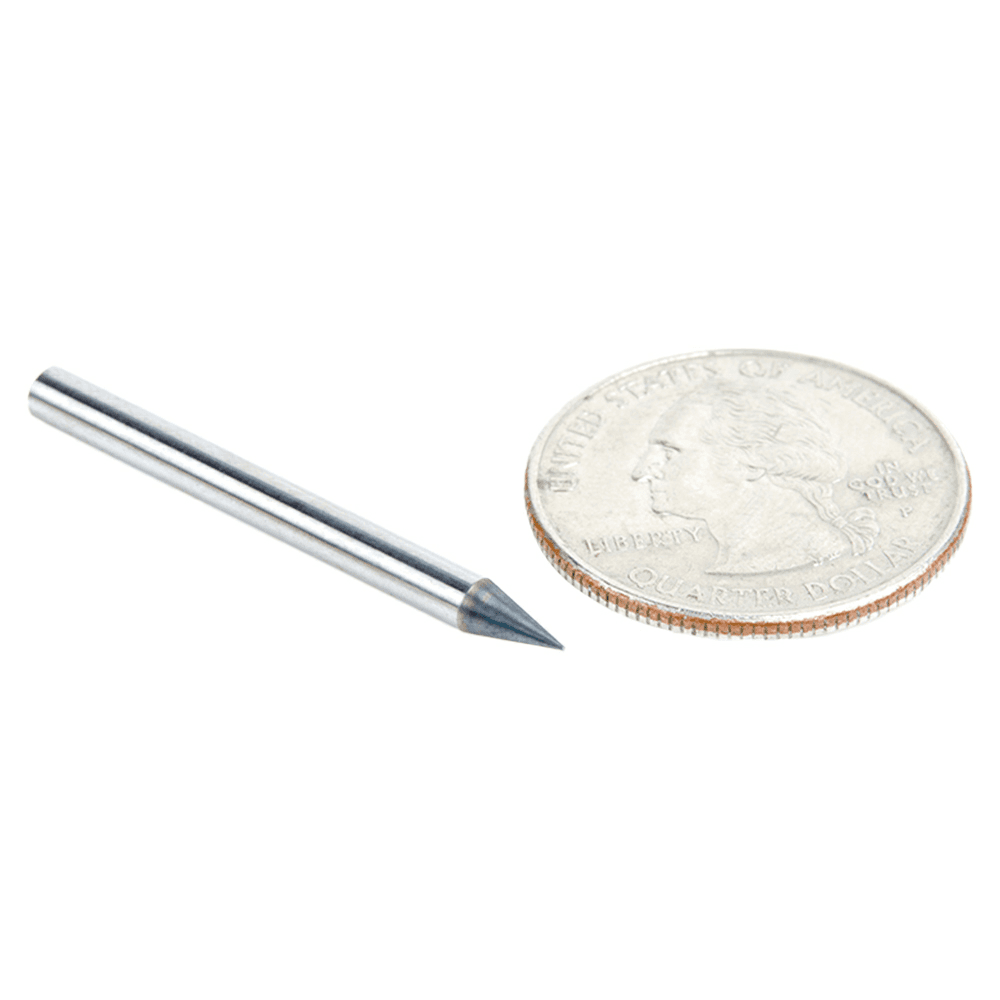

51719 0.010" AlTiN Coated CNC Steel Square Mini End Mill Bit, 4-Flute Alt 2 - Image

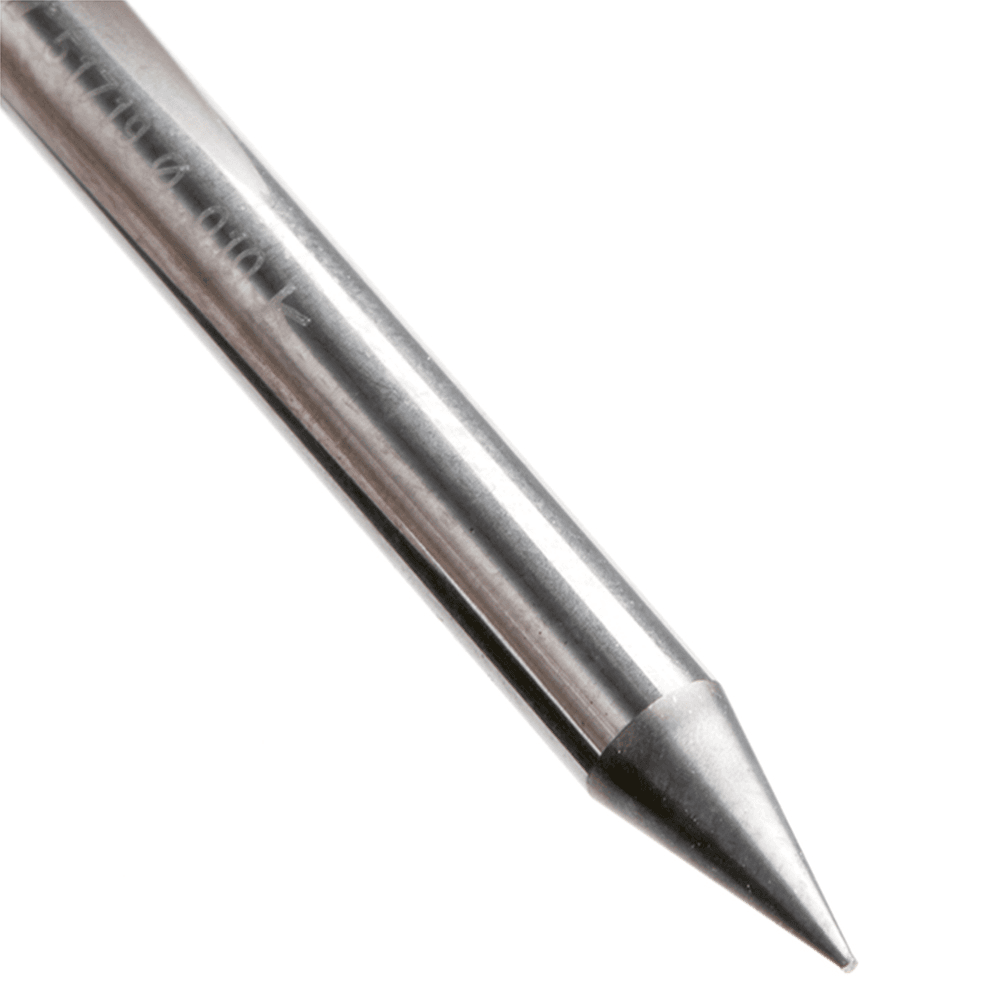

51719 0.010" AlTiN Coated CNC Steel Square Mini End Mill Bit, 4-Flute Alt 3 - Image
51719 0.010" AlTiN Coated CNC Steel Square Mini End Mill Bit, 4-Flute Alt 4 - Image
$56.27
/Each
Backordered
Items are expected to ship by Fri, Jun. 13 2025.
Qty / Each
Min Order: 1
Qty mult. by: 1

Product Details

High performance designed for micro applications. Micro machining applications involve miniature tooling that requires very high attention to tolerances and detail in their construction. These end mills incorporate 30 degree helixes and AlTiN coating to insure a high degree of precision. Miniature end mills also routinely require RPMs in excess of 40,000 RPMs or more so attention to both RPM capacity and accurate chip-loads is mandatory.

Choose 2 flute endmills for efficient vertical plunging, pocketing and slotting operations. 4 fluted tools offer the promise of improved surface finishes, longer service life and increased feed-rates with peripheral milling applications. *Cermets are composites in which ceramic materials and metals join together.

Excellent for Cutting:
• Stainless Steel
• Steel
• Titanium
• Cast Iron
• Cermet
• Magnesium
• Plastic


AlTiN Coating has Many Benefits:
• Extra wear resistance
• Allows for faster feed and speed rates
• Cutting edge protected from wear
• Better chip evacuation
• Less heat build up
• Superior cutting quality and extended tool life


Note: • For optimal results and to extend tool life when trimming/cutting please use mist lubricant system or air cooling
• Please inspect cut and adjust accordingly

Warning:
• Due to the extremely small diameters involved please exercise caution to the accurate calculations of all feed and speed rates

Specifications

Box Quantity1
Application
Cutting Diameter0.010"
Length1-1/2"
MaterialStainless Steel/Composite
Product TypeMini End Mill Bit
Screw Size
Shank Diameter1/8"
Rotation
