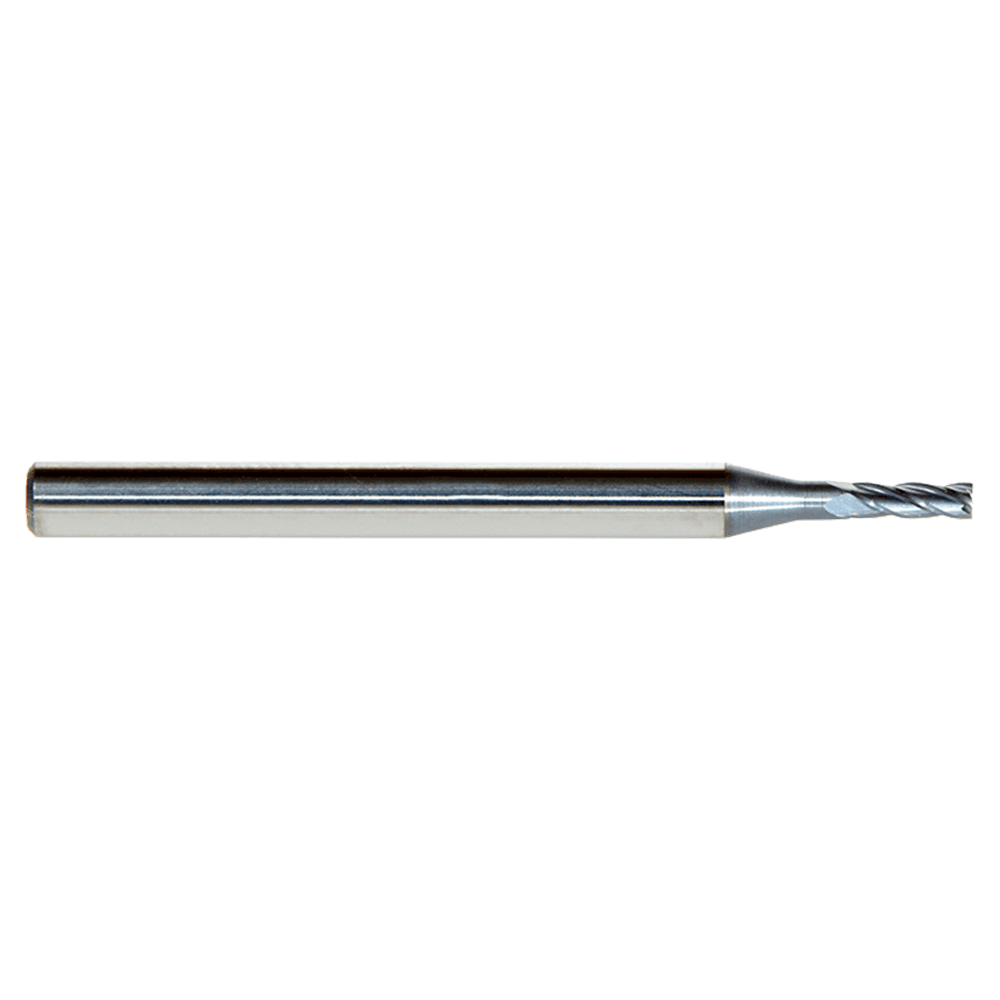

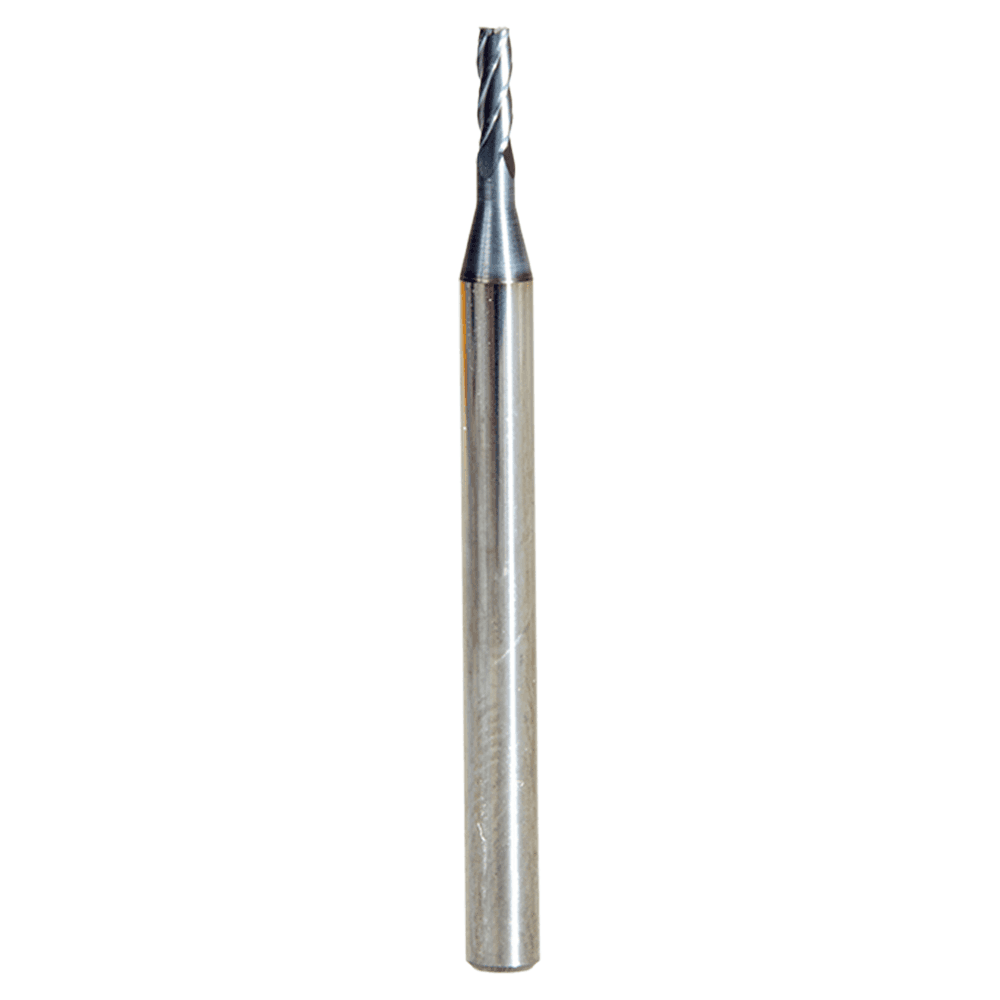

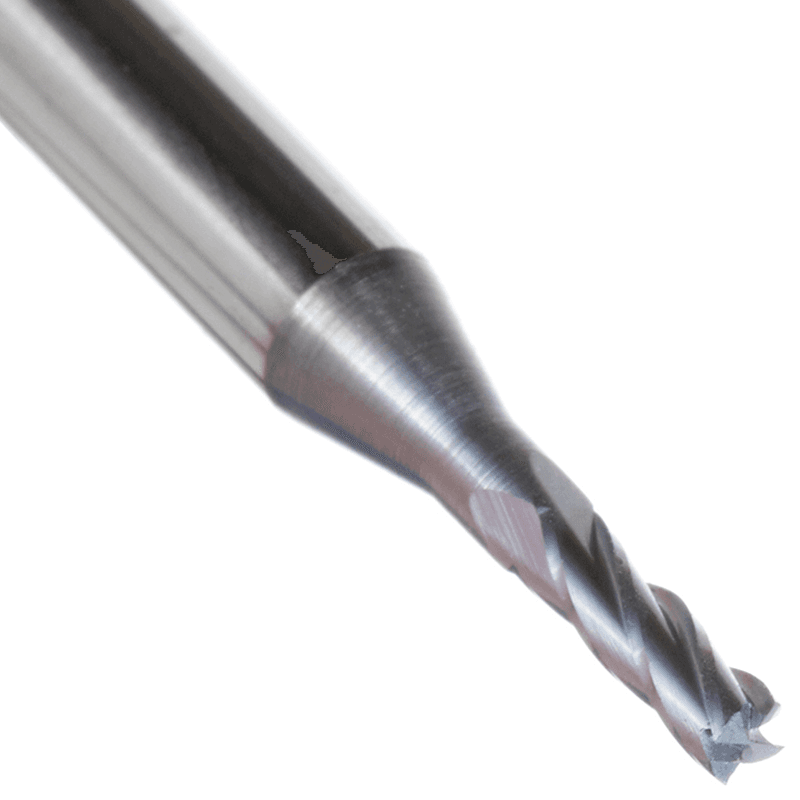

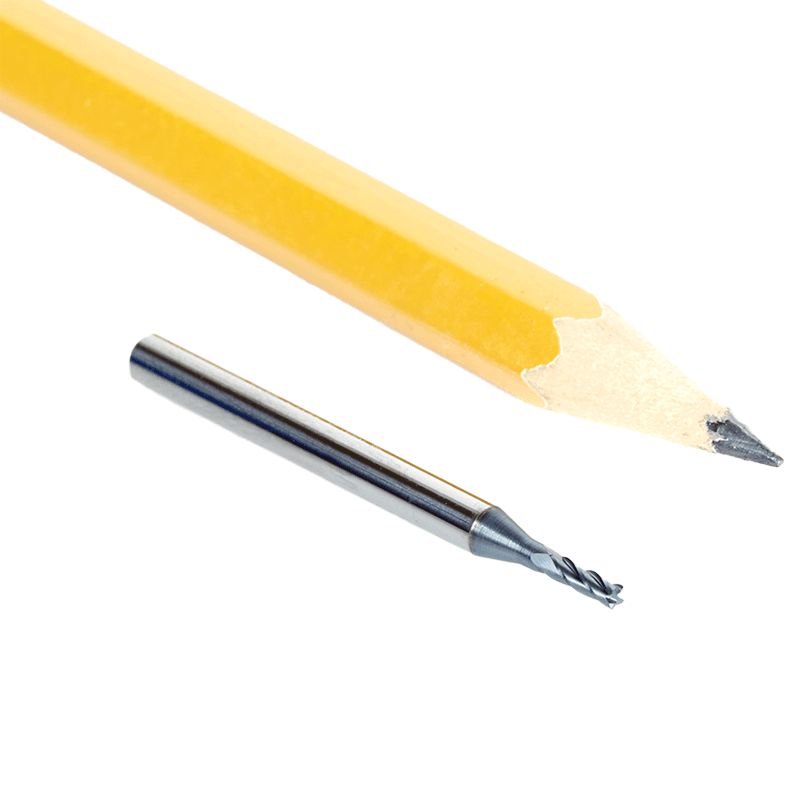

Name: 0.060" AlTiN Coated CNC Steel Square Mini End Mill Bit, 4-Flute
Brand: Amana Tool
Availability: BackOrder

High performance designed for micro applications. Micro machining applications involve miniature tooling that requires very high attention to tolerances and detail in their construction. These end mills incorporate 30 degree helixes and AlTiN coating to insure a high degree of precision. Miniature end mills also routinely require RPMs in excess of 40,000 RPMs or more so attention to both RPM capacity and accurate chip-loads is mandatory.

Choose 2 flute endmills for efficient vertical plunging, pocketing and slotting operations. 4 fluted tools offer the promise of improved surface finishes, longer service life and increased feed-rates with peripheral milling applications.

Features:
• Warning: Due to the extremely small diameters involved please exercise caution to the accurate calculations of all feed and speed rates

Excellent for Cutting:
• Stainless Steel
• Steel
• Titanium
• Cast Iron
• Cermet
• Magnesium
• Plastic

AlTiN Coating has Many Benefits:
• Extra wear resistance
• Allows for faster feed and speed rates
• Cutting edge protected from wear
• Better chip evacuation
• Less heat build up
• Superior cutting quality and extended tool life

Box Quantity	1

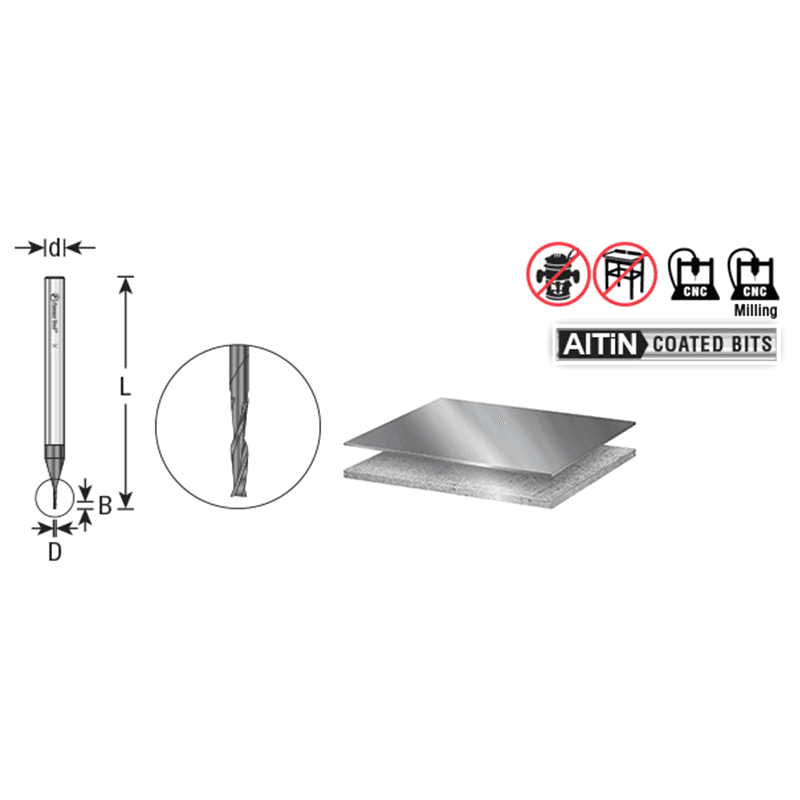

Diameter (in)	0.060 in
Cutting Height (in)	0.360 in
Shank Diameter (in)	1/8 in
Cutting diameter (mm)	0.060 in
Product Type	End Mill Bit
Number of Flutes	4
Overall Length (in)	1-1/2 in
Material Type	Stainless steel
Cut Direction	Up-cut

Box Quantity	1
Diameter (in)	0.060 in
Cutting Height (in)	0.360 in
Shank Diameter (in)
